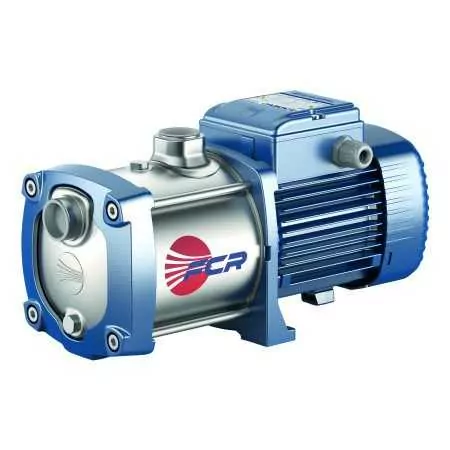

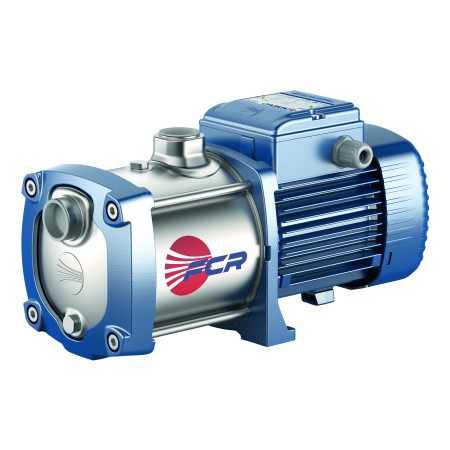

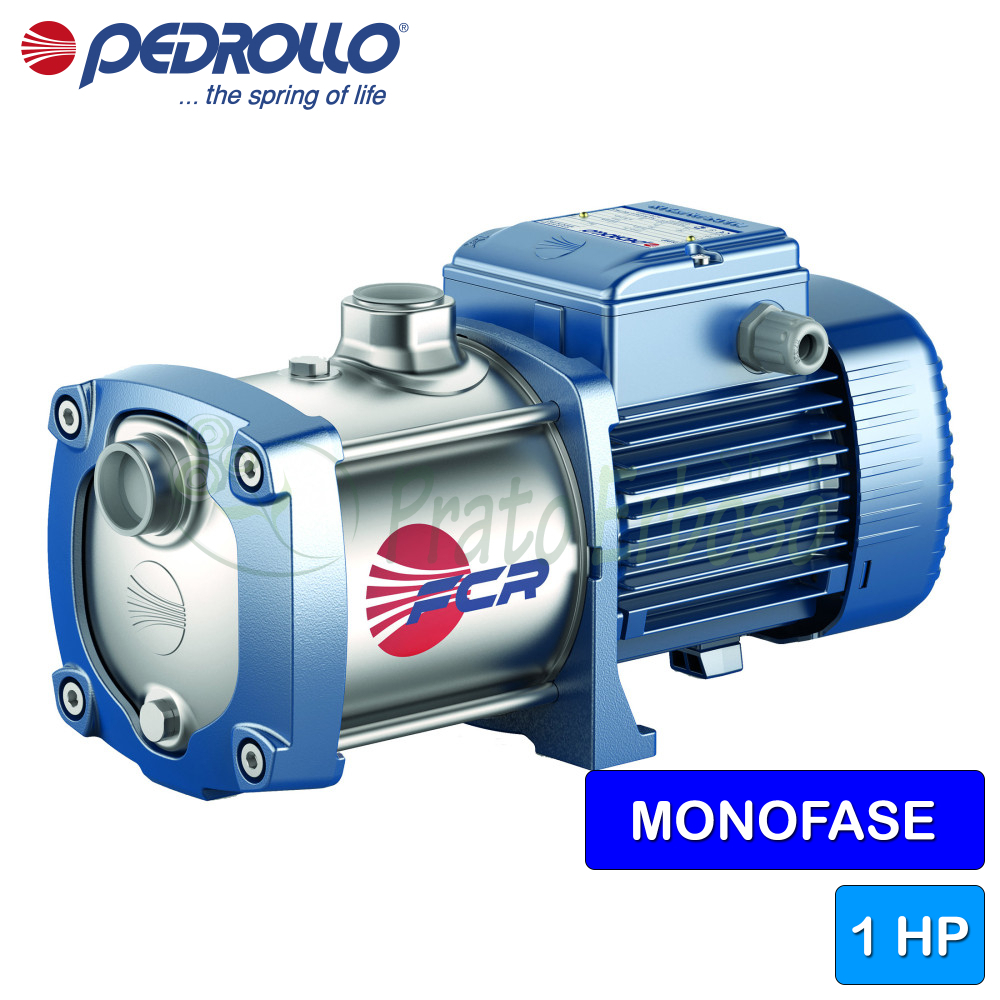

FCRm 100/4 - 1 HP single-phase multi-impeller electric pump

Name: FCRm 100/4 - 1 HP single-phase multi-impeller electric pump
Brand: Pedrollo
SKU: FCRm 100/4
Price: 265.72 EUR
Availability: InStock

With stainless steel impeller. Flow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. Motor 0.55 Kw (0.75 HP).

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

We supply all spare parts on this product.

Reinforced packaging to reduce transport damage.

Description

The Pedrollo FCRm 100/4 centrifugal electric pump is particularly silent.

Pedrollo has studied and created this pump with the aim of creating a very silent product that also allows for good energy savings.

The construction of the FCRm 100/4 is multi-stage, which significantly reduces noise during use.

The use of stainless steel for all components, in addition to making the pump resistant, also makes it very silent.

The FCRm 100/4 is recommended in the domestic and civil sector, particularly for the distribution of water in combination with pressure tanks, for industrial applications and irrigation systems.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 5.8
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 4
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 130
Min. head (m.): 5
Max. head (m.): 50
Jobs: irrigation
Max. liquid temperature (°C): +60°C
Height (cm): 18.9
Width (cm): 16.0
Depth (cm): 37.7
Weight (Kg): 11.6
Warranty (years): 2

Attachments

FCR 80-100 Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's FCR 80-100 series pumps.

Download (529.07KB)

Models and performances FCRm 100

TYPE

three phase

FCRM 100/3

FCRM 100/4

POWER
KW	HP
0.55	0.75
0.75	1
0.90	1.25

PERFORMANCES
Q liters/min	H meters
5 ÷ 120	38 ÷ 5
5 ÷ 130	50 ÷ 5
5 ÷ 130	50 ÷ 5

MOUTH
asp.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	1.2	1.5	1.8	2.4	2.7	3.0	3.6	4.2	4.8	5.4	6.0	6.6	7.2	7.8
Q	l/min	0	5	10	15	20	25	30	40	50	60	70	80	90	100	110	120	130
H	meters	38	37	36	35	34.5	33.5	33	31	28	26	23	20	17	13.5	10	5
		50	50	49	48	47	46	45	42	39.5	37	34	30.5	26.5	22	17	11	5
		63	62	61.5	60.5	59.5	58	57	53.5	50.5	46.5	42.5	38	33	28	22	15	8
