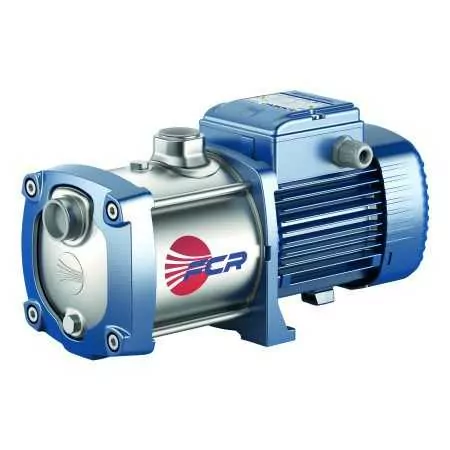

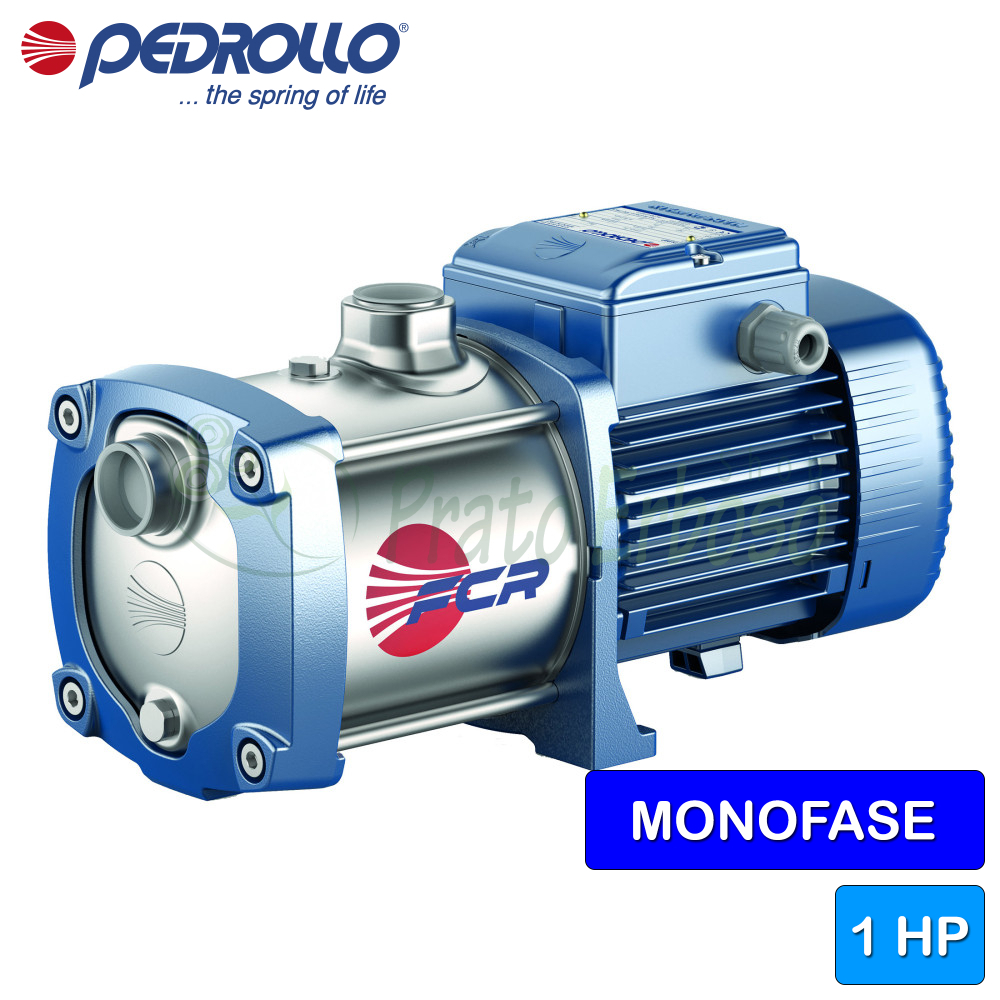

FCRm 80/5 - 1 HP single-phase multi-impeller electric pump

Name: FCRm 80/5 - 1 HP single-phase multi-impeller electric pump
Brand: Pedrollo
SKU: FCRm 80/5
Price: 265.72 EUR
Availability: InStock

With stainless steel impeller. Flow rate up to 80 l/min (4.8 m³/h). Head up to 67 m. Motor 0.75 Kw (1 HP).

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo FCRm 80/5 centrifugal electric pump is recommended for water distribution in combination with pressure tanks, for industrial applications, irrigation systems.

Its distinguishing feature is its silence.

Pedrollo created this pump with the aim of making a product that is efficient in terms of consumption but above all very silent thanks to the use of stainless steel in the construction and the multi-stage construction.

The FCRm 80/5 is recommended for the domestic and civil sector.

It must be powered by a single-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +60.

The flow rate ranges from 5 to 80 metres and the head from 12 to 67 litres.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 5.5
Suction mouth: 1" 1/4
Delivery mouth: 1"
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 4
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 44
Minimum flow rate (l./min.): 5
Max. flow rate (l./min.): 80
Min. head (m.): 12
Max. head (m.): 67
Jobs: irrigation
Max. liquid temperature (°C): +60°C
Height (cm): 18.9
Width (cm): 16.0
Depth (cm): 37.7
Weight (Kg): 11.8
Warranty (years): 2

Attachments

FCR 80-100 Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo's FCR 80-100 series pumps.

Download (529.07KB)

Models and performances FCRm 80

TYPE

single phase

FCRM 80/2

FCRM 80/3

FCRM 80/4

FCRM 80/5

POWER
KW	HP
0.30	0.40
0.40	0.60
0.55	0.75
0.75	1

PERFORMANCES
Q liters/min	H meters
5 ÷ 70	27 ÷ 5
5 ÷ 80	40 ÷ 5
5 ÷ 80	52 ÷ 10
5 ÷ 80	67 ÷12

MOUTH
asp.	send.
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.4	3.0	3.6	4.2	4.8
Q	l/min	0	5	10	15	20	25	30	40	50	60	70	80
H	meters	27	26	25	24	22.5	21	20	16.5	13	9	5
		40	38	37	36	34.5	33	31	27	22.5	17	11	5
		52	50	49	47	44.5	42	40	34	28.5	22.5	16	10
		67	66	64	62	59	56	53	45.5	37.5	29.5	20.5	12
