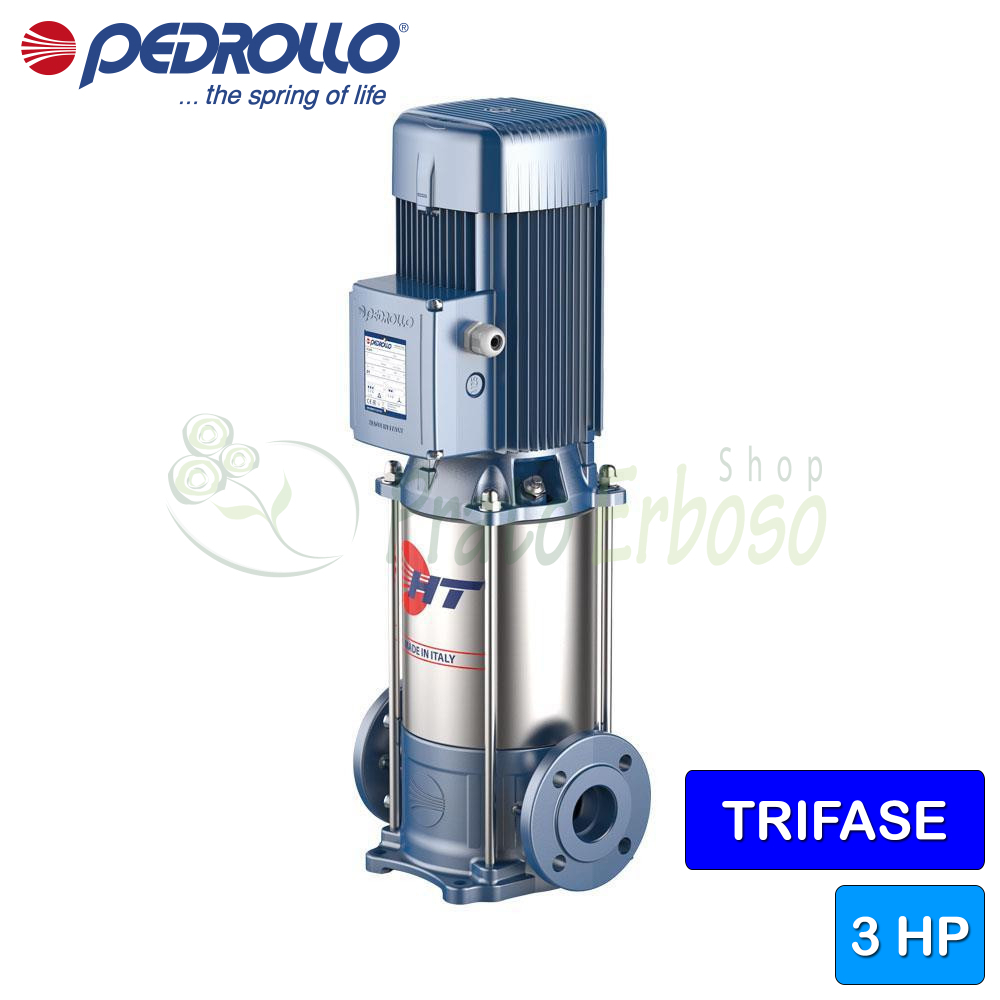

HT 15/2R - 3 HP three-phase vertical multistage electric pump
Flow rate up to 350 l/min (21 m³/h). Head up to 44 m. 2.2 Kw (3 HP) motor.
The HT 15/2R centrifugal electric pump from Pedrollo 's HT series boasts a compact and reliable construction.
Pedrollo 's use of cast iron and stainless steel makes the electric pump solid and robust.
The jacket, impellers and diffusers in AISI 304 stainless steel and the drive shaft in AISI 431 stainless steel guarantee long life and high efficiency.
It can pump clean water and liquids that are not chemically aggressive to the components.
The HT 15/2R is suitable for use in the agricultural, civil and industrial sectors.
It is particularly recommended for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Suction mouth
- 2"
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 350
- Min. head (m.)
- 20.5
- Max. head (m.)
- 44
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
