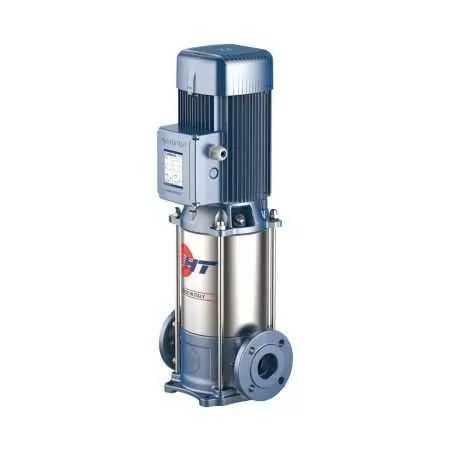

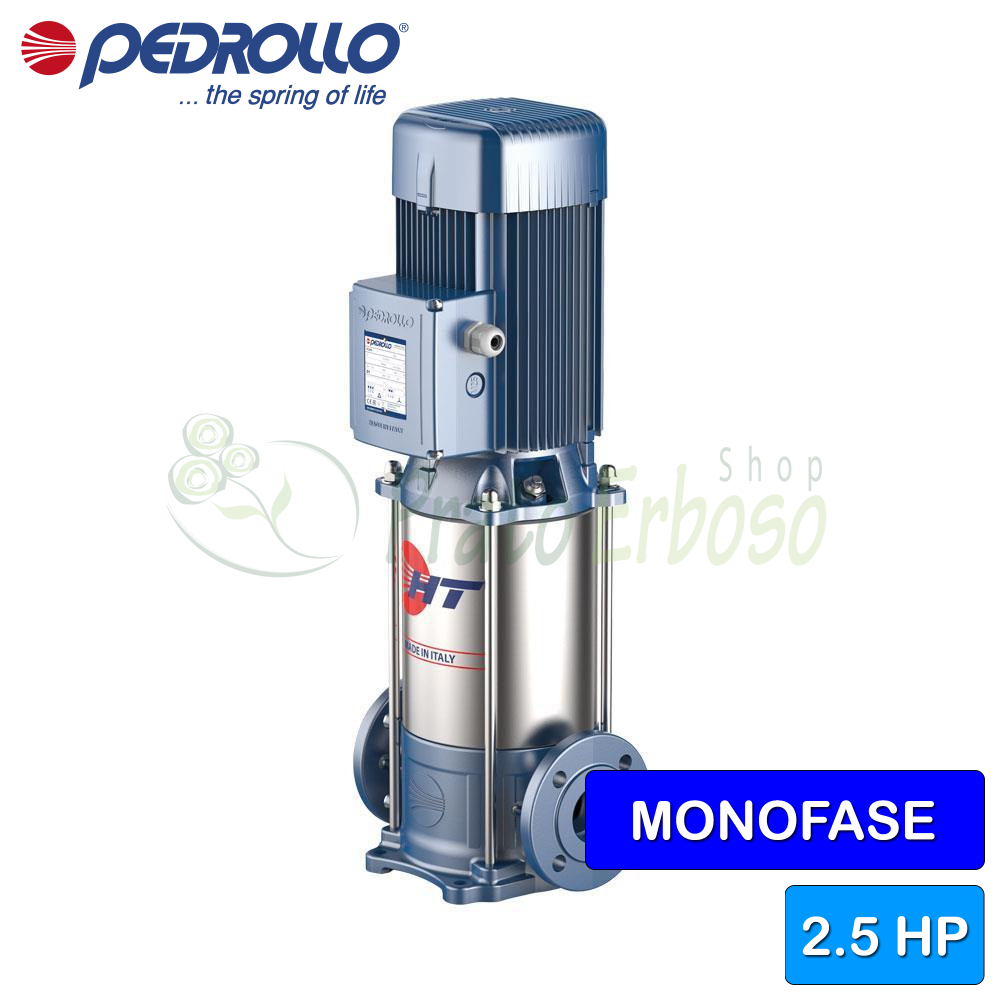

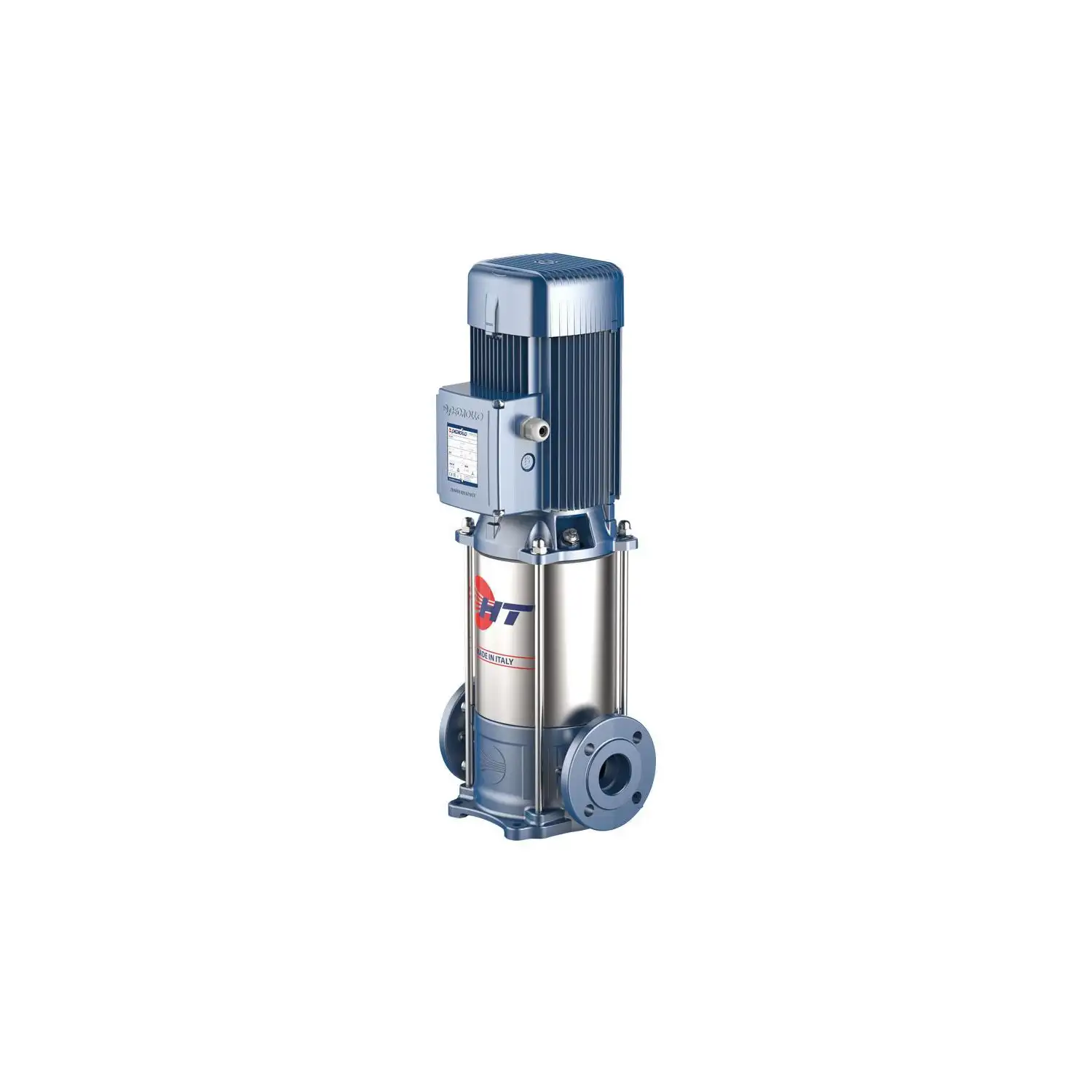

HTm 5/5 - 2.5 HP single-phase vertical multistage electric pump
Flow rate up to 130 l/min (7.8 m³/h). Head up to 86 m. 1.8 Kw (2.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The HTm 5/5 centrifugal electric pump from Pedrollo 's HT series boasts a multi-stage construction that reduces operating noise.
It is particularly silent, a feature that makes it perfect for use in the domestic sector.
However, it can also be used in the agricultural and industrial sectors.
It can pump clean water and chemically non-corrosive liquids thanks to the internal components which Pedrollo has made entirely of stainless steel.
The HTm 5/5 can be used for water distribution in conjunction with pressure tanks, for increasing network pressure, for fire-fighting systems and for washing systems and for irrigation.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.8
- Power (HP)
- 2.5
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1" 1/4
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 3
- Check valve
- No
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 51.5
- Max. head (m.)
- 86
- Jobs
- fire prevention systems, washing systems, irrigation, pressurization systems, water supply
- Warranty (years)
- 2
HTM 5 models and performances
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the HT 5/2-5/4-5/5
Bearings
| Pump side motor bearing | 6304 2RS-C3 |
| Opposite side engine bearing | 6204 ZZ-C3E |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump Body | GJL 250 EN 1561 cast iron |
| 2.0 - Lid | GJL 250 EN 1561 cast iron |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump jacket | Stainless steel EN 1.4301 (AISI 304) |
