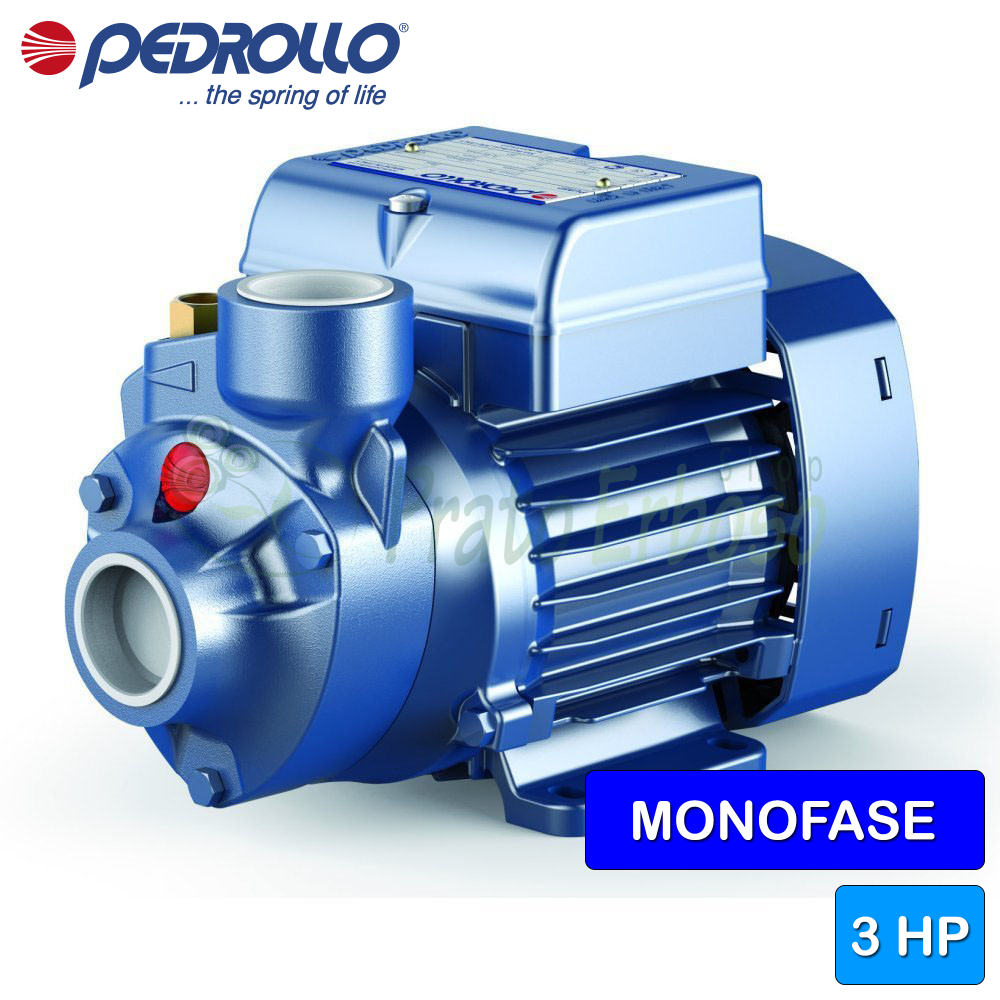

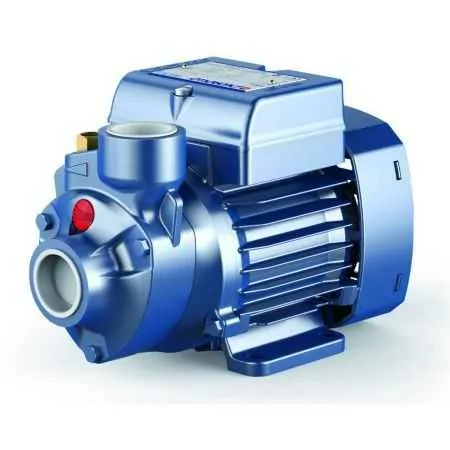

PKm 300 - 3 HP single-phase peripheral impeller electric pump

Name: PKm 300 - 3 HP single-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PKm 300
Price: 327.94 EUR
Availability: InStock

Flow rate up to 90 l/min (5.4 m³/h). Head up to 95 m. 2.2 Kw (3 HP) motor.

Variants:

Order it before 23:59 of Friday and receive it Monday 9 June with SDA - 2 giorni Italia

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 12 June - Friday 13 June
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 12 June - Friday 13 June
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Thursday 12 June - Friday 13 June
Punto di ritiro	Choose where to collect your order in 24/48 hours.	Wednesday 11 June
SDA - 2 giorni Italia	2 DAYS	Monday 9 June

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 12 June - Friday 13 June

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 12 June - Friday 13 June

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 12 June - Friday 13 June

Carrier: Punto di ritiro

Description: Choose where to collect your order in 24/48 hours.

Estimated delivery:
Wednesday 11 June

Carrier: SDA - 2 giorni Italia

Description: 2 DAYS

Estimated delivery:
Monday 9 June

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The Pedrollo PKm 300 peripheral electric pump is suitable for irrigation of vegetable gardens and gardens.

Recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.

Suitable for water distribution in conjunction with small pressure tanks.

The high noise level characteristic of the PK series has been reduced by 20% on this new version of the PKm 300.

Its small and compact size makes it the pump suitable for home use.

The PKm 300 has a 1 inch suction and delivery port.

The flow rate ranges from 5 to 90 litres per hour and the head ranges from 10 to 95 metres.

Made with high quality materials and components, such as cast iron, steel, aluminum and brass, this pump is durable and reliable.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: SINGLE PHASE
Power (Kw): 2.2
Power (HP): 3
Absorption at 230V (A): 11.5
Capacitor: 50 µF450 VL
Suction mouth: 1 "
Delivery mouth: 1 "
Pump body: Cast iron
Impeller: Brass
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 55
Min. flow rate (l./min.): 5
Max. flow rate (l./min.): 90
Min. head (m.): 10
Max. head (m.): 95
Jobs: water supply
Max. liquid temperature (°C): +60°C
Motor voltage: 230 V
Height (cm): 21.2
Width (cm): 37.6
Depth (cm): 12.5
Weight (Kg): 15.6
Warranty (years): 2

Attachments

PK data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the Pedrollo PK series pumps.

Download (410.21KB)

PKm models and performance

GUY

single phase

Pkm 60

PKm 65

PKm 80

PKm 90

PKm 100

Pkm 200

PKm 300

POWER
KW	HP
0.37	0.50
0.55	0.75
0.75	1
0.75	1
1.1	1.5
1.5	2
2.2	3

PERFORMANCE
Q litres/min	H meters
5 ÷ 40	38 ÷ 5
5 ÷ 50	50 ÷ 8
5 ÷ 50	66 ÷ 22
5 ÷ 40	82 ÷ 5
5 ÷ 70	80 ÷ 15
5 ÷ 80	86 ÷ 10
5 ÷ 90	95 ÷ 10

MOUTH
wait.	send.
1"	1"
3/4"	3/4"
1"	1"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	3.0	3.6	4.2	4.8	5.4
Q	l/min	0	5	10	15	20	25	30	35	40	50	60	70	80	90
H	meters	40	38	33.5	29	24	19.5	15	10	5
		55	50	45.5	40.5	36	31	27	22	17	8
		70	66	61	56	51	46	41	36.5	31	22
		90	82	71	60	49	38	27	17	5
		85	80	75	70	65	60	55	50	45	35	24.5	15
		90	86	81	76	71	65.5	60	55	50	40	30	20	10
		100	95	90	85	80	75	70	65	60	50	40	30	20	10

Construction data of the PK 100-200-300

Bearings

Pump side motor bearing	6204 ZZ
Opposite side motor bearing	6204 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	FN-14
LP diameter	14
Fixed ring LP	Graphite
Rotating ring LP	Ceramic
LP elastomer	NBR

Mat

1.0 - Pump Body	Cast iron GJL 200 EN 1561
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100

Compare with Similar Products

	PKm 300 - 3 HP single-phase peripheral impeller electric pump This product Flow rate up to 90 l/min (5.4 m³/h). Head up to 95 m. 2.2 Kw (3 HP) motor.	PKm 90 - 1 HP single-phase peripheral impeller electric pump Quick View Flow rate up to 40 l/min (2.4 m³/h). Head up to 82 m. 0.75 Kw (1 HP) motor.	PKm 100 - 1.5 HP single-phase peripheral impeller electric pump Quick View Flow rate up to 70 l/min (4.2 m³/h). Head up to 80 m. 1.1 Kw (1.5 HP) motor.	PKm 200 - 2 HP single-phase peripheral impeller electric pump Quick View Flow rate up to 80 l/min (4.8 m³/h). Head up to 86 m. 1.5 Kw (2 HP) motor.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (Kw)	Power (Kw) 2.2	Power (Kw) 0.75	Power (Kw) 1.1	Power (Kw) 1.5
Power (HP)	Power (HP) 3	Power (HP) 1	Power (HP) 1.5	Power (HP) 2
Absorption at 230V (A)	Absorption at 230V (A) 11.5	Absorption at 230V (A) 5.6	Absorption at 230V (A) 9	Absorption at 230V (A) 11.5
Capacitor	Capacitor 50 µF450 VL	Capacitor 20 µF450 VL	Capacitor 31.5 µF450 VL	Capacitor 45 µF450 VL
Suction mouth	Suction mouth 1 "	Suction mouth 3/4 "	Suction mouth 1 "	Suction mouth 1 "
Delivery mouth	Delivery mouth 1 "	Delivery mouth 3/4 "	Delivery mouth 1 "	Delivery mouth 1 "
Pump body	Pump body Cast iron	Pump body --	Pump body --	Pump body Cast iron
Impeller	Impeller Brass	Impeller Brass	Impeller Brass	Impeller Brass
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve No	Check valve No	Check valve No	Check valve No
Degree of protection	Degree of protection IP 55	Degree of protection IP 55	Degree of protection IP 44	Degree of protection IP 55
Min. flow rate (l./min.)	Min. flow rate (l./min.) 5	Min. flow rate (l./min.) 5	Min. flow rate (l./min.) 5	Min. flow rate (l./min.) 5
Max. flow rate (l./min.)	Max. flow rate (l./min.) 90	Max. flow rate (l./min.) 40	Max. flow rate (l./min.) 70	Max. flow rate (l./min.) 80
Min. head (m.)	Min. head (m.) 10	Min. head (m.) 5	Min. head (m.) 15	Min. head (m.) 10
Max. head (m.)	Max. head (m.) 95	Max. head (m.) 82	Max. head (m.) 80	Max. head (m.) 86
Jobs	Jobs water supply	Jobs water supply	Jobs water supply, pressurization systems, irrigation	Jobs water supply
Max. liquid temperature (°C)	Max. liquid temperature (°C) +60°C	Max. liquid temperature (°C) +60°C	Max. liquid temperature (°C) +60°C	Max. liquid temperature (°C) +60°C
Motor voltage	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V	Motor voltage 230 V
Height (cm)	Height (cm) 21.2	Height (cm) 17.9	Height (cm) 21.2	Height (cm) 21.2
Width (cm)	Width (cm) 37.6	Width (cm) 27.8	Width (cm) 35.6	Width (cm) 35.6
Depth (cm)	Depth (cm) 12.5	Depth (cm) 11.2	Depth (cm) 15.2	Depth (cm) 12.5
Weight (Kg)	Weight (Kg) 15.6	Weight (Kg) 10.2	Weight (Kg) 15	Weight (Kg) 15.9
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
