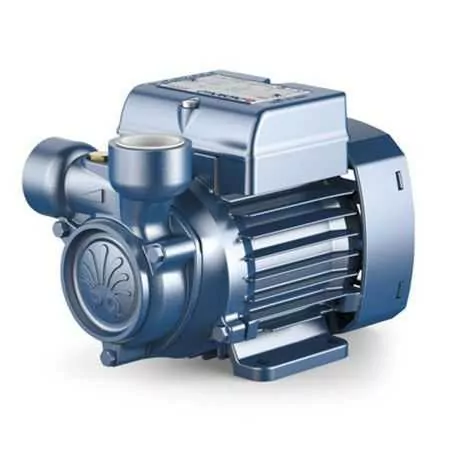

PQm 300 - 3 HP single-phase peripheral impeller electric pump
Flow rate up to 90 l/min (5.4 m³/h). Head up to 100 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Wednesday 24 December - Thursday 25 December |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Wednesday 24 December - Thursday 25 December |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Wednesday 24 December - Thursday 25 December |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 24 December |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Wednesday 24 December |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 24 December - Thursday 25 December
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 24 December - Thursday 25 December
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Wednesday 24 December - Thursday 25 December
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 24 December
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Wednesday 24 December

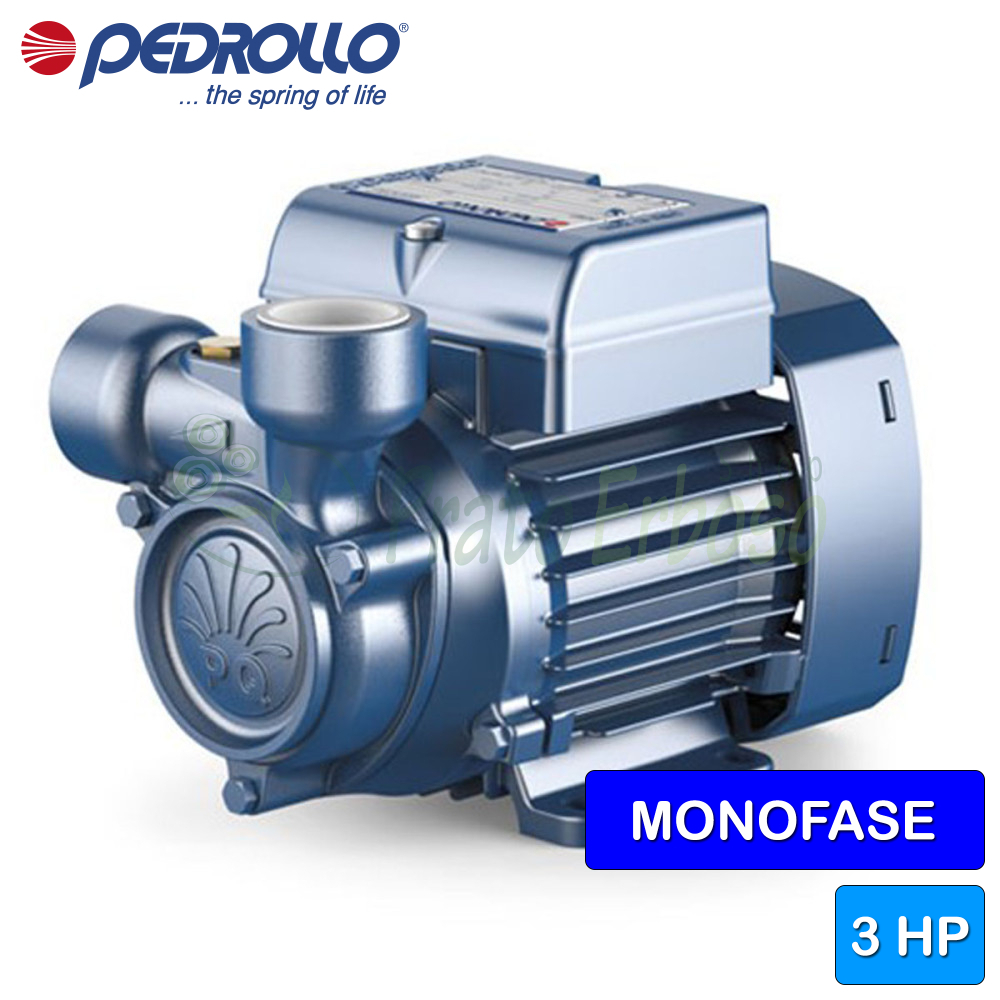

The Pedrollo PQm 300 peripheral electric pump with radial suction is suitable for domestic applications, for irrigating vegetable gardens, gardens, greenhouses, lawns and other similar applications.
The pump has a very simple operation, the impellers are activated and thanks to their movement they pump the water into the pump body.
The PQm 300 is recommended for pumping clean water without abrasive particles and liquids that are chemically non-aggressive for the materials from which the pump is made.
The pump has very small dimensions and is therefore suitable for domestic applications even in very narrow spaces. Characterized by its noise, the new version of the pump is much quieter.
The flow rate ranges from 5 to 90 liters per minute. The head ranges from 10 to 100 meters.
The PQm 300 must be powered by a single-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +90.
This pump has a 1 inch suction and delivery port.
The pump body is made of cast iron and internally has a brass impeller and stainless steel drive shaft, therefore all materials particularly suitable for the correct and reliable use of the electric pump, guaranteeing excellent performance and long life over time.
The installation must be carried out in well-ventilated closed places or in any case protected from the elements as its certified protection is IPX5.
- Motor connection
- SINGLE-PHASE
- Power (HP)
- 3
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Impeller
- Brass
- Number of impellers
- 1
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 90
- Min. head (m.)
- 10
- Max. head (m.)
- 100
- Jobs
- water supply
- Max. liquid temperature (°C)
- +90°C
- Motor voltage
- 230 V
- Height (cm)
- 21.1
- Width (cm)
- 34.25
- Depth (cm)
- 16.4
- Weight (Kg)
- 15.2
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side motor bearing | 6204 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | FN-14 |
| LP diameter | 14 |
| Fixed ring LP | Graphite |
| Rotating ring LP | Ceramic |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | Aluminum EN-AB 46100 |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Compare with Similar Products
 PQm 300 - 3 HP single-phase peripheral impeller electric pumpThis product Flow rate up to 90 l/min (5.4 m³/h). Head up to 100 m. 2.2 Kw (3 HP) motor. |  PQm 90 - 1 HP single-phase peripheral impeller electric pumpFlow rate up to 40 l/min (2.4 m³/h). Head up to 90 m. 0.75 Kw (1 HP) motor. |  PQm 100 - 1.5 HP single-phase peripheral impeller electric pumpFlow rate up to 70 l/min (4.2 m³/h). Head up to 85 m. 1.1 Kw (1.5 HP) motor. |  PQm 200 - 2 HP single-phase peripheral impeller electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 90 m. 1.5 Kw (2 HP) motor. | |
|---|---|---|---|---|
| Price | Price €528.26 -42% €306.39 | Price €314.76 -42% €182.56 | Price €455.06 -42% €263.93 | Price €492.88 -42% €285.87 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) -- | Power (Kw) 0.75 | Power (Kw) 1.1 | Power (Kw) 1.5 |
| Power (HP) | Power (HP) 3 | Power (HP) 1 | Power (HP) 1.5 | Power (HP) 2 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 5.6 | Absorption at 230V (A) 9 | Absorption at 230V (A) 12 |
| Capacitor | Capacitor -- | Capacitor 20 µF 450 VL | Capacitor 31.5 µF 450 VL | Capacitor 45 µF 450 VL |
| Suction mouth | Suction mouth 1" | Suction mouth 3/4" | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 3/4" | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body -- | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Brass | Impeller Brass | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft -- | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve -- | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 44 | Degree of protection IP 44 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 90 | Max. flow rate (l./min.) 40 | Max. flow rate (l./min.) 70 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 10 | Min. head (m.) 5 | Min. head (m.) 15 | Min. head (m.) 10 |
| Max. head (m.) | Max. head (m.) 100 | Max. head (m.) 90 | Max. head (m.) 85 | Max. head (m.) 90 |
| Jobs | Jobs water supply | Jobs water supply | Jobs water supply | Jobs water supply |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 21.1 | Height (cm) 18.1 | Height (cm) 21.1 | Height (cm) 21.1 |
| Width (cm) | Width (cm) 34.25 | Width (cm) 25.6 | Width (cm) 32.25 | Width (cm) 32.25 |
| Depth (cm) | Depth (cm) 16.4 | Depth (cm) 14.2 | Depth (cm) 16.4 | Depth (cm) 16.4 |
| Weight (Kg) | Weight (Kg) 15.2 | Weight (Kg) 9.9 | Weight (Kg) 14.1 | Weight (Kg) 15.2 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
