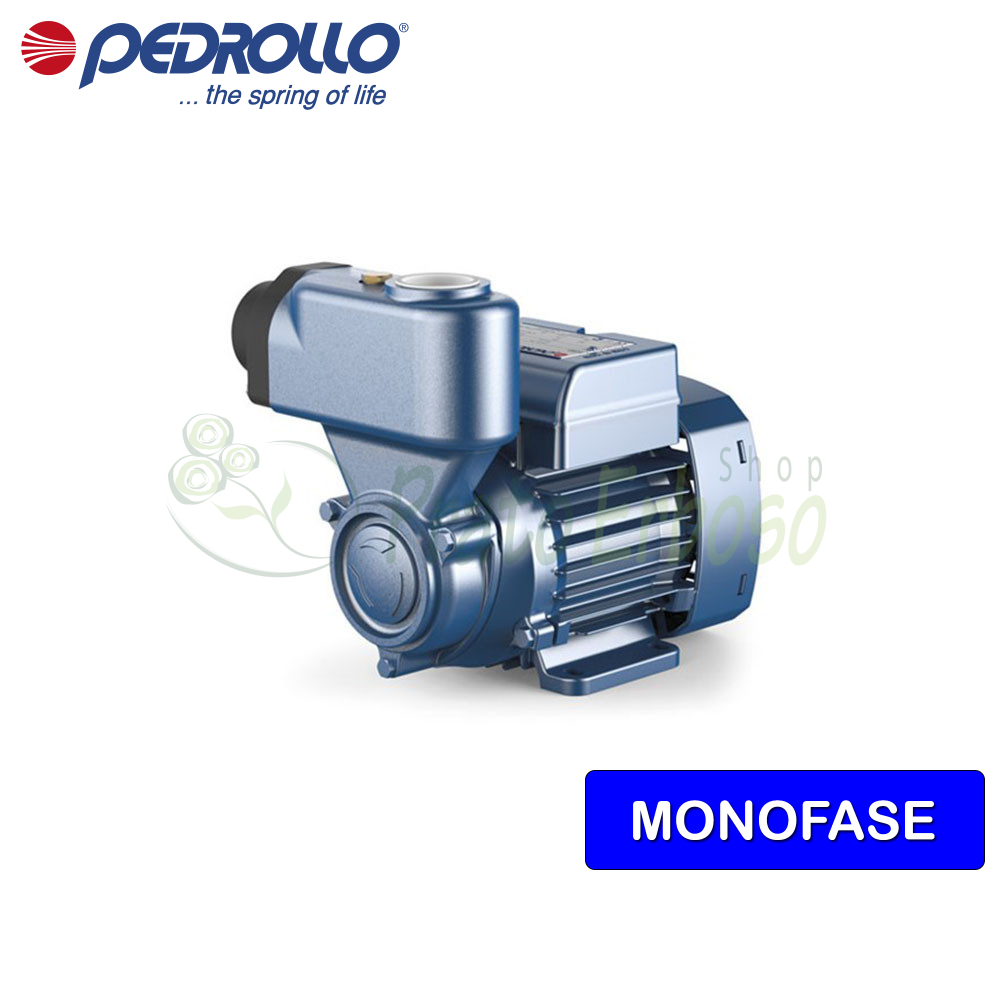

PKSm 60 - Self-priming electric pump with 0.40 HP single-phase peripheral impeller
Flow rate up to 40 l/min (2.4 m³/h). Head up to 40 m. 0.30 Kw (0.40 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Thursday 27 August - Friday 28 August |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Thursday 27 August - Friday 28 August |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Wednesday 26 August |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Thursday 27 August - Friday 28 August
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 27 August - Friday 28 August
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Wednesday 26 August
The Pedrollo PKSm 60 peripheral electric pump is recommended for use in the domestic sector.
Suitable for pumping clean water that does not contain particles or liquids that could damage the components.
The PKSm 60 can be used for water distribution in conjunction with small pressure tanks, for irrigation of vegetable gardens and gardens.
The particular advantages of this pump are its compactness, reliability and economy.
The pump is supplied with a check valve on the suction side.
- Motor connection
- Power (Kw)
- Power (HP)
- Absorption at 230V (A)
- 2.6
- Capacitor
- Suction mouth
- Delivery mouth
- Pump body
- Impeller
- Number of impellers
- Crankshaft
- Check valve
- Degree of protection
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 40
- Min. head (m.)
- 5
- Max. head (m.)
- 40
- Jobs
- Max. liquid temperature (°C)
- +60°C
- Motor voltage
- Height (cm)
- 18.3
- Width (cm)
- 19.6
- Depth (cm)
- 14.8
- Weight (Kg)
- 5.6
- Warranty (years)
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side motor bearing | 6201 ZZ |
Shaft seal
| Type of seal | Single Mechanical Seal |
| Pump side model | AR-12 |
| LP diameter | 12 |
| Fixed ring LP | Ceramic |
| Rotating ring LP | Graphite |
| LP elastomer | NBR |
Mat
| 1.0 - Pump Body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Brass CW617N EN 12165 |
| 3.0 - Impeller | Brass CW617N EN 12165 |
| 4.0 - Pump shaft | EN 1.4057 stainless steel (AISI 431) |
| 6.0 - Motor holder | Aluminum EN-AB 46100 |
| 6.1 - Engine cover | DX53D EN 10346 galvanized steel |
| 7.0 - Lantern | Aluminum EN-AB 46100 |
Reviews (4) - Review moderation
Arrivato nei tempi corretti e spedito, come dichiarato dal venditore direttamente dal costruttore. Montata e subito messa al lavoro per caricare una cisterna. Tutto ok. Consiglio l'acquisto.
Perfekt!!! Sehr empfehlenswert!!!
Ordinata il 13 luglio 2018. Ricevuta il 18/7/2018 alle ore 12. Consegna rapida imballaggio perfetto. La devo ancora montare. e provare.
Ottima pompa autoadescante del consumo di 375 Watt (1/2 HP), ideale come nel mio caso, per aspirare l'acqua in giardino da un pozzo profondo più di 7 metri, utilizzando come fonte energetica un impianto fotovoltaico, il cui inverter di 600 watt riesce egregiamente ad alimentarla! Consegna veloce e inecceppibile da parte di SDA Express Courier.
Compare with Similar Products
 PKSm 60 - Self-priming electric pump with 0.40 HP single-phase peripheral impellerThis product Flow rate up to 40 l/min (2.4 m³/h). Head up to 40 m. 0.30 Kw (0.40 HP) motor. |  PKm 60 - Single-phase peripheral impeller electric pump 0.40 HP Flow rate up to 40 l/min (2.4 m³/h). Head up to 40 m. 0.30 Kw (0.40 HP) motor. |  PQAm 60 - 0.40 HP single-phase electric pump with peripheral impeller Flow rate up to 32 l/min (1.92 m³/h). Head up to 40.5 m. 0.30 Kw (0.40 HP) motor. | |
|---|---|---|---|
| Price | Price €169.58 -42% €98.36 | Price €131.76 -42% €76.42 | Price €264.74 -42% €153.55 |
| Motor connection | Motor connection -- | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) -- | Power (Kw) 0.30 | Power (Kw) 0.30 |
| Power (HP) | Power (HP) -- | Power (HP) 0.40 | Power (HP) 0.40 |
| Absorption at 230V (A) | Absorption at 230V (A) 2.6 | Absorption at 230V (A) 2.5 | Absorption at 230V (A) 2.5 |
| Capacitor | Capacitor -- | Capacitor 10 µF 450 VL | Capacitor 10 µF 450 VL |
| Suction mouth | Suction mouth -- | Suction mouth 1" | Suction mouth 1/2" |
| Delivery mouth | Delivery mouth -- | Delivery mouth 1" | Delivery mouth 1/2" |
| Pump body | Pump body -- | Pump body Cast iron | Pump body PPS |
| Impeller | Impeller -- | Impeller Brass | Impeller Brass |
| Number of impellers | Number of impellers -- | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft -- | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve -- | Check valve No | Check valve No |
| Degree of protection | Degree of protection -- | Degree of protection IP 55 | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 2 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 40 | Max. flow rate (l./min.) 40 | Max. flow rate (l./min.) 32 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 40 | Max. head (m.) 40 | Max. head (m.) 40.5 |
| Jobs | Jobs -- | Jobs water supply, irrigation | Jobs cooling systems |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) 60 | Max. liquid temperature (°C) +90°C |
| Motor voltage | Motor voltage -- | Motor voltage 230 V | Motor voltage 230 V |
| Height (cm) | Height (cm) 18.3 | Height (cm) 14.5 | Height (cm) 14.5 |
| Width (cm) | Width (cm) 19.6 | Width (cm) 20.8 | Width (cm) 19.8 |
| Depth (cm) | Depth (cm) 14.8 | Depth (cm) 10 | Depth (cm) 11.6 |
| Weight (Kg) | Weight (Kg) 5.6 | Weight (Kg) 5.2 | Weight (Kg) 4.7 |
| Warranty (years) | Warranty (years) -- | Warranty (years) 2 | Warranty (years) 2 |
