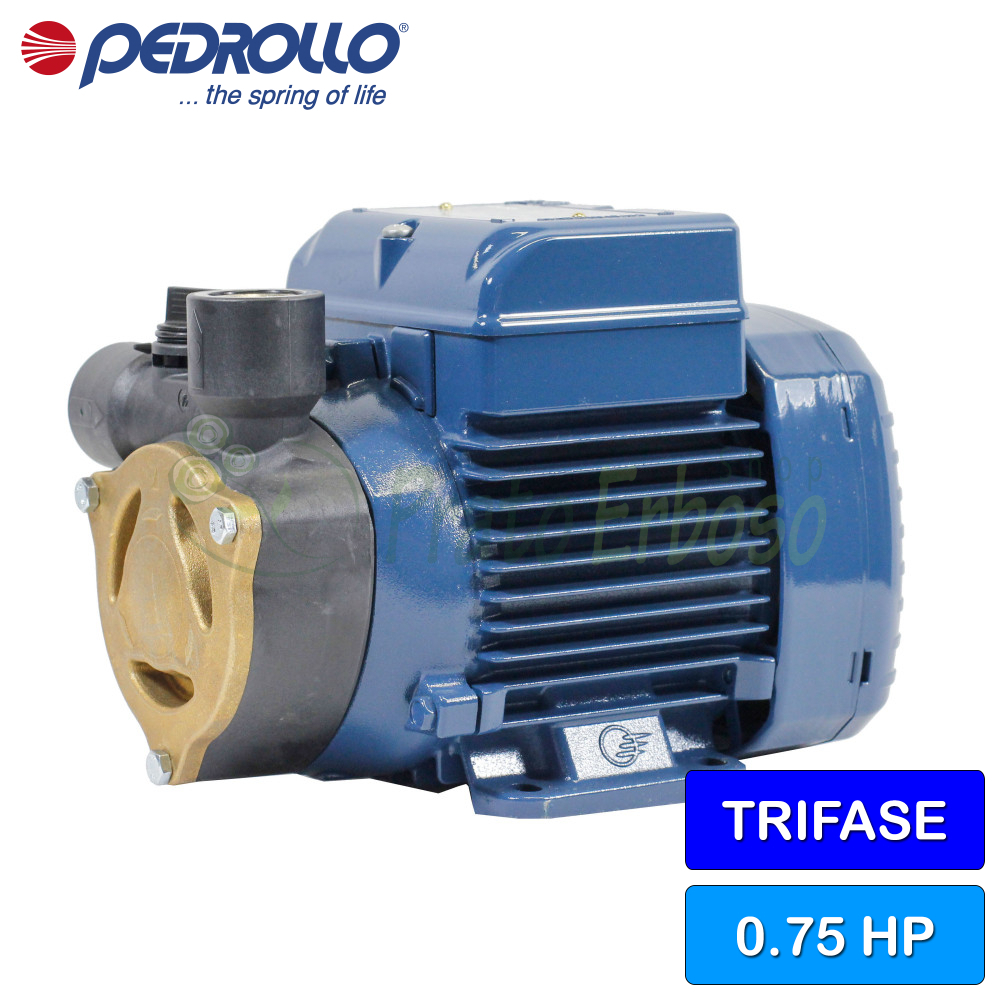

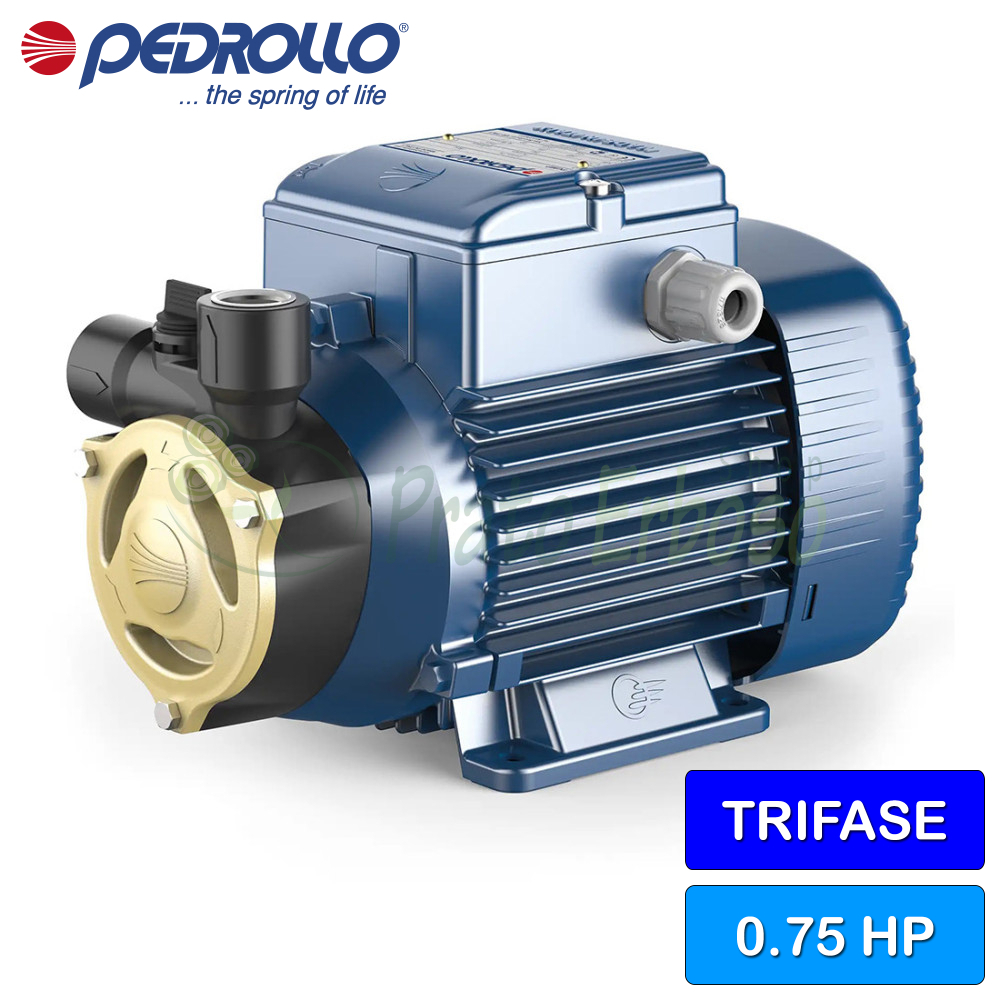

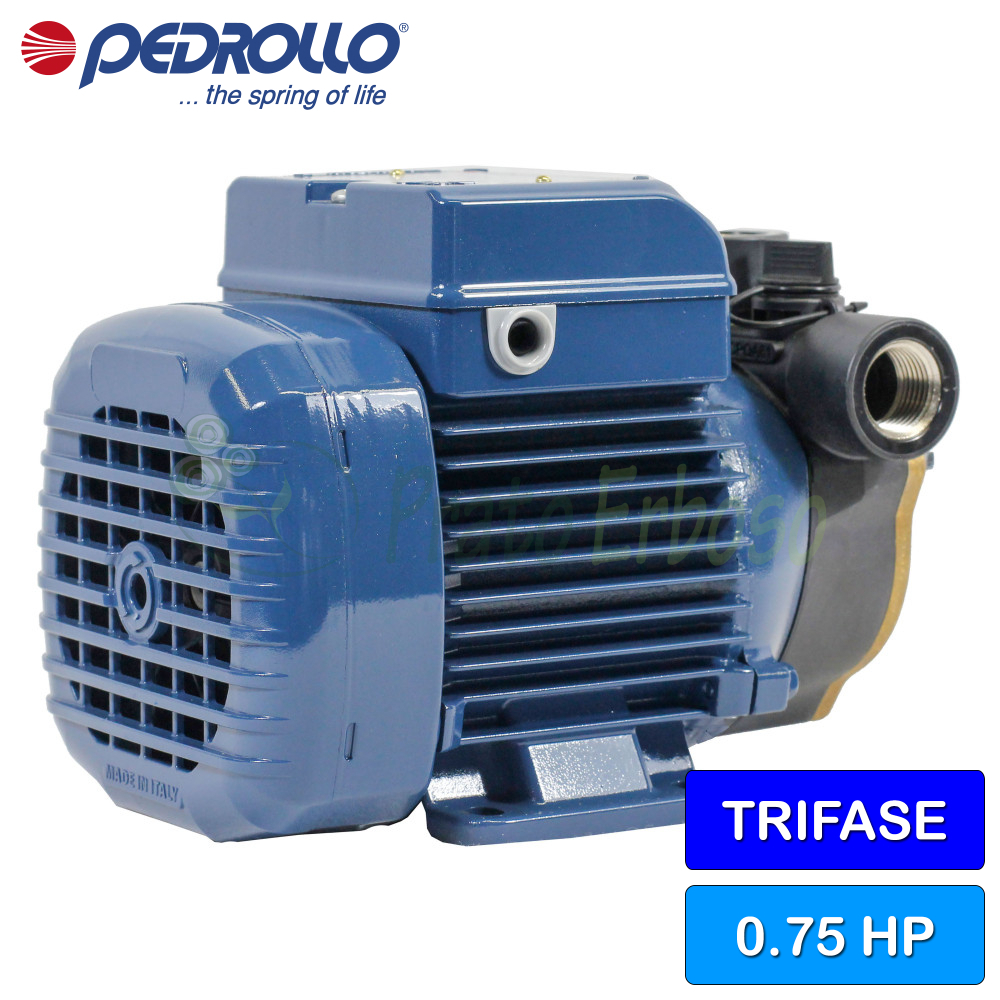

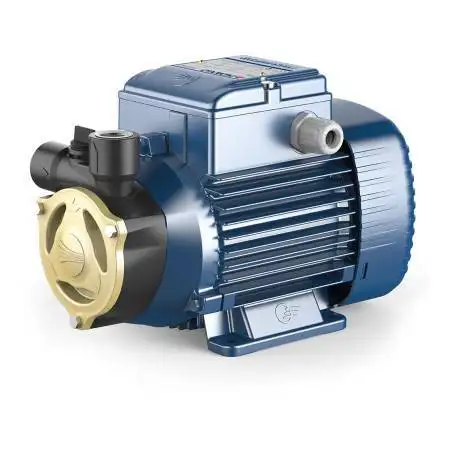

PQA 70 - 0.75 HP three-phase peripheral impeller electric pump

Name: PQA 70 - 0.75 HP three-phase peripheral impeller electric pump
Brand: Pedrollo
SKU: PQA 70
Price: 242 EUR
Availability: InStock

Flow rate up to 45 l/min (2.7 m³/h). Head up to 68 m. 0.55 Kw (0.75 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for pumping clean water without abrasive particles and liquids that are not chemically aggressive for the materials from which the pump is made.

Built in RYTON with a brass front cover on the impeller, it offers a safe guarantee against the formation of rust and oxidation; for these characteristics it is recommended for use in the industrial sector, for example for cooling, air conditioning, ironing systems, etc.

Installation must be carried out indoors or in any case protected from the elements.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 4.2
Absorption at 400V (A): 2.4
Suction mouth: 1/2 "
Delivery port: 1/2 "
Body Pump: PPS, with ISO 228/1 threaded metal insert inserted in the ports
Impeller: Brass
Number of impellers: 1
Motor shaft: AISI 431 stainless steel
Check valve: no
Degree of protection: IP 55
Flow rate min. (l./min.): 2
Max flow (l./min.): 45
Min head (m.): 8
Max head (m.): 65
Employments: cooling systems
Liquid temperature max. (° C): +90°C
Motor voltage: 400 V
Height (cm): 17.9
Width (cm): 26.1
Depth (cm): 13.4
Weight kg): 9.4
Guarantee: 2

Attachments

PQA data sheet

Construction and operating characteristics. Work curves and use limits of Pedrollo PQA series pumps.

Download (276.87KB)

PQA models and performance

GUY

three-phase

PQA 50

PQA 60

PQA 70

PQA 72

PQA 90

POWER
KW	HP
0.18	0.25
0.37	0.50
0.55	0.75
0.55	0.75
0.75	1

PERFORMANCE
Q litres/min	H meters
2 ÷ 28	26 ÷ 5
2 ÷ 32	40 ÷ 5
2 ÷ 45	65 ÷ 8
2 ÷ 50	65 ÷ 12
2 ÷ 38	90 ÷ 5

MOUTH
wait.	send.
1/2"	1/2"
1"	1"
1/2"	1/2"

Q	m³/hour	0	0.1	0.3	0.6	0.9	1.2	1.5	1.7	1.8	1.9	2.3	2.7	3.0
Q	l/min	0	2	5	10	15	20	25	28	30	32	38	45	50
H	meters	26	25	22	19	15	11	8	5
		40	38	35	29	23.5	18	12.5	9	7	5
		65	62	58	52	45.5	39.5	33	30	27	24	17	8
		65	-	62	56	51	45	40	36	34	32	25	17	12
		90	86	79	68	57	45	34	27	23	18	5

Construction data of the PQA 70

Bearings

Pump side motor bearing	6203 ZZ
Opposite side motor bearing	6203 ZZ

Shaft seal

Type of seal	Single Mechanical Seal
Pump side model	ST1-12
LP diameter	12
Fixed ring LP	Silicon carbide
Rotating ring LP	Graphite
LP elastomer	NBR

Mat

1.0 - Pump Body	Reinforced technopolymer
2.0 - Cover	Brass CW617N EN 12165
2.1 - Seal holder cover	Brass CW617N EN 12165
3.0 - Impeller	Brass CW617N EN 12165
4.0 - Pump shaft	EN 1.4057 stainless steel (AISI 431)
6.0 - Motor holder	Aluminum EN-AB 46100
6.1 - Engine cover	Aluminum EN-AB 46100
7.0 - Lantern	Aluminum EN-AB 46100
