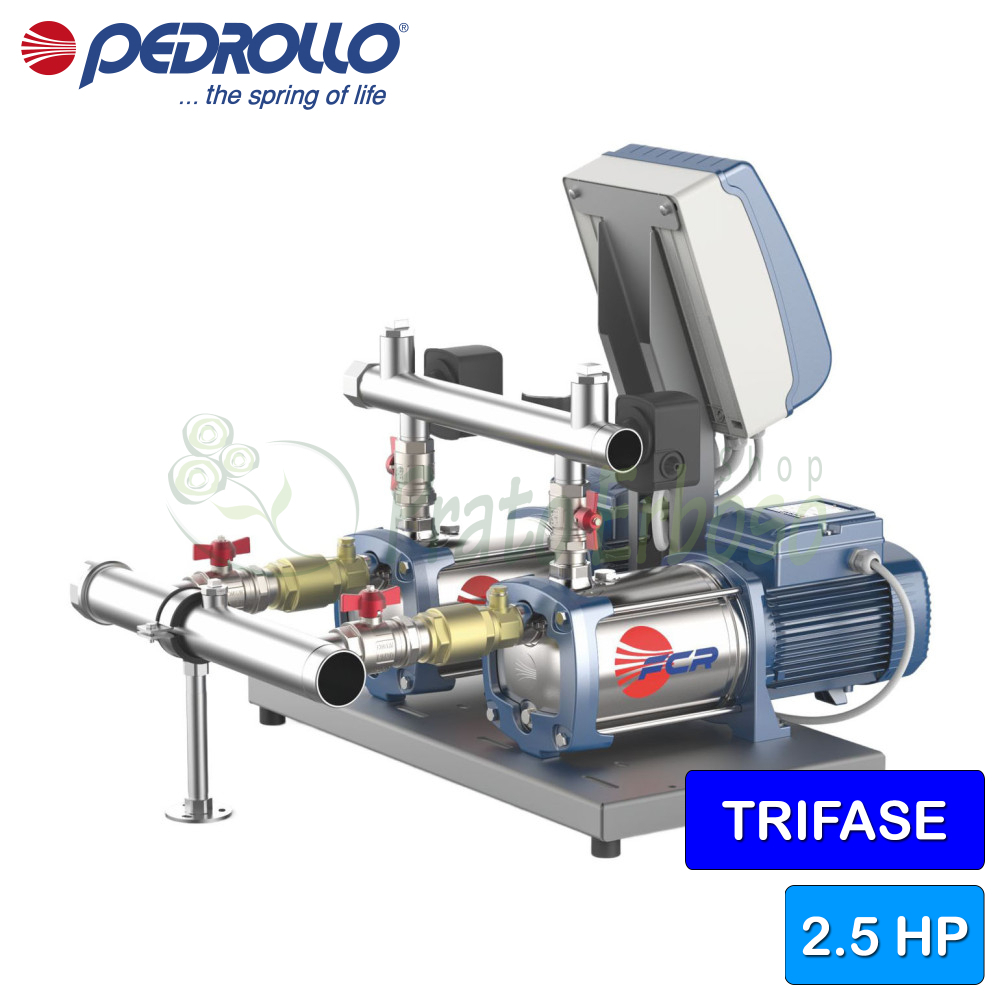

CB2 - FCR 100/5 - Three-phase pressure group 2x1.25 HP
2 x 0.9 kW (2 x 1.25 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 63 m.
The Pedrollo CB2 - FCR 100/5 pressure group is suitable for pumping clean water or aqueous solutions that do not damage the pumps.
Recommended for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.

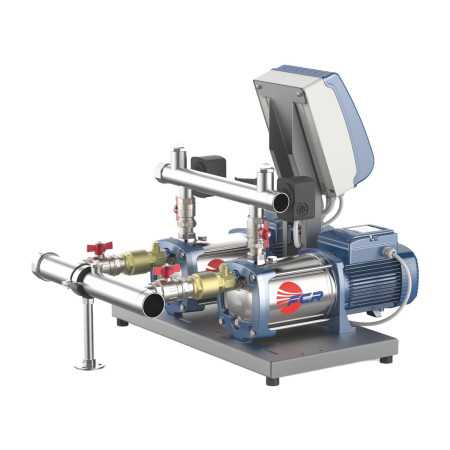

The CB2 - FCR 100/5 unit consists of two FCR 100/5 electric pumps, two pressure switches, and an E2 control panel. Two manifolds for the suction and delivery ports are also supplied.
The flow rate ranges from 10 to 260 liters per minute. The head ranges from 8 to 63 meters.
Set up so that, with each increase in user demand, one or both pumps are automatically started in succession in order to satisfy the system's water needs and reduce electricity consumption.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.8
- Power (HP)
- 2.5
- Current consumption at 400V (A)
- 5.0
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 260
- Min. head (m.)
- 8
- Max. head (m.)
- 63
- Height (cm)
- 67.4
- Width (cm)
- 53.0
- Depth (cm)
- 71.5
- Weight (Kg)
- 56
- Warranty (years)
- 2
Compare with Similar Products
CB2 - FCR 100/5 - Three-phase pressure group 2x1.25 HPThis product 2 x 0.9 kW (2 x 1.25 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 63 m. |
CB2 - FCR 90/5 - Three-phase pressure group 2x1.5 HP2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (15.6 m³/h). Head up to 81 m. |
CB2 - FCR 130/4 - Three-phase pressure group 2x1.5 HP2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 68.5 m. |
CB2 - FCR 130/5 - Three-phase pressure group 2x2.5 HP2 x 1.8 kW (2 x 5 HP) motors. Flow rate up to 260 l/min (15.6 m³/h). Head up to 86 m. |
|
|---|---|---|---|---|
| Price |
Price
€2,940.20
-45%
€1,617.11
|
Price
€4,039.42
-45%
€2,221.68
|
Price
€4,096.76
-45%
€2,253.22
|
Price
€4,121.16
-45%
€2,266.64
|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.8 | Power (Kw) 2.2 | Power (Kw) 3 | Power (Kw) 3.6 |
| Power (HP) | Power (HP) 2.5 | Power (HP) 3 | Power (HP) 4 | Power (HP) 5 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) 18.0 | Absorption at 230V (A) -- | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) 5.0 | Current consumption at 400V (A) -- | Current consumption at 400V (A) 8.0 | Current consumption at 400V (A) 10.0 |
| Suction mouth | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 260 | Max. flow rate (l./min.) 180 | Max. flow rate (l./min.) 260 | Max. flow rate (l./min.) 260 |
| Min. head (m.) | Min. head (m.) 8 | Min. head (m.) 44 | Min. head (m.) 41 | Min. head (m.) 51.5 |
| Max. head (m.) | Max. head (m.) 63 | Max. head (m.) 81 | Max. head (m.) 68.5 | Max. head (m.) 86 |
| Height (cm) | Height (cm) 67.4 | Height (cm) 67.4 | Height (cm) 67.4 | Height (cm) 67.4 |
| Width (cm) | Width (cm) 53.0 | Width (cm) 70.0 | Width (cm) 70.0 | Width (cm) 70.0 |
| Depth (cm) | Depth (cm) 71.5 | Depth (cm) 80.5 | Depth (cm) 77.9 | Depth (cm) 80.5 |
| Weight (Kg) | Weight (Kg) 56 | Weight (Kg) 83 | Weight (Kg) 83 | Weight (Kg) 90 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
