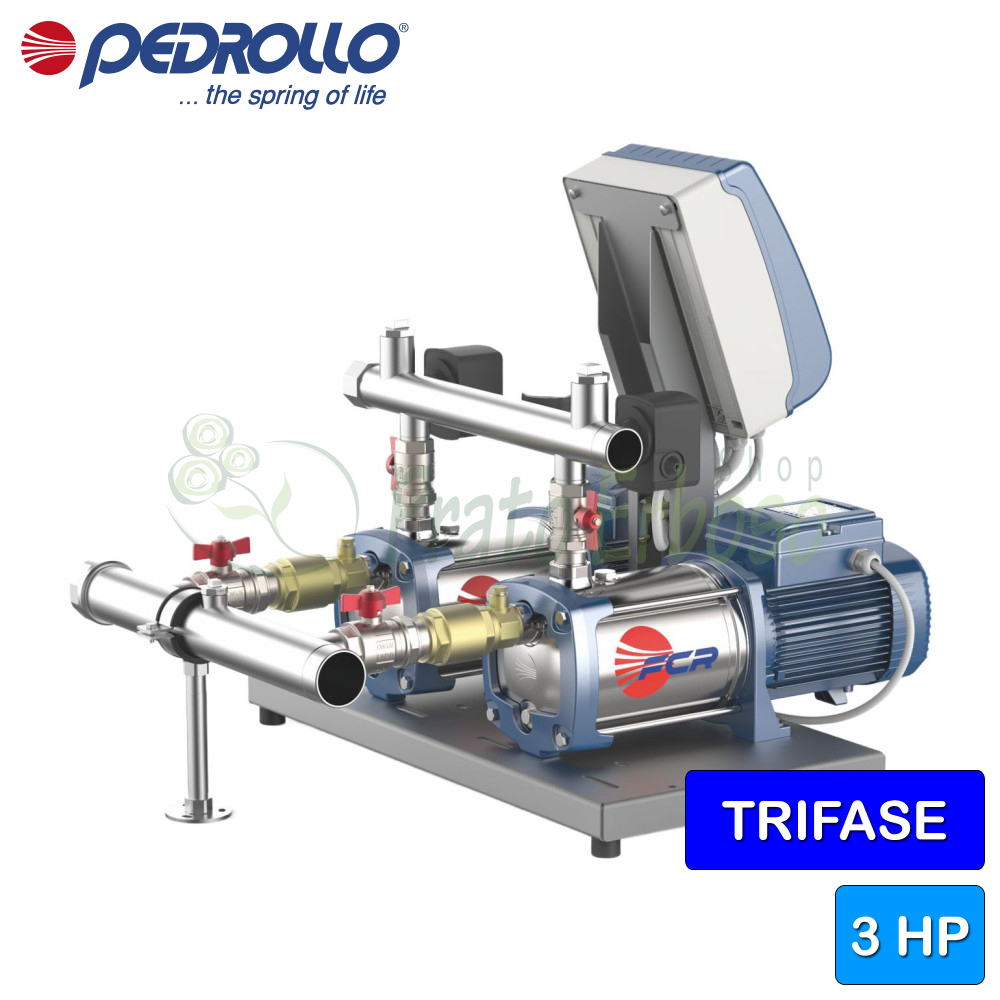

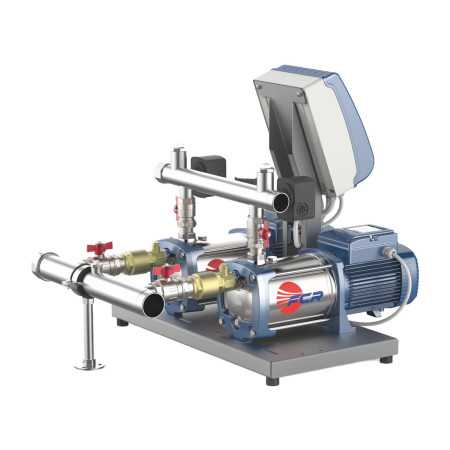

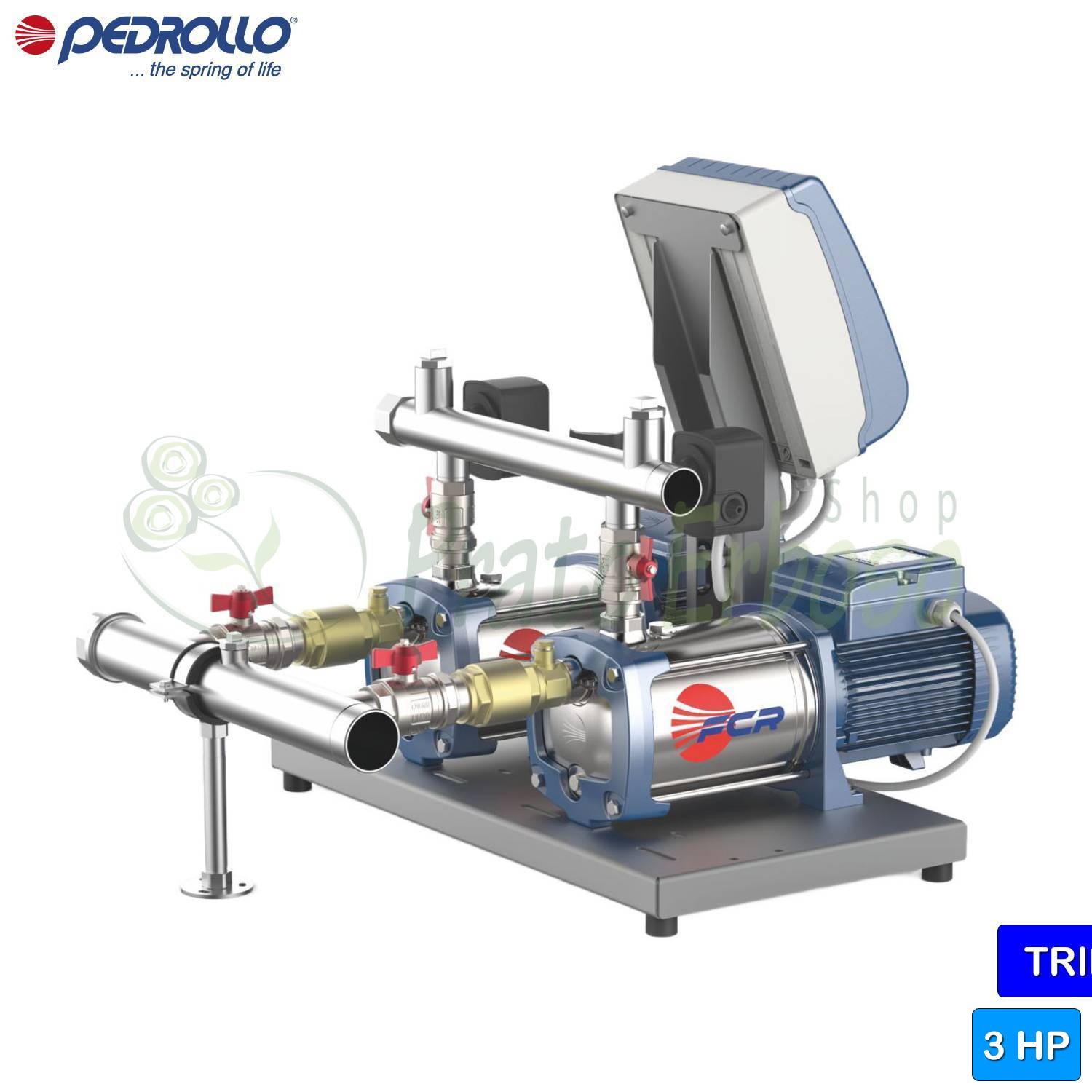

CB2 - FCR 90/5 - Three-phase pressure group 2x1.5 HP
2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (15.6 m³/h). Head up to 81 m.
The Pedrollo CB2 - FCR 90/5 booster set is recommended for residential and commercial water supply, pressure boosting in industrial applications, and irrigation of gardens and sports fields.
Consisting of two FCR 90/5 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
Each unit is equipped with ball valves on the delivery and suction sides, and non-return valves on the suction side.
The pressure switches, on the other hand, are used to turn the pumps on and off based on the setting.
The E2 control panel provides protection against dry running.
The CB2 - FCR 90/5 pressure group has a flow rate ranging from 10 to 180 litres per minute and a head from 44 to 81 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 18.0
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 180
- Min. head (m.)
- 44
- Max. head (m.)
- 81
- Height (cm)
- 67.4
- Width (cm)
- 70.0
- Depth (cm)
- 80.5
- Weight (Kg)
- 83
- Warranty (years)
- 2
Compare with Similar Products
CB2 - FCR 90/5 - Three-phase pressure group 2x1.5 HPThis product 2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (15.6 m³/h). Head up to 81 m. |
CB2 - FCR 100/5 - Three-phase pressure group 2x1.25 HP2 x 0.9 kW (2 x 1.25 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 63 m. |
CB2 - FCR 130/4 - Three-phase pressure group 2x1.5 HP2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 68.5 m. |
CB2 - FCR 130/5 - Three-phase pressure group 2x2.5 HP2 x 1.8 kW (2 x 5 HP) motors. Flow rate up to 260 l/min (15.6 m³/h). Head up to 86 m. |
|
|---|---|---|---|---|
| Price |
Price
€4,039.42
-45%
€2,221.68
|
Price
€2,940.20
-45%
€1,617.11
|
Price
€4,096.76
-45%
€2,253.22
|
Price
€4,121.16
-45%
€2,266.64
|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 2.2 | Power (Kw) 1.8 | Power (Kw) 3 | Power (Kw) 3.6 |
| Power (HP) | Power (HP) 3 | Power (HP) 2.5 | Power (HP) 4 | Power (HP) 5 |
| Absorption at 230V (A) | Absorption at 230V (A) 18.0 | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) 5.0 | Current consumption at 400V (A) 8.0 | Current consumption at 400V (A) 10.0 |
| Suction mouth | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 180 | Max. flow rate (l./min.) 260 | Max. flow rate (l./min.) 260 | Max. flow rate (l./min.) 260 |
| Min. head (m.) | Min. head (m.) 44 | Min. head (m.) 8 | Min. head (m.) 41 | Min. head (m.) 51.5 |
| Max. head (m.) | Max. head (m.) 81 | Max. head (m.) 63 | Max. head (m.) 68.5 | Max. head (m.) 86 |
| Height (cm) | Height (cm) 67.4 | Height (cm) 67.4 | Height (cm) 67.4 | Height (cm) 67.4 |
| Width (cm) | Width (cm) 70.0 | Width (cm) 53.0 | Width (cm) 70.0 | Width (cm) 70.0 |
| Depth (cm) | Depth (cm) 80.5 | Depth (cm) 71.5 | Depth (cm) 77.9 | Depth (cm) 80.5 |
| Weight (Kg) | Weight (Kg) 83 | Weight (Kg) 56 | Weight (Kg) 83 | Weight (Kg) 90 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
