CB2 - FCR 130/4 - Three-phase pressure group 2x1.5 HP
2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 68.5 m.
The CB2 - FCR 130/4 pressure group by Pedrollo is recommended for the domestic, civil, agricultural and industrial sectors.
Particularly suitable for residential and commercial water supply, pressure boosting in industrial applications, irrigation of gardens and sports fields.
Suitable for pumping clean water or aqueous solutions that do not damage the components.

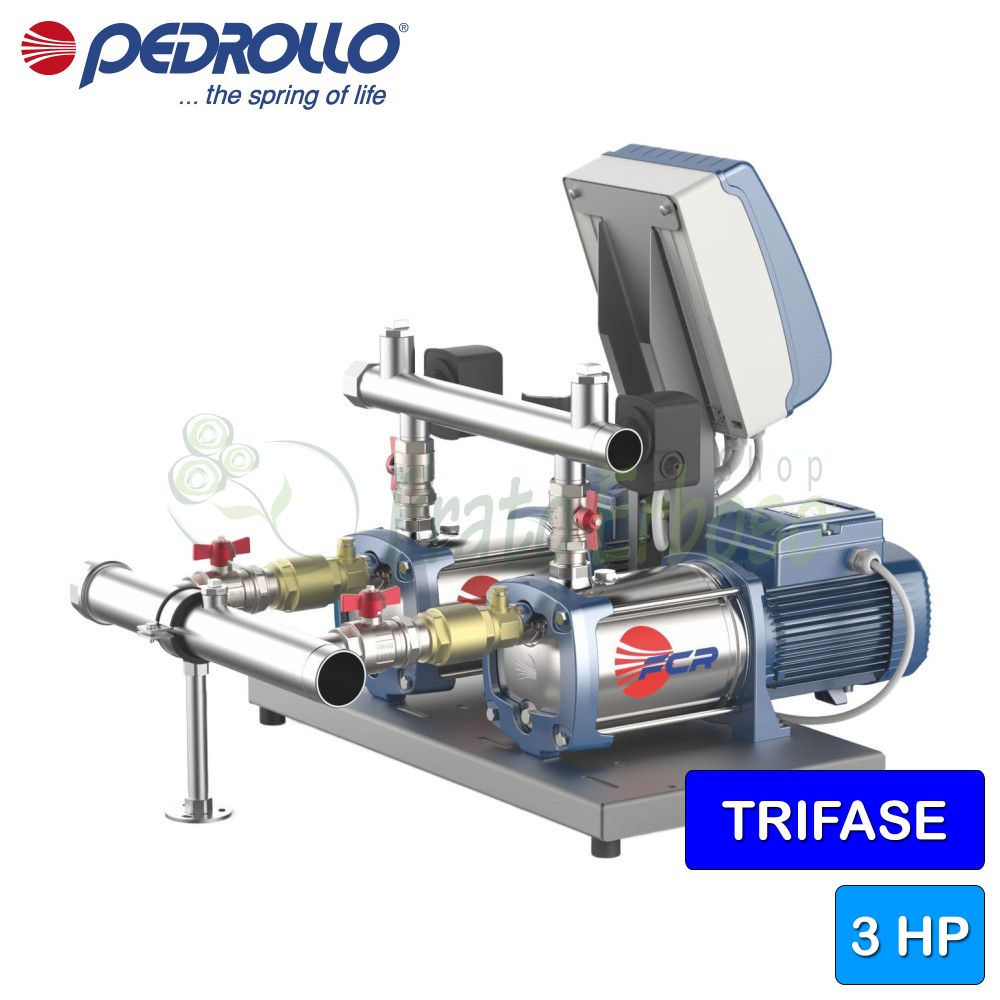

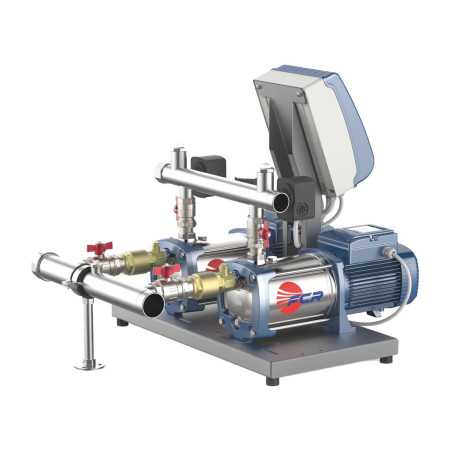

The CB2 - FCR 130/4 pressure set consists of two FCR 130/4 electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.
It has a flow rate ranging from 10 to 260 litres per minute and a head from 41 to 68.5 metres.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Current consumption at 400V (A)
- 8.0
- Suction mouth
- 2"
- Delivery mouth
- 1" 1/2
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 260
- Min. head (m.)
- 41
- Max. head (m.)
- 68.5
- Height (cm)
- 67.4
- Width (cm)
- 70.0
- Depth (cm)
- 77.9
- Weight (Kg)
- 83
- Warranty (years)
- 2
Compare with Similar Products
CB2 - FCR 130/4 - Three-phase pressure group 2x1.5 HPThis product 2 x 1.5 kW (2 x 2 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 68.5 m. |
CB2 - FCR 100/5 - Three-phase pressure group 2x1.25 HP2 x 0.9 kW (2 x 1.25 HP) motor. Flow rate up to 260 l/min (15.6 m³/h). Head up to 63 m. |
CB2 - FCR 90/5 - Three-phase pressure group 2x1.5 HP2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 180 l/min (15.6 m³/h). Head up to 81 m. |
CB2 - FCR 130/5 - Three-phase pressure group 2x2.5 HP2 x 1.8 kW (2 x 5 HP) motors. Flow rate up to 260 l/min (15.6 m³/h). Head up to 86 m. |
|
|---|---|---|---|---|
| Price |
Price
€4,096.76
-45%
€2,253.22
|
Price
€2,940.20
-45%
€1,617.11
|
Price
€4,039.42
-45%
€2,221.68
|
Price
€4,121.16
-45%
€2,266.64
|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 3 | Power (Kw) 1.8 | Power (Kw) 2.2 | Power (Kw) 3.6 |
| Power (HP) | Power (HP) 4 | Power (HP) 2.5 | Power (HP) 3 | Power (HP) 5 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) 18.0 | Absorption at 230V (A) -- |
| Current consumption at 400V (A) | Current consumption at 400V (A) 8.0 | Current consumption at 400V (A) 5.0 | Current consumption at 400V (A) -- | Current consumption at 400V (A) 10.0 |
| Suction mouth | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" | Suction mouth 2" |
| Delivery mouth | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 | Delivery mouth 1" 1/2 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 260 | Max. flow rate (l./min.) 260 | Max. flow rate (l./min.) 180 | Max. flow rate (l./min.) 260 |
| Min. head (m.) | Min. head (m.) 41 | Min. head (m.) 8 | Min. head (m.) 44 | Min. head (m.) 51.5 |
| Max. head (m.) | Max. head (m.) 68.5 | Max. head (m.) 63 | Max. head (m.) 81 | Max. head (m.) 86 |
| Height (cm) | Height (cm) 67.4 | Height (cm) 67.4 | Height (cm) 67.4 | Height (cm) 67.4 |
| Width (cm) | Width (cm) 70.0 | Width (cm) 53.0 | Width (cm) 70.0 | Width (cm) 70.0 |
| Depth (cm) | Depth (cm) 77.9 | Depth (cm) 71.5 | Depth (cm) 80.5 | Depth (cm) 80.5 |
| Weight (Kg) | Weight (Kg) 83 | Weight (Kg) 56 | Weight (Kg) 83 | Weight (Kg) 90 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
