CB2 - HT 10/7 - 2x4 HP three-phase pressure booster set

Name: CB2 - HT 10/7 - 2x4 HP three-phase pressure booster set
Brand: Pedrollo
SKU: CB2 - HT 10/7
Price: 3214.09 EUR
Availability: InStock

2 x 3 kW (2 x 4 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 108 m.

€3,214.09 Tax included

€2,634.50 Tax excluded

€5,843.80 -45%

Quantity

Variants:

Order it before 23:59 of Tuesday and receive it tomorrow with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 15 January - Friday 16 January
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 15 January - Friday 16 January
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 16 January - Monday 19 January
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	tomorrow
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	tomorrow

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 15 January - Friday 16 January

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 15 January - Friday 16 January

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 16 January - Monday 19 January

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
tomorrow

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
tomorrow

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

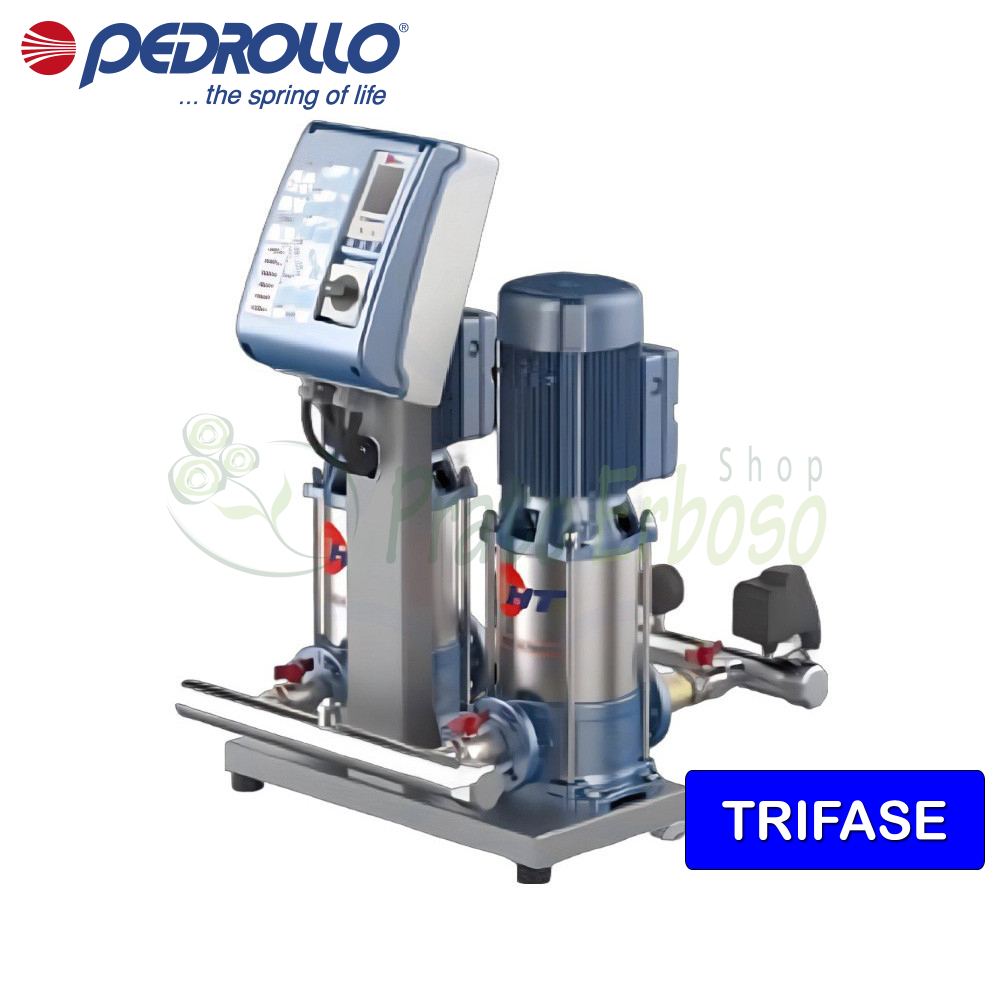

The CB2 - HT 10/7 pressure set consists of two electric pumps, two pressure switches, and an E2 electrical panel. Two manifolds for the suction and delivery ports are also supplied.

The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.

This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.

The CB2 - HT 10/7 pressure group is ideal for residential and commercial water supply, for irrigation and for the movement of clean water in general, even in the industrial field.

The electrical panel provides protection against dry running.

The base is made of metal profile and equipped with adjustable anti-vibration feet.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 6
Power (HP): 8
Current consumption at 400V (A): 14.4
Suction mouth: 2" 1/2
Delivery mouth: 2" 1/2
Minimum flow rate (l./min.): 60
Max. flow rate (l./min.): 500
Min. head (m.): 30
Max. head (m.): 108
Height (cm): 67.4
Width (cm): 70.0
Depth (cm): 87.3
Weight (Kg): 145

Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - HT 10 models and performance

Compare with Similar Products

	CB2 - HT 10/7 - 2x4 HP three-phase pressure booster set This product 2 x 3 kW (2 x 4 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 108 m.	CB2 - HT 10/4 - Three-phase pressure group 2x2.5 HP Quick View 2 x 1.8 kW (2 x 2.5 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 62 m.	CB2 - HT 10/5 - 2x3 HP three-phase pressure booster set Quick View 2 x 2 kW (2 x 3 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 77 m.	CB2 - HT 10/6 - 2x4 HP three-phase pressure booster set Quick View 2 x 3 kW (2 x 4 HP) motor. Flow rate up to 500 l/min (30 m³/h). Head up to 93 m.
Price	Price €5,843.80 -45% €3,214.09	Price €4,712.86 -45% €2,592.07	Price €4,856.82 -45% €2,671.25	Price €5,843.80 -45% €3,214.09
Motor connection	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 6	Power (Kw) 3.6	Power (Kw) 4	Power (Kw) 6
Power (HP)	Power (HP) 8	Power (HP) 5	Power (HP) 6	Power (HP) 8
Current consumption at 400V (A)	Current consumption at 400V (A) 14.4	Current consumption at 400V (A) 9.0	Current consumption at 400V (A) 10.4	Current consumption at 400V (A) 13.0
Suction mouth	Suction mouth 2" 1/2	Suction mouth 2" 1/2	Suction mouth 2" 1/2	Suction mouth 2" 1/2
Delivery mouth	Delivery mouth 2" 1/2	Delivery mouth 2" 1/2	Delivery mouth 2" 1/2	Delivery mouth 2" 1/2
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 60	Minimum flow rate (l./min.) 60	Minimum flow rate (l./min.) 60	Minimum flow rate (l./min.) 60
Max. flow rate (l./min.)	Max. flow rate (l./min.) 500	Max. flow rate (l./min.) 500	Max. flow rate (l./min.) 500	Max. flow rate (l./min.) 500
Min. head (m.)	Min. head (m.) 30	Min. head (m.) 18	Min. head (m.) 21.5	Min. head (m.) 26
Max. head (m.)	Max. head (m.) 108	Max. head (m.) 62	Max. head (m.) 77	Max. head (m.) 93
Height (cm)	Height (cm) 67.4	Height (cm) 67.4	Height (cm) 85.4	Height (cm) 67.4
Width (cm)	Width (cm) 70.0	Width (cm) 53.0	Width (cm) 53.0	Width (cm) 70.0
Depth (cm)	Depth (cm) 87.3	Depth (cm) 87.3	Depth (cm) 87.3	Depth (cm) 87.3
Weight (Kg)	Weight (Kg) 145	Weight (Kg) 111	Weight (Kg) 119	Weight (Kg) 135
