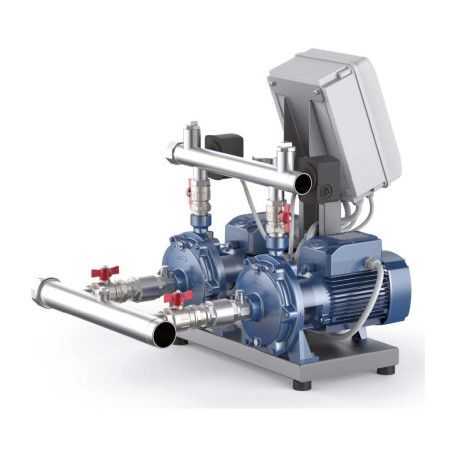

CB2 - 2CP 25/14B - Three-phase pressure group 2x1.5 HP

Name: CB2 - 2CP 25/14B - Three-phase pressure group 2x1.5 HP
Brand: Pedrollo
SKU: CB2 - 2CP25/14B
Price: 1734.54 EUR
Availability: InStock

2 THREE-PHASE ELECTRIC PUMPS.

2 x 1.1 kW (2 x 1.5 HP) motor. Flow rate up to 200 l/min (12.0 m³/h). Head up to 54 m.

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

COMBIPRESS are pressure groups with two electric pumps assembled in a ready-to-install unit.

The groups are set up so that, with each increase in user demand, one or both pumps are automatically started in succession.
This also allows for a significant reduction in electricity consumption since only the pumps needed to meet the water demand are activated.

The electronic circuit in the electrical panel alternates the operation of the pumps.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 2.2
Power (HP): 3
Current consumption at 400V (A): 6.2
Suction mouth: 2"
Delivery mouth: 1" 1/2
Minimum flow rate (l./min.): 40
Max. flow rate (l./min.): 200
Min. head (m.): 22
Max. head (m.): 54
Height (cm): 67.4
Width (cm): 53.0
Depth (cm): 75.2
Weight (Kg): 73
Warranty (years): 2

Attachments

Technical data sheet CB2

Construction and operating characteristics. Working curves, limits of use and dimensions of the CB2 Pedrollo pumps.

Download (2.73MB)

CB2 - 2CP models and performances

GUY

Three-phase

CB2 - 2CP 25/14B

CB2 - 2CP 25/16C

CB2 - 2CP 25/16B

CB2 - 2CP 25/16A

CB2 - 2CP 32/200C

CB2 - 2CP 32/200B

CB2 - 2CP 32/210B

CB2 - 2CP 32/210A

CB2 - 2CP 40/180C

CB2 - 2CP 40/180B

CB2 - 2CP 40/180A

POWER
KW	HP
2x1.1	2x1.5
2x1.1	2x1.5
2x1.5	2x2
2x2.2	2x3
2x3	2x4
2x4	2x5.5
2x5.5	2x7.5
2x7.5	2x10
2x4	2x5.5
2x5.5	2x7.5
2x7.5	2x10

MAX. CAPACITY
m³/h
12.0
14.4
16.8
19.2
30.0
30.0
30.0
30.0
42.0
48.0
48.0

MAX. HEAD
m
52
46
56
67
66.5
81
94
111
62
73
85

COLLECTORS
DN1	DN2
2"	1 1/2"
3"	2"
DN 100"	DN 80"

Q	m³/hour	0	2.4	4.8	7.2	9.6	12.0	13.2	14.4	16.8	19.2	21.6	24.0	30.0	36.0	42.0	48.0
Q	l/min	0	40	80	120	160	200	220	240	280	320	360	400	500	600	700	800
H	meters	54	52	47.5	41	33	22
		47	46	44	40	35	30	27	24
		58	56	54	51	47	43	40	37	30
		68	67	64.5	62	58	54	51	48	41	32
		70	-	66.5	65	63	60.5	59	58	55	52	49.5	46.5	36
		85	-	81	79	77	75	74	72	69	66	62	58	49
		94	-	94	93	91	89	87	86	83	79	75	70	56
		112	-	111	110.5	110	108	107	106	102	99	94	89	74
		64	-	-	-	-	62	61.3	60.5	59	57.5	56	54.5	49	43	35
		76	-	-	-	-	73	72.5	72	71	70	69	67.5	64	59.5	54	46
		88	-	-	-	-	85	84.5	84	83	82	81	79.5	76	72	67	60
