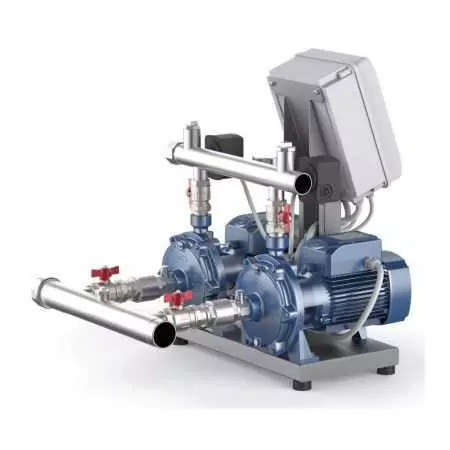

CB2 - 2CP 25/16C - Three-phase pressure group 2x1.5 HP
2 THREE-PHASE ELECTRIC PUMPS.
2 x 1.1 Kw (2 x 1.5 HP) motor. Flow rate up to 240 l/min (14 m³/h). Head up to 47 m.
There are no reviews yet
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
COMBIPRESS are pressure groups with two electric pumps assembled in a ready-to-install unit.
The groups are set up so that, with each increase in demand from the user, one or both pumps are automatically started in succession.
This also allows for a significant reduction in electricity consumption since only the pumps needed to satisfy the water demand are activated.
The electronic circuit in the electrical panel alternates the operation of the pumps.
Data sheet
- Motor connection
- THREE-PHASE
- Power (HP)
- 3
- Absorption at 400V (A)
- 6.2
- Suction mouth
- 2"
- Delivery port
- 1 "1/2
- Body Pump
- Cast iron
- Impeller
- Brass
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 40
- Max flow (l./min.)
- 240
- Min head (m.)
- 24
- Max head (m.)
- 46
- Height (cm)
- 77.1
- Width (cm)
- 53
- Depth (cm)
- 68.8
- Weight kg)
- 70
- Guarantee
- 2
CB2 - 2CP models and performances
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
