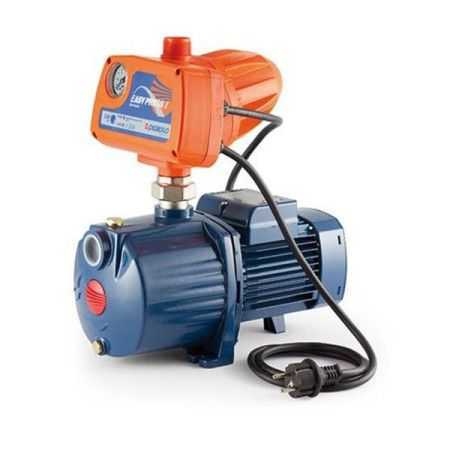

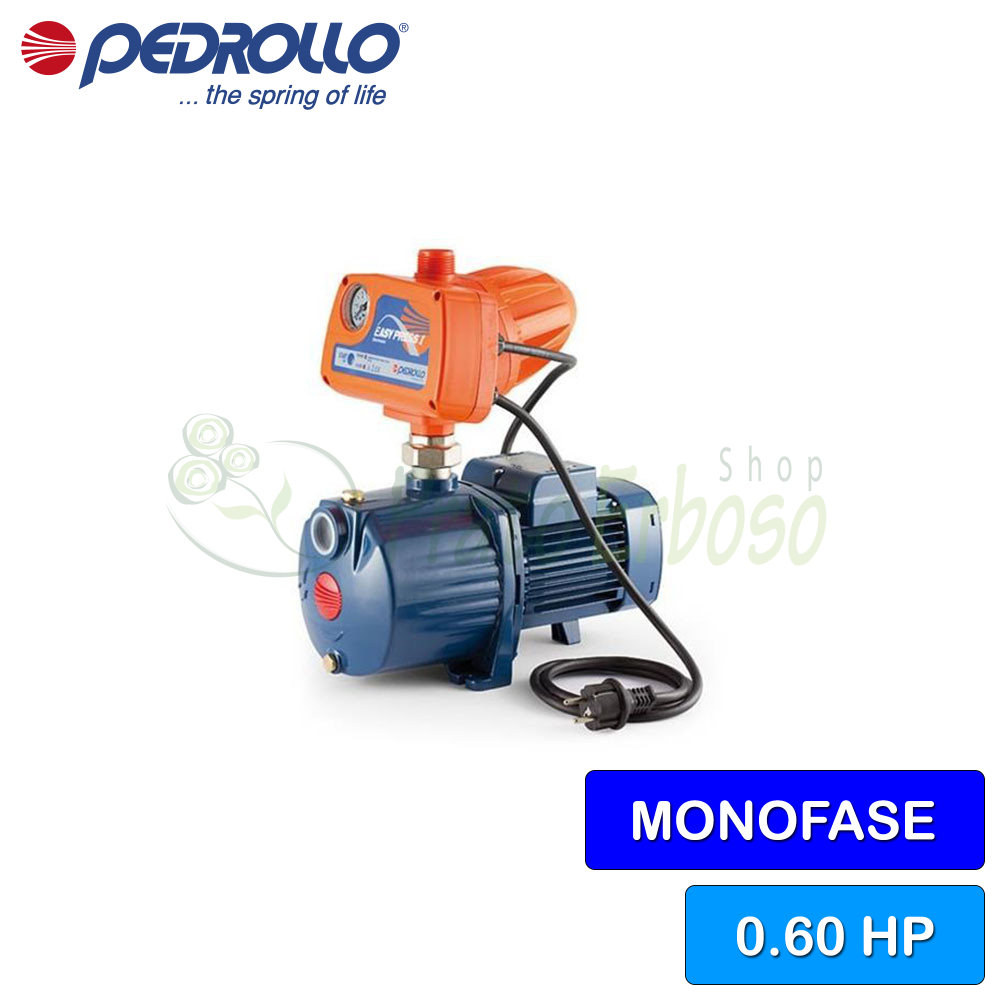

3CRm 80 - EP - 0.60 HP single-phase pressure group
Flow rate up to 80 l/min (4.8 m³/h). Head up to 38 m. 0.45 Kw (0.60 HP) motor.
The Pedrollo 3CRm 80 - EP pressure group is recommended for domestic use.
The easypump 3CRm 80 - EP consists of a single-phase electric pump and a control device, an easypress. The easypress controls automatic start and stop based on consumption and protects against dry running and system leaks.
It is also equipped with an integrated non-return valve and a micro accumulator that allows it to operate without the use of an expansion vessel.
The use of the 3CRm 80 - EP system thanks to the use of the easypress is ideal for ensuring increased pressure in homes or for irrigating gardens or vegetable gardens.
The easypump starts when the system pressure drops below the calibration threshold, 1.5 bar , and continues to operate as long as there is flow.
The 3CRm 80 - EP pressure group is supplied with a GSR quick-connect coupling and a 1.5 metre cable with Schuko plug.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.45
- Power (HP)
- 0.60
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 5
- Max. head (m.)
- 50
- Jobs
- domestic, irrigation
- Warranty (years)
- 2
Compare with Similar Products
 3CRm 80 - EP - 0.60 HP single-phase pressure groupThis product Flow rate up to 80 l/min (4.8 m³/h). Head up to 38 m. 0.45 Kw (0.60 HP) motor. |  4CRm 80 - EP - 0.75 HP single-phase pressure groupFlow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.55 Kw (0.75 HP) motor. |  4CRm 100 - EP - 1 HP single-phase pressure groupFlow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|
| Price | Price €503.86 -42% €292.24 | Price €538.02 -42% €312.05 | Price €588.04 -42% €341.06 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.45 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.60 | Power (HP) 0.75 | Power (HP) 1 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 50 | Max. head (m.) 50 | Max. head (m.) 50 |
| Jobs | Jobs domestic, irrigation | Jobs domestic, irrigation | Jobs domestic, irrigation |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
