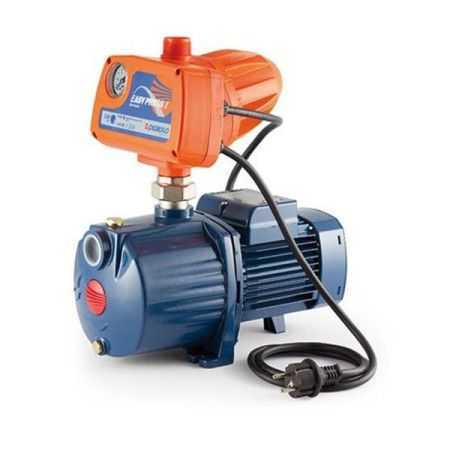

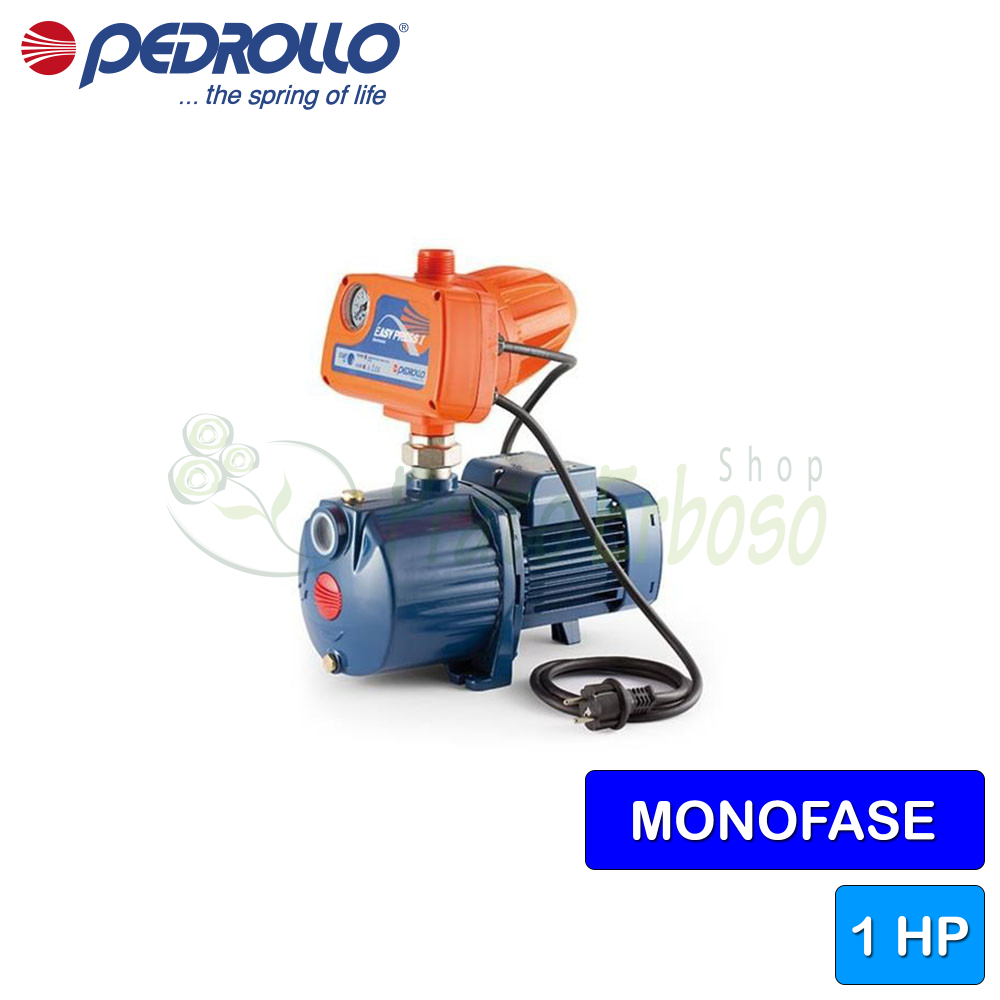

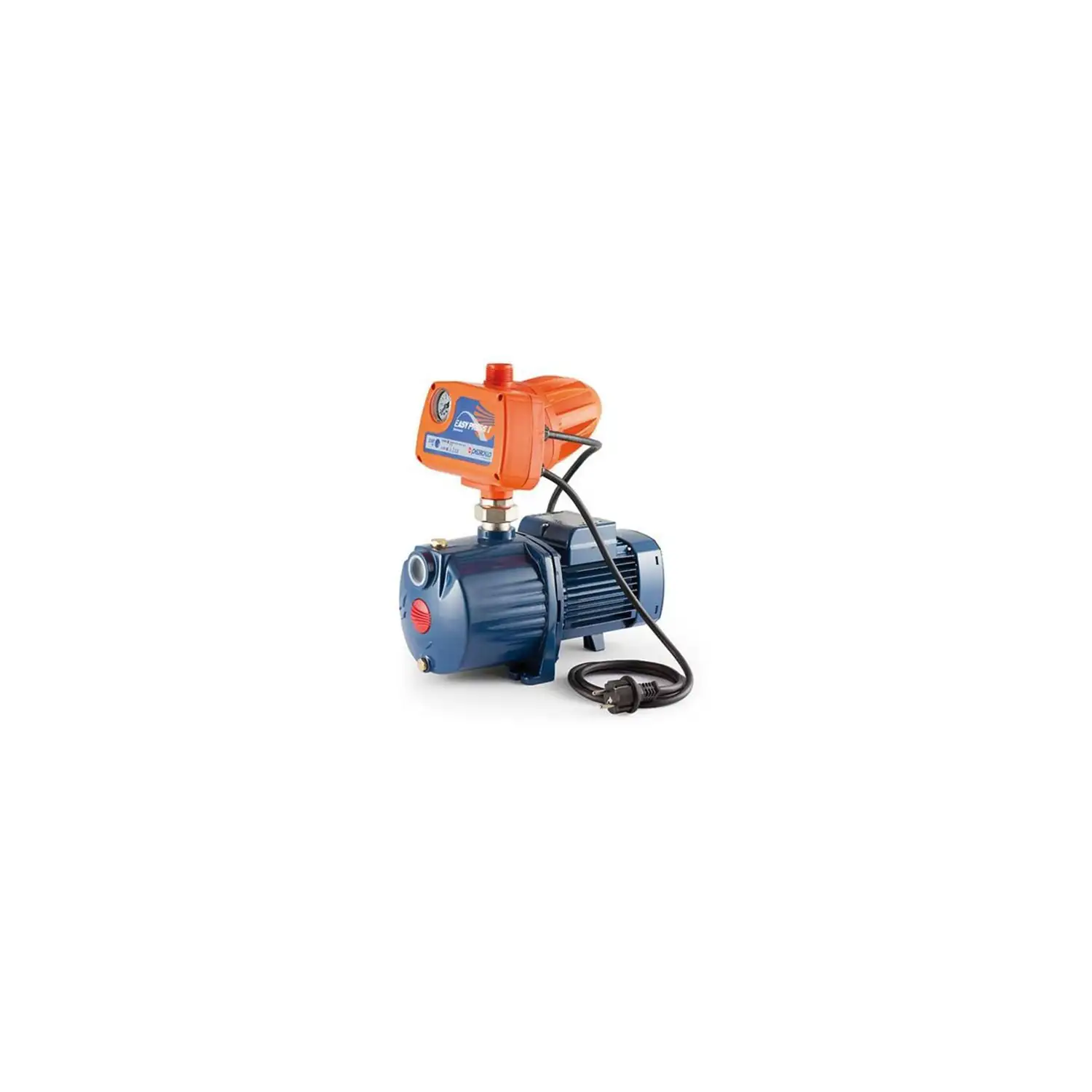

4CRm 100 - EP - 1 HP single-phase pressure group
Flow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor.
The Pedrollo 4CRm 100 - EP pressure group is composed of the 4CRm 100 single-phase electric pump and an easypress.
The easypress controls the starting and stopping of the easypump based on consumption and protects against dry running and leaks in the system.
The easypump is equipped with an integrated non-return valve and a micro accumulator that allows it to operate without the use of an expansion vessel.
The 4CRm 100 - EP pressure group is recommended for domestic use. It's ideal for boosting pressure in homes or for watering gardens and allotments.
The easypump starts when the system pressure drops below the calibration threshold, 1.5 bar , and continues to operate as long as there is flow.
The 4CRm 100 - EP pressure group is supplied with a GSR quick-connect coupling and a 1.5 metre cable with Schuko plug.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 5
- Max. head (m.)
- 50
- Jobs
- domestic, irrigation
- Warranty (years)
- 2
Compare with Similar Products
 4CRm 100 - EP - 1 HP single-phase pressure groupThis product Flow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor. |  3CRm 80 - EP - 0.60 HP single-phase pressure groupFlow rate up to 80 l/min (4.8 m³/h). Head up to 38 m. 0.45 Kw (0.60 HP) motor. |  4CRm 80 - EP - 0.75 HP single-phase pressure groupFlow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.55 Kw (0.75 HP) motor. | |
|---|---|---|---|
| Price | Price €588.04 -42% €341.06 | Price €503.86 -42% €292.24 | Price €538.02 -42% €312.05 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.45 | Power (Kw) 0.55 |
| Power (HP) | Power (HP) 1 | Power (HP) 0.60 | Power (HP) 0.75 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 | Min. head (m.) 10 |
| Max. head (m.) | Max. head (m.) 50 | Max. head (m.) 38 | Max. head (m.) 52 |
| Jobs | Jobs domestic, irrigation | Jobs domestic, irrigation | Jobs domestic, irrigation |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
