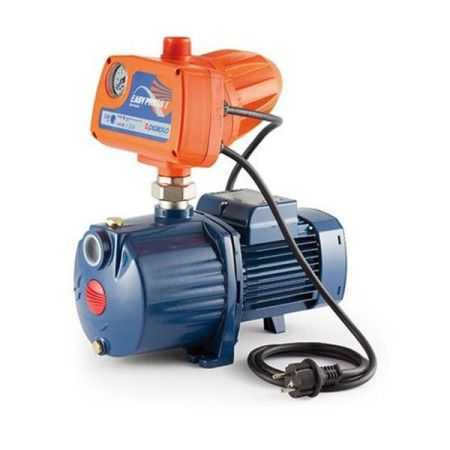

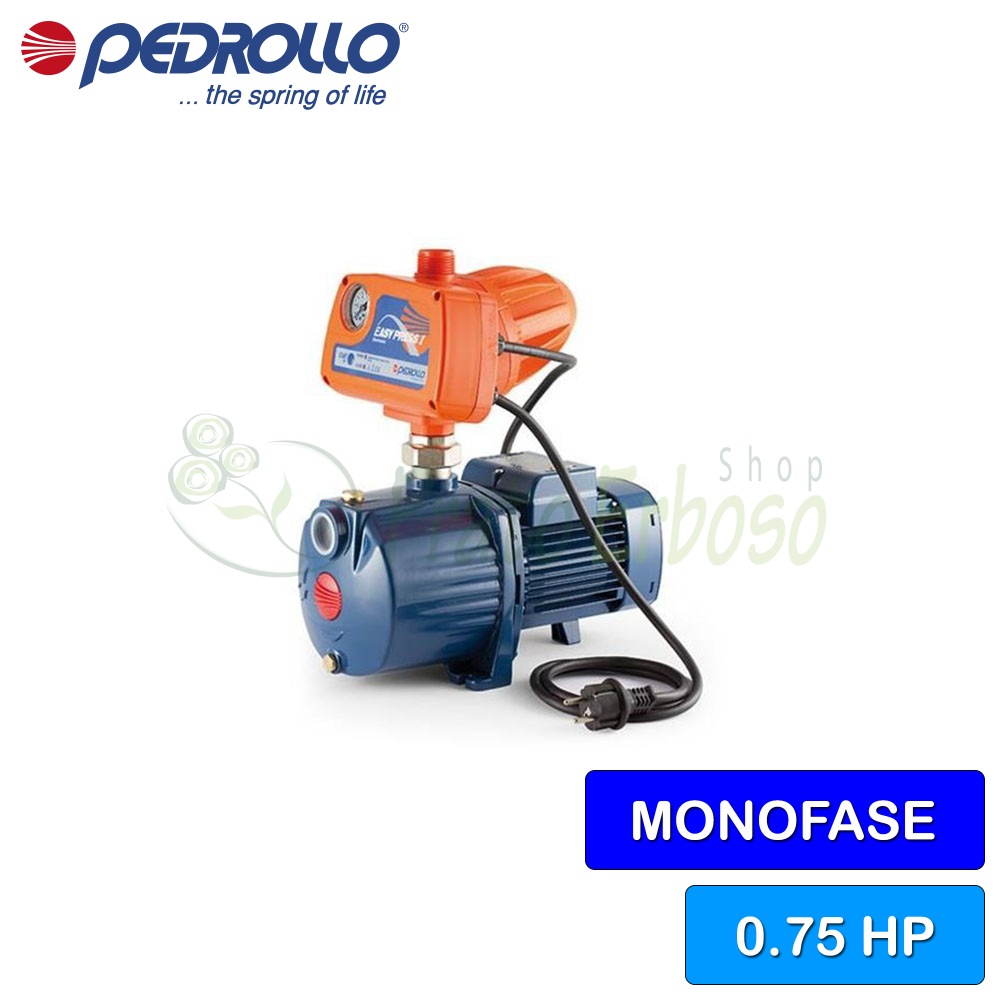

4CRm 80 - EP - 0.75 HP single-phase pressure group
Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.55 Kw (0.75 HP) motor.
The 4CRm 80 - EP pressure group by Pedrollo is ideal for ensuring increased pressure in homes or for irrigating gardens or vegetable gardens.
It starts when the system pressure drops below the calibration threshold, 1.5 bar , and continues to operate as long as there is flow.
The easypump consists of a 4CRm 80 and an easypress. The easypress allows for consumption-based start-up and shutdown, and protects against dry running and system leaks.
Furthermore, the 4CRm 80 - EP pressure group is equipped with an integrated non-return valve and a micro accumulator that allows it to operate without the use of an expansion vessel.
To further reduce frequent restarts, due to short uses or leaks in the system, it is recommended to install an expansion vessel pre-charged to 1.2 bar .
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 5
- Max. head (m.)
- 50
- Jobs
- domestic, irrigation
- Warranty (years)
- 2
Compare with Similar Products
 4CRm 80 - EP - 0.75 HP single-phase pressure groupThis product Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.55 Kw (0.75 HP) motor. |  3CRm 80 - EP - 0.60 HP single-phase pressure groupFlow rate up to 80 l/min (4.8 m³/h). Head up to 38 m. 0.45 Kw (0.60 HP) motor. |  4CRm 100 - EP - 1 HP single-phase pressure groupFlow rate up to 130 l/min (7.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|
| Price | Price €538.02 -42% €312.05 | Price €503.86 -42% €292.24 | Price €588.04 -42% €341.06 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.45 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.60 | Power (HP) 1 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 130 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 5 | Min. head (m.) 5 |
| Max. head (m.) | Max. head (m.) 50 | Max. head (m.) 50 | Max. head (m.) 50 |
| Jobs | Jobs domestic, irrigation | Jobs domestic, irrigation | Jobs domestic, irrigation |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
