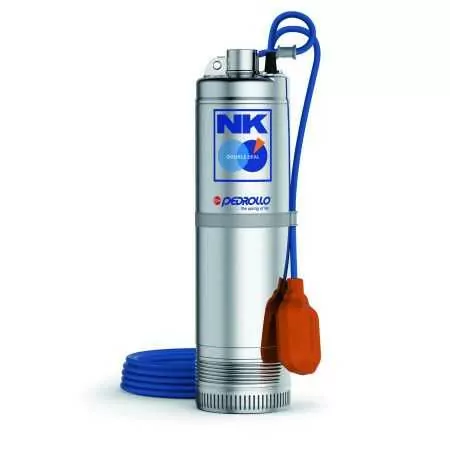

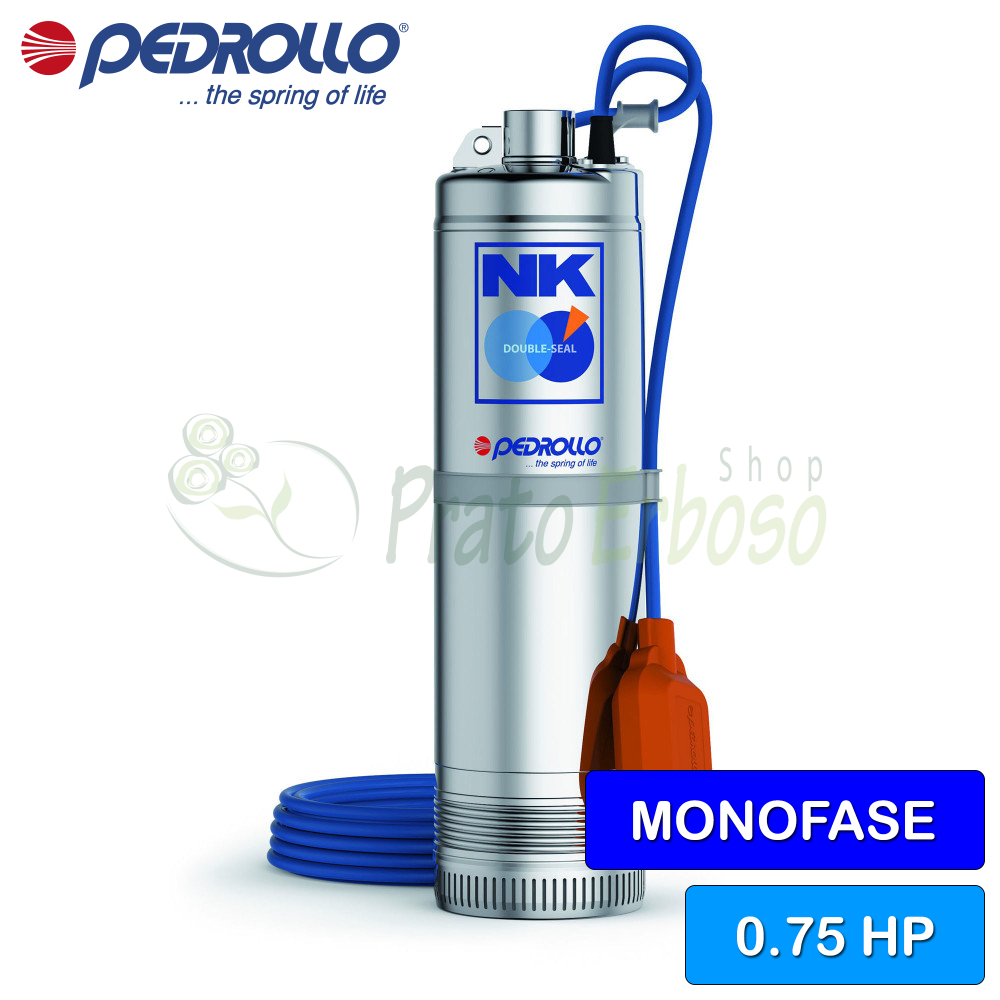

NKm 2/3-GE (10m) - Single-phase submersible electric pump with float switch, 0.75 HP

Flow rate up to 80 l/min (4.8 m³/h). Head up to 48.5 m. 0.55 kW (0.75 HP) motor. 10-meter cable.

€371.49 Tax included

€304.50 Tax excluded

€640.50-42%

Variants:
NKm 2/2-GE (10m) - Elettropompa sommersa monofase con galleggiante da 0.50 HP
NKm 2/3-GE (10m) - Elettropompa sommersa monofase con galleggiante da 0.75 HP
NKm 2/4-GE (10m) - Elettropompa sommersa monofase con galleggiante da 1 HP
NKm 2/5-GE (10m) - Elettropompa sommersa monofase con galleggiante da 1.5 HP
NKm 2/6-GE (10m) - Elettropompa sommersa monofase con galleggiante da 2 HP
(5/5) out of 1 total ratings
Read the reviews
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

NKm 2/3-GE (10m) - Single-phase submersible electric pump with float switch, 0.75 HP
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description

The NKm 2/3-GE submersible electric pump from the NK series by Pedrollo guarantees high performance and reliability under all circumstances.

It can pump clean water and liquids that are chemically non-aggressive for the pump components themselves.

It has a 0.75 HP motor. The flow rate varies from 10 to 80 liters per minute and the head from 24 to 48.5 meters.

The NKm 2/3-GE is recommended for domestic, civil and agricultural installations.

In particular, it can be used for water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens, and for pressure boosting.

Data sheet
Pedrollo
NKm 2/3-GE 10m
11 Items
48SN2115A1U
Motor connection
SINGLE-PHASE
Power (Kw)
0.55
Power (HP)
0.75
Absorption at 230V (A)
5.5
Capacitor
16 µF 450 VL
Delivery mouth
1" 1/4
Pump body
AISI 304 stainless steel
Impeller
Noryl
Number of impellers
3
Crankshaft
AISI 431 stainless steel
Check valve
No
Degree of protection
IP 68
Minimum flow rate (l./min.)
10
Max. flow rate (l./min.)
80
Min. head (m.)
24
Max. head (m.)
48.5
Cable length (m.)
10
Jobs
water supply, pressurization systems, irrigation
Max. liquid temperature (°C)
+40°C
Height (cm)
48.6
External diameter (cm)
13.5
Weight (Kg)
13.4
Warranty (years)
2
Attachments

Technical data sheet NK

Construction and operating characteristics. Working curves, limits of use and dimensions of Pedrollo NK series pumps.

file_download Download (1.73MB)

Buy it with

  • NKm 2/3-GE (10m) - Single-phase submersible electric pump with float switch, 0.75 HP
  • +
  • VR 0.5 - 1/2 "non-return valve
  • +
  • EASYPRESS-BLU - Electronic pressure regulator
  • €455.08-10 %
    Total price: €409.57
NKm GE models and performances
TYPE
three phase
NKm 2/2 GE
NKm 2/3 GE
NKm 2/4 GE
NKm 2/5 GE
NKm 2/6 GE
NKm 4/3 GE
NKm 4/4 GE
NKm 4/5 GE
NKm 4/6 GE
NKm 8/3 GE
NKm 8/4 GE
POWER
KWHP
0.370.50
0.550.75
0.751
1.11.5
1.52
0.550.75
0.751
1.11.5
1.52
1.11.5
1.52
