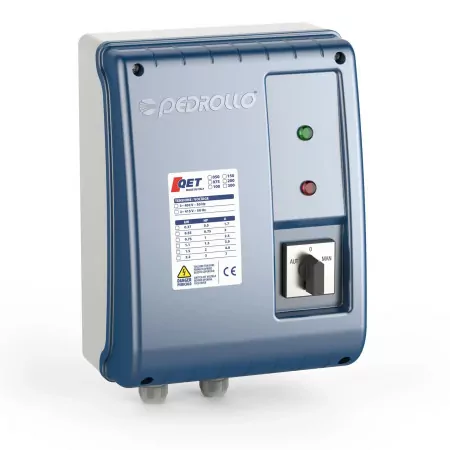

QET 050 - Electrical panel for three-phase electric pump 0.50 HP
For starting 1 submersible electric pump 4" and 6". Power: 0.37 Kw (0.5 HP). Operation: manual, automatic. Pressure switch/float input: yes. Protection: overload.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
Pedrollo QET electrical panel for submersible electric pumps made of self-extinguishing thermoplastic material.
The panel allows basic level control, with ON/OFF activation status and protection system of the electric pump against overloads and short circuits.
Available in different versions suitable to support the characteristics of the various Pedrollo electric pumps: for motors from 0.37 Kw up to 30 Kw.
Data sheet
- Power (HP)
- 0.50
- Degree of protection
- IP 55
- Line power supply
- three-phase
- Supply voltage (Volts)
- 400
- Engine power supply
- three-phase
- Motor Phase Current (Ampere)
- 1.7
- Overcurrent protection
- thermal relay
- Amperometric protection
- Yes
- Short circuit protection
- Yes
- Dry running protection
- No
- Height (cm)
- 20.2
- Width (cm)
- 15
- Depth (cm)
- 10.6
- Weight (Kg)
- 0.91
- Warranty (years)
- 2
QET models and performances
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
