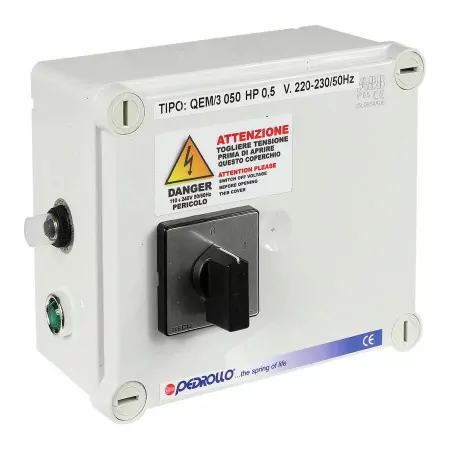

QEM/3-050 - Electrical panel for single-phase electric pump 0.50 HP
For starting 1 3" submersible electric pump. Power: 0.37 Kw (0.50 HP). Manual operation. Overload protection. Capacitor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
Description
Pedrollo QEM/3-050 electrical panel for 3-inch submersible electric pumps made of self-extinguishing thermoplastic material.
The panel allows basic level control, with ON/OFF activation status and protection system of the electric pump against overloads and short circuits.
Available in different versions suitable to support the characteristics of the various Pedrollo electric pumps: for motors from 0.37 Kw up to 0.75 Kw.
Data sheet
- Power (HP)
- 0.50
- Capacitor
- 12 µF450 VL
- Line power supply
- single phase
- Supply voltage (Volt)
- 230
- Motor power supply
- single phase
- Motor phase current
- 5
- Overcurrent protection
- thermal circuit breaker
- Amperometric protection
- No
- Short circuit protection
- Yes
- Dry running protection
- no
