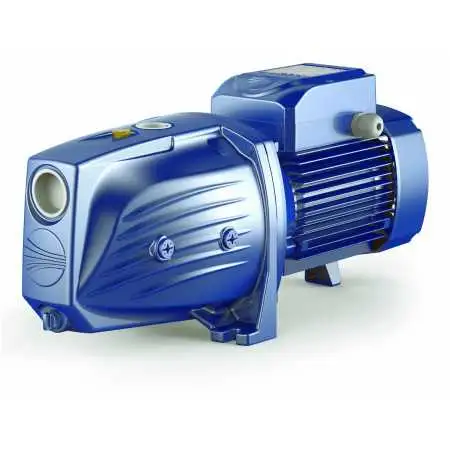

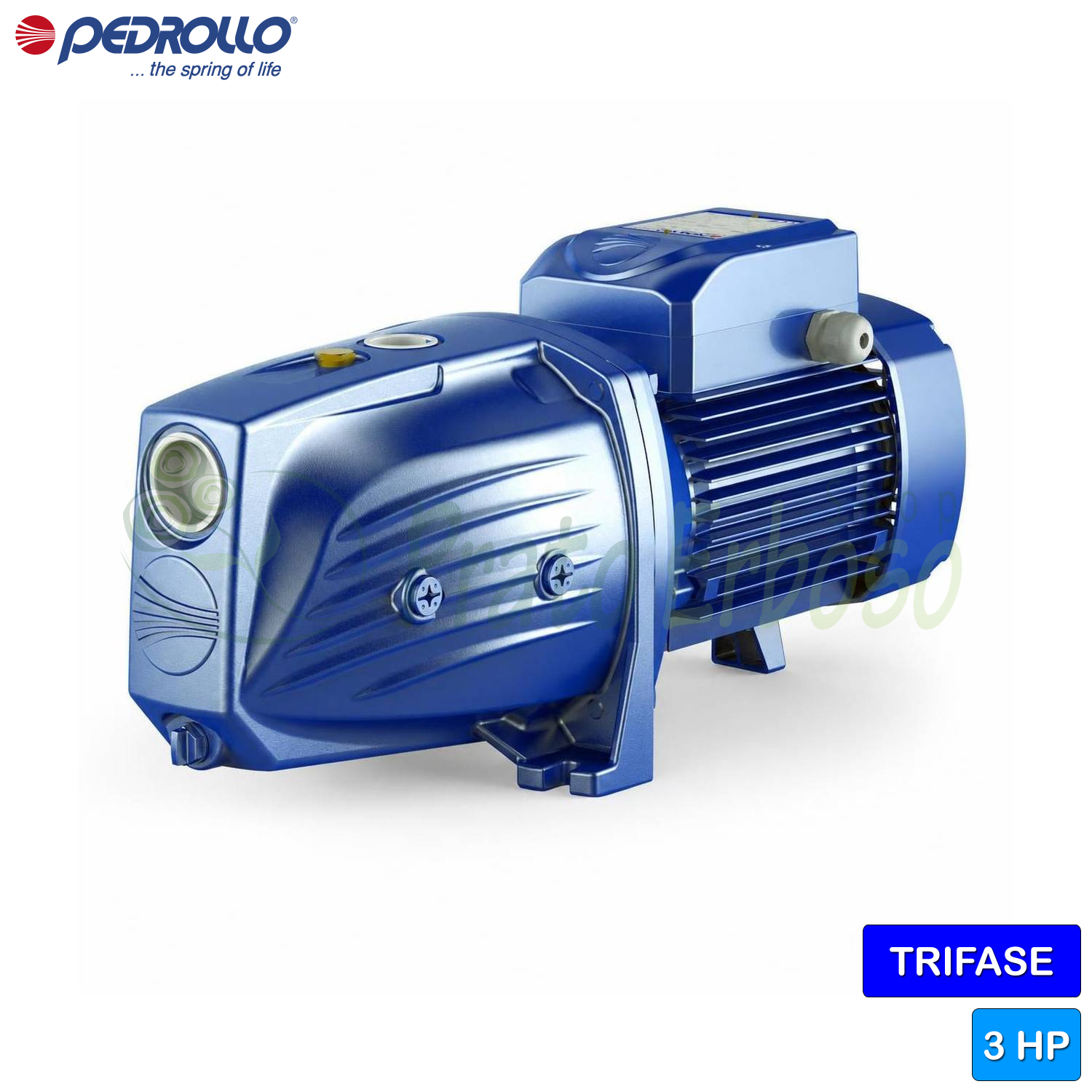

JSWm 3AM - 3 HP single-phase self-priming electric pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 78 m. 2.2 Kw (3 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Monday 20 July - Tuesday 21 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Monday 20 July - Tuesday 21 July |
 | One Express - 2 giorni Italia | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Thursday 23 July - Monday 27 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Monday 20 July - Tuesday 21 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Monday 20 July - Tuesday 21 July
Carrier: One Express - 2 giorni Italia
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Thursday 23 July - Monday 27 July
The Pedrollo JSWm 3AM self-priming electric pump is designed to suck water even in the presence of air mixed with the pumped liquid.
Due to its reliability, it is recommended for domestic use. The JSWm 3AM is particularly suitable for water distribution in conjunction with small or medium-sized pressure tanks, for irrigation of vegetable gardens and gardens, etc.
The flow rate ranges from 20 to 120 liters per minute. The head ranges from 40 to 78 meters.
The suction capacity of the JSWm 3AM is up to 9 metres.
It must be powered by a single-phase voltage, has a horsepower of 3 HP and the temperature of the liquid to be pumped ranges from -15 degrees centigrade up to +40.
The JSW 3AM is made of materials such as cast iron, noryl and stainless steel, these materials provide good resistance and ensure that the pump lasts over time.
Installation must be carried out in well-ventilated, closed areas or in any case protected from the elements.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Absorption at 230V (A)
- 13
- Suction mouth
- 1" 1/4
- Delivery mouth
- 1"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 304 stainless steel
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 40
- Max. head (m.)
- 78
- Jobs
- water supply, fire prevention systems, washing systems, pressurization systems, irrigation, tank transfer
- Max. liquid temperature (°C)
- +40°C
- Motor voltage
- 230 V
- Height (cm)
- 24
- Length (cm)
- 20.6
- Depth (cm)
- 54.2
- Weight (Kg)
- 28.4
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
