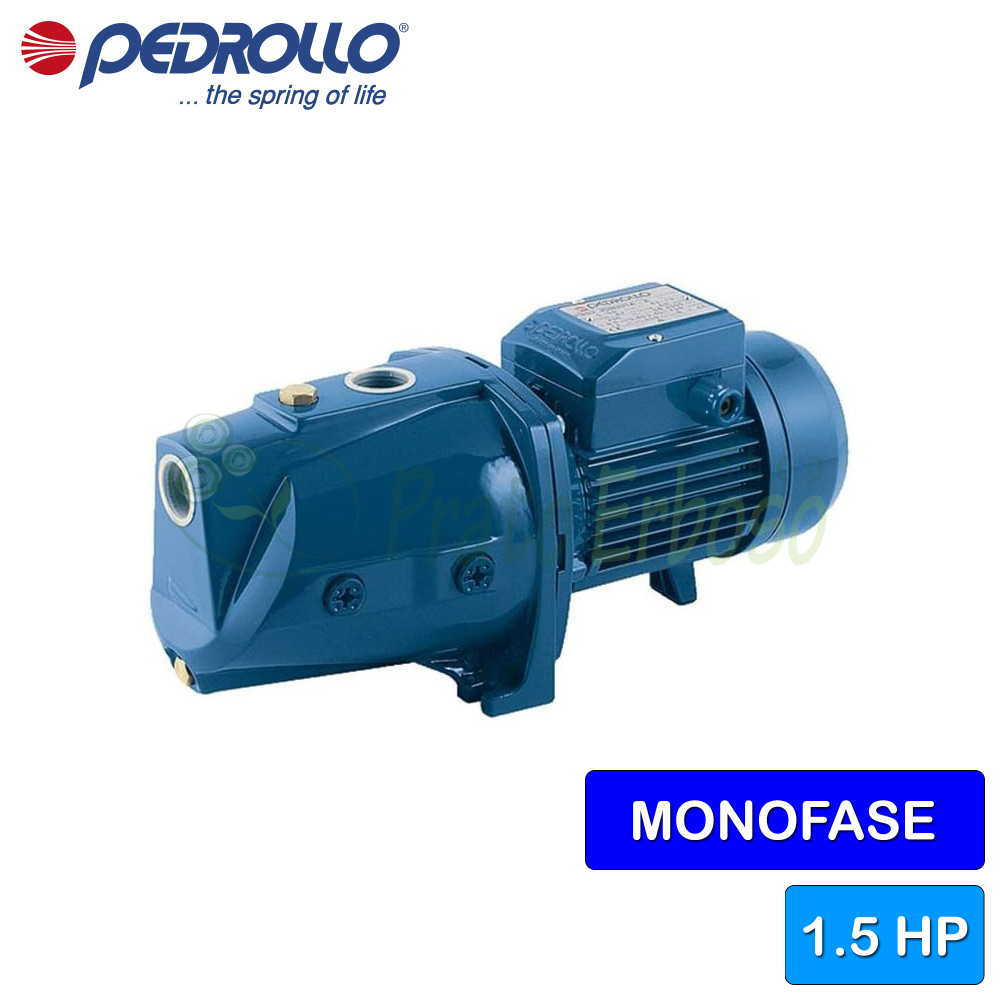

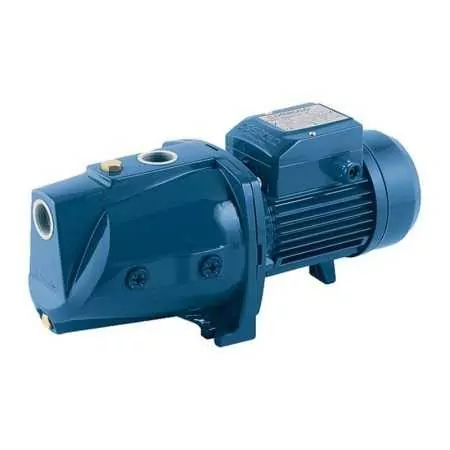

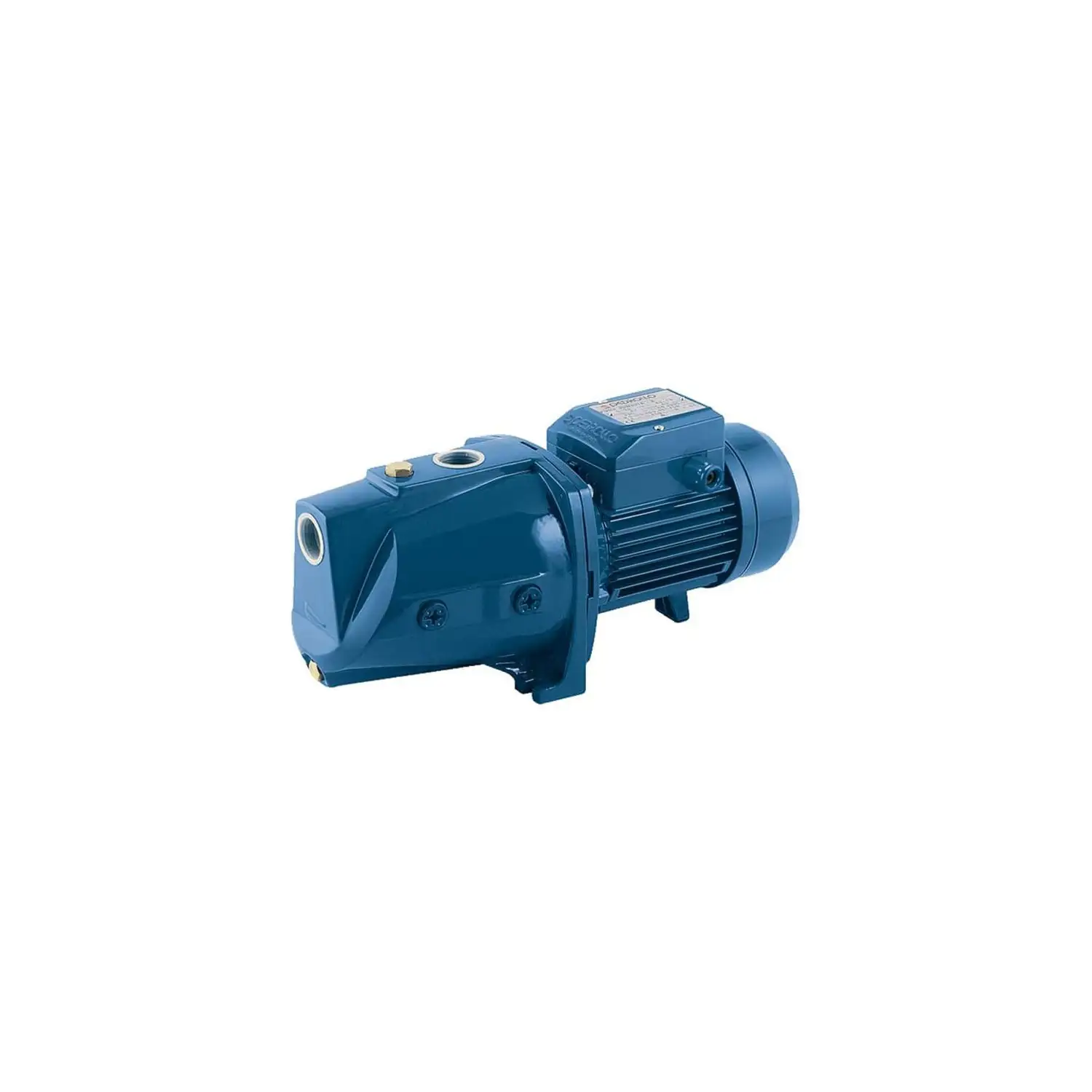

JSWm 3CM - 1.5 HP Single Phase Self-Priming Electric Pump
Flow rate up to 120 l/min (7.2 m³/h). Head up to 54 m. 1.1 Kw (1.5 HP) motor.
It is recommended for pumping clean water and liquids that are chemically non-aggressive for the materials from which the pump is made.
The Pedrollo JSWm 3CM self-priming electric pump is designed to suck water even in the presence of air mixed with the pumped liquid.
Due to its reliability and ease of use, it is recommended for domestic use, especially for water distribution in conjunction with small or medium pressure tanks, for irrigation of vegetable gardens and gardens.
Installation must be carried out indoors or in any case protected from the elements.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- 8.1
- Capacitor
- 31.5 µF450 VL
- Suction mouth
- 1 "1/4
- Delivery port
- 1 "
- Body Pump
- Cast iron
- Impeller
- Brass
- Number of impellers
- 1
- Motor shaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- no
- Degree of protection
- IP 44
- Flow rate min. (l./min.)
- 10
- Max flow (l./min.)
- 120
- Min head (m.)
- 20
- Max head (m.)
- 52
- Employments
- water supply, pressurization systems, irrigation, washing systems, transfer of tanks, fire prevention systems
- Liquid temperature max. (° C)
- 40
- Height (cm)
- 24.1
- Width (cm)
- 20.6
- Depth (cm)
- 52.2
- Weight kg)
- 25.3
- Guarantee
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6204 ZZ |
| Opposite side engine bearing | 6204 ZZ |
Tree holding
| Type of seal | Single Mechanical Seal |
| Shrinkage DN1=450 DN2=350 | FN-18 |
| LP diameter | 18 |
| LP fixed ring | Graphite |
| LP rotating ring | Ceramic |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 2.1 - Seal holder cover | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 3.1 - Ejector group | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | EN-AB 46100 aluminium |
| 7.0 - Lantern | EN-AB 46100 aluminium |
