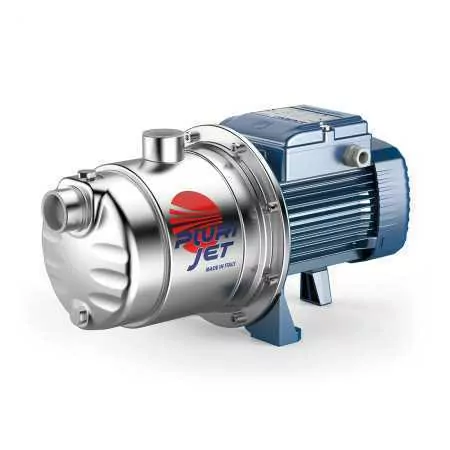

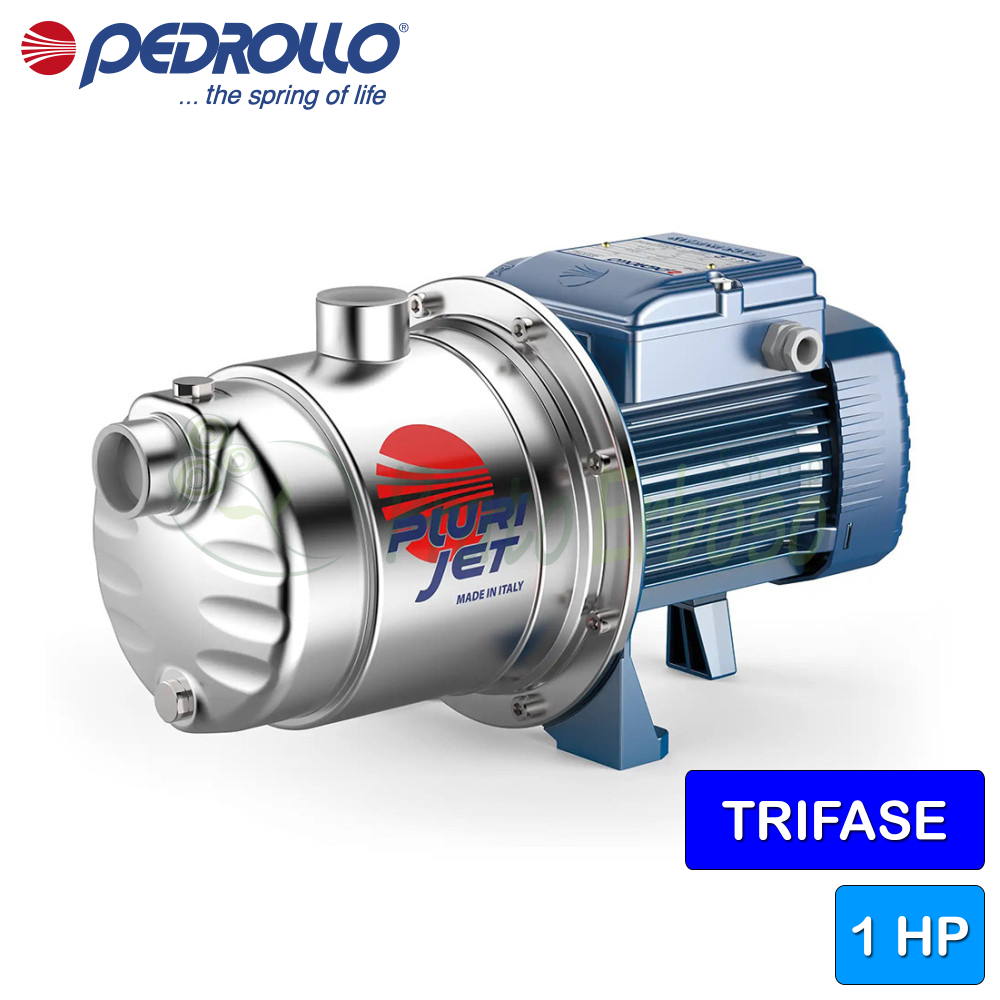

PLURIJET 4/120 - 1 HP three-phase self-priming multi-impeller electric pump
Flow rate up to 130 l/min (4.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Friday 10 July - Monday 13 July |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Friday 10 July - Monday 13 July |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Friday 10 July - Monday 13 July
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Friday 10 July - Monday 13 July
The PLURIJET 4/120 self-priming electric pump by Pedrollo is recommended for pumping clean water.
The flow rate ranges from 5 to 130 liters per minute. The head ranges from 5 to 50 meters.
It must be powered by a single-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to 60.
The PLURIJET 4/120 is equipped with stainless steel impellers which are the best and most effective solution to satisfy domestic needs, thanks to their characteristics of reliability, silence and economy of operation.
In the domestic environment it is an excellent solution thanks to the excellent suction capacity they are able to guarantee priming up to 9 meters deep.
Featuring multi-cell hydraulics that ensure maximum pressure with minimum power consumption, while reducing turbulence, an inevitable source of noise.
This makes operation extremely quiet.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 4
- Current consumption at 400V (A)
- 2.3
- Suction mouth
- 1"
- Delivery mouth
- 1"
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 4
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 44
- Minimum flow rate (l./min.)
- 5
- Max. flow rate (l./min.)
- 130
- Min. head (m.)
- 5
- Max. head (m.)
- 50
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +60°C
- Height (cm)
- 18.9
- Width (cm)
- 16
- Depth (cm)
- 40.2
- Weight (Kg)
- 12.2
- Warranty (years)
- 2
Reviews (1) - Review moderation
Compare with Similar Products
 PLURIJET 4/120 - 1 HP three-phase self-priming multi-impeller electric pumpThis product Flow rate up to 130 l/min (4.8 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor. |  FUTURE JET 2C - 1 HP three-phase self-priming electric pump Flow rate up to 120 l/min (7.2 m³/h). Head up to 55 m. 0.75 Kw (1 HP) motor. |  FUTURE JET 2CX - 1 HP three-phase self-priming electric pump Flow rate up to 120 l/min (3.5 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor. |  FUTURE JET 2C-ST - 1 HP three-phase self-priming electric pump Flow rate up to 120 l/min (7.2 m³/h). Head up to 50 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Price | Price €533.14 -42% €309.22 | Price €302.56 -42% €175.48 | Price €295.24 -42% €171.24 | Price €346.48 -42% €200.96 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.75 | Power (Kw) 0.75 | Power (Kw) 0.75 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 1 | Power (HP) 1 | Power (HP) 1 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 4 | Absorption at 230V (A) 3.5 | Absorption at 230V (A) 3.5 | Absorption at 230V (A) 3.5 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 2.3 | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- |
| Capacitor | Capacitor -- | Capacitor 20 µF 450 VL | Capacitor 20 µF 450 VL | Capacitor 20 µF 450 VL |
| Suction mouth | Suction mouth 1" | Suction mouth 1" | Suction mouth 1" | Suction mouth 1" |
| Delivery mouth | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" | Delivery mouth 1" |
| Pump body | Pump body AISI 304 stainless steel | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller Noryl | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 4 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft Stainless steel EN 10088-3 1.4104 | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve -- | Check valve -- | Check valve No |
| Degree of protection | Degree of protection IP 44 | Degree of protection -- | Degree of protection -- | Degree of protection IP 44 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 | Minimum flow rate (l./min.) 5 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 130 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 120 |
| Min. head (m.) | Min. head (m.) 5 | Min. head (m.) 10 | Min. head (m.) 10 | Min. head (m.) 6 |
| Max. head (m.) | Max. head (m.) 50 | Max. head (m.) 55 | Max. head (m.) 52 | Max. head (m.) 50 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +60°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 18.9 | Height (cm) 17.1 | Height (cm) 17.1 | Height (cm) 18.3 |
| Width (cm) | Width (cm) 16 | Width (cm) 15.8 | Width (cm) 15.8 | Width (cm) 18.2 |
| Depth (cm) | Depth (cm) 40.2 | Depth (cm) 35.7 | Depth (cm) 35.7 | Depth (cm) 36.7 |
| Weight (Kg) | Weight (Kg) 12.2 | Weight (Kg) 9.7 | Weight (Kg) 9.7 | Weight (Kg) 10 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
