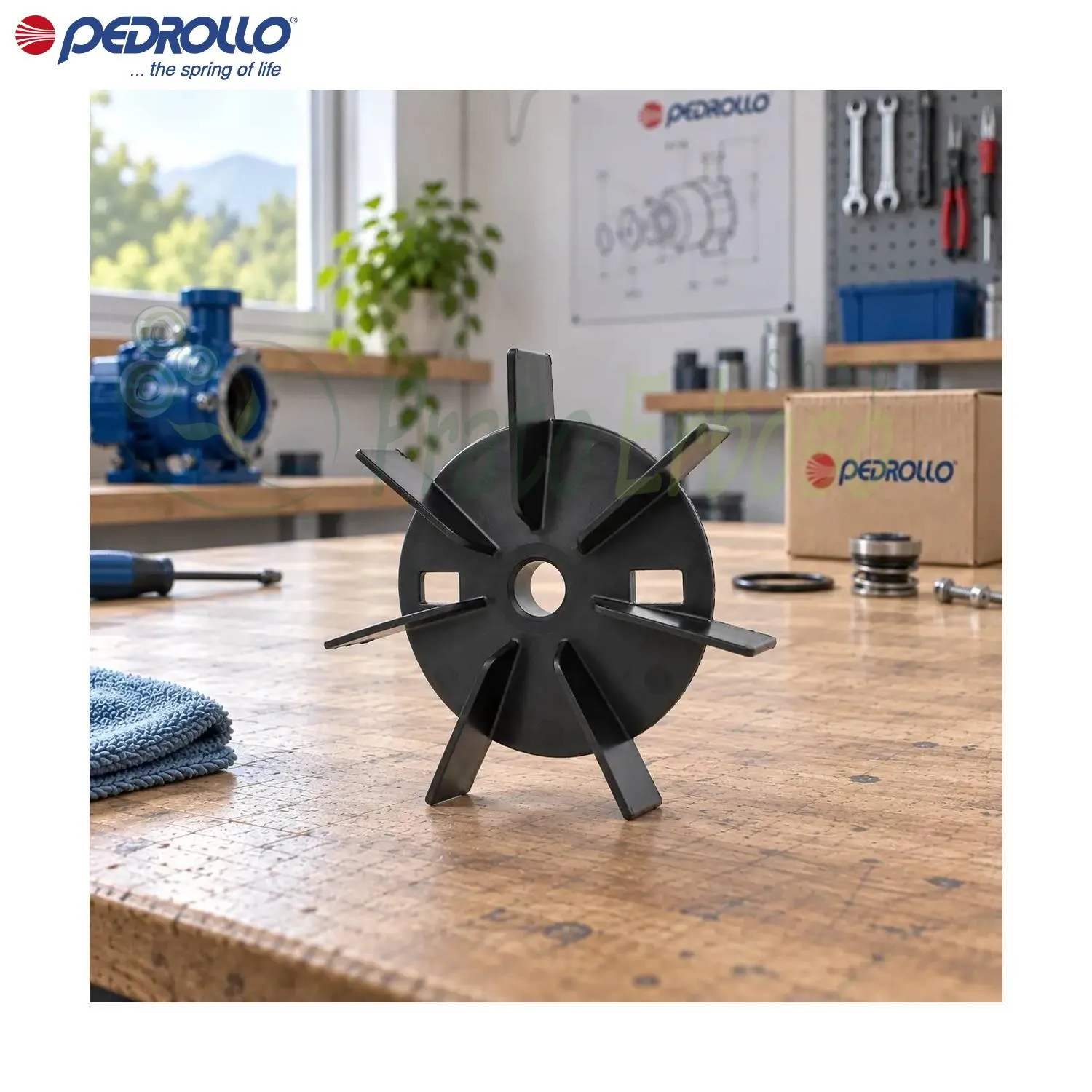

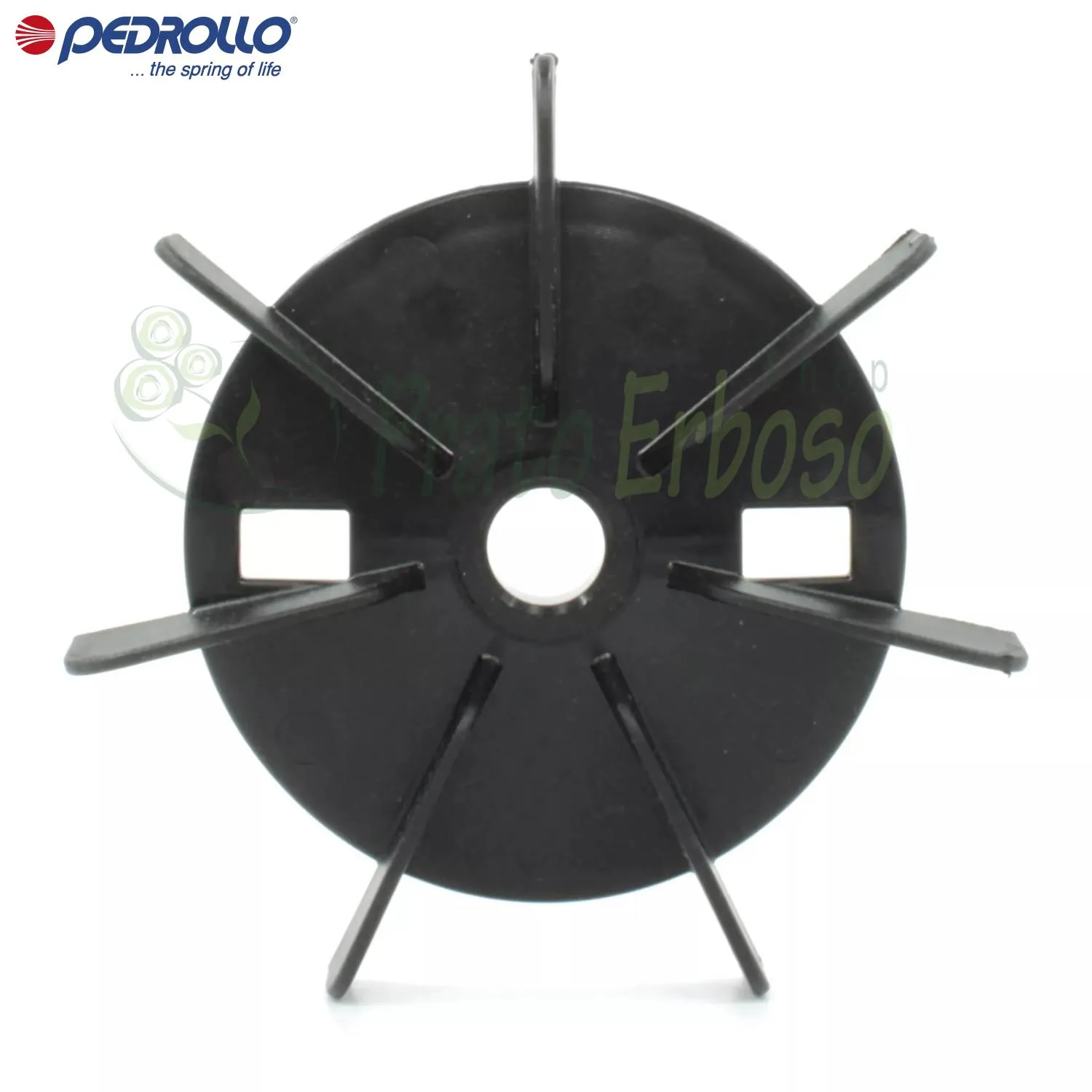

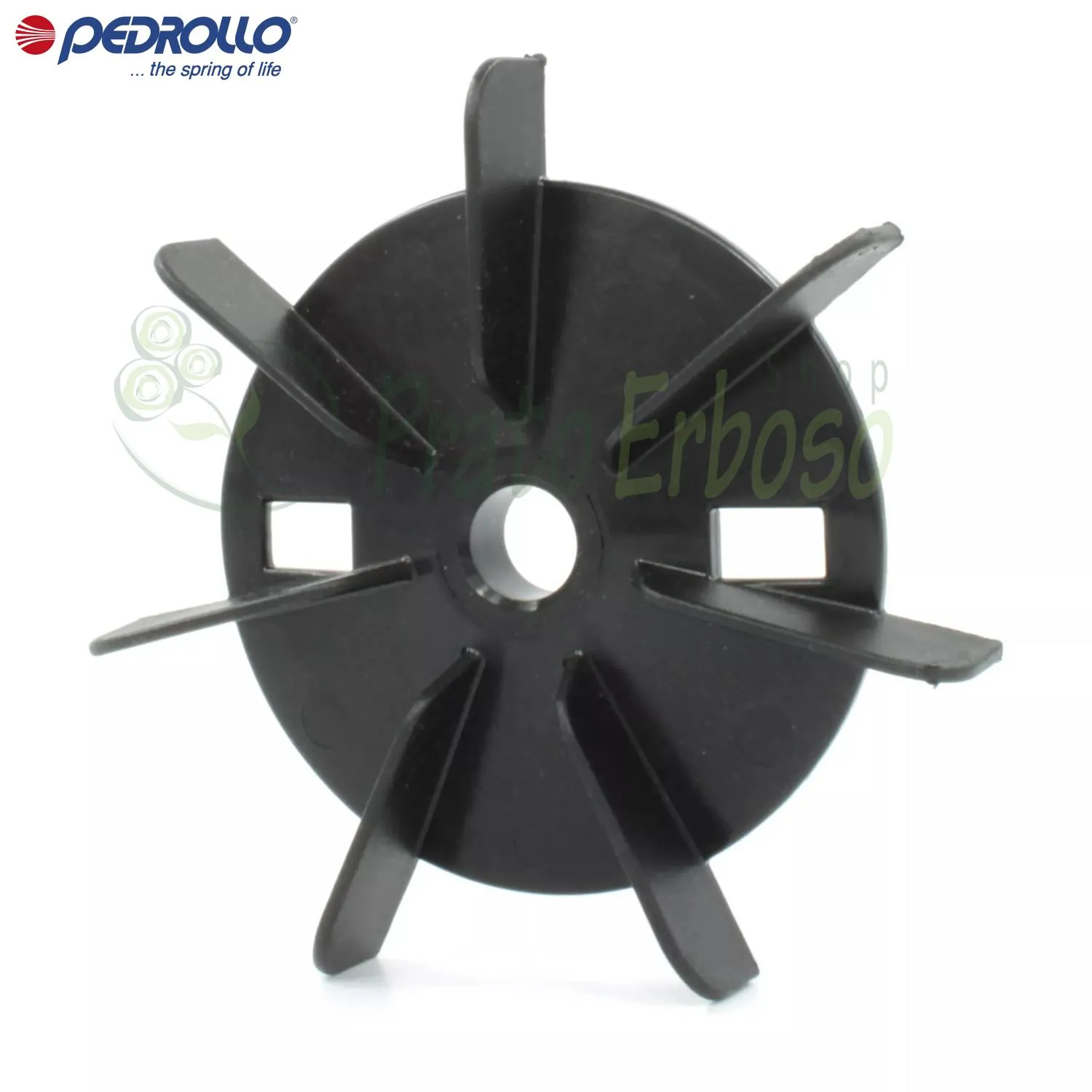

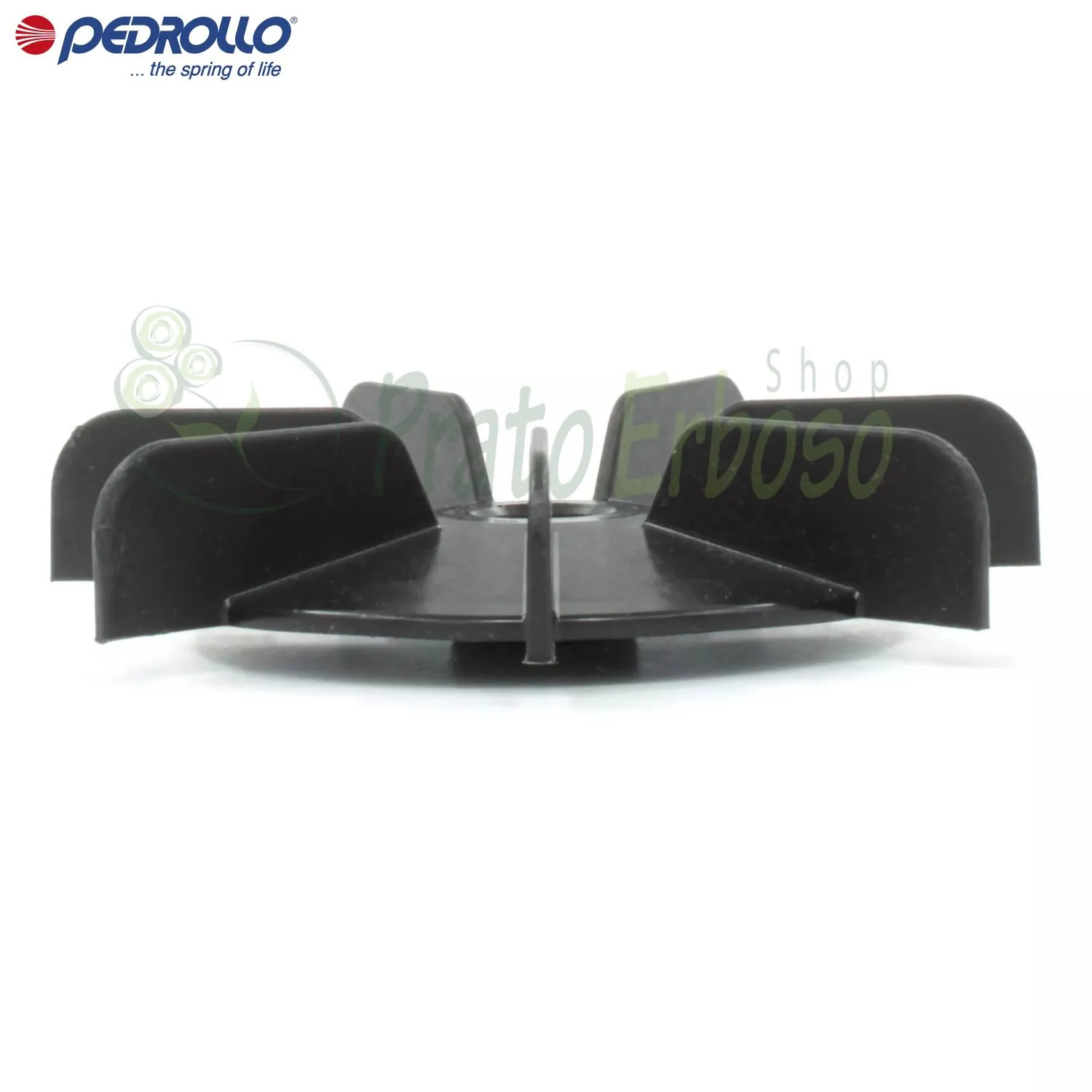

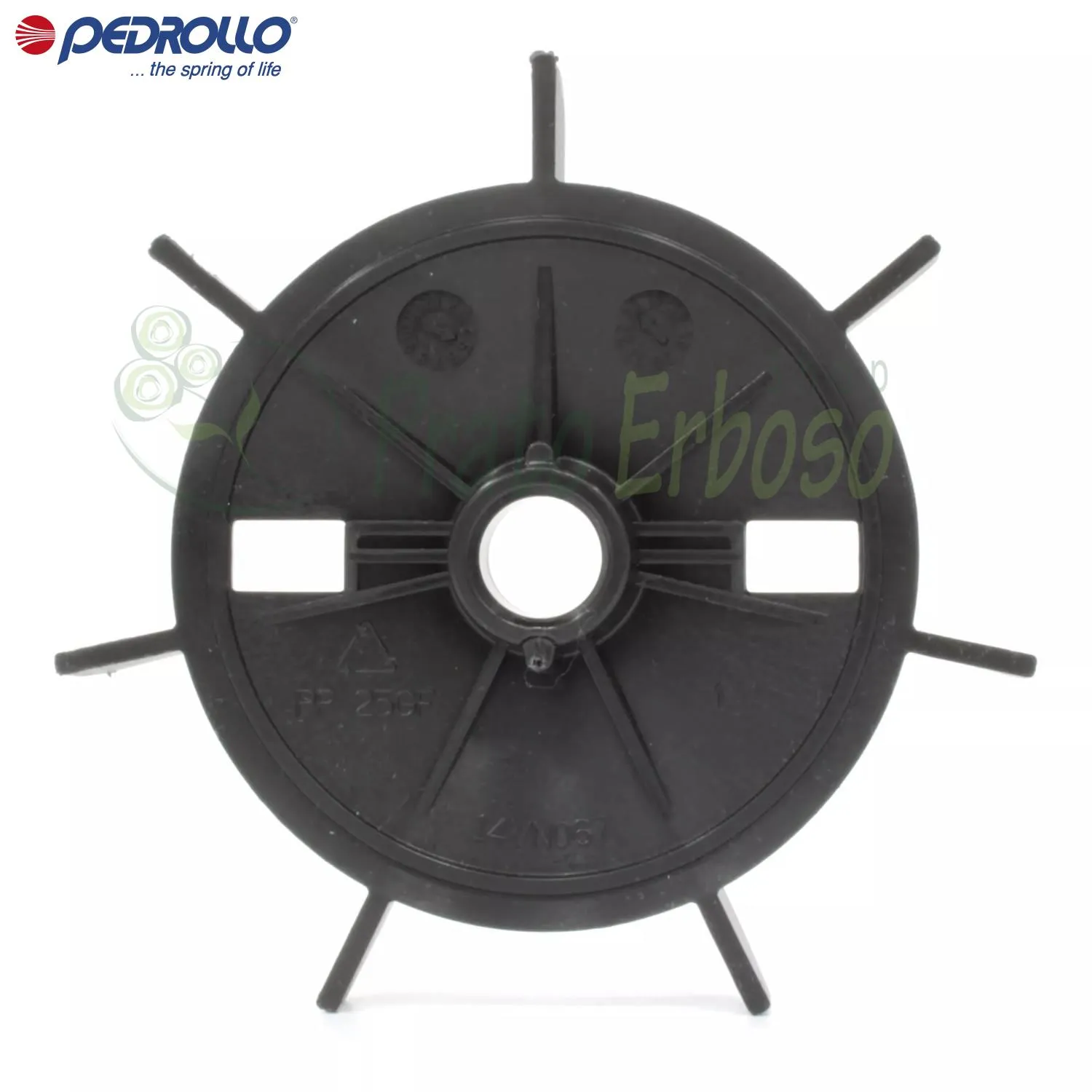

FAN-63 - Fan for electric pump, 12 mm shaft

The Pedrollo FAN-63 fan is recommended for cooling the motor of Pedrollo electric pumps.

The fan has a diameter of 104 mm and a height of 21 mm. The crankshaft diameter is 12 mm.

The FAN-63 fan rotates with the shaft and generates the airflow needed to cool the engine during operation.

During operation, the motor generates heat, mainly due to electrical losses in the windings and mechanical losses.

The FAN-63 directly exploits the rotation of the shaft. Its blades move the ambient air and produce a forced flow of cooling around the motor.

The air is guided by the fan cover and circulated over the outer surface of the engine. This increases the heat exchange between the engine and the ambient air.

The FAN-63 is used to maintain the engine temperature within suitable operating conditions.

It is mounted on the rear shaft of the electric motor.

It's important to keep the fan in top condition. If it's broken, cracked, warped, or blocked, airflow will decrease, which could increase engine temperatures.

Made of plastic material, Pedrollo has created a lightweight fan, with low rotational inertia, resistant to corrosion and easily manufactured with blades and hub in a single element.

Original spare part compatible with the electric pumps PK 60, PK 65, PKS 60, PKS 65, PQ 60, PQ 65, PQ 81, PQ 60-65-81/Bs, PV 55-60-65-81, PQA 60, CP 100-130-132, CP 130X, CP 132A, CP 100-ST4, CP 100-ST6, CP 130-ST4, CP 130-ST6, CP 132-ST4, CP 132-ST6, HF 50B, HF 50A, CK 50, CK 50 BP, JSW 1A, JSW 1AX, JSW 1B, JSW 1BX, JSW 1C,JSW 1CX, JCR 1A 2016, JCR 1B, JCR 1C 2016, JCR 1A-N, JCR 1B-N, JCR 1C-N, JCR 1C 2013-2005, JCR 1B 2013-2005, JCR 1A 2013-2005, PLURIJET 3/60-N, PLURIJET 3/80-N, PLURIJET 3/100-N, PLURIJET 4/80-N, PLURIJET 3/80, PLURIJET 4/80, PLURIJET 3/100, 2CP 80, 3CP 60, 3CP 80, 4CP 80, 3CP 100, 2CP 80-C, 3CP 60-C, 3CP 80-C, 4CP 80-C, 3CP 100-C, 4CP 80E, 2CR 80-N, 3CR 60-N, 3CR 80-N, 3CR 100-N, 4CR 80-N, 2CR 80, 3CR 60, 3CR 80, 4CR 80, 3CR 100 by Pedrollo .
