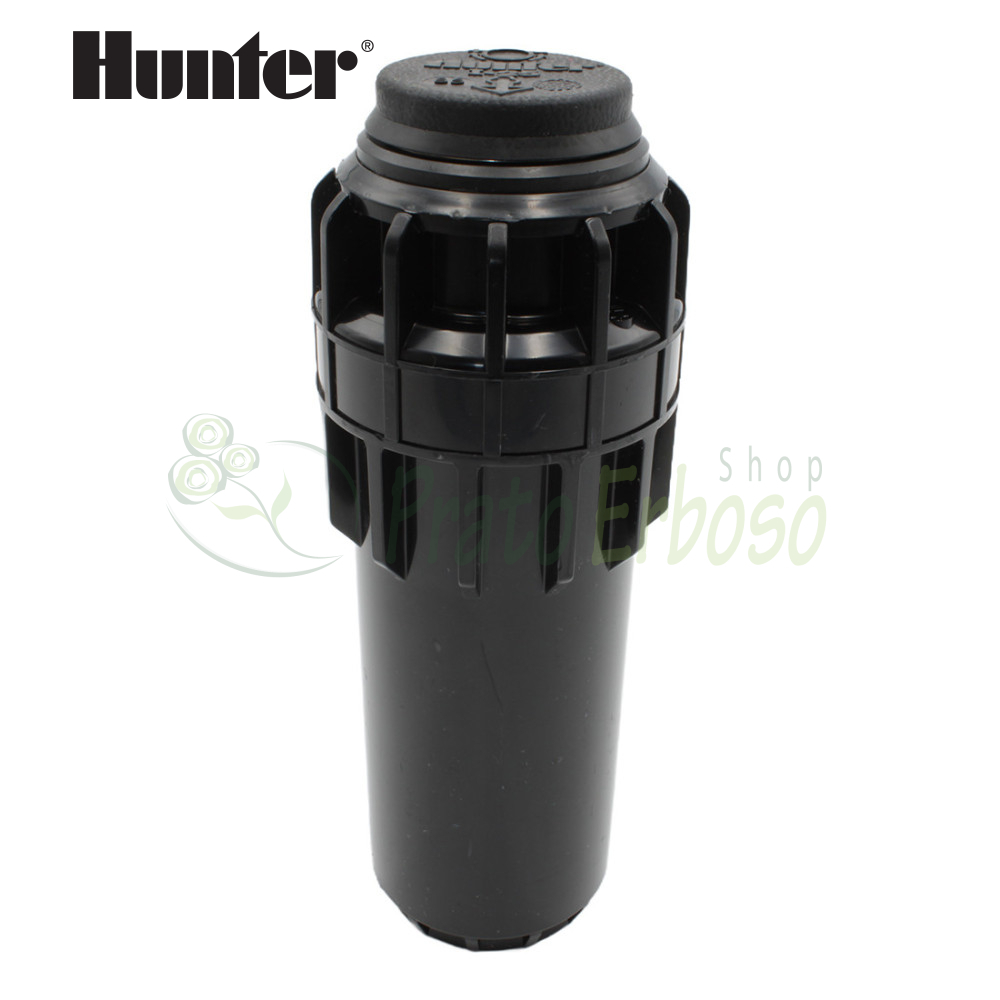

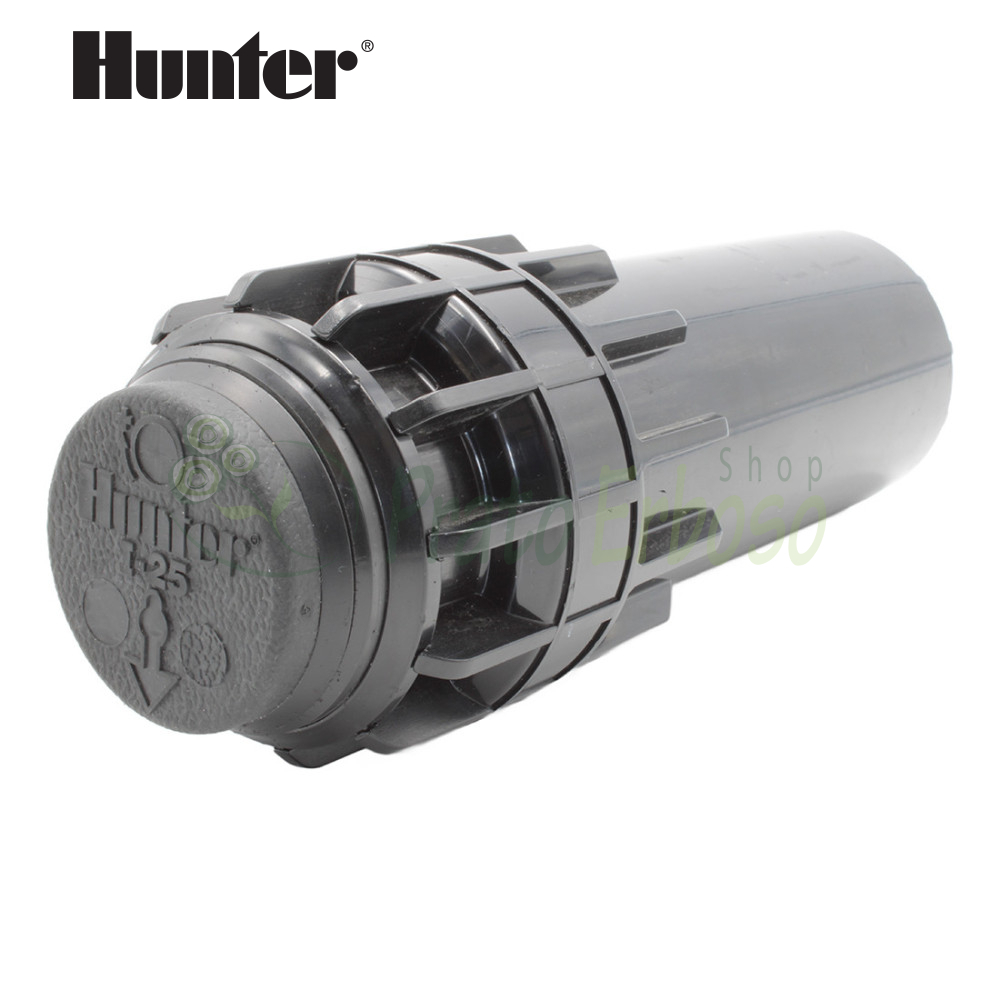

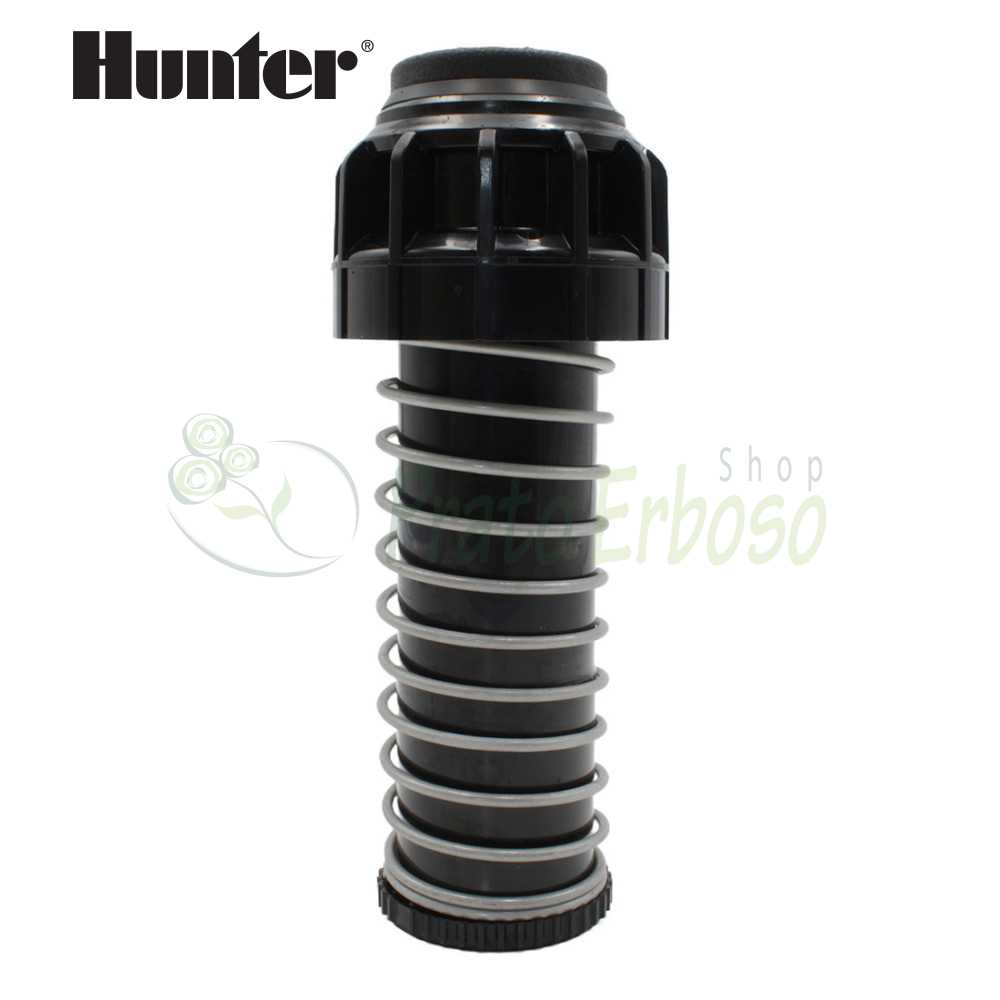

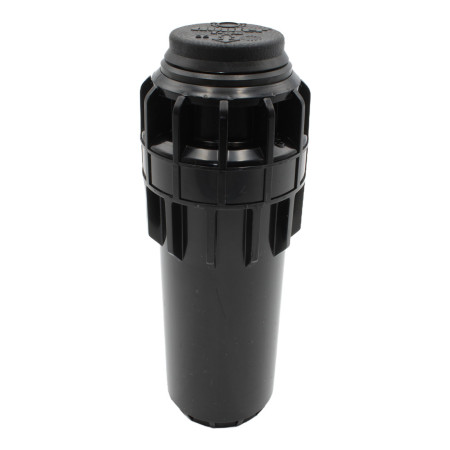

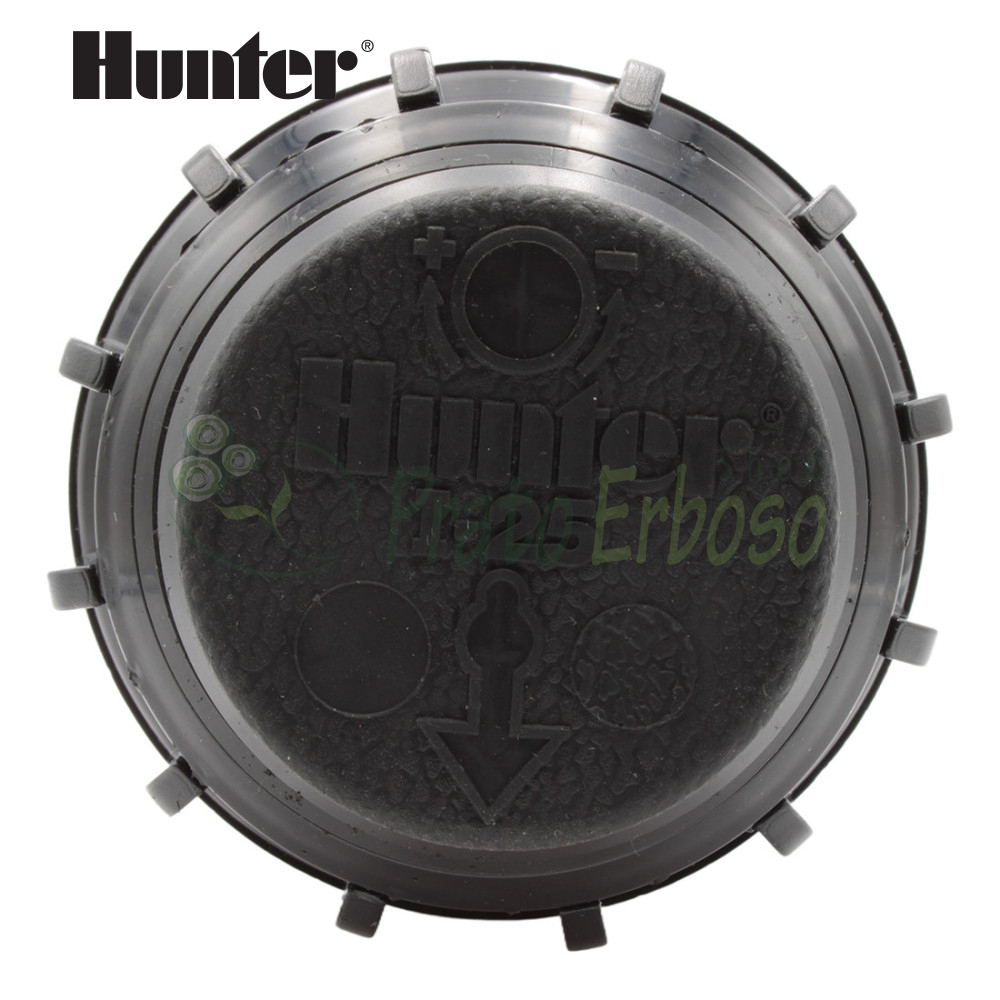

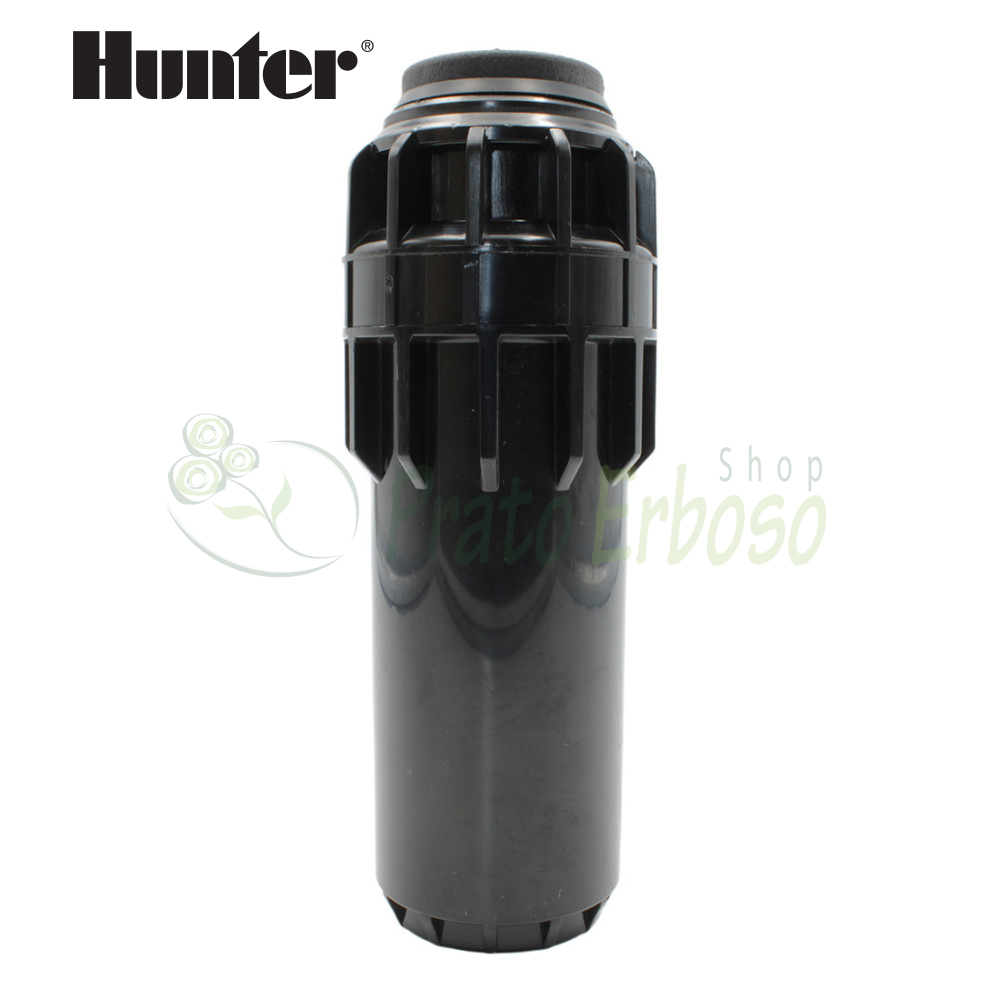

I-25-04-B - Pop-up sprinkler, 21.6 m range
zoom_out_map
chevron_left chevron_right
-5%

I-25-04-B - Pop-up sprinkler, 21.6 m range

Turret height 10 cm. With check valve.

€47.46 Tax included

€38.90 Tax excluded

€49.96-5%

Variants:
I-25-04-B - Irrigatore a scomparsa gittata 21.6 m
I-25-04-SS-B - Irrigatore a scomparsa gittata 21.6 m
Close
Make a purchase proposal

Your Offer is sent.

Your Offer is accepted, please check your inbox.

I-25-04-B - Pop-up sprinkler, 21.6 m range
  • Use dot instead of comma

Loading

Telephone support for information before purchasing.
After-sales assistance for product installation.
Description

The I-25-04-B dynamic sprinkler can be used in a variety of applications and environments.

Get the job done with power, efficiency and reliability. Its compact and highly durable design features an optional stainless steel riser for extreme durability.

A standard check valve is integrated. Compatible with a wide selection of high performance nozzles.

Thanks to the QuickCheck arch mechanism, adjusting the arch is quick and easy. It also has a non-drain valve that prevents drainage at low head.

Data sheet
Hunter
I-25-04-B
292 Items
Minimum flow rate (l./min.)
13.6
Max. flow rate (l./min.)
120.2
Max. working pressure (bar)
7.0
Min. working pressure (bar)
2.5
Max. range (m)
21.6
Turret height (cm.)
10
Height (cm)
20
Attack size
1 "
Type of attack
female
Thread
BSPP
Max. precipitation rate (mm/h)
15.0
Attachments

Technical data sheet I-25

Technical characteristics of the I-25 series sprinkler

file_download Download (1.37MB)

Buy it with

  • I-25-04-B - Pop-up sprinkler, 21.6 m range
  • +
  • TSJ-10B-12-3-10B - Joint with 2 joints outreach 30 cm 1 "
  • €82.59-10 %
    Total price: €74.33

Compare with Similar Products

I-25-04-B - Pop-up sprinkler, 21.6 m range

I-25-04-B - Pop-up sprinkler, 21.6 m range

This product

Turret height 10 cm. With check valve.

 6504-PC - Pop-up sprinkler, 19.8 m throw

6504-PC - Pop-up sprinkler, 19.8 m throw

Quick View

Turret height 10 cm. With check valve.

Price Price
€49.96 -5% €47.46
 Price
€107.45 -40% €64.47
Minimum flow rate (l./min.) Minimum flow rate (l./min.) 13.6 Minimum flow rate (l./min.) 11
Max. flow rate (l./min.) Max. flow rate (l./min.) 120.2 Max. flow rate (l./min.) 82
Max. working pressure (bar) Max. working pressure (bar) 7.0 Max. working pressure (bar) 6.2
Min. working pressure (bar) Min. working pressure (bar) 2.5 Min. working pressure (bar) 2.1
Max. range (m) Max. range (m) 21.6 Max. range (m) 19.8
Angle adjustment Angle adjustment -- Angle adjustment variable
Turret height (cm.) Turret height (cm.) 10 Turret height (cm.) 10
Height (cm) Height (cm) 20 Height (cm) 21
Attack size Attack size 1 " Attack size 1 "
Type of attack Type of attack female Type of attack female
Thread Thread BSPP Thread BSPP
Max. precipitation rate (mm/h) Max. precipitation rate (mm/h) 15.0 Max. precipitation rate (mm/h) --
