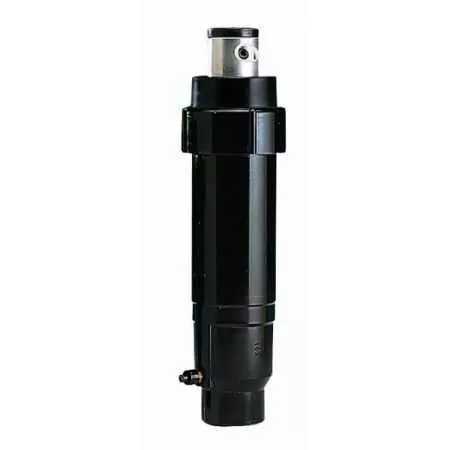

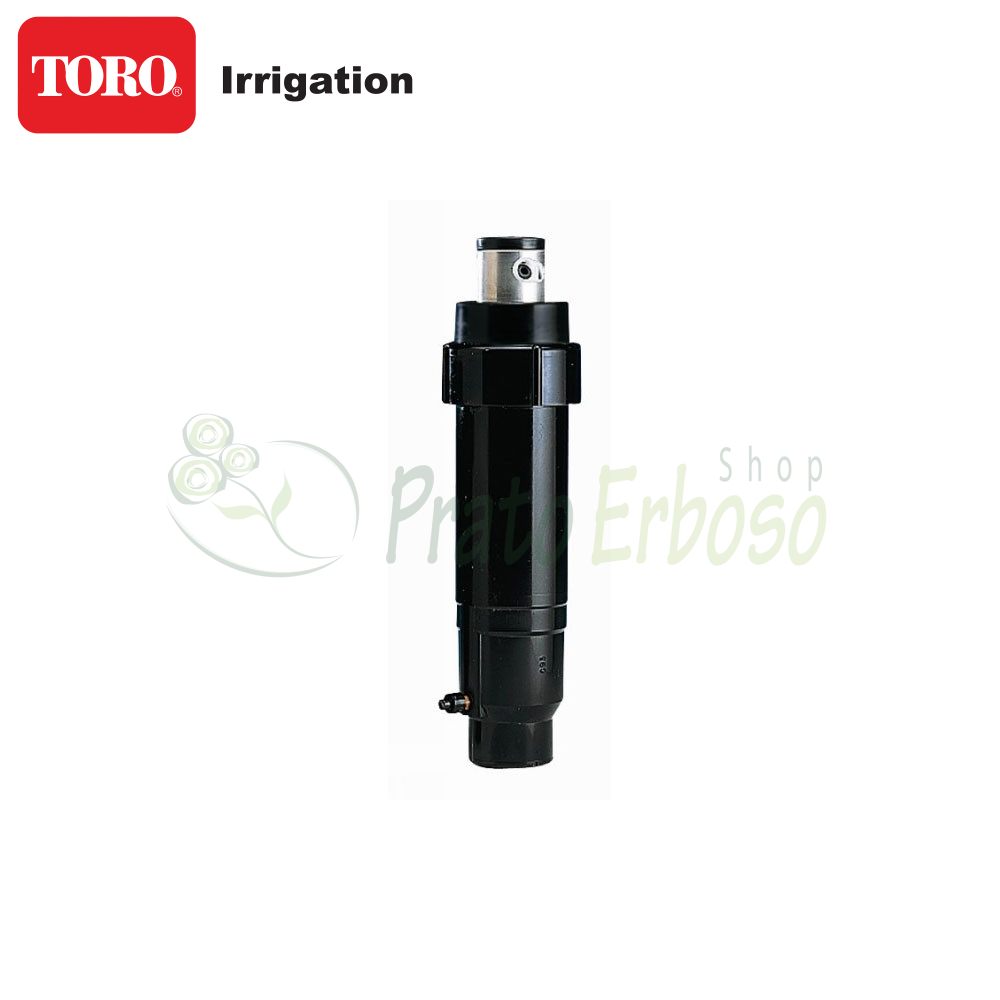

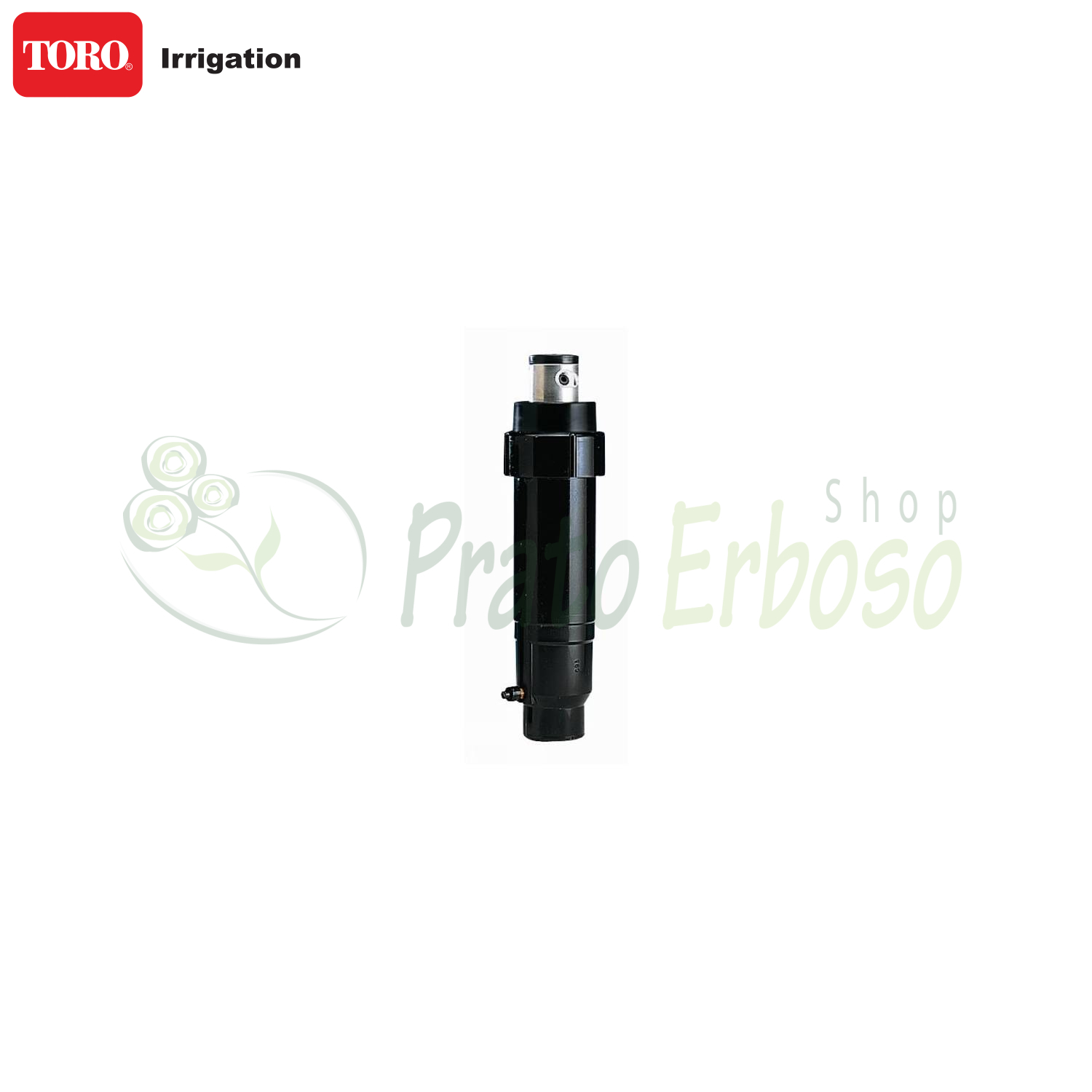

643-51-42 - Pop-up sprinkler, 20 m range
The 643-51-42 pop-up sprinkler from TORO Irrigazione is a solid and robust solution for large commercial and sports applications.
Mounted has a 270 degree nozzle. Using the adjustment screw it is easy to reduce the range up to 25%.
Equipped with a check valve that eliminates the problem of drainage at low pressures, retaining water in the secondary line.
The 643-51-42 sprinkler offers the possibility of influencing the rotation speed as a function of the operating pressure and the stator used.
It also offers different solutions in terms of resistance and durability over time.
It has a standard rubber protection and the exposed surface is minimal, both features reduce the risk of damage. The turbine rotation mechanism also ensures greater durability.
The 643-51-42 sprinkler also has a ring nut with an anti-vandalism locking screw.
- Minimum flow rate (l./min.)
- 23
- Max. flow rate (l./min.)
- 95
- Max. working pressure (bar)
- 6.2
- Min. working pressure (bar)
- 2.8
- Max. range (m)
- 20
- Angle adjustment
- fixed
- Turret height (cm.)
- 6
- Working angle (degrees)
- 270
- Height (cm)
- 26.7
- Attack size
- 1 "
- Type of attack
- female
- Thread
- BSPP
Compare with Similar Products
 643-51-42 - Pop-up sprinkler, 20 m rangeThis product Turret height 6 cm. Working angle 270 degrees. |  641-51-42 - Pop-up sprinkler, 20 m rangeTurret height 6 cm. Working angle 90 degrees. |  642-51-42 - Pop-up sprinkler, 20 m rangeTurret height 6 cm. Working angle 180 degrees. |  644-51-42 - Pop-up sprinkler, 20 m rangeTurret height 6 centimeters. Working angle 360 degrees. | |
|---|---|---|---|---|
| Price | Price €479.24 -32% €325.88 | Price €479.24 -32% €325.88 | Price €479.24 -32% €325.88 | Price €479.24 -32% €325.88 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 23 | Minimum flow rate (l./min.) 23 | Minimum flow rate (l./min.) 23 | Minimum flow rate (l./min.) 23 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 95 | Max. flow rate (l./min.) 95 | Max. flow rate (l./min.) 95 | Max. flow rate (l./min.) 95 |
| Max. working pressure (bar) | Max. working pressure (bar) 6.2 | Max. working pressure (bar) 6.2 | Max. working pressure (bar) 6.2 | Max. working pressure (bar) 6.2 |
| Min. working pressure (bar) | Min. working pressure (bar) 2.8 | Min. working pressure (bar) 2.8 | Min. working pressure (bar) 2.8 | Min. working pressure (bar) 2.8 |
| Max. range (m) | Max. range (m) 20 | Max. range (m) 20 | Max. range (m) 20 | Max. range (m) 20 |
| Angle adjustment | Angle adjustment fixed | Angle adjustment fixed | Angle adjustment fixed | Angle adjustment fixed |
| Turret height (cm.) | Turret height (cm.) 6 | Turret height (cm.) 6 | Turret height (cm.) 6 | Turret height (cm.) 6 |
| Working angle (degrees) | Working angle (degrees) 270 | Working angle (degrees) 90 | Working angle (degrees) 180 | Working angle (degrees) 360 |
| Height (cm) | Height (cm) 26.7 | Height (cm) 26.7 | Height (cm) 26.7 | Height (cm) 26.7 |
| Attack size | Attack size 1 " | Attack size 1 " | Attack size 1 " | Attack size 1 " |
| Type of attack | Type of attack female | Type of attack female | Type of attack female | Type of attack female |
| Thread | Thread BSPP | Thread BSPP | Thread BSPP | Thread BSPP |
