BCm 10/50 (5m) - 1 HP single-phase DOUBLE-CHANNEL electric pump for waste water
Flow rate up to 600 l/min (36 m³/h). Head up to 12 m. 0.75 kW (1 HP) motor. 5 m cable with Schuko plug.
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 24 February - Wednesday 25 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February

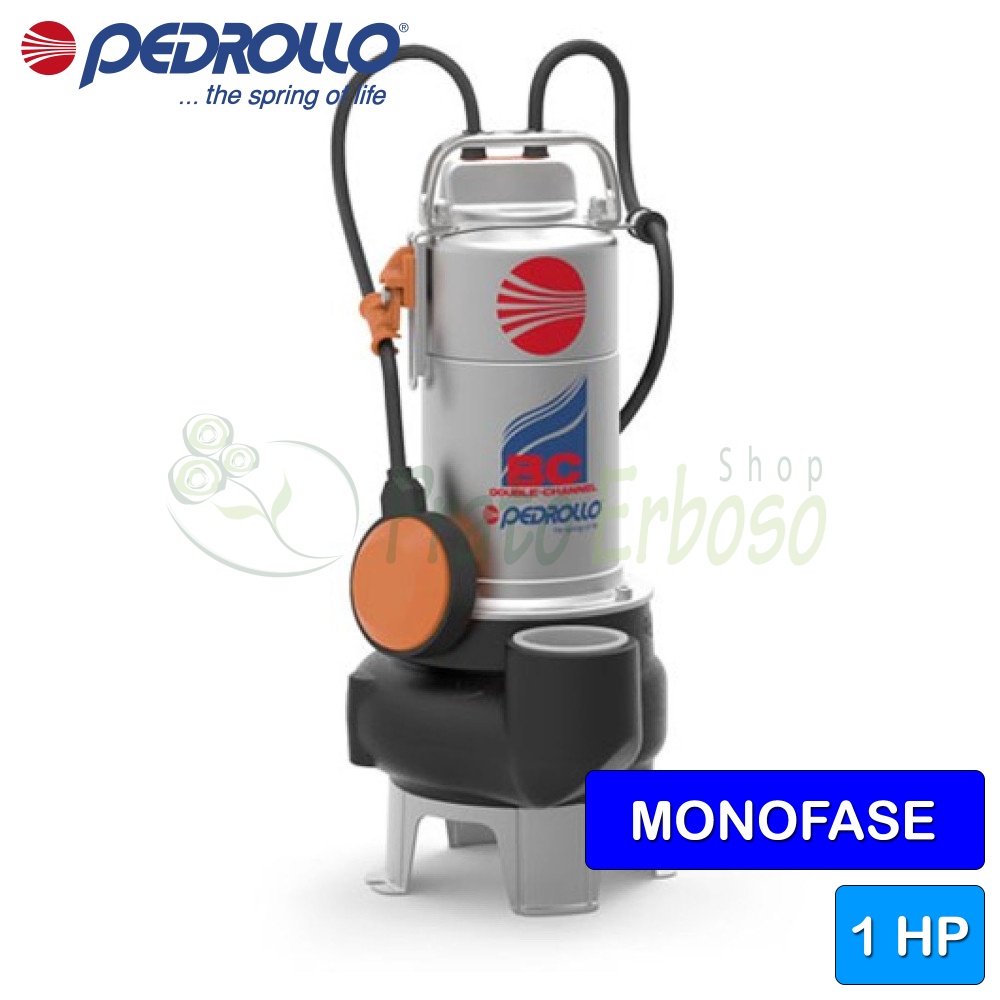

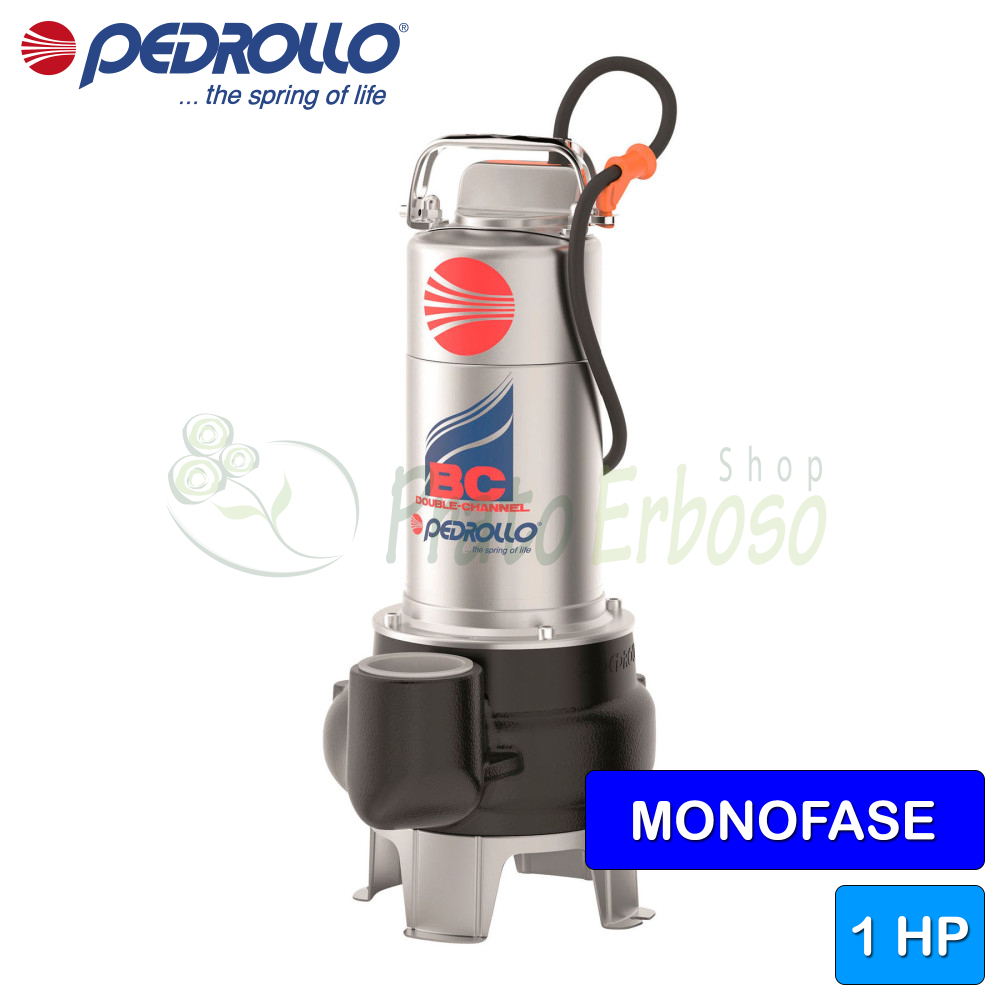

The BCm 10/50 submersible electric pump from Pedrollo 's BC series is recommended when working conditions are extreme and high performance is required.
Recommended for draining dirty and sewage water.
The double-channel stainless steel impeller with which it is equipped allows the pumping of liquids containing suspended solids up to 50 millimetres in diameter.
It can be installed up to 5 meters below the water level. For continuous operation, it requires a minimum immersion depth of 290 mm.
The BCm 10/50 is made with a mix of cast iron and stainless steel which gives solidity and greater resistance to corrosion.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 5
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 2"
- Pump body
- Cast iron
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 50
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2
- Max. head (m.)
- 12
- Cable length (m.)
- 5
- Jobs
- drainage, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 43.2
- Weight (Kg)
- 14.8
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6203 ZZ |
| Opposite side engine bearing | 6203 ZZ |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| LM diameter | 14 |
| LM fixed ring | Silicon carbide |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | MG1-14D SIC |
| LP diameter | 14 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 1.4 - Basic | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
