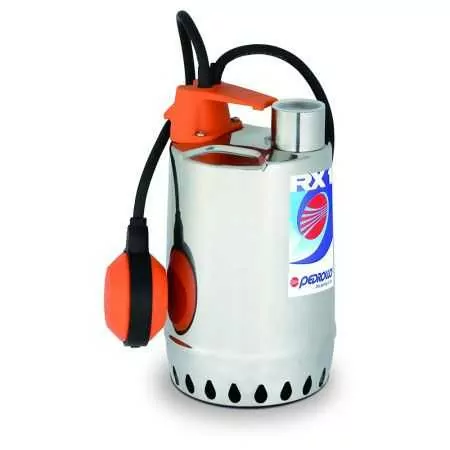

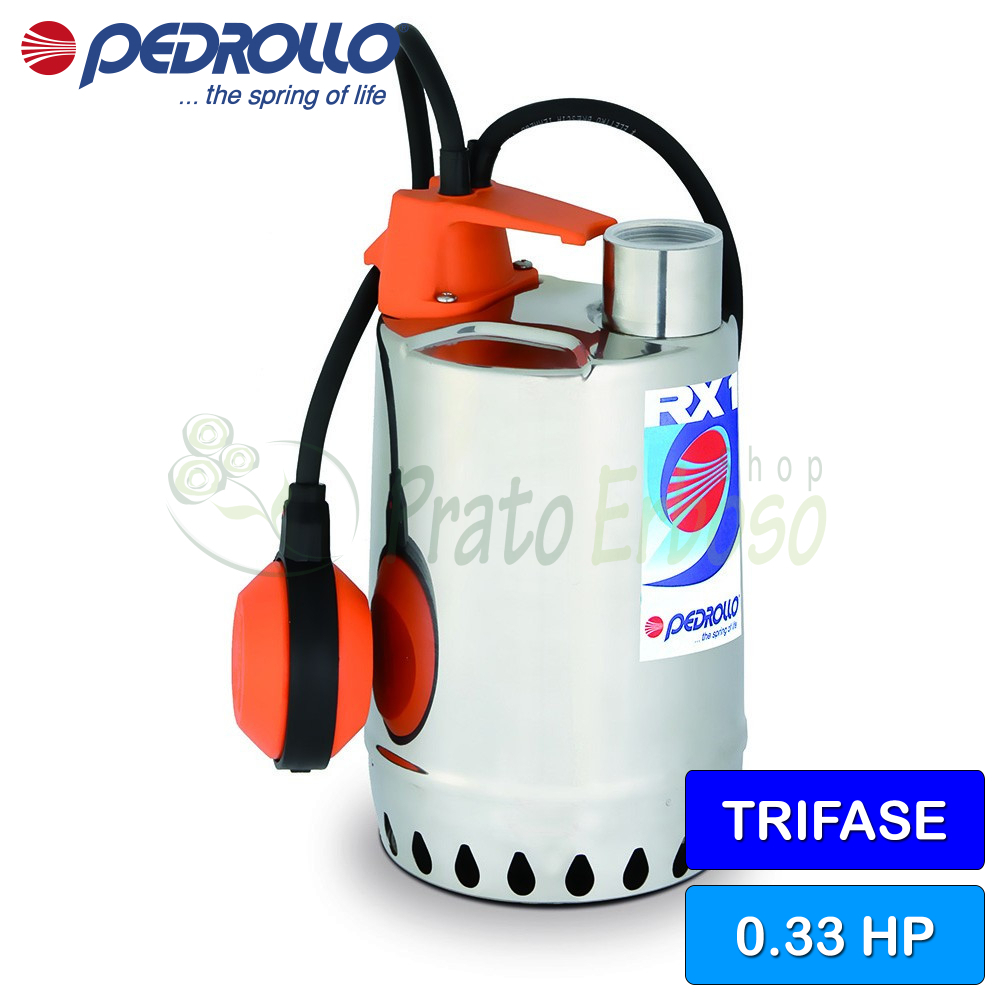

RX 1 (10m) - 0.33 HP three-phase clear water pump
Flow rate up to 160 l/min (9.6 m³/h). Head up to 7.7 m. 0.25 kW (0.33 HP) motor. 10 m cable.
Variants:
There are no reviews yet
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The RX 1 submersible electric pump from the RX series by Pedrollo is made entirely of stainless steel.
Recommended for civil and domestic installations.
Suitable for fixed installations, emergency drainage of small flooded areas, disposal of domestic waste water from dishwashers and washing machines and for emptying collection pits.
The RX 1 is simple and reliable in its use.
It can be installed up to 10 meters below water level with a cable of adequate length, the one supplied is 10 meters.
Data sheet
RX 1 10MT
- Motor connection
- THREE-PHASE
- Power (Kw)
- 0.25
- Power (HP)
- 0.33
- Current consumption at 400V (A)
- 0.9
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 160
- Min. head (m.)
- 2
- Max. head (m.)
- 7.7
- Cable length (m.)
- 10
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 26.9
- Width (cm)
- 14.7
- Weight (Kg)
- 5.5
- Warranty (years)
- 2
RX models and performance
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the RX1
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
Products already seen
From the same brand and category
Compare with Similar Products
 RX 1 (10m) - 0.33 HP three-phase clear water pumpThis product Flow rate up to 160 l/min (9.6 m³/h). Head up to 7.7 m. 0.25 kW (0.33 HP) motor. 10 m cable. |  RX 2 (10m) - 0.50 HP three-phase clear water pumpFlow rate up to 190 l/min (13.2 m³/h). Head up to 9.5 m. 10.3 kW (0.50 HP) motor. 10 m cable. |  RX 3 (10m) - 0.75 HP three-phase clear water pumpFlow rate up to 220 l/min (13.2 m³/h). Head up to 12.3 m. 0.55 kW (0.75 HP) motor. 10 m cable. |  RX 4 - 1 HP three-phase clear water pumpFlow rate up to 270 l/min (15.6 m³/h). Head up to 16 m. 0.75 Kw (1 HP) motor. WITHOUT FLOAT | |
|---|---|---|---|---|
| Price | Price €340.38 -42% €197.42 | Price €362.34 -42% €210.16 | Price €400.16 -42% €232.09 | Price €836.92 -42% €485.41 |
| Availability | Availability Out-of-Stock | Availability -- | Availability -- | Availability -- |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 0.25 | Power (Kw) 0.37 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.33 | Power (HP) 0.50 | Power (HP) 0.75 | Power (HP) 1 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 0.9 | Current consumption at 400V (A) 1.0 | Current consumption at 400V (A) 1.6 | Current consumption at 400V (A) 2.1 |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/2 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel | Impeller AISI 304 stainless steel |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 | Minimum flow rate (l./min.) 20 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 160 | Max. flow rate (l./min.) 190 | Max. flow rate (l./min.) 220 | Max. flow rate (l./min.) 270 |
| Min. head (m.) | Min. head (m.) 2 | Min. head (m.) 2.8 | Min. head (m.) 3.5 | Min. head (m.) 4.2 |
| Max. head (m.) | Max. head (m.) 7.7 | Max. head (m.) 10.3 | Max. head (m.) 12.3 | Max. head (m.) 16 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up | Jobs drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 26.9 | Height (cm) 26.9 | Height (cm) 29.8 | Height (cm) 37 |
| Width (cm) | Width (cm) 14.7 | Width (cm) 14.7 | Width (cm) 14.7 | Width (cm) 22 |
| Weight (Kg) | Weight (Kg) 5.5 | Weight (Kg) 5.6 | Weight (Kg) 7.0 | Weight (Kg) 13.3 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
