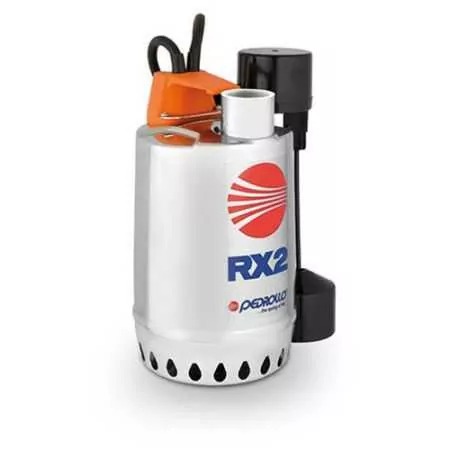

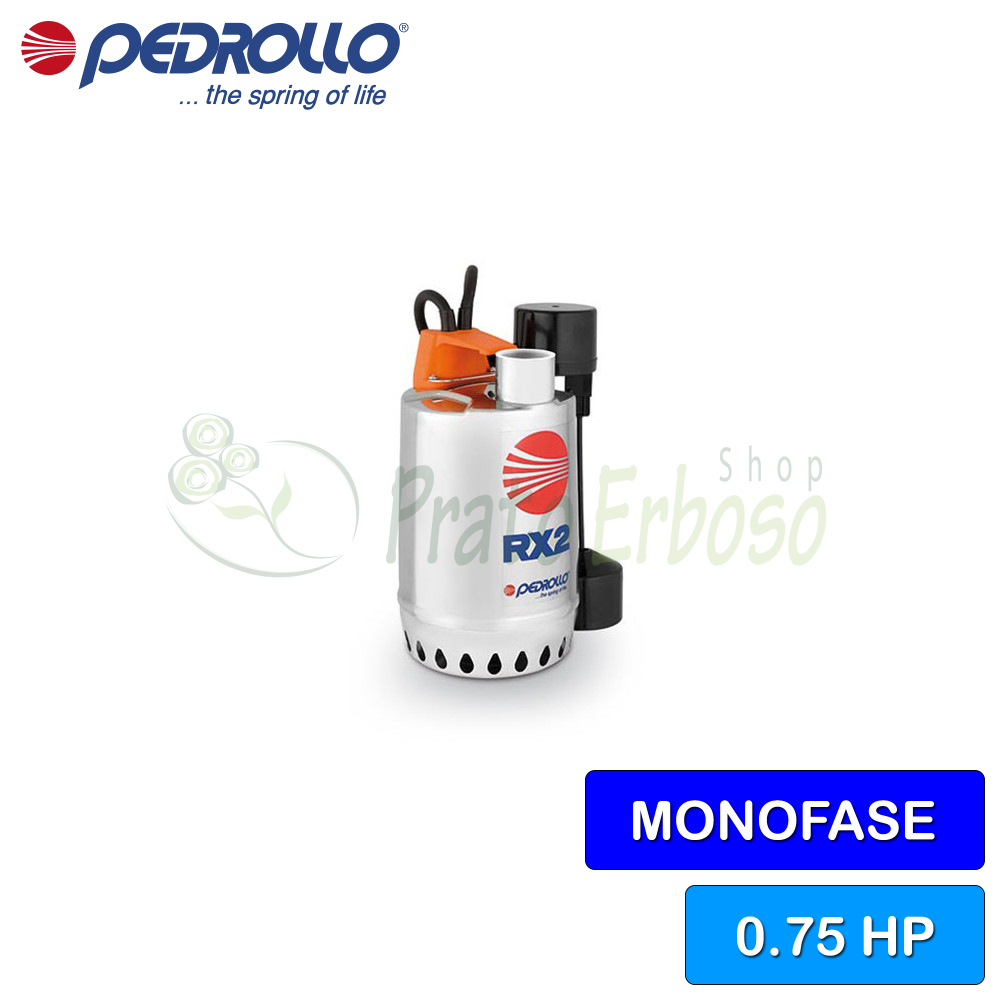

RXm 3 - GM (5m) - 0.75 HP single-phase clear water pump
Flow rate up to 220 l/min (13.2 m³/h). Head up to 12.3 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug.
WITH MAGNETIC FLOAT
The RXm 3 - GM submersible electric pump from the RX series by Pedrollo is among the best in the submersible drainage category.
Suitable for draining clear water without abrasive particles.
Allows the passage of solid bodies up to 10 millimetres in diameter.
The RXm 3 - GM is recommended for residential and commercial installations. It is particularly suitable for fixed installations, emergency drainage of small flooded areas, disposal of domestic wastewater from dishwashers and washing machines, and emptying sumps.
It stands out for its ease of use and operational safety.
With vertical sliding magnetic float for awkward installations in small wells.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.6
- Capacitor
- 14 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- AISI 304 stainless steel
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 220
- Min. head (m.)
- 3.5
- Max. head (m.)
- 12.3
- Cable length (m.)
- 5
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 30
- Width (cm)
- 14.7
- Weight (Kg)
- 7.5
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Stainless steel EN 1.4301 (AISI 304) |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Stainless steel EN 1.4301 (AISI 304) |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Reinforced technopolymer |
| 7.0 - Lantern | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Stainless steel EN 1.4301 (AISI 304) |
