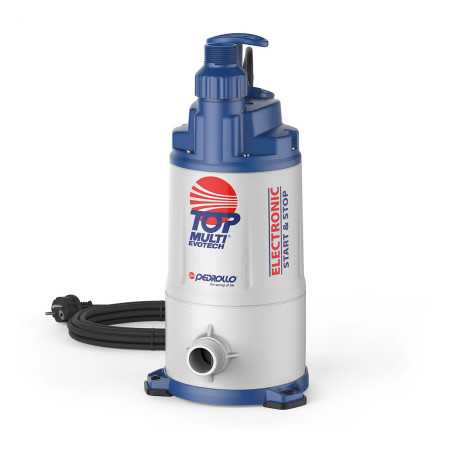

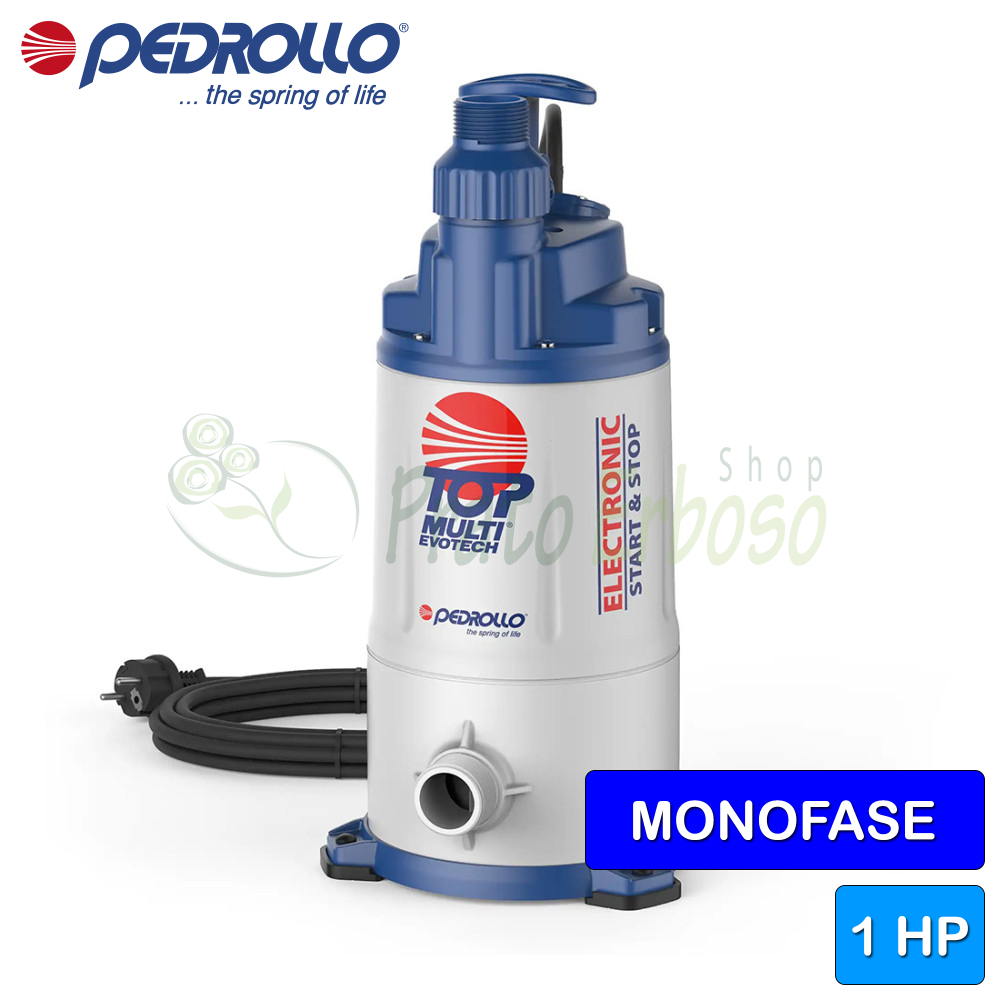

TOP MULTI-EVOTECH 4 - Multi-impeller electric pump with 1 HP press control

Name: TOP MULTI-EVOTECH 4 - Multi-impeller electric pump with 1 HP press control
Brand: Pedrollo
SKU: TOP MULTI-EVOTECH 4
Price: 359.46 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor.

With integrated electronic device that allows you to start or stop the electric pump automatically by opening or closing the tap.

€359.46 Tax included

€294.64 Tax excluded

€619.76 -42%

Quantity

Variants:

Order it before 23:59 on Friday and receive it on Wednesday 14 January with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Thursday 15 January - Friday 16 January
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Thursday 15 January - Friday 16 January
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Thursday 15 January - Friday 16 January
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Wednesday 14 January
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Wednesday 14 January

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 15 January - Friday 16 January

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 15 January - Friday 16 January

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Thursday 15 January - Friday 16 January

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Wednesday 14 January

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Wednesday 14 January

(5/5) out of 1 total ratings
Read the reviews

Make a purchase proposal

Telephone support for information before purchasing.

After-sales assistance for product installation.

We supply all spare parts on this product.

Reinforced packaging to reduce transport damage.

Description

The TOP MULTI-EVOTECH 4 multi-impeller electric pump by Pedrollo is recommended for domestic and civil use.

Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.

A special feature of the TOP MULTI-EVOTECH 4 is the internal electrical device that starts the electric pump following a drop in system pressure below 2.5 bar and stops it when the flow drops below 3 litres per minute.

This device protects the pump from dry running and blocking, in fact after 48 hours of inactivity it starts the pump for 10 seconds.

The TOP MULTI-EVOTECH 4 is suitable for domestic water supply from relatively deep basins, tanks or wells, for taking rainwater from cisterns for hand watering or feeding an irrigation system.

The flow rate ranges from 10 to 80 liters per minute. The head ranges from 8 to 52 meters.

It must be powered by a single-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.75
Power (HP): 1
Absorption at 230V (A): 3.9
Delivery mouth: 1" 1/4
Pump body: Technopolymer
Impeller: Noryl
Number of impellers: 3
Crankshaft: AISI 431 stainless steel
Check valve: Yes
Degree of protection: IP 68
Minimum flow rate (l./min.): 10
Max. flow rate (l./min.): 80
Min. head (m.): 8
Max. head (m.): 52
Emptying level (mm): 35
Cable length (m.): 10
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +40°C
Height (cm): 47.6
Width (cm): 23.9
Depth (cm): 23.9
Weight (Kg): 11.0
Warranty (years): 2

Attachments

Top Multi-Evotech technical

Models, performance curves and construction features of the Top Multi-Evotech PEDROLLO pumps.

Download (2.23MB)

TOP MULTI-EVOTECH 2-4 models and performances

TYPE

single phase

TOP MULTI-EVOTECH 2

POWER
KW	HP
0.55	0.75

PERFORMANCES
Q liters/min	H meters
10 ÷ 80	40 ÷ 6

MOUTHS
DN1	DN2
1 1/4"	1 1/4"

Q	m³/hour	0	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.5	4.8
Q	l/min	0	10	20	30	40	50	60	70	75	80
H	meters	40	38.5	36	32.5	28	23.1	17.7	12	9	6

Construction data of the TOP MULTI-EVOTECH 2

Bearings

Pump side motor bearing	6202 ZZ - C3
Opposite side engine bearing	6201 ZZ

Tree holding

Type of seal	Double Mechanical Seal in tandem with oil chamber
Engine side model	STA-13R
LM diameter	13
LM fixed ring	Ceramic
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	STA-12R SG
LP diameter	12
LP fixed ring	Silicon carbide
LP rotating ring	Graphite
LP elastomer	NBR

Materials

1.0 - Pump body	Reinforced technopolymer
1.1 - Suction Body	Reinforced technopolymer
1.3 - Delivery body	Reinforced technopolymer
1.4 - Basic	Reinforced technopolymer
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
5.0 - Stadium box	Reinforced technopolymer
5.1 - Diffuser	Reinforced technopolymer
5.2 - Wear ring	POM acetal resin
5.5 - Director Crown	Reinforced technopolymer
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)

Compare with Similar Products

	TOP MULTI-EVOTECH 4 - Multi-impeller electric pump with 1 HP press control This product Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor. With integrated electronic device that allows you to start or stop the electric pump automatically by opening or closing the tap.	TOP MULTI-EVOTECH 2 - Multi-impeller electric pump with 0.75 HP press control Quick View Flow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor. With integrated electronic device that allows you to start or stop the electric pump automatically by opening or closing the tap.	TOP MULTI-EVOTECH 3 - Multi-impeller electric pump with 0.75 HP press control Quick View Flow rate up to 120 l/min (7.2 m³/h). Head up to 30.5 m. 0.55 Kw (0.75 HP) motor. With integrated electronic device that allows you to start or stop the electric pump automatically by opening or closing the tap.	TOP MULTI-EVOTECH 5 - 1 HP multi-impeller electric pump with press control Quick View Flow rate up to 120 l/min (4.8 m³/h). Head up to 41 m. 0.75 Kw (1 HP) motor. With integrated electronic device that allows you to start or stop the electric pump automatically by opening or closing the tap.
Price	Price €619.76 -42% €359.46	Price €559.98 -42% €324.79	Price €573.40 -42% €332.57	Price €663.68 -42% €384.93
Motor connection	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE	Motor connection SINGLE-PHASE
Power (Kw)	Power (Kw) 0.75	Power (Kw) 0.55	Power (Kw) 0.55	Power (Kw) 0.75
Power (HP)	Power (HP) 1	Power (HP) 0.75	Power (HP) 0.75	Power (HP) 1
Absorption at 230V (A)	Absorption at 230V (A) 3.9	Absorption at 230V (A) 3.4	Absorption at 230V (A) 3.6	Absorption at 230V (A) 3.9
Capacitor	Capacitor --	Capacitor 12.5 µF 450 VL	Capacitor 12.5 µF 450 VL	Capacitor --
Delivery mouth	Delivery mouth 1" 1/4	Delivery mouth 1" 1/4	Delivery mouth 1" 1/4	Delivery mouth 1" 1/4
Pump body	Pump body Technopolymer	Pump body Technopolymer	Pump body Technopolymer	Pump body Technopolymer
Impeller	Impeller Noryl	Impeller Noryl	Impeller Noryl	Impeller Noryl
Number of impellers	Number of impellers 3	Number of impellers 3	Number of impellers 3	Number of impellers 5
Crankshaft	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel	Crankshaft AISI 431 stainless steel
Check valve	Check valve Yes	Check valve Yes	Check valve Yes	Check valve Yes
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Minimum flow rate (l./min.)	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10	Minimum flow rate (l./min.) 10
Max. flow rate (l./min.)	Max. flow rate (l./min.) 80	Max. flow rate (l./min.) 80	Max. flow rate (l./min.) 120	Max. flow rate (l./min.) 120
Min. head (m.)	Min. head (m.) 8	Min. head (m.) 6	Min. head (m.) 4.5	Min. head (m.) 6
Max. head (m.)	Max. head (m.) 52	Max. head (m.) 40	Max. head (m.) 30.5	Max. head (m.) 41
Emptying level (mm)	Emptying level (mm) 35	Emptying level (mm) 35	Emptying level (mm) 35	Emptying level (mm) 35
Cable length (m.)	Cable length (m.) 10	Cable length (m.) 10	Cable length (m.) 10	Cable length (m.) 10
Jobs	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation	Jobs water supply, pressurization systems, irrigation
Max. liquid temperature (°C)	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C	Max. liquid temperature (°C) +40°C
Height (cm)	Height (cm) 47.6	Height (cm) 44.2	Height (cm) 44.2	Height (cm) 47.6
Width (cm)	Width (cm) 23.9	Width (cm) 23.9	Width (cm) 23.9	Width (cm) 23.9
Depth (cm)	Depth (cm) 23.9	Depth (cm) --	Depth (cm) --	Depth (cm) 23.9
Weight (Kg)	Weight (Kg) 11.0	Weight (Kg) 9.9	Weight (Kg) 9.9	Weight (Kg) 11.0
Warranty (years)	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2	Warranty (years) 2
