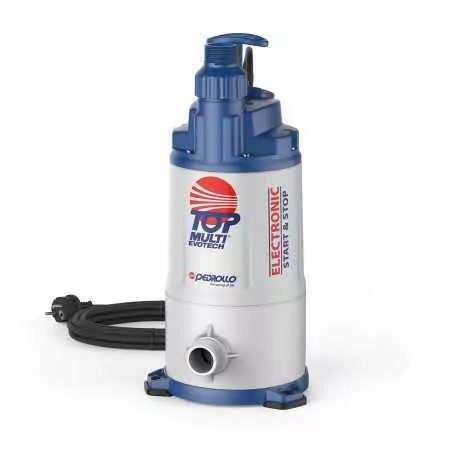

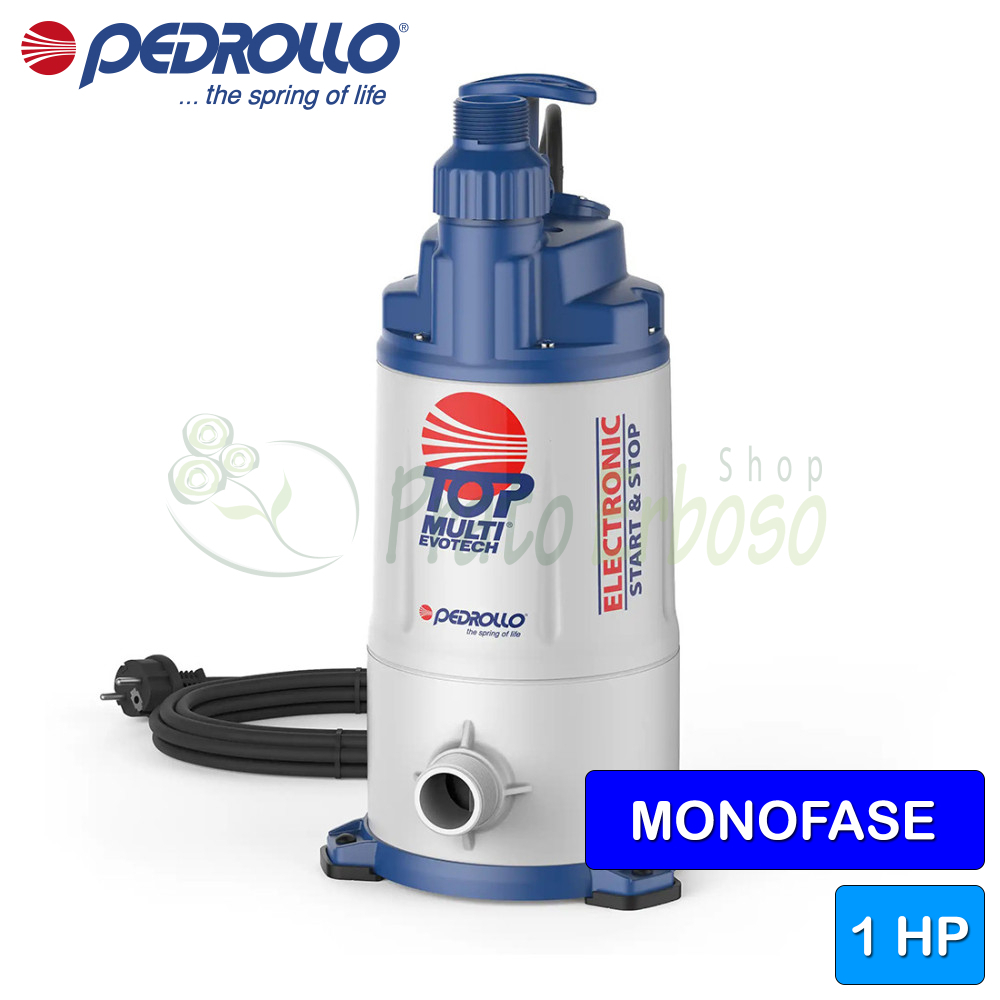

TOP MULTI-EVOTECH 5 - 1 HP multi-impeller electric pump with press control
Flow rate up to 120 l/min (4.8 m³/h). Head up to 41 m. 0.75 Kw (1 HP) motor.
With integrated electronic device that allows you to start or stop the electric pump automatically by opening or closing the tap.
The TOP MULTI-EVOTECH 5 multi-impeller electric pump by Pedrollo is suitable for domestic water supply from relatively deep basins, tanks or wells, for taking rainwater from cisterns for hand watering or to feed an irrigation system.
Recommended for domestic and civil use. It allows pumping clean water and chemically non-aggressive liquids for the materials the pump is made of.
A unique feature of the TOP MULTI-EVOTECH 5 is the electrical device it is equipped with. It allows the pump to be started following a drop in system pressure below 1.5 bar and stops it when the flow drops below 3 liters per minute.
The automatic start and stop protects the pump from dry running and blocking, in fact after 48 hours of inactivity it starts the pump for 10 seconds.
The flow rate ranges from 10 to 120 liters per minute. The head ranges from 6 to 41 meters.
It must be powered by a single-phase voltage, has a horsepower of 1 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 3.9
- Delivery mouth
- 1" 1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 5
- Crankshaft
- AISI 431 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 6
- Max. head (m.)
- 41
- Emptying level (mm)
- 35
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 47.6
- Width (cm)
- 23.9
- Depth (cm)
- 23.9
- Weight (Kg)
- 11.0
- Warranty (years)
- 2
|
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6202 ZZ - C3 |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-13R |
| LM diameter | 13 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SG |
| LP diameter | 12 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.1 - Suction Body | Reinforced technopolymer |
| 1.3 - Delivery body | Reinforced technopolymer |
| 1.4 - Basic | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Reinforced technopolymer |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | POM acetal resin |
| 5.5 - Director Crown | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
