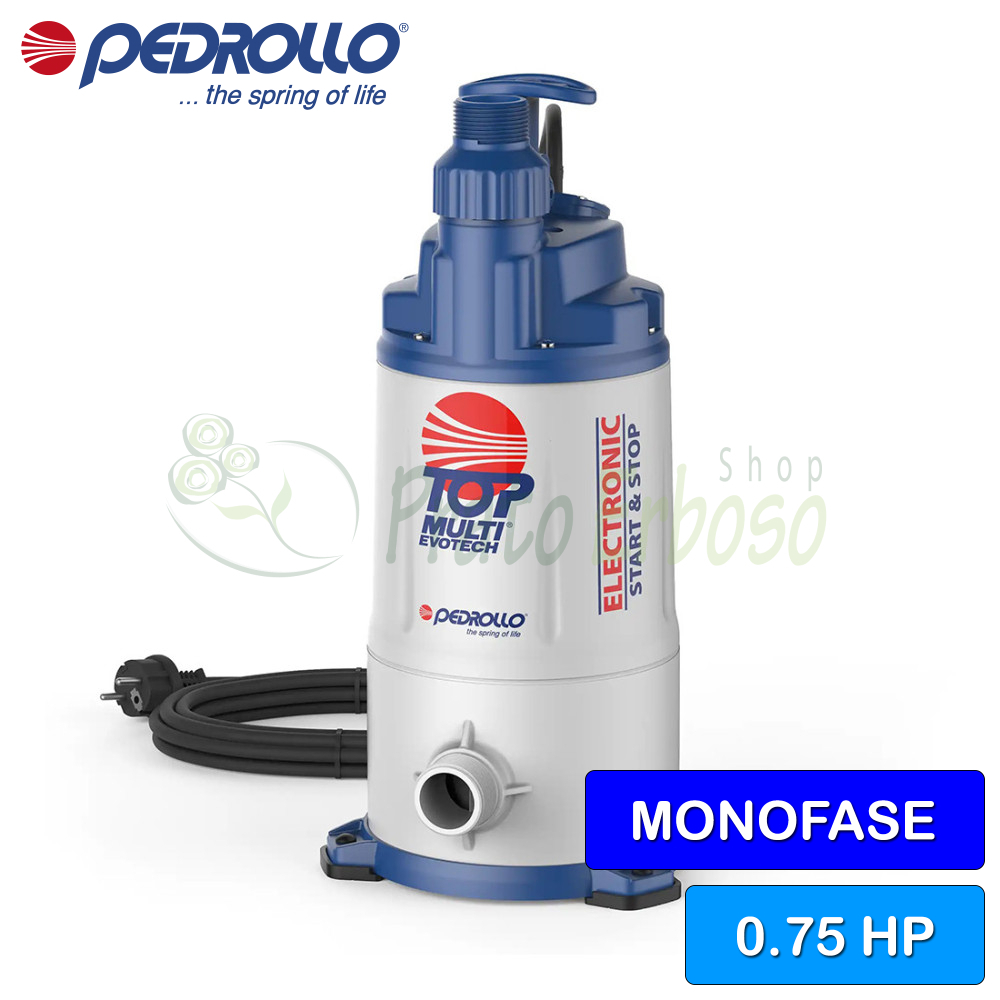

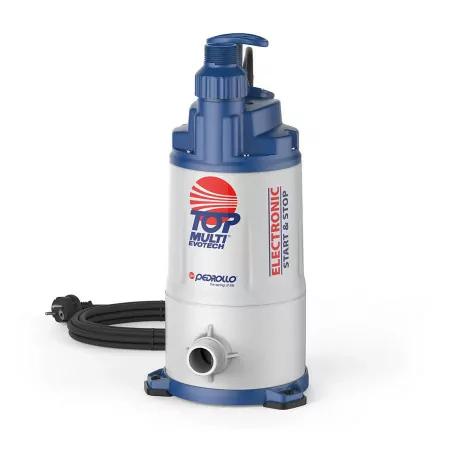

TOP MULTI-EVOTECH 3 - 0.75 HP multi-impeller electric pump with pressure control
Flow rate up to 120 l/min (7.2 m³/h). Head up to 30.5 m. 0.55 Kw (0.75 HP) motor.
With integrated electronic device that allows you to start or stop the electric pump automatically, by opening or closing the tap.
The TOP MULTI-EVOTECH 3 submersible electric pump from the TOP MULTI-EVOTECH series by Pedrollo is automatic.
Recommended for civil and domestic installations, particularly for domestic water supply from relatively deep tanks, reservoirs or wells, for drawing rainwater from cisterns for hand watering or feeding an irrigation system.
The electronic device allows you to start or stop the TOP MULTI-EVOTECH 3 by opening or closing the tap.
The device starts the electric pump following a drop in pressure and stops it when the flow drops below 3 liters per minute.
Protects the pump against dry running and blocking after long periods of inactivity.
Complete with 10-meter power cable, threaded fitting and hose connector.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 3.6
- Capacitor
- 12.5 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- Yes
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 120
- Min. head (m.)
- 4.5
- Max. head (m.)
- 30.5
- Emptying level (mm)
- 35
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.2
- Width (cm)
- 23.9
- Weight (Kg)
- 9.9
- Warranty (years)
- 2
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6202 ZZ - C3 |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-13R |
| LM diameter | 13 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SG |
| LP diameter | 12 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.1 - Suction Body | Reinforced technopolymer |
| 1.3 - Delivery body | Reinforced technopolymer |
| 1.4 - Basic | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Reinforced technopolymer |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | POM acetal resin |
| 5.5 - Director Crown | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
