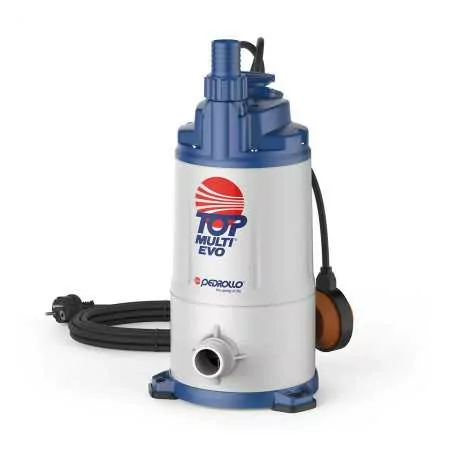

TOP MULTI 1-EVO - 0.50 HP multi-impeller electric pump
Flow rate up to 75 l/min (4.5 m³/h). Head up to 26 m. 0.37 Kw (0.50 HP) motor.
The TOP MULTI 1-EVO multi-impeller electric pump by Pedrollo is ideal for the domestic and civil sectors.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The flow rate ranges from 10 to 75 liters per minute. The head ranges from 6 to 26 meters.
It must be powered by a single-phase voltage, has a horsepower of 0.50 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
The TOP MULTI 1-EVO is suitable for domestic water supply from relatively deep basins, tanks or wells, for drawing rainwater from cisterns for hand watering or to feed an irrigation system.
Also complete with 10 meter long power cable.
The TOP MULTI 1-EVO can be installed up to 3 meters underwater.
The pump construction is solid. Pedrollo has used technopolymer, AISI 304 stainless steel and noryl which give the product robustness and allow it to last over time.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.37
- Power (HP)
- 0.50
- Absorption at 230V (A)
- 2.0
- Delivery mouth
- 1 "1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 75
- Min. head (m.)
- 6
- Max. head (m.)
- 26
- Emptying level (mm)
- 35
- Cable length (m)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 31.7
- Width (cm)
- 22.7
- Depth (cm)
- 22.7
- Weight (Kg)
- 7.1
- Warranty (years)
- 2
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 TOP MULTI 1-EVO - 0.50 HP multi-impeller electric pumpThis product Flow rate up to 75 l/min (4.5 m³/h). Head up to 26 m. 0.37 Kw (0.50 HP) motor. |  TOP MULTI 2-EVO - 0.75 HP multi-impeller electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 40 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 3-EVO - 0.75 HP multi-impeller electric pumpFlow rate up to 120 l/min (7.2 m³/h). Head up to 30.5 m. 0.55 Kw (0.75 HP) motor. |  TOP MULTI 4-EVO - 1 HP multi-impeller electric pumpFlow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor. | |
|---|---|---|---|---|
| Motor connection | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE | Motor connection SINGLE PHASE |
| Power (Kw) | Power (Kw) 0.37 | Power (Kw) 0.55 | Power (Kw) 0.55 | Power (Kw) 0.75 |
| Power (HP) | Power (HP) 0.50 | Power (HP) 0.75 | Power (HP) 0.75 | Power (HP) 1 |
| Absorption at 230V (A) | Absorption at 230V (A) 2.0 | Absorption at 230V (A) 3.4 | Absorption at 230V (A) 3.6 | Absorption at 230V (A) 3.9 |
| Capacitor | Capacitor -- | Capacitor 12.5 µF450 VL | Capacitor 12.5 µF450 VL | Capacitor -- |
| Delivery mouth | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 | Delivery mouth 1 "1/4 |
| Pump body | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer | Pump body Technopolymer |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 1 | Number of impellers 3 | Number of impellers 3 | Number of impellers 4 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 | Min. flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 75 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 120 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 6 | Min. head (m.) 6 | Min. head (m.) 4.5 | Min. head (m.) 8 |
| Max. head (m.) | Max. head (m.) 26 | Max. head (m.) 40 | Max. head (m.) 30.5 | Max. head (m.) 52 |
| Emptying level (mm) | Emptying level (mm) 35 | Emptying level (mm) 35 | Emptying level (mm) 35 | Emptying level (mm) 35 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
| Height (cm) | Height (cm) 31.7 | Height (cm) 39.4 | Height (cm) 39.4 | Height (cm) 42.8 |
| Width (cm) | Width (cm) 22.7 | Width (cm) 23.9 | Width (cm) 23.9 | Width (cm) 23.9 |
| Depth (cm) | Depth (cm) 22.7 | Depth (cm) -- | Depth (cm) -- | Depth (cm) 23.9 |
| Weight (Kg) | Weight (Kg) 7.1 | Weight (Kg) 9.8 | Weight (Kg) 9.9 | Weight (Kg) 10.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
