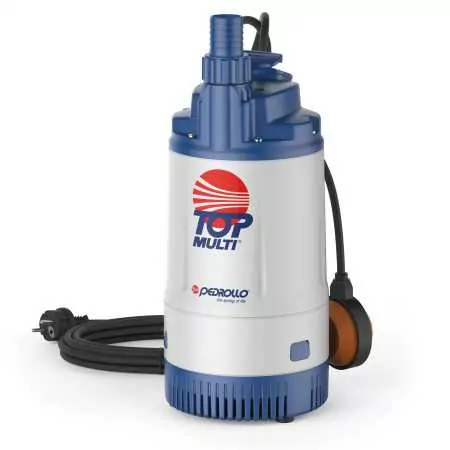

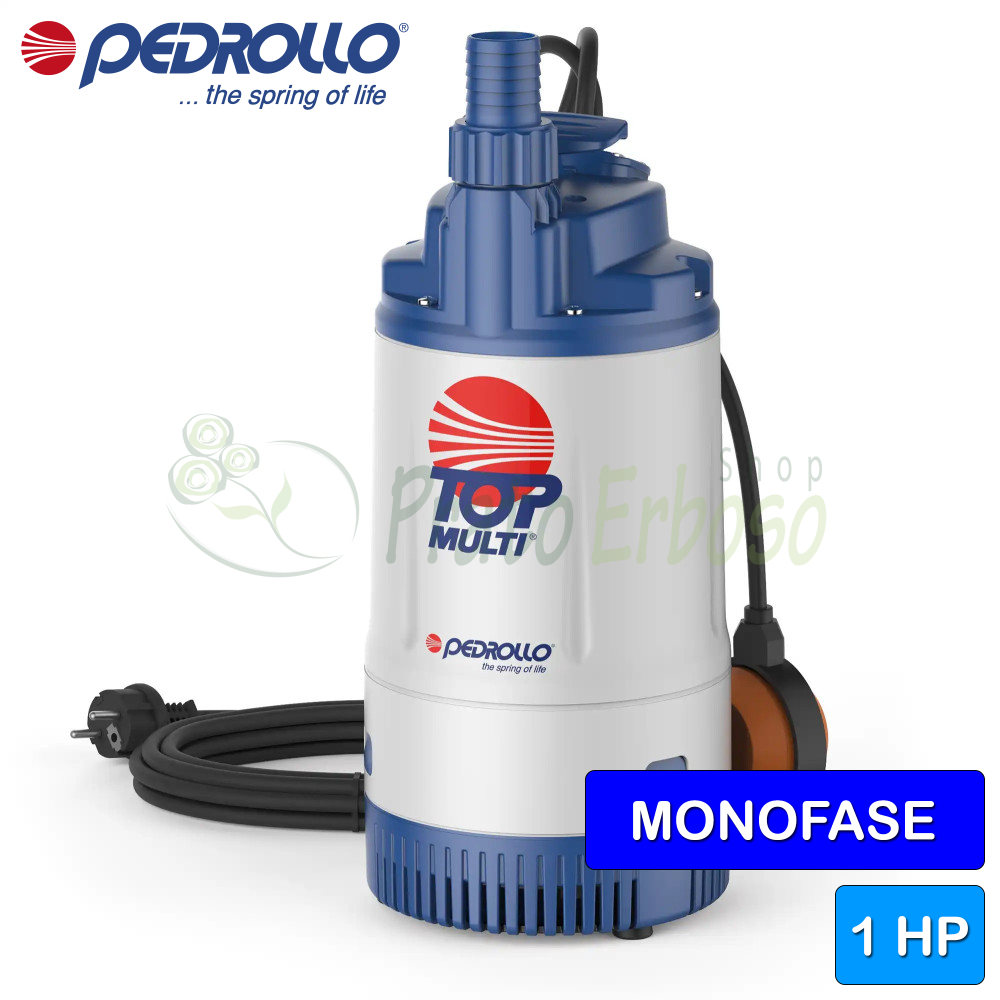

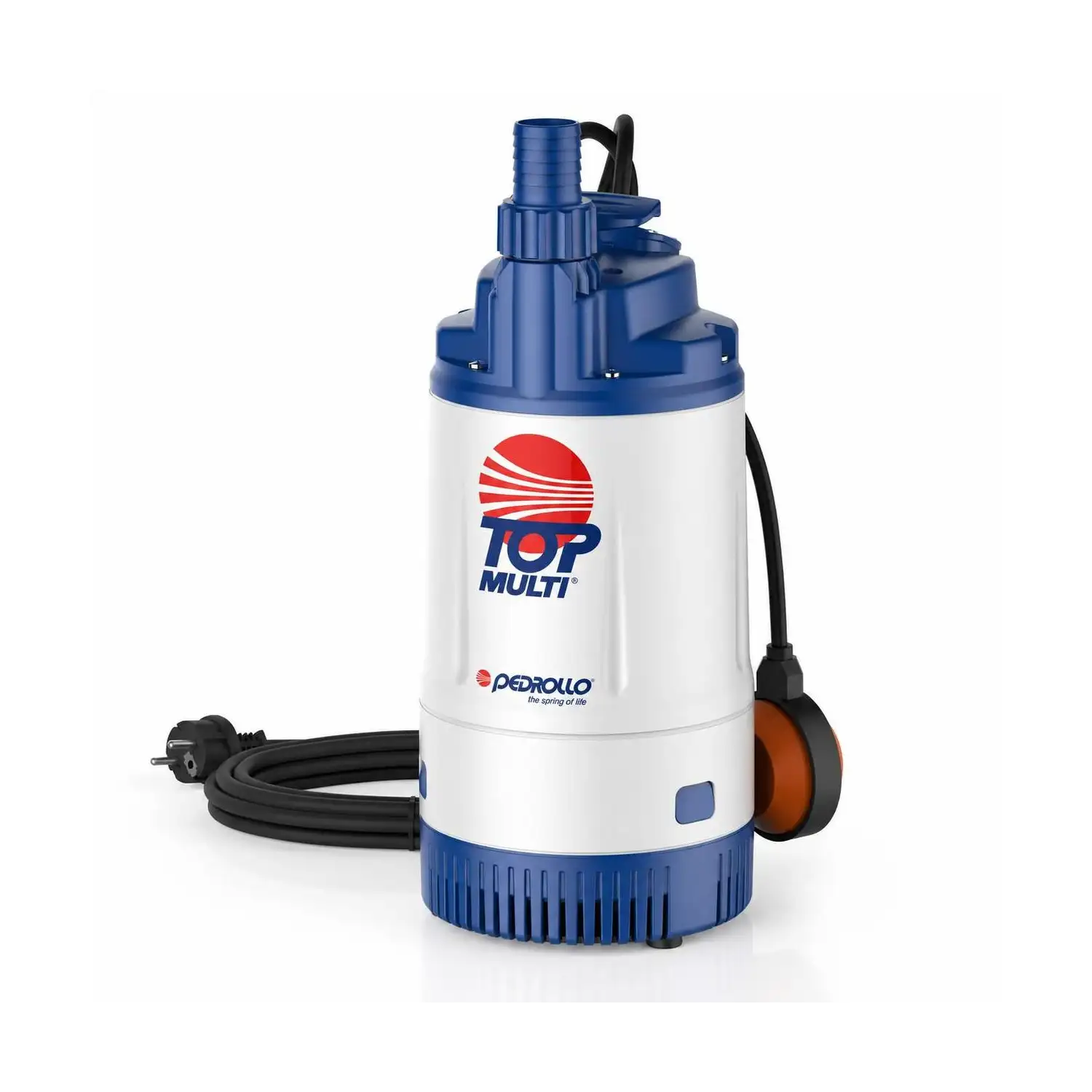

TOP MULTI 4 - 1 HP multi-impeller electric pump
Flow rate up to 80 l/min (4.8 m³/h). Head up to 52 m. 0.75 Kw (1 HP) motor.
The TOP MULTI 4 multi-impeller electric pump by Pedrollo is ideal for the domestic and civil sectors.
Recommended for pumping clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
The flow rate ranges from 10 to 120 liters per minute. The head ranges from 4.5 to 30.5 meters.
It must be powered by a single-phase voltage, has a horsepower of 0.75 HP and the temperature of the liquid to be pumped ranges from -10 degrees centigrade up to +40.
The TOP MULTI 4 is suitable for domestic water supply from relatively deep basins, tanks or wells, for drawing rainwater from cisterns for hand watering or for feeding an irrigation system.
Also complete with 10 meter long power cable.
The pump construction is solid. Pedrollo has used technopolymer, AISI 304 stainless steel and noryl which give the product robustness and allow it to last over time.
- Motor connection
- SINGLE PHASE
- Power (Kw)
- 0.75
- Power (HP)
- 1
- Absorption at 230V (A)
- 3.9
- Delivery mouth
- 1 "1/4
- Pump body
- Technopolymer
- Impeller
- Noryl
- Number of impellers
- 4
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 8
- Max. head (m.)
- 52
- Emptying level (mm)
- 35
- Cable length (m)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 41.5
- Width (cm)
- 17.8
- Depth (cm)
- 17.8
- Weight (Kg)
- 10.4
- Warranty (years)
- 2
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6202 ZZ - C3 |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-13R |
| LM diameter | 13 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R SG |
| LP diameter | 12 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 1.3 - Delivery body | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.0 - Stadium box | Reinforced technopolymer |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.2 - Wear ring | POM acetal resin |
| 5.5 - Director Crown | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
