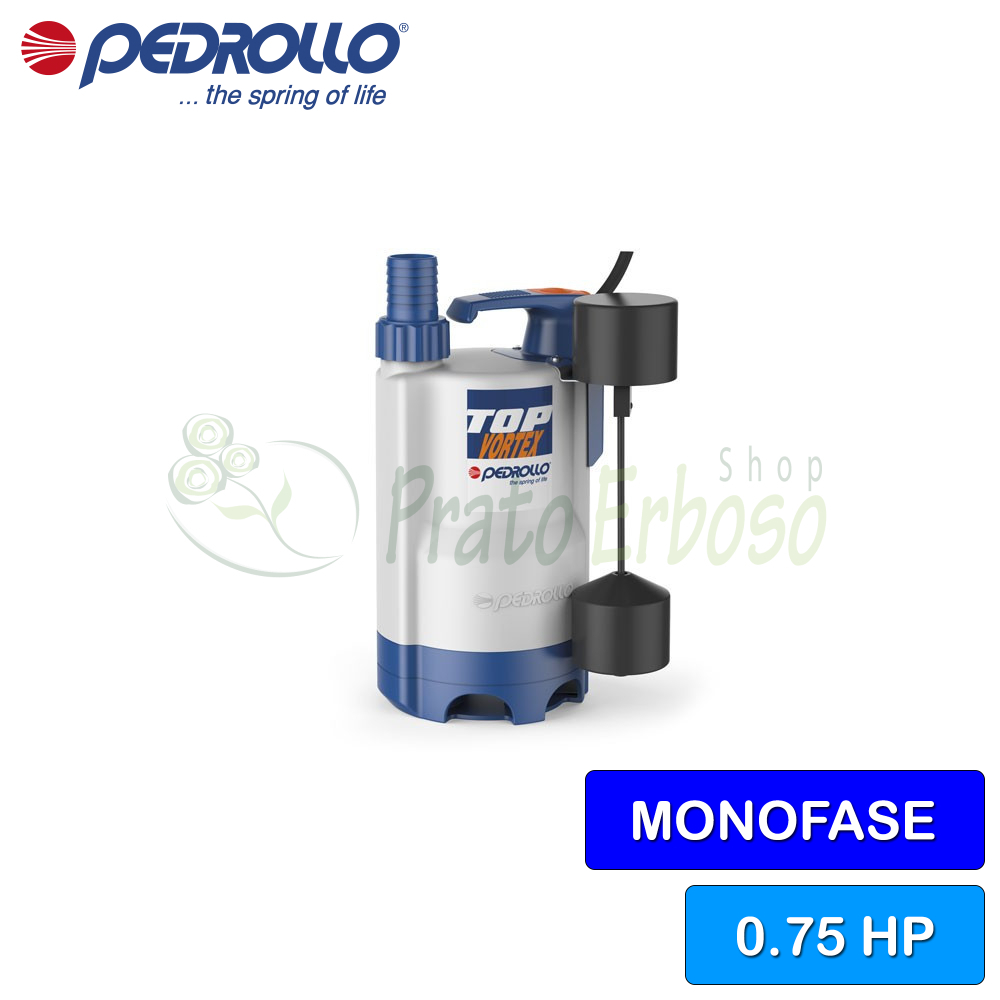

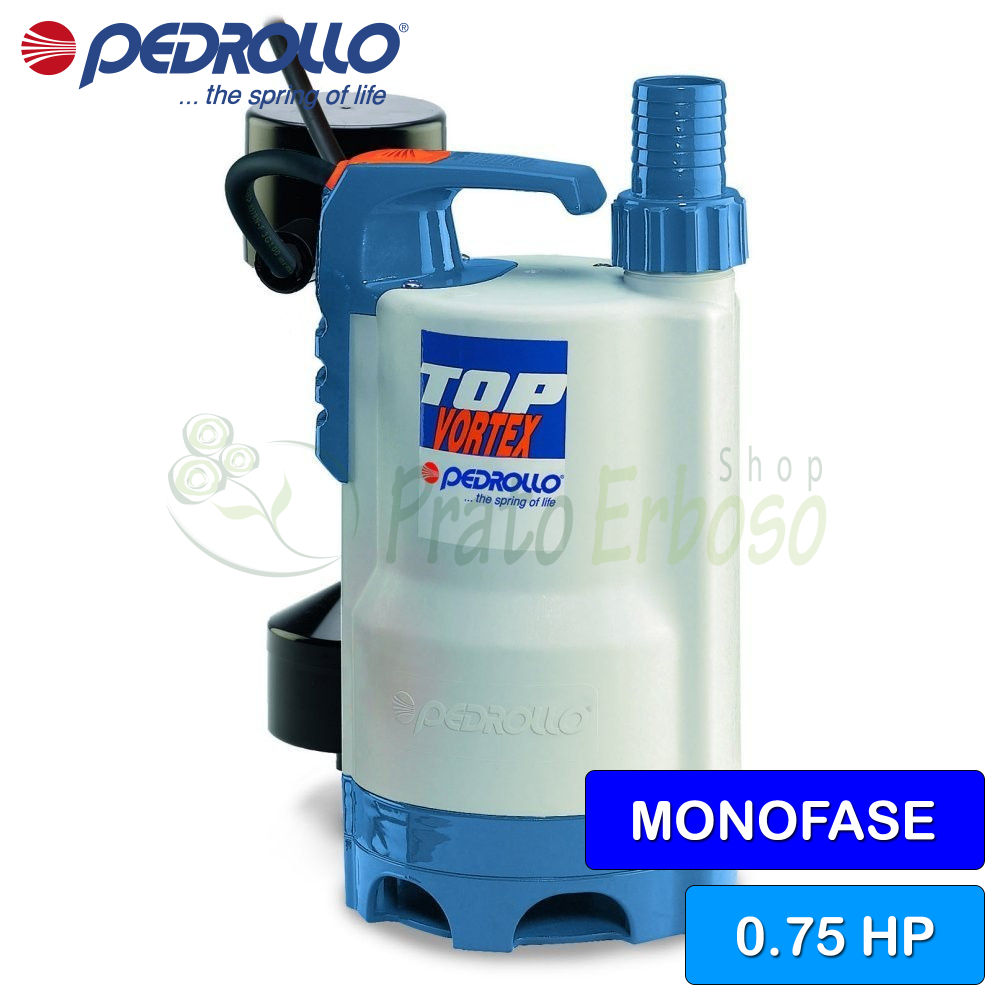

TOP 3 - VORTEX/GM (5m) - 0.75 HP electric drainage pump for dirty water
Flow rate up to 170 l/min (10.2 m³/h). Head up to 8.7 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug.
WITH MAGNETIC FLOAT.
The TOP 3 - VORTEX submersible electric pump from the TOP-VORTEX series by Pedrollo is among the best for draining dirty water.
Ease of use and operational safety are ensured thanks to the total cooling of the motor and the double seal on the shaft.
The TOP 3 - VORTEX is recommended for domestic installations.
Suitable for evacuating waste water, emptying tanks, domestic drains, emptying collection pits even in the presence of suspended solids up to 25 millimetres in diameter.
The vertical sliding magnetic float makes it ideal for small wells.
The electric pump is complete with a 5-meter power cable and a float switch.
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 2.9
- Capacitor
- 14 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- Technopolymer
- Impeller
- Technopolymer
- Number of impellers
- 1
- Crankshaft
- Stainless steel EN 10088-3 1.4104
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 20
- Max. flow rate (l./min.)
- 170
- Min. head (m.)
- 2.8
- Max. head (m.)
- 8.7
- Cable length (m.)
- 5
- Jobs
- drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 20
- Width (cm)
- 15.2
- Weight (Kg)
- 6.7
- Warranty (years)
- 2
|
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6201 ZZ |
| Opposite side engine bearing | 6201 ZZ |
Tree holding
| Type of seal | Double Seal: Mechanical and Lip with oil chamber |
| Engine side model | Lip seal |
| LM diameter | 12 |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-12R |
| LP diameter | 12 |
| LP fixed ring | Ceramic |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Reinforced technopolymer |
| 2.2 - Suction cover | Reinforced technopolymer |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 6.0 - Motor holder | Stainless steel EN 1.4301 (AISI 304) |
| 6.1 - Engine cover | Stainless steel EN 1.4301 (AISI 304) |
| 8.0 - Suction Grid/Filter | Reinforced technopolymer |
