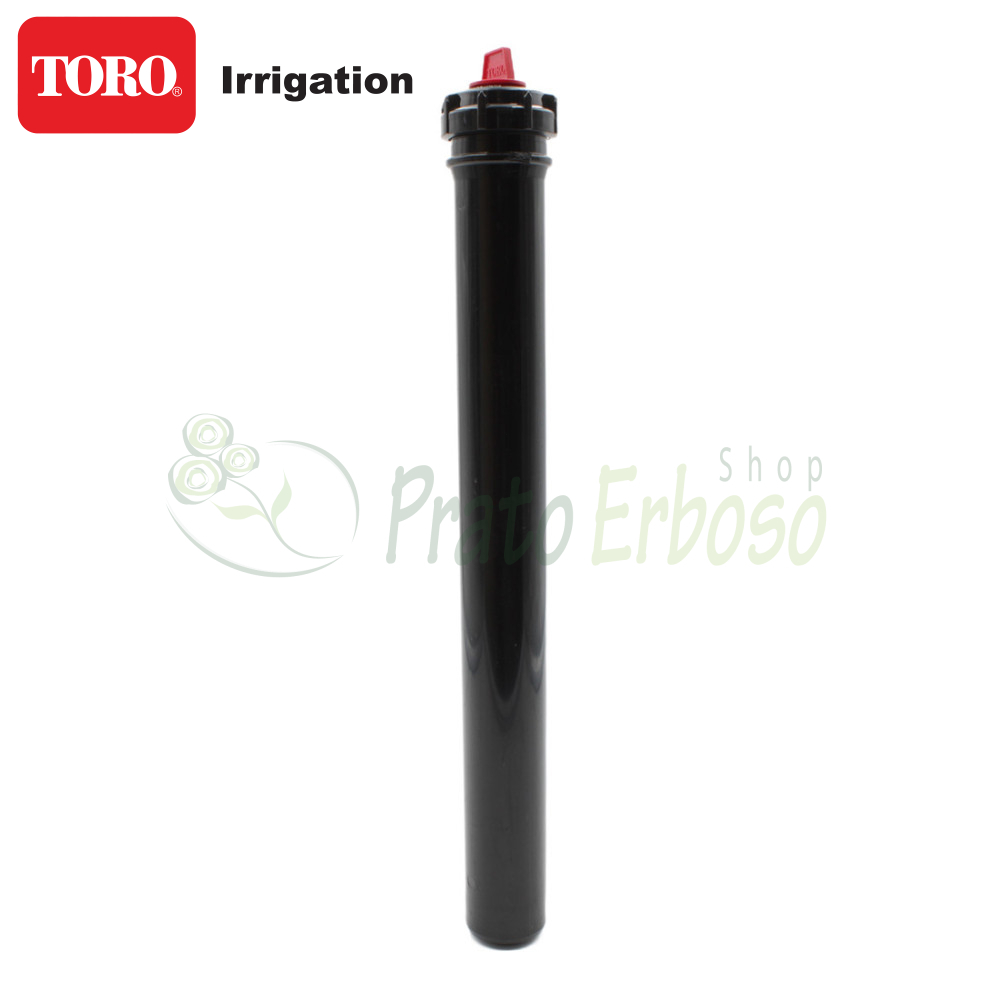

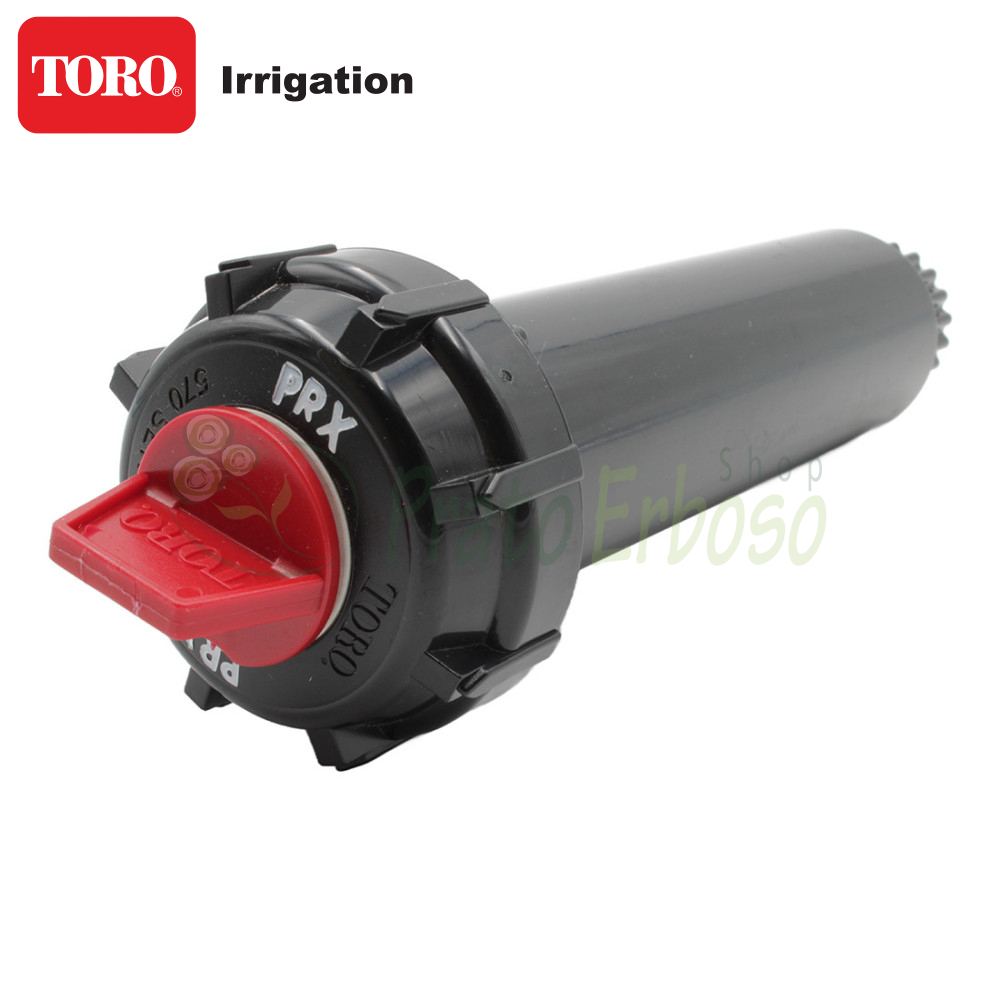

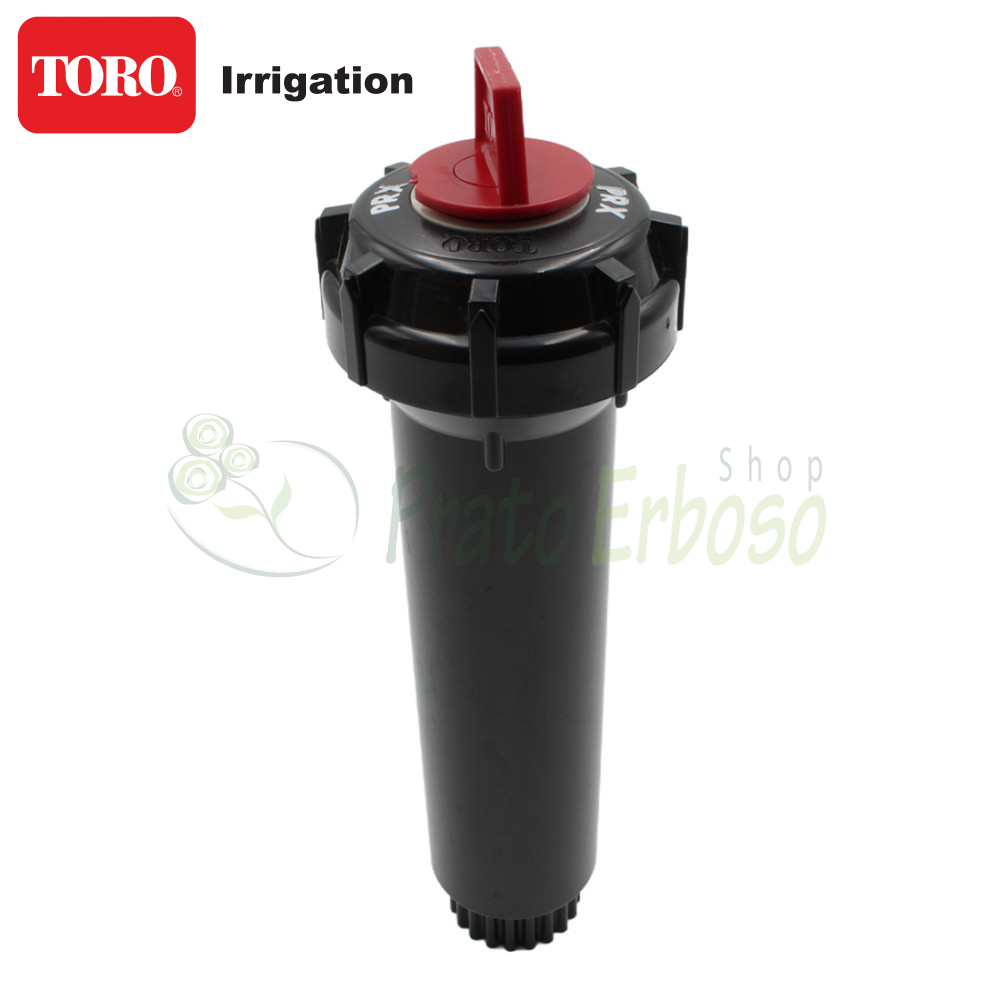

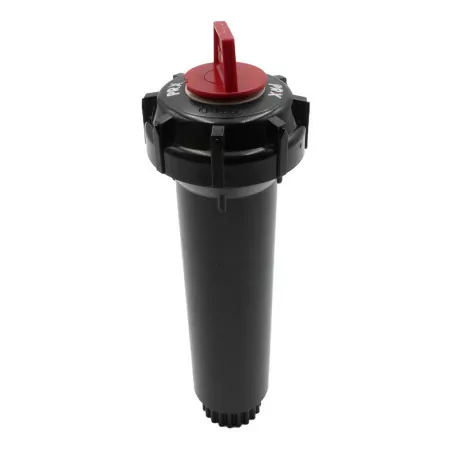

570Z-12P-PRX - 30cm Pop-up Sprinkler
Turret height 10 cm. With X-Flow device. With pressure limiter. WITHOUT NOZZLE.
The 570Z-12P-PRX sprinkler from Toro Irrigation is equipped with X-flow and PRX device.
The X-flow device integrated into the turret limits water loss by 99% if the nozzle is removed or damaged, eliminating potential erosion or safety issues. Allows for nozzle and dry filter replacement or maintenance while the system is running.
The 570Z-12P-PRX sprinkler features a sealing device that is active even at very low pressures, allowing washing only during the turret retraction phase.
The XFlow device limits water flow by up to 2% in case of tampering.

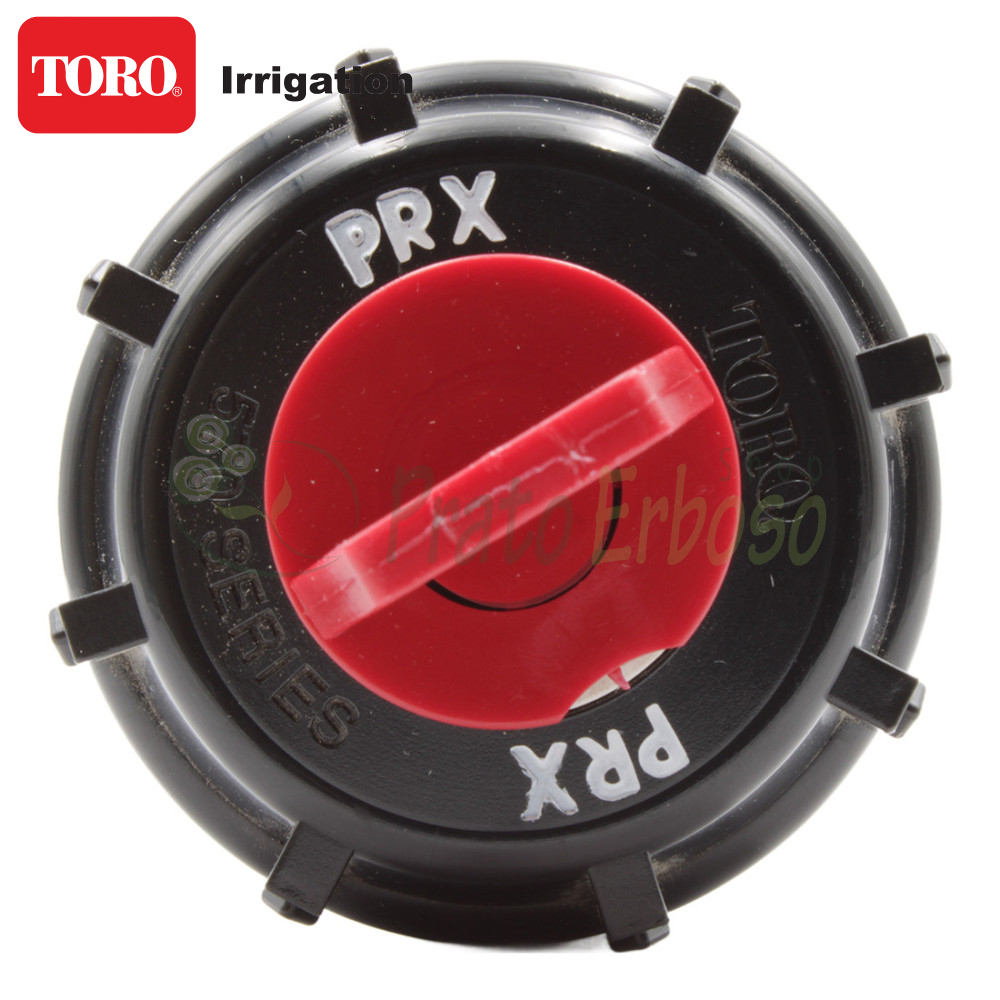

The PRX device, the pressure regulator, on the other hand, works at a standard pressure of 2.1 bar to prevent condensation and water waste.
The 570Z-12P-PRX sprinkler is ideal for small gardens and green areas.
- Minimum flow rate (l./min.)
- 0.2
- Max. flow rate (l./min.)
- 17
- Max. working pressure (bar)
- 3.5
- Min. working pressure (bar)
- 17
- Max. range (m)
- 5.5
- Turret height (cm.)
- 30
- Height (cm)
- 40
- Attack size
- 1/2 "
- Type of attack
- female
- Thread
- BSPP
Compare with Similar Products
 570Z-12P-PRX - 30cm Pop-up SprinklerThis product Turret height 10 cm. With X-Flow device. With pressure limiter. WITHOUT NOZZLE. |  570Z-4P-PRX - 10cm Pop-up SprinklerTurret height 10 cm. With X-Flow device. With pressure limiter. WITHOUT NOZZLE. |  570Z-6P-PRX - 15cm Pop-up SprinklerTurret height 15 centimeters. With X-Flow device. With pressure limiter. WITHOUT NOZZLE. | |
|---|---|---|---|
| Price | Price €53.35 -32% €36.28 | Price €19.63 -32% €13.35 | Price €37.69 -32% €25.63 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 0.2 | Minimum flow rate (l./min.) 0.2 | Minimum flow rate (l./min.) 0.2 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 17 | Max. flow rate (l./min.) 17 | Max. flow rate (l./min.) 17 |
| Max. working pressure (bar) | Max. working pressure (bar) 3.5 | Max. working pressure (bar) 5.2 | Max. working pressure (bar) 5.2 |
| Min. working pressure (bar) | Min. working pressure (bar) 17 | Min. working pressure (bar) 1.4 | Min. working pressure (bar) 1.4 |
| Max. range (m) | Max. range (m) 5.5 | Max. range (m) 5.5 | Max. range (m) 5.5 |
| Turret height (cm.) | Turret height (cm.) 30 | Turret height (cm.) 10 | Turret height (cm.) 15 |
| Height (cm) | Height (cm) 40 | Height (cm) 16 | Height (cm) 21 |
| Attack size | Attack size 1/2 " | Attack size 1/2 " | Attack size 1/2 " |
| Type of attack | Type of attack female | Type of attack female | Type of attack female |
| Thread | Thread BSPP | Thread BSPP | Thread BSPP |
