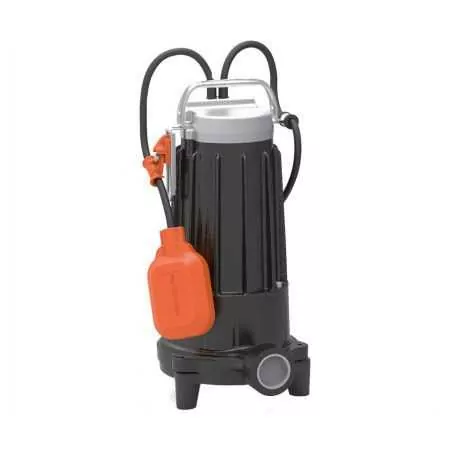

TRm 0.75 - Submersible electric pump with single-phase grinder 1 HP

Name: TRm 0.75 - Submersible electric pump with single-phase grinder 1 HP
Brand: Pedrollo
SKU: TRm 0.75
Price: 600.55 EUR
Availability: InStock
Rating: 3 (1 reviews)

Flow rate up to 120 l/min (7.2 m³/h). Head up to 15.5 m. 0.75 Kw (1 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

Description

The TRm 0.75 grinder pump from the TRITUS series is made of very thick cast iron which ensures exceptional strength, abrasion resistance and durability over time.

It is equipped with a SHREDDER made of high-resistance tempered stainless steel which allows for the complete shredding of solid bodies and fibres contained in waste water and waste water in the domestic and civil sectors, for conveying under pressure into the sewer system through small diameter pipes.

Data sheet

Motor connection: SINGLE PHASE
Power (HP): 1
Absorption at 230V (A): 5.5
Capacitor: 25 µF450 VL
Delivery port: 1 "1/4
Body Pump: Cast iron
Impeller: Technopolymer
Number of impellers: 1
Motor shaft: AISI 431 stainless steel
Check valve: no
Degree of protection: IP 68
Flow rate min. (l./min.): 10
Max flow (l./min.): 120
Min head (m.): 4.5
Max head (m.): 15.5
Cable length (m): 10
Employments: drainage, drying up, slightly dirty waters
Liquid temperature max. (° C): 40
Height (cm): 40.5
Weight kg): 22.3
Guarantee: 2

Attachments

TRITUS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the pumps of the TRITUS series by Pedrollo.

Download (5.15MB)

TRm models and performances

GUY

single phase

TRm 0.75

TRm 0.9

TRm 1.1

TRm 1.3

TRm 1.5

POWER
KW	HP
0.75	1
0.9	1.25
1.1	1.5
1.3	1.75
1.5	2

PERFORMANCE
Q litres/min	H meters
20 ÷ 125	16.5 ÷ 2
20 ÷ 170	16 ÷ 2
20 ÷ 140	23 ÷ 2
20÷220	23.5 ÷ 2
20 ÷ 270	26 ÷ 2

MOUTH
DN 40
1 1/4"

Q	m³/hour	0	1.2	2.4	3.6	4.8	6	7.5	8.4	10.2	12	13.2	14.4	16.2	16.8
Q	l/min	0	20	40	60	80	100	125	140	170	200	220	240	270	280
H	meters	16.5	15	13.5	11.8	10	7.5	2
		16	15	13.8	12.5	11.1	9.6	7.5	6	2
		23	21.5	19.5	17.5	15.5	13	9.5	2
		23.5	22.5	21.2	19.8	18.4	17	14.8	13.4	10.2	6.2	2
		26	25	24	22.8	21.7	20.4	18.8	17.8	15.6	13.4	11.7	10	2

Construction data TR 0.75-1.3

Compare with Similar Products

	TRm 0.75 - Submersible electric pump with single-phase grinder 1 HP This product Flow rate up to 120 l/min (7.2 m³/h). Head up to 15.5 m. 0.75 Kw (1 HP) motor.	TRm 0.9 - Submersible electric pump with single-phase grinder 1.25 HP Quick View Flow rate up to 170 l/min (10.2 m³/h). Head up to 16 m. 0.90 Kw (1.25 HP) motor.	TRm 1.1 - Submersible electric pump with single-phase grinder 1.5 HP Quick View Flow rate up to 120 l/min (7.2 m³/h). Head up to 23 m. 1.1 Kw (1.5 HP) motor.	TRm 1.3 - Submersible electric pump with single-phase grinder 1.75 HP Quick View Flow rate up to 220 l/min (13.2 m³/h). Head up to 23.5 m. 1.3 Kw (1.75 HP) motor.
Motor connection	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE	Motor connection SINGLE PHASE
Power (HP)	Power (HP) 1	Power (HP) 1.25	Power (HP) 1.5	Power (HP) --
Absorption at 230V (A)	Absorption at 230V (A) 5.5	Absorption at 230V (A) 6	Absorption at 230V (A) 7.4	Absorption at 230V (A) 9
Capacitor	Capacitor 25 µF450 VL	Capacitor 25 µF450 VL	Capacitor 25 µF450 VL	Capacitor 25 µF450 VL
Delivery port	Delivery port 1 "1/4	Delivery port 1 "1/4	Delivery port 1 "1/4	Delivery port 1 "1/4
Body Pump	Body Pump Cast iron	Body Pump Cast iron	Body Pump Cast iron	Body Pump Cast iron
Impeller	Impeller Technopolymer	Impeller Technopolymer	Impeller Technopolymer	Impeller Technopolymer
Number of impellers	Number of impellers 1	Number of impellers 1	Number of impellers 1	Number of impellers 1
Motor shaft	Motor shaft AISI 431 stainless steel	Motor shaft AISI 431 stainless steel	Motor shaft AISI 431 stainless steel	Motor shaft AISI 431 stainless steel
Check valve	Check valve no	Check valve no	Check valve no	Check valve no
Degree of protection	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68	Degree of protection IP 68
Flow rate min. (l./min.)	Flow rate min. (l./min.) 10	Flow rate min. (l./min.) 20	Flow rate min. (l./min.) 10	Flow rate min. (l./min.) 20
Max flow (l./min.)	Max flow (l./min.) 120	Max flow (l./min.) 170	Max flow (l./min.) 120	Max flow (l./min.) 220
Min head (m.)	Min head (m.) 4.5	Min head (m.) 2	Min head (m.) 10	Min head (m.) 2
Max head (m.)	Max head (m.) 15.5	Max head (m.) 16	Max head (m.) 23	Max head (m.) 23.5
Cable length (m)	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10	Cable length (m) 10
Employments	Employments drainage, drying up, slightly dirty waters	Employments drainage, drying up, slightly dirty waters	Employments drainage, drying up, slightly dirty waters	Employments drainage, drying up, slightly dirty waters
Liquid temperature max. (° C)	Liquid temperature max. (° C) 40	Liquid temperature max. (° C) 40	Liquid temperature max. (° C) 40	Liquid temperature max. (° C) 40
Height (cm)	Height (cm) 40.5	Height (cm) 40.6	Height (cm) 40.5	Height (cm) 40.6
Weight kg)	Weight kg) 22.3	Weight kg) 22.3	Weight kg) 23.9	Weight kg) 23.1
Guarantee	Guarantee 2	Guarantee 2	Guarantee 2	Guarantee 2
