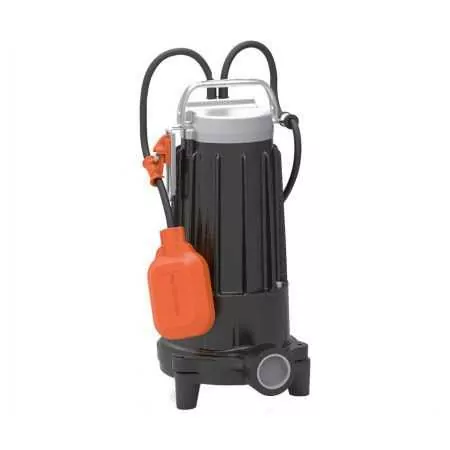

TRm 1.3 - Submersible electric pump with single-phase grinder 1.75 HP

Name: TRm 1.3 - Submersible electric pump with single-phase grinder 1.75 HP
Brand: Pedrollo
SKU: TRm 1.3
Price: 677.04 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 220 l/min (13.2 m³/h). Head up to 23.5 m. 1.3 Kw (1.75 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The TRm 1.3 grinder pump from the TRITUS series is made of thick cast iron which ensures exceptional strength, abrasion resistance and durability over time.

It is equipped with a SHREDDER made of high-resistance tempered stainless steel which allows for the complete shredding of solid bodies and fibres contained in waste water and waste water in the domestic and civil sectors, for conveying under pressure into the sewer system through small diameter pipes.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.3
Power (HP): 1.75
Absorption at 230V (A): 9
Capacitor: 25 µF 450 VL
Delivery mouth: 1" 1/4
Pump body: Cast iron
Impeller: Technopolymer
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 20
Max. flow rate (l./min.): 220
Min. head (m.): 2
Max. head (m.): 23.5
Cable length (m.)
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): +40°C
Height (cm): 40.6
Weight (Kg): 25.5
Warranty (years): 2

Attachments

TRITUS data sheet

Construction and operating characteristics. Working curves, limits of use and dimensions of the pumps of the TRITUS series by Pedrollo.

Download (6.03MB)

TRm models and performances

GUY

single phase

TRm 0.75

TRm 0.9

TRm 1.1

TRm 1.3

TRm 1.5

POWER
KW	HP
0.75	1
0.9	1.25
1.1	1.5
1.3	1.75
1.5	2

PERFORMANCE
Q litres/min	H meters
20 ÷ 125	16.5 ÷ 2
20 ÷ 170	16 ÷ 2
20 ÷ 140	23 ÷ 2
20÷220	23.5 ÷ 2
20 ÷ 270	26 ÷ 2

MOUTH
DN 40
1 1/4"

Q	m³/hour	0	1.2	2.4	3.6	4.8	6	7.5	8.4	10.2	12	13.2	14.4	16.2	16.8
Q	l/min	0	20	40	60	80	100	125	140	170	200	220	240	270	280
H	meters	16.5	15	13.5	11.8	10	7.5	2
		16	15	13.8	12.5	11.1	9.6	7.5	6	2
		23	21.5	19.5	17.5	15.5	13	9.5	2
		23.5	22.5	21.2	19.8	18.4	17	14.8	13.4	10.2	6.2	2
		26	25	24	22.8	21.7	20.4	18.8	17.8	15.6	13.4	11.7	10	2

Construction data TR 0.75-1.3
