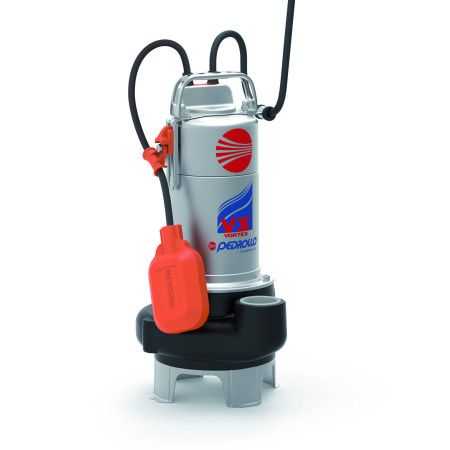

VXm 8/50 (5m) - 0.75 HP single-phase VORTEX electric pump for waste water

Name: VXm 8/50 (5m) - 0.75 HP single-phase VORTEX electric pump for waste water
Brand: Pedrollo
SKU: VXm 8/50 5MT
Price: 256.99 EUR
Availability: InStock
Rating: 5 (1 reviews)

Flow rate up to 450 l/min (27 m³/h). Head up to 6.5 m. 0.55 kW (0.75 HP) motor. 5-meter cable with Schuko plug.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

It is recommended for domestic, civil and industrial use, in all cases where suspended solids up to Ø 40 mm are present in the water, for example groundwater, surface water, sewage and wastewater.

Its use is recommended for draining flooded areas, such as basements, underground car parks, car wash areas, for domestic wastewater, emptying cesspits, and disposing of sewage.

This pump stands out for its reliability, particularly in fixed installations with automatic operation.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 0.55
Power (HP): 0.75
Absorption at 230V (A): 3.7
Capacitor: 20 µF 450 VL
Delivery mouth: 2"
Pump body: AISI 304 stainless steel
Impeller: AISI 304 stainless steel
Number of impellers: 1
Crankshaft: AISI 431 stainless steel
Check valve: No
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 450
Min. head (m.): 1.5
Max. head (m.): 6.5
Cable length (m.): 5
Jobs: drainage, drying up, slightly dirty waters
Max. liquid temperature (°C): +40°C
Height (cm): 43.2
Width (cm): 24.3
Weight (Kg): 13.3
Warranty (years): 2

Attachments

Data sheet VX

Models, performance curves and construction features of Pedrollo pumps of the VX series.

Download (1.48MB)

Construction data of the VX50 series

Bearings

Pump side motor bearing	6203 ZZ
Opposite side engine bearing	6203 ZZ

Tree holding

Type of seal	Double mechanical seal in oil chamber
LM diameter	14
LM fixed ring	Silicon carbide
LM rotating ring	Graphite
LM elastomer	NBR
Shrinkage DN1=450 DN2=350	MG1-14D SIC
LP diameter	14
LP fixed ring	Silicon carbide
LP rotating ring	Silicon carbide
LP elastomer	NBR

Materials

1.0 - Pump body	Cast iron GJL 200 EN 1561
1.4 - Basic	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Stainless steel EN 1.4301 (AISI 304)
4.0 - Pump shaft	Stainless steel EN 1.4057 (AISI 431)
6.0 - Motor holder	Stainless steel EN 1.4301 (AISI 304)
6.1 - Engine cover	Stainless steel EN 1.4301 (AISI 304)
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)

VXm/50 Models and Performance

TYPE

single-phase

VXm 8/50

VXm 10/50

VXm 15/50

VXm 20/50

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2

PERFORMANCES
Q liters/min	H meters
50 ÷ 450	6.5 ÷ 1.5
50 ÷ 550	9 ÷ 1.5
50 ÷ 650	11.5 ÷ 2
50 ÷ 750	35.5 ÷ 2.5

MOUTH

mand.

SOLID BODIES

Ø 50

Q	m³/hour	0	3	6	12	18	24	27	30	33	36	39	45
Q	l/min	0	50	100	200	300	400	450	500	550	600	650	750
H	meters	6.5	6	5.8	5	4	2.5	1.5
		9	8.5	8.2	7.5	6.5	5	3.8	2.5	1.5
		11.5	11	10.5	9.8	8.7	7.7	6.5	5.5	4.5	3.5	2
		13.5	13	12.5	11.5	10.7	9.5	9	8	7.5	6.5	5	2.5
