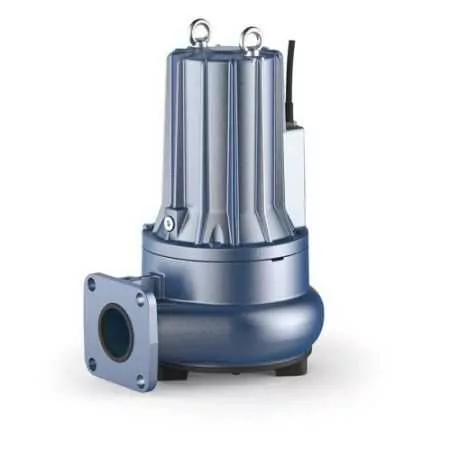

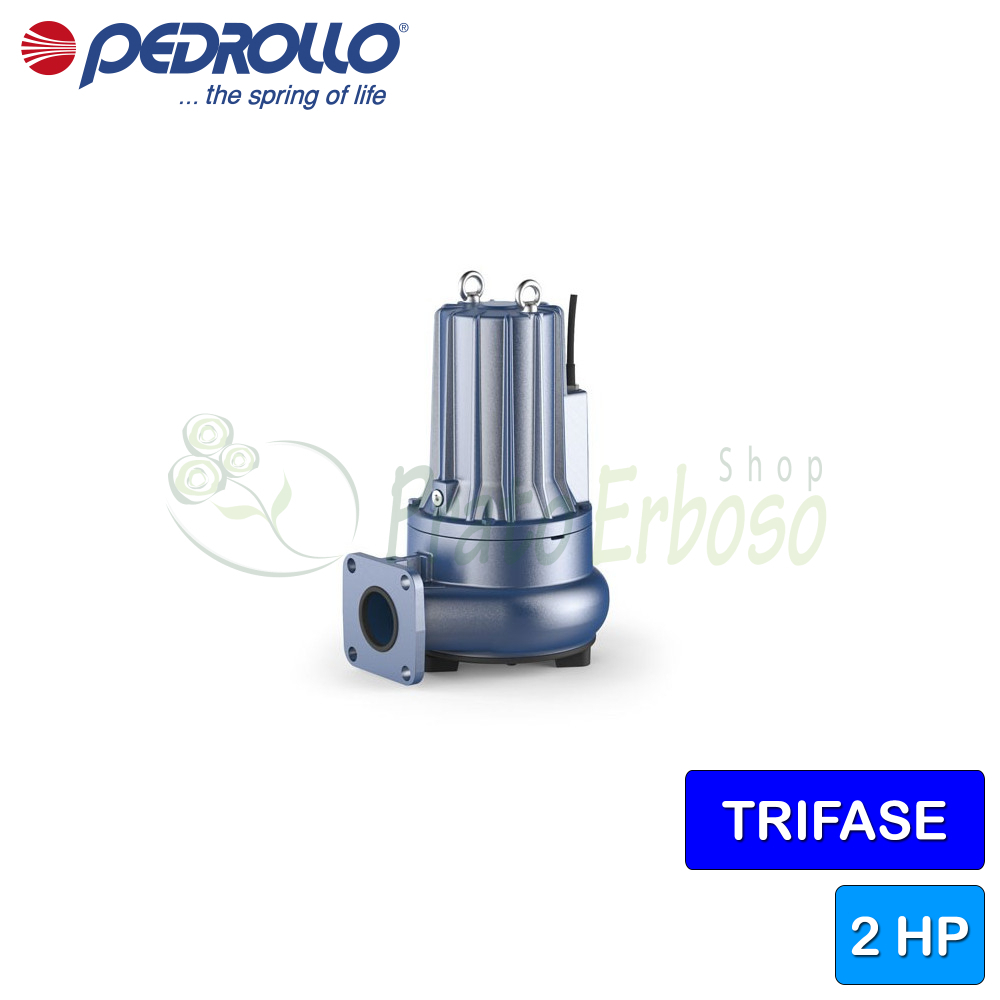

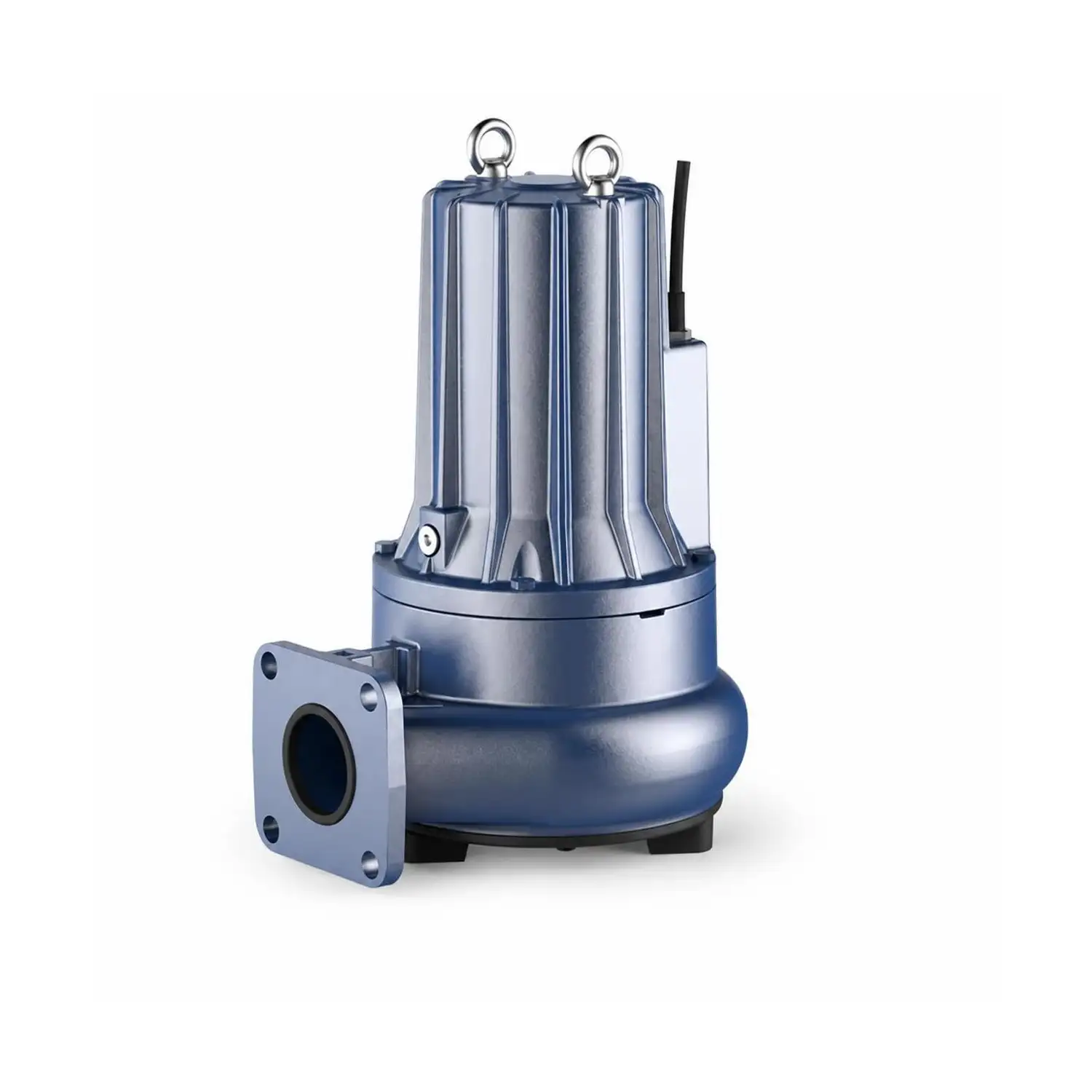

VXC 20/50-F - 2 HP three-phase VORTEX electric pump for waste water
Flow rate up to 700 l/min (42 m³/h) Head up to 13.5 m. 1.5 Kw (2 HP) motor
Delivery Options
| Carrier | Description | Estimated Delivery | |
|---|---|---|---|
 | Mail Boxes - 2 giorni | This courier delivers within 48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust them with the products. | Tuesday 24 February - Wednesday 25 February |
 | DHL - 2 giorni Italia | This courier delivers within 24/48 hours from the moment we entrust the products to him. | Tuesday 24 February - Wednesday 25 February |
 | Poste Italiane - 3 giorni punto di ritiro | This courier delivers within 24/72 hours from the moment we entrust them with the products. | Tuesday 24 February |
 | Ritiro in negozio | Choose where to collect your order within 24/48 hours. | Tuesday 24 February |
Carrier: Mail Boxes - 2 giorni
Description: This courier delivers within 48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: DHL - 2 giorni Italia
Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.
Estimated delivery:
Tuesday 24 February - Wednesday 25 February
Carrier: Poste Italiane - 3 giorni punto di ritiro
Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.
Estimated delivery:
Tuesday 24 February
Carrier: Ritiro in negozio
Description: Choose where to collect your order within 24/48 hours.
Estimated delivery:
Tuesday 24 February
The VXC 20/50-F submersible electric pump from the VXC-F series by Pedrollo guarantees excellent performance.
Recommended for use in the civil and industrial sectors.
Suitable for fixed installations in sewers, tunnels, wells, underground car parks and within special manholes.
It can be installed up to 10 meters below water level.
The VXC 20/50-F electric pump is the right choice when looking for a high-quality electric pump.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Current consumption at 400V (A)
- 4.2
- Capacitor
- 20 µF 450 VL
- Delivery mouth
- 2" 1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 700
- Min. head (m.)
- 2.5
- Max. head (m.)
- 13.5
- Cable length (m.)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 44.2
- Weight (Kg)
- 36.7
- Warranty (years)
- 2
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
Compare with Similar Products
 VXC 20/50-F - 2 HP three-phase VORTEX electric pump for waste waterThis product Flow rate up to 700 l/min (42 m³/h) Head up to 13.5 m. 1.5 Kw (2 HP) motor |  VXC 15/50-F - 1.5 HP three-phase VORTEX electric pump for waste waterFlow rate up to 600 l/min (36 m³/h) Head up to 12 m 1.1 Kw (1.5 HP) motor. |  VXC 30/50-F - 3 HP three-phase VORTEX electric pump for waste waterFlow rate up to 850 l/min (51 m³/h) Head up to 16.5 m. 2.2 Kw (3 HP) motor |  VXC 40/50-F - 4 HP three-phase VORTEX electric pump for waste waterFlow rate up to 1050 l/min (63 m³/h). Head up to 20 m. 3 kW (4 HP) motor. | |
|---|---|---|---|---|
| Price | Price €1,294.42 -42% €750.76 | Price €1,266.36 -42% €734.49 | Price €1,320.04 -42% €765.62 | Price €1,560.38 -42% €905.02 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.5 | Power (Kw) 1.1 | Power (Kw) 2.2 | Power (Kw) 3 |
| Power (HP) | Power (HP) 2 | Power (HP) 1.5 | Power (HP) 3 | Power (HP) 4 |
| Current consumption at 400V (A) | Current consumption at 400V (A) 4.2 | Current consumption at 400V (A) 3.4 | Current consumption at 400V (A) 5.7 | Current consumption at 400V (A) 5.7 |
| Capacitor | Capacitor 20 µF 450 VL | Capacitor -- | Capacitor -- | Capacitor -- |
| Delivery mouth | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 | Delivery mouth 2" 1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 | Minimum flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 700 | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 850 | Max. flow rate (l./min.) 850 |
| Min. head (m.) | Min. head (m.) 2.5 | Min. head (m.) 2.5 | Min. head (m.) 2.5 | Min. head (m.) 2.5 |
| Max. head (m.) | Max. head (m.) 13.5 | Max. head (m.) 12 | Max. head (m.) 16.5 | Max. head (m.) 16.5 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 44.2 | Height (cm) 44.2 | Height (cm) 44.2 | Height (cm) 44.2 |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 36.7 | Weight (Kg) 35.6 | Weight (Kg) 38.7 | Weight (Kg) 38.7 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
