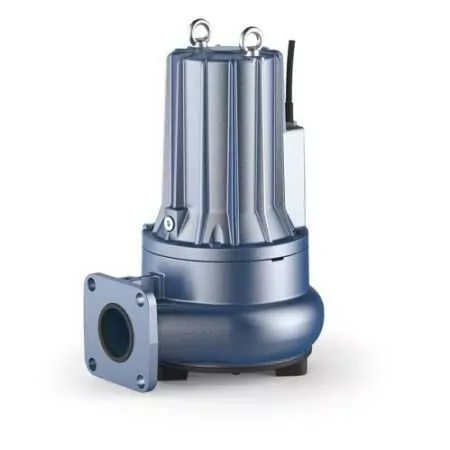

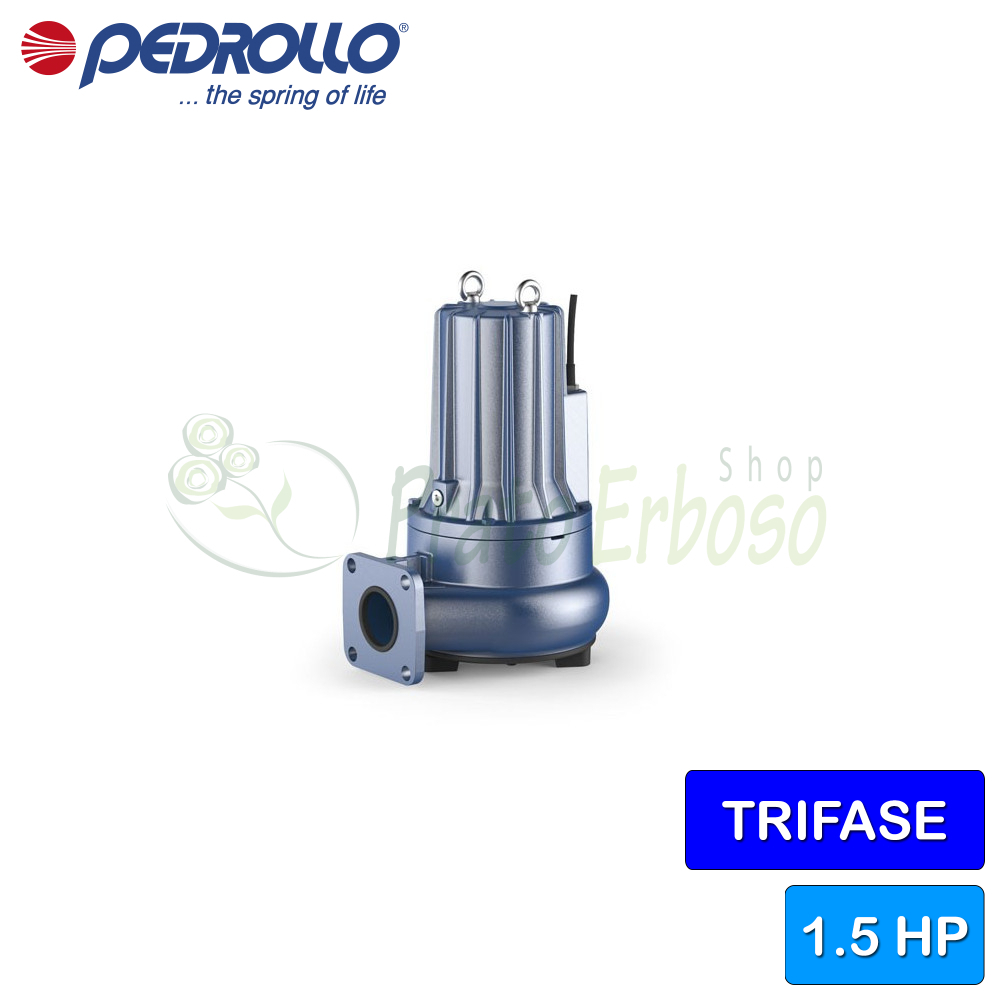

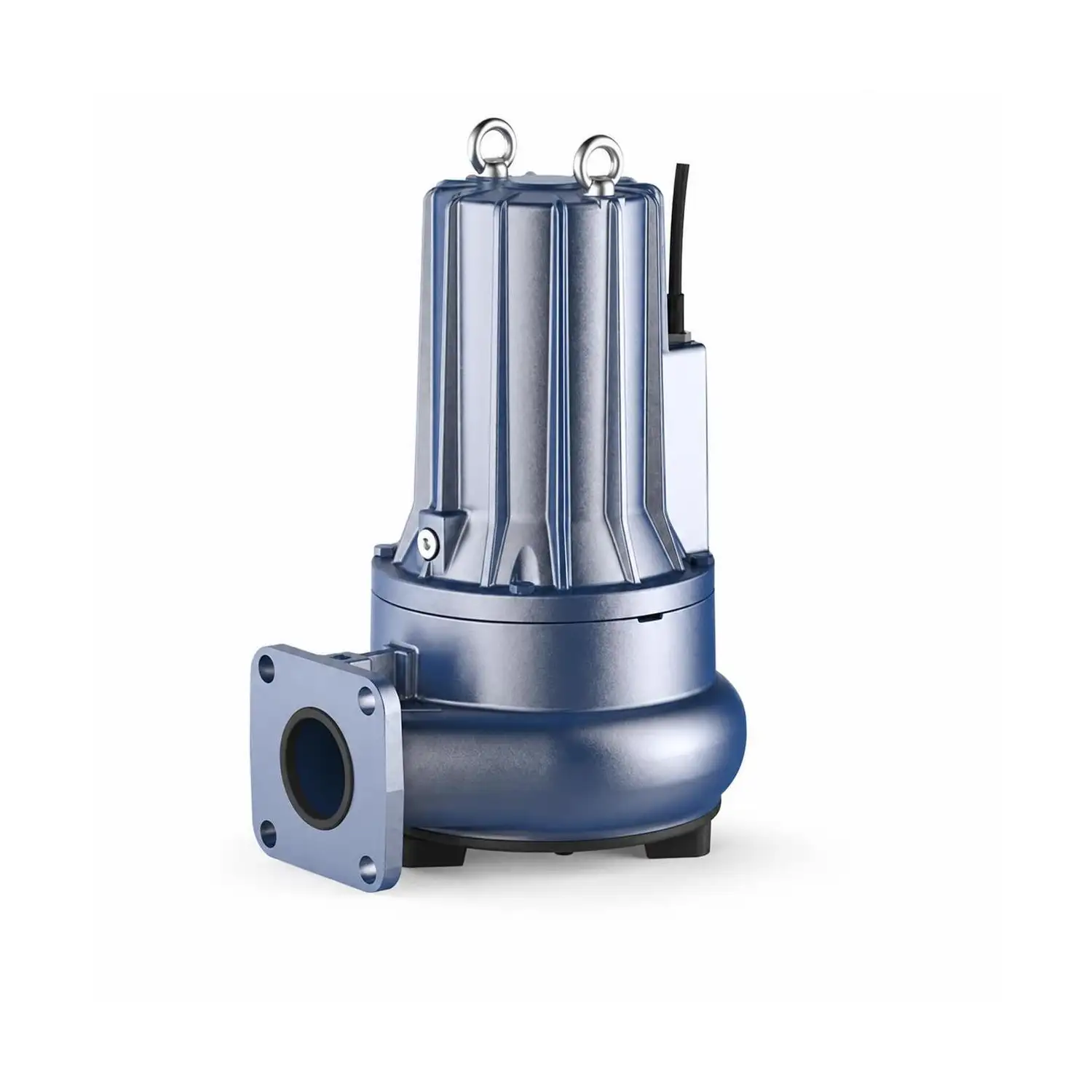

VXC 15/50-F - 1.5 HP three-phase VORTEX electric pump for waste water
Flow rate up to 600 l/min (36 m³/h) Head up to 12 m 1.1 Kw (1.5 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
VX-I pumps are recommended for draining sewage in the domestic, civil and industrial sectors, in all cases where suspended solids are present in the water, for example water mixed with mud, groundwater, surface water.
Its use is recommended for draining flooded areas such as basements, underground car parks, car wash areas, for emptying cesspits and for the disposal of sewage.
These pumps are distinguished by their reliability, in fixed installations with automatic operation.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 400V (A)
- 3.4
- Delivery mouth
- 2 "1/2
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Min. flow rate (l./min.)
- 100
- Max. flow rate (l./min.)
- 600
- Min. head (m.)
- 2.5
- Max. head (m.)
- 12
- Cable length (m)
- 10
- Jobs
- drainage, drying up, slightly dirty waters
- Max. liquid temperature (°C)
- 40
- Height (cm)
- 44.2
- Weight (Kg)
- 35.6
- Warranty (years)
- 2
VXC-F models and performance
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data of the VXCm 15/50-F
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
Compare with Similar Products
 VXC 15/50-F - 1.5 HP three-phase VORTEX electric pump for waste waterThis product Flow rate up to 600 l/min (36 m³/h) Head up to 12 m 1.1 Kw (1.5 HP) motor. |  VXC 20/50-F - 2 HP three-phase VORTEX electric pump for waste waterFlow rate up to 700 l/min (42 m³/h) Head up to 13.5 m. 1.5 Kw (2 HP) motor |  VXC 30/50-F - 3 HP three-phase VORTEX electric pump for waste waterFlow rate up to 850 l/min (51 m³/h) Head up to 16.5 m. 2.2 Kw (3 HP) motor | |
|---|---|---|---|
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.5 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 3 |
| Capacitor | Capacitor -- | Capacitor 20 µF450 VL | Capacitor -- |
| Absorption at 400V (A) | Absorption at 400V (A) 3.4 | Absorption at 400V (A) 4.2 | Absorption at 400V (A) 5.7 |
| Delivery mouth | Delivery mouth 2 "1/2 | Delivery mouth 2 "1/2 | Delivery mouth 2 "1/2 |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Min. flow rate (l./min.) | Min. flow rate (l./min.) 100 | Min. flow rate (l./min.) 100 | Min. flow rate (l./min.) 100 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 600 | Max. flow rate (l./min.) 700 | Max. flow rate (l./min.) 850 |
| Min. head (m.) | Min. head (m.) 2.5 | Min. head (m.) 2.5 | Min. head (m.) 2.5 |
| Max. head (m.) | Max. head (m.) 12 | Max. head (m.) 13.5 | Max. head (m.) 16.5 |
| Cable length (m) | Cable length (m) 10 | Cable length (m) 10 | Cable length (m) 10 |
| Jobs | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters | Jobs drainage, drying up, slightly dirty waters |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 | Max. liquid temperature (°C) 40 |
| Height (cm) | Height (cm) 44.2 | Height (cm) 44.2 | Height (cm) 44.2 |
| Weight (Kg) | Weight (Kg) 35.6 | Weight (Kg) 36.7 | Weight (Kg) 38.7 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
