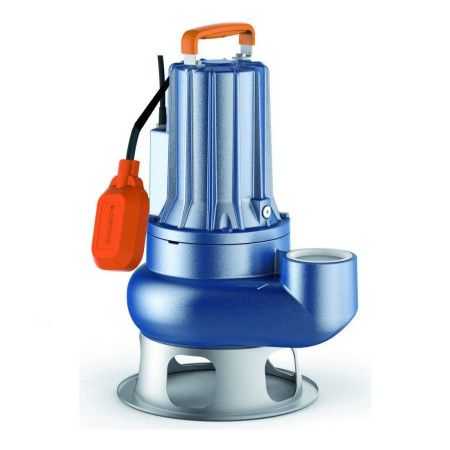

VXCm 15/65 - Single-phase VORTEX electric pump for waste water, 1.5 HP
Flow rate up to 850 l/min (51 m³/h). Head up to 8 m. 1.1 Kw (1.5 HP) motor.
Variants:
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXC series pumps, built in cast iron of considerable thickness, exceptional strength and resistance to abrasion and durability over time, are equipped with a VORTEX type impeller.
They are suitable for draining dirty, sewage, waste water, water mixed with mud, revived and putrid sludge.
Suitable for installation in sewers, tunnels, excavations, canals, underground car parks, etc.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 1.1
- Power (HP)
- 1.5
- Absorption at 230V (A)
- Capacitor
- 50 µF 450 VL
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 850
- Min. head (m.)
- 1
- Max. head (m.)
- 8
- Cable length (m.)
- Jobs
- water supply, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- 39
- Warranty (years)
- 2
Construction data of the VXC 50 - 65 series
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
VXCm 65 Models and Performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compare with Similar Products
 VXCm 15/65 - Single-phase VORTEX electric pump for waste water, 1.5 HPThis product Flow rate up to 850 l/min (51 m³/h). Head up to 8 m. 1.1 Kw (1.5 HP) motor. |  VXCm 20/65 - 2 HP single-phase VORTEX electric pump for waste waterFlow rate up to 1000 l/min (60 m³/h). Head up to 9.5 m. 1.5 Kw (2 HP) motor. |  VXCm 30/65 - 3 HP single-phase VORTEX electric pump for waste waterFlow rate up to 1200 l/min (72 m³/h). Head up to 12 m. 2.2 Kw (3 HP) motor. | |
|---|---|---|---|
| Price | Price €1,311.50 -42% €760.67 | Price €1,394.46 -42% €808.79 | Price €1,711.66 -42% €992.76 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 1.1 | Power (Kw) 1.5 | Power (Kw) 2.2 |
| Power (HP) | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 3 |
| Absorption at 230V (A) | Absorption at 230V (A) -- | Absorption at 230V (A) -- | Absorption at 230V (A) -- |
| Capacitor | Capacitor 50 µF 450 VL | Capacitor 50 µF 450 VL | Capacitor 50 µF 450 VL |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 850 | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1200 |
| Min. head (m.) | Min. head (m.) 1 | Min. head (m.) -- | Min. head (m.) -- |
| Max. head (m.) | Max. head (m.) 8 | Max. head (m.) 9.5 | Max. head (m.) 12 |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- |
| Jobs | Jobs water supply, drainage, drying up | Jobs water supply, drainage, drying up | Jobs water supply, drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 39 | Weight (Kg) 40.1, | Weight (Kg) 44 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) -- | Warranty (years) 2 |
