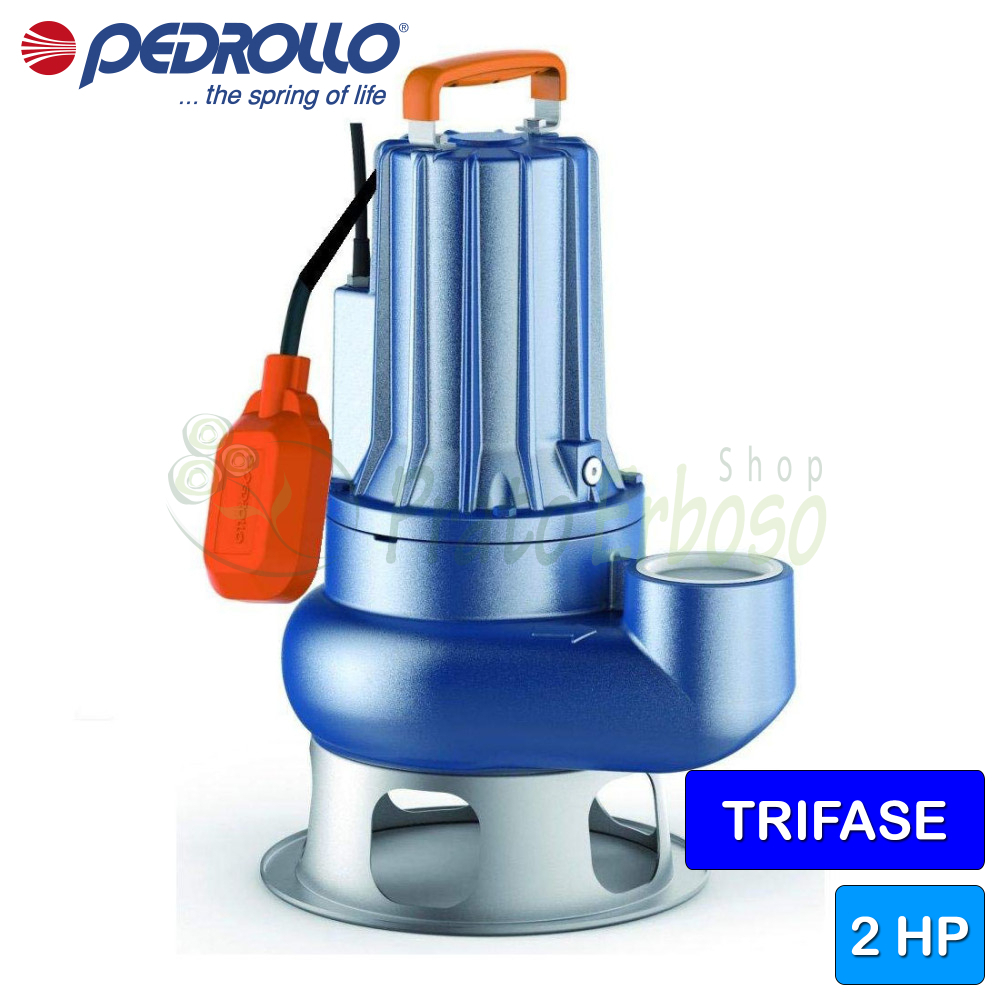

VXC 20/65 - 2 HP three-phase VORTEX sewage pump
Flow rate up to 1000 l/min (60 m³/h). Head up to 9.5 m. 1.5 Kw (2 HP) motor.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The VXC 20/65 submersible electric pump from the VXC series by Pedrollo is among the best for drainage activities.
Suitable for dirty, sewage, wastewater, water mixed with mud, revived and putrid sludge with the presence of solid bodies up to 50 millimetres in diameter.
The VXC 20/65 stands for performance, reliability and high quality.
Suitable for installation in sewers, tunnels, excavations, canals and underground car parks.
The supplied cable is 10 meters long.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 1.5
- Power (HP)
- 2
- Current consumption at 400V (A)
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1000
- Min. head (m.)
- 1
- Max. head (m.)
- 9.5
- Cable length (m.)
- Jobs
- water supply, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- Warranty (years)
- 2
Construction data of the VXC 50 - 65 series
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
VXC 65 Models and Performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
