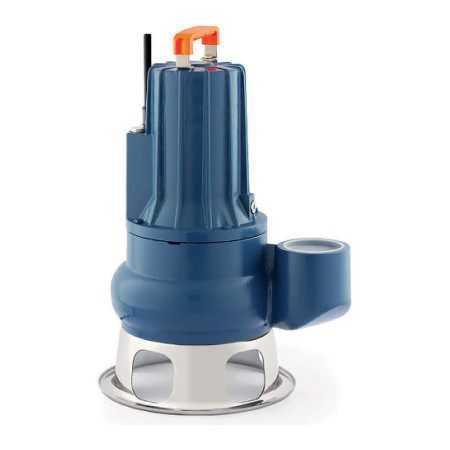

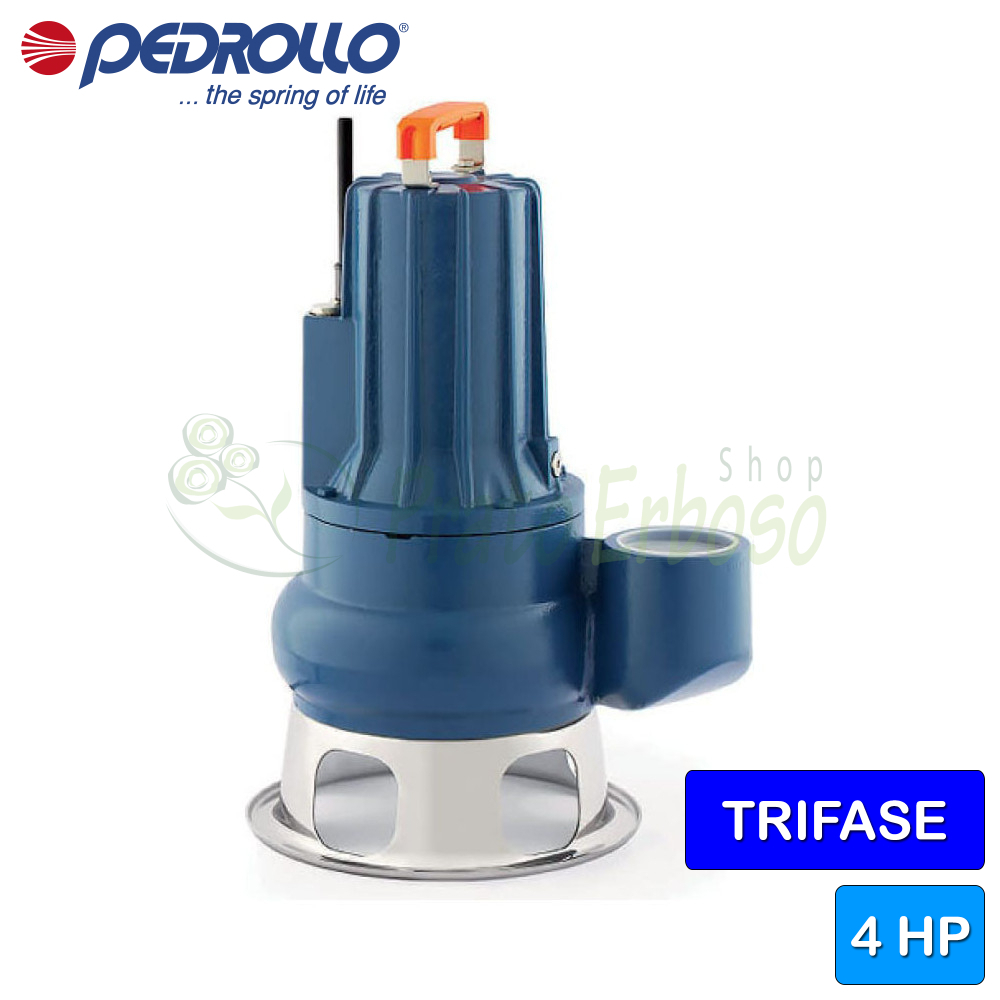

VXC 40/65 - 4 HP three-phase VORTEX sewage pump
Flow rate up to 1250 l/min (75 m³/h). Head up to 15.5 m. 3 kW (4 HP) motor.
The Pedrollo VXC 40/65 wastewater electric pump ensures performance and reliability that are the result of high-quality materials.
Made of cast iron of considerable thickness which gives the electric pump good sturdiness, makes it resistant to abrasion and allows it to last over time.
The VXC 40/65 is recommended for use in the civil and domestic sectors. It is suitable for draining sewage, sewage, wastewater, water mixed with sludge, and reactivated and putrid sludge. It can be installed in sewers, tunnels, excavations, canals, and underground parking lots.
The flow rate ranges from 100 to 1050 litres per hour and the head ranges from 2 to 20 metres.
It can be installed up to 10 meters below water level and works even when completely uncovered.
The VXC 40/65 also comes with a 10-meter cable.
- Motor connection
- THREE-PHASE
- Power (Kw)
- 3
- Power (HP)
- 4
- Current consumption at 400V (A)
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1200
- Min. head (m.)
- 1.5
- Max. head (m.)
- 12
- Cable length (m.)
- Jobs
- water supply, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- 40.8
- Warranty (years)
- 2
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
