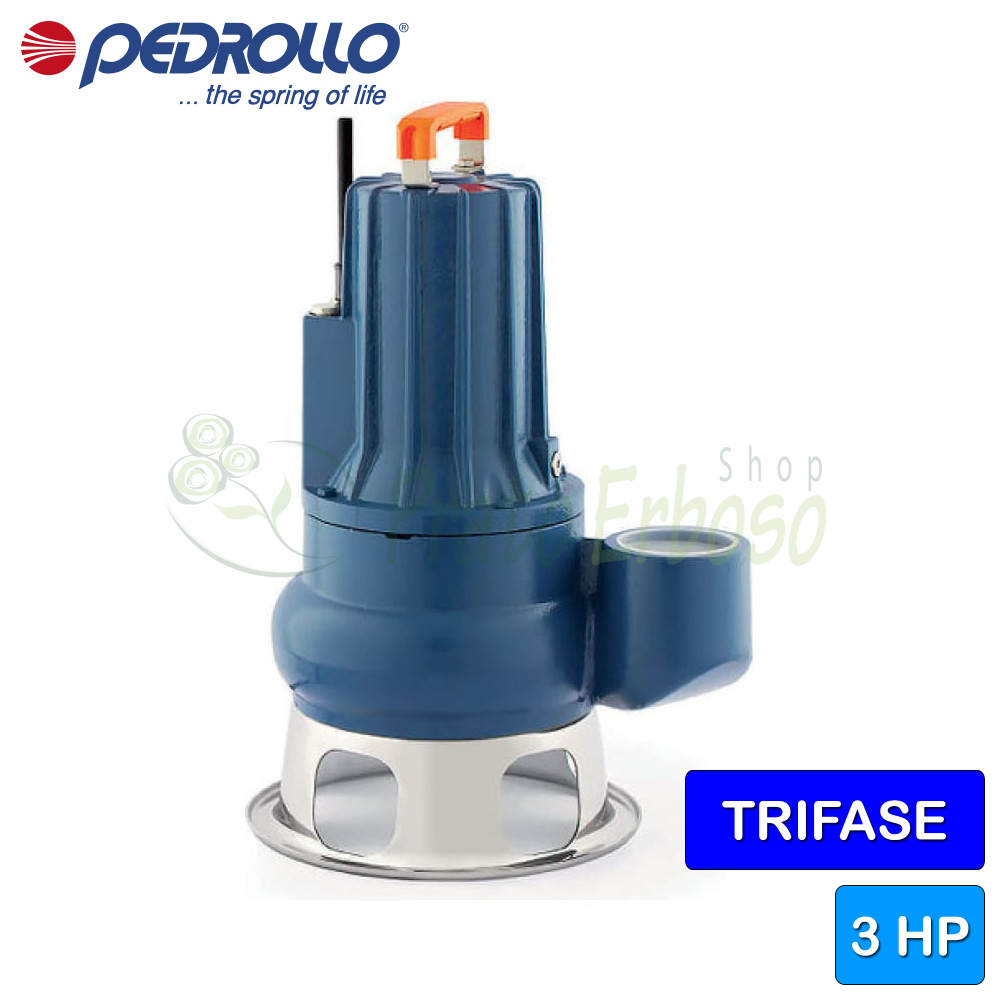

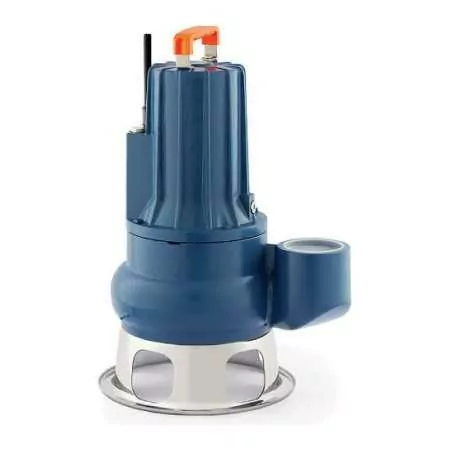

VXC 30/65 - 3 HP three-phase VORTEX sewage pump
Flow rate up to 1200 l/min (72 m³/h). Head up to 12 m. 2.2 Kw (3 HP) motor.
Telephone support for information before purchasing.
After-sales assistance for product installation.
We supply all spare parts on this product.
Reinforced packaging to reduce transport damage.
Description
The VXC 30/65 submersible electric pump from the VXC series by Pedrollo is synonymous with performance, reliability and high quality.
The vortex impeller makes it suitable for draining dirty, sewage, wastewater, water mixed with mud, revived and putrid sludge.
The use of high-quality materials, such as cast iron, makes the electric pump robust and solid.
The VXC 30/65 stands out for its continuous operation even when completely uncovered.
It can be installed up to 10 meters below water level.
Data sheet
- Motor connection
- THREE-PHASE
- Power (Kw)
- 2.2
- Power (HP)
- 3
- Current consumption at 400V (A)
- Delivery mouth
- 3"
- Pump body
- Cast iron
- Impeller
- Cast iron
- Number of impellers
- 1
- Crankshaft
- AISI 431 stainless steel
- Minimum flow rate (l./min.)
- 200
- Max. flow rate (l./min.)
- 1200
- Min. head (m.)
- 1.5
- Max. head (m.)
- 12
- Cable length (m.)
- Jobs
- water supply, drainage, drying up
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- Width (cm)
- Depth (cm)
- Weight (Kg)
- 40.8
- Warranty (years)
- 2
Construction data of the VXC 50 - 65 series
Bearings
| Pump side motor bearing | 6305 CM D 6 |
| Opposite side engine bearing | 6204 ZZ-C3 |
Tree holding
| Type of seal | Double Mechanical Seal in tandem with oil chamber |
| Engine side model | STA-22 |
| LM diameter | 22 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | STA-20 |
| LP diameter | 20 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Silicon carbide |
| LP elastomer | NBR |
Materials
| 1.0 - Pump body | Cast iron GJL 200 EN 1561 |
| 3.0 - Impeller | Cast iron GJL 200 EN 1561 |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 6.0 - Motor holder | Cast iron GJL 200 EN 1561 |
| 6.1 - Engine cover | Cast iron GJL 200 EN 1561 |
VXC 65 Models and Performance
|
|
|
|
|
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
From the same brand and category
Reviews (2) - Review moderation
× ![Review photo]()
pompe peddrolo vxc 30:70
le produit me convient parfaitement
× ![Review photo]()
pompe peddrolo vxc 30:70
le produit me convient parfaitement
Compare with Similar Products
 VXC 30/65 - 3 HP three-phase VORTEX sewage pumpThis product Flow rate up to 1200 l/min (72 m³/h). Head up to 12 m. 2.2 Kw (3 HP) motor. |  VXC 15/65 - 1.5 HP three-phase VORTEX electric sewage pumpFlow rate up to 850 l/min (51 m³/h). Head up to 8 m. 1.1 kW (1.5 HP) motor. |  VXC 20/65 - 2 HP three-phase VORTEX sewage pumpFlow rate up to 1000 l/min (60 m³/h). Head up to 9.5 m. 1.5 Kw (2 HP) motor. |  VXC 40/65 - 4 HP three-phase VORTEX sewage pumpFlow rate up to 1250 l/min (75 m³/h). Head up to 15.5 m. 3 kW (4 HP) motor. | |
|---|---|---|---|---|
| Price | Price €1,310.28 -42% €759.96 | Price €1,256.60 -42% €728.83 | Price €1,282.22 -42% €743.69 | Price €1,550.62 -42% €899.36 |
| Motor connection | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE | Motor connection THREE-PHASE |
| Power (Kw) | Power (Kw) 2.2 | Power (Kw) 1.1 | Power (Kw) 1.5 | Power (Kw) 3 |
| Power (HP) | Power (HP) 3 | Power (HP) 1.5 | Power (HP) 2 | Power (HP) 4 |
| Current consumption at 400V (A) | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- | Current consumption at 400V (A) -- |
| Delivery mouth | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" | Delivery mouth 3" |
| Pump body | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron | Pump body Cast iron |
| Impeller | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron | Impeller Cast iron |
| Number of impellers | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 | Number of impellers 1 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 | Minimum flow rate (l./min.) 200 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 1200 | Max. flow rate (l./min.) 850 | Max. flow rate (l./min.) 1000 | Max. flow rate (l./min.) 1200 |
| Min. head (m.) | Min. head (m.) 1.5 | Min. head (m.) 1 | Min. head (m.) 1 | Min. head (m.) 1.5 |
| Max. head (m.) | Max. head (m.) 12 | Max. head (m.) 5.5 | Max. head (m.) 9.5 | Max. head (m.) 12 |
| Cable length (m.) | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- | Cable length (m.) -- |
| Jobs | Jobs water supply, drainage, drying up | Jobs water supply, drainage, drying up | Jobs water supply, drainage, drying up | Jobs water supply, drainage, drying up |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) -- | Height (cm) -- | Height (cm) -- | Height (cm) -- |
| Width (cm) | Width (cm) -- | Width (cm) -- | Width (cm) -- | Width (cm) -- |
| Depth (cm) | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- | Depth (cm) -- |
| Weight (Kg) | Weight (Kg) 40.8 | Weight (Kg) 37.7 | Weight (Kg) -- | Weight (Kg) 40.8 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
