3SR 1/14 - 0.33 HP three-phase submersible pump Pedrollo - 1

-42%

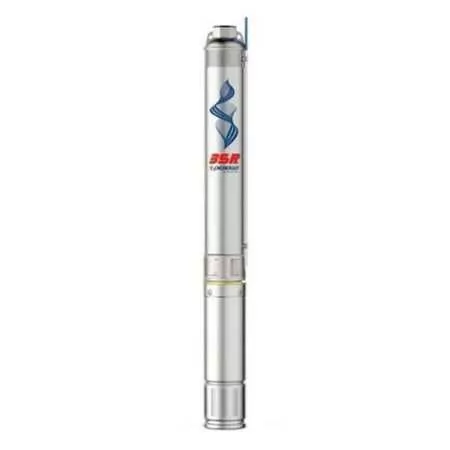

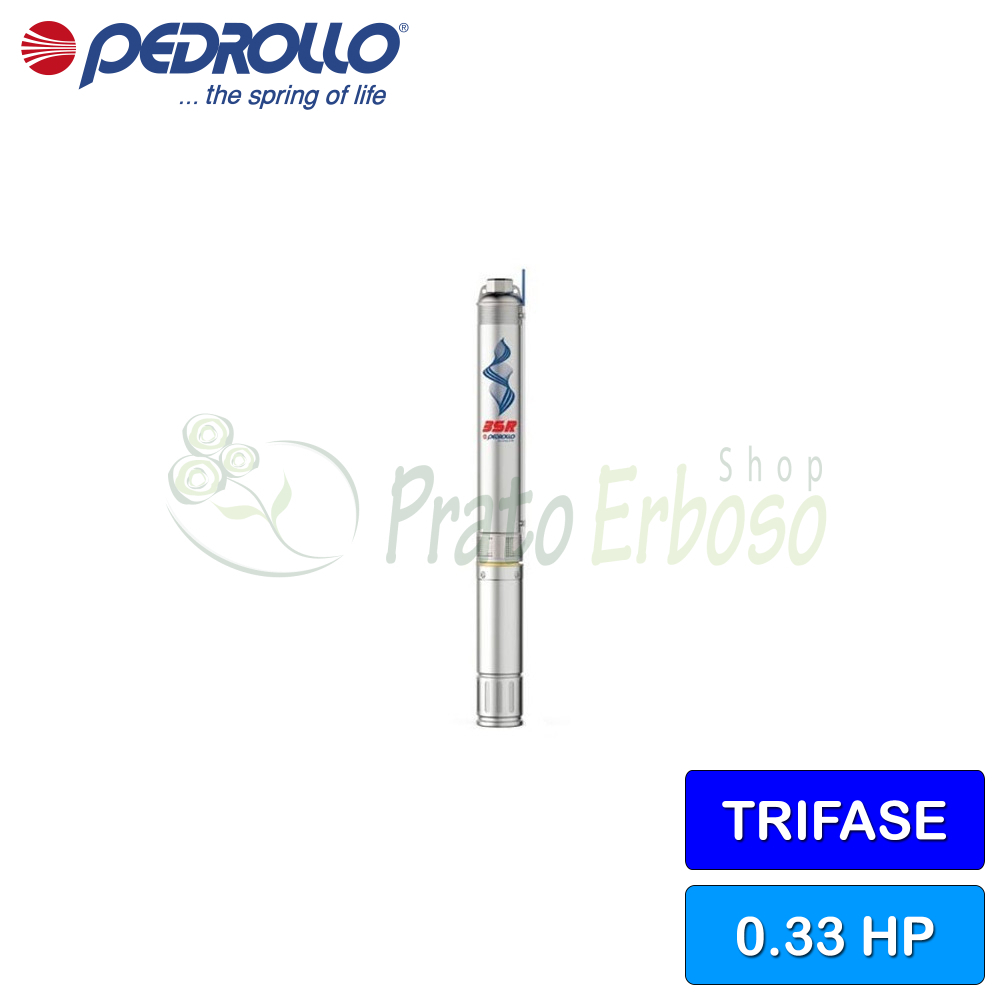

3SR 1/14 - 0.33 HP three-phase submersible electric pump

Name: 3SR 1/14 - 0.33 HP three-phase submersible electric pump
Brand: Pedrollo
SKU: 3SR 1/14
Price: 360.88 EUR
Availability: InStock

Flow rate up to 30 l/min (1.8 m³/h). Head up to 60 meters. 0.25 Kw (0.33 HP) motor.

Variants:

Order it before 12:00 of tomorrow and receive it between Friday 16 May and Monday 19 May with Mail Boxes - 2 giorni

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Friday 16 May - Monday 19 May
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Friday 16 May - Monday 19 May
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Friday 16 May - Monday 19 May

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 16 May - Monday 19 May

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 16 May - Monday 19 May

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Friday 16 May - Monday 19 May

✖

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The PEDROLLO 3SR 1/14 has a flow rate that varies from 5 to 30 litres per minute with a head from 16 to 60 metres.

Due to its high performance and reliability, it is suitable for domestic, civil and industrial use, for the distribution of water in combination with pressure tanks, for irrigation of vegetable gardens and gardens, for washing systems, for pressure raising or for fire-fighting systems.

Submersible electric pump with 3-inch rewindable oil-bath motor.

Data sheet

Motor connection: THREE-PHASE
Power (Kw): 0.25
Power (HP): 0.33
Absorption at 400V (A): 1.4
Delivery mouth: 1 "
Pump body: AISI 304 stainless steel
Impeller: Delrin
Number of impellers: 14
Degree of protection: IP 68
Min. flow rate (l./min.): 5
Max. flow rate (l./min.): 30
Min. head (m.): 16
Max. head (m.): 60
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): 35
Height (cm): 77.3
External diameter (cm): 7.6
Weight (Kg): 8.6
Warranty (years): 2

Attachments

3SR data sheet

Performance, construction features and working curves of Pedrollo 3SR series pumps with rewindable motor.

Download (1.32MB)

3SR models and performance 1

GUY

three-phase

3SR 1/14

3SR 1/21

3SR 1/31

3SR 1/42

3SR 1/62

POWER
KW	HP
0.25	0.33
0.37	0.50
0.55	0.75
0.75	1
1.1	1.5

IMPELLERS

number

PERFORMANCE
Q litres/min	H meters
5 ÷ 30	60 ÷ 16
5 ÷ 30	90 ÷ 24
5 ÷ 30	133÷35
5 ÷ 30	181 ÷ 47.5
5 ÷ 30	267 ÷ 70

MOUTH
DN
1 1/4"

Q	m³/hour	0	0.3	0.6	0.9	1.2	1.5	1.8
Q	l/min	0	5	10	15	20	25	30
H	meters	60	57	52	45.5	37.5	28	16
		90	85	78	68.5	56.5	41.5	24
		133	126	115	101	83	61.5	35
		181	170	156	137	113	83	47.5
		267	252	230	203	167	123	70

3SR construction data

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	POM acetal resin
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.1 - Diffuser	Reinforced technopolymer
5.3 - Diaphragm/Diffuser Cover	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)

Compare with Similar Products

	3SR 1/14 - 0.33 HP three-phase submersible electric pump This product Flow rate up to 30 l/min (1.8 m³/h). Head up to 60 meters. 0.25 Kw (0.33 HP) motor.
Motor connection	Motor connection THREE-PHASE
Power (Kw)	Power (Kw) 0.25
Power (HP)	Power (HP) 0.33
Absorption at 400V (A)	Absorption at 400V (A) 1.4
Delivery mouth	Delivery mouth 1 "
Pump body	Pump body AISI 304 stainless steel
Impeller	Impeller Delrin
Number of impellers	Number of impellers 14
Degree of protection	Degree of protection IP 68
Min. flow rate (l./min.)	Min. flow rate (l./min.) 5
Max. flow rate (l./min.)	Max. flow rate (l./min.) 30
Min. head (m.)	Min. head (m.) 16
Max. head (m.)	Max. head (m.) 60
Jobs	Jobs water supply, pressurization systems, irrigation
Max. liquid temperature (°C)	Max. liquid temperature (°C) 35
Height (cm)	Height (cm) 77.3
External diameter (cm)	External diameter (cm) 7.6
Weight (Kg)	Weight (Kg) 8.6
Warranty (years)	Warranty (years) 2
