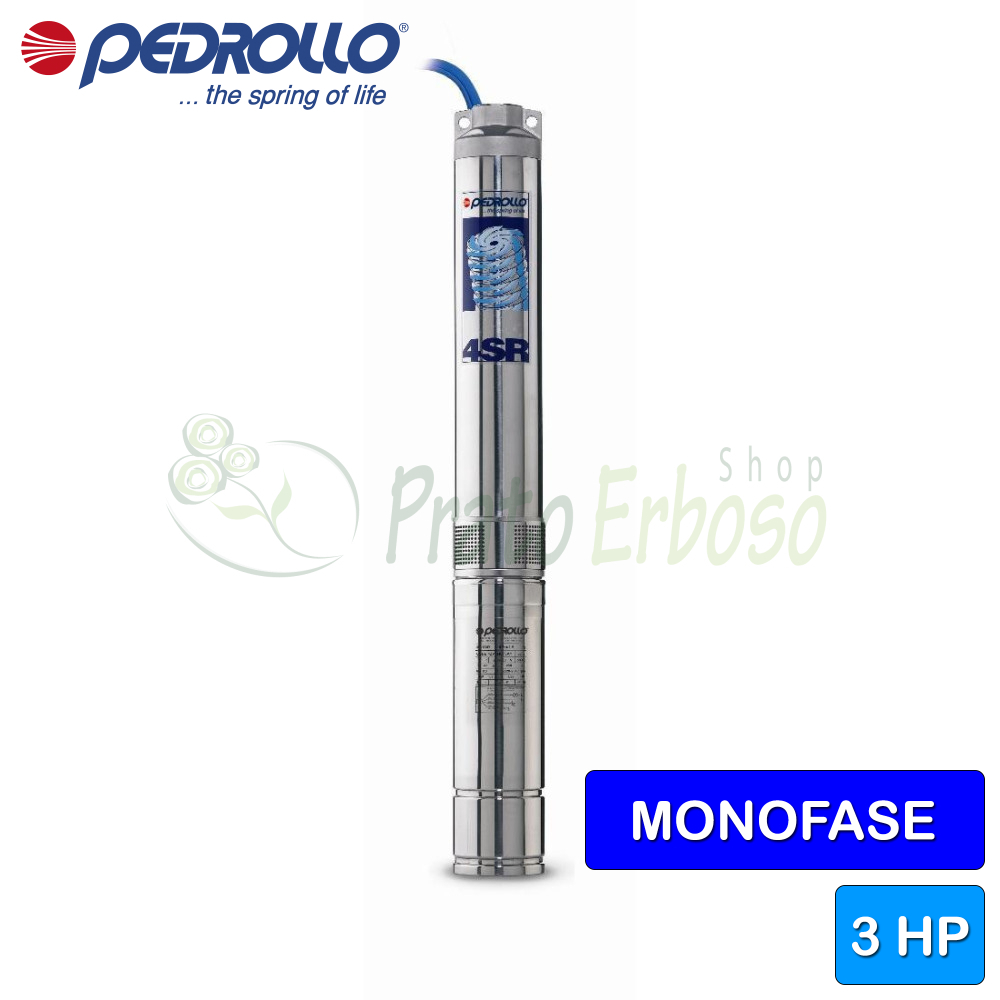

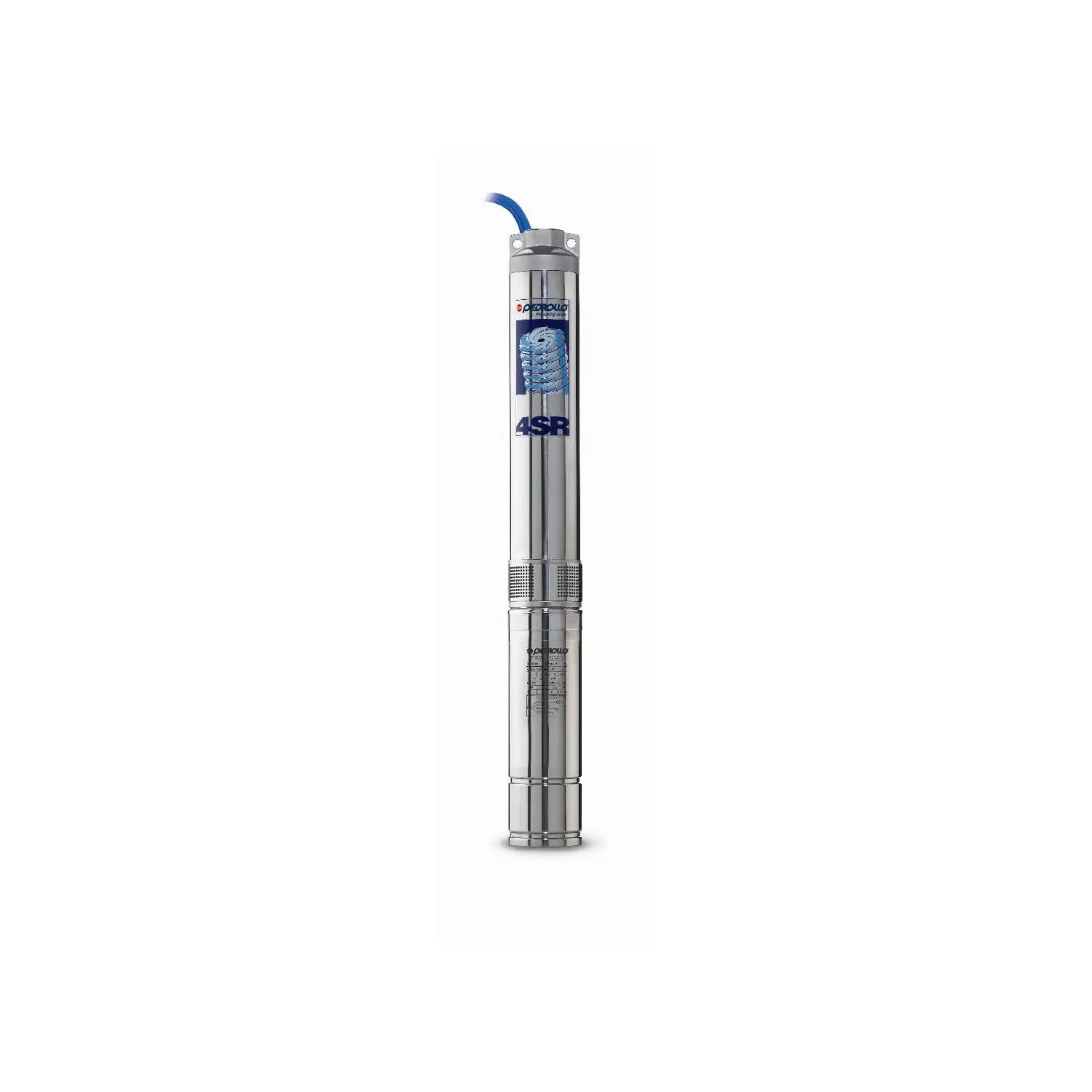

4SRm 10/13 N-PD - 3 HP single-phase submersible electric pump

Name: 4SRm 10/13 N-PD - 3 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SRm 10/13 N-PD
Price: 529.42 EUR
Availability: InStock

Flow rate up to 250 l/min (15 m³/h). Head up to 82 metres. 2.2 kW (3 HP) motor.

Variants:

Order it before 23:59 on Tuesday and receive it on Friday 13 February with Poste Italiane - 3 giorni punto di ritiro

Delivery Options

	Description	Estimated Delivery
Mail Boxes - 2 giorni	This courier delivers within 48 hours from the moment we entrust the products to him.	Monday 16 February - Tuesday 17 February
Poste Italiane - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust them with the products.	Monday 16 February - Tuesday 17 February
DHL - 2 giorni Italia	This courier delivers within 24/48 hours from the moment we entrust the products to him.	Monday 16 February - Tuesday 17 February
One Express - 2 giorni Italia	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Thursday 19 February - Monday 23 February
Poste Italiane - 3 giorni punto di ritiro	This courier delivers within 24/72 hours from the moment we entrust them with the products.	Friday 13 February
Ritiro in negozio	Choose where to collect your order within 24/48 hours.	Friday 13 February

Carrier: Mail Boxes - 2 giorni

Description: This courier delivers within 48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 16 February - Tuesday 17 February

Carrier: Poste Italiane - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust them with the products.

Estimated delivery:
Monday 16 February - Tuesday 17 February

Carrier: DHL - 2 giorni Italia

Description: This courier delivers within 24/48 hours from the moment we entrust the products to him.

Estimated delivery:
Monday 16 February - Tuesday 17 February

Carrier: One Express - 2 giorni Italia

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Thursday 19 February - Monday 23 February

Carrier: Poste Italiane - 3 giorni punto di ritiro

Description: This courier delivers within 24/72 hours from the moment we entrust them with the products.

Estimated delivery:
Friday 13 February

Carrier: Ritiro in negozio

Description: Choose where to collect your order within 24/48 hours.

Estimated delivery:
Friday 13 February

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SRm 10/13 N-PD submersible electric pump from the 4SR series by Pedrollo is recommended for domestic, civil and agricultural installations.

Equipped with an innovative inductor that guarantees a high priming capacity for operation in wells with the presence of gas or air mixed in the water.

It can pump clean water with a maximum sand content of 150 grams per cubic meter.

The 4SRm 10/13 N-PD delivers exceptional performance and efficiency combined with premium construction.

It also offers excellent resistance to wear, caused by the presence of sand, and to corrosion.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 2.2
Power (HP): 3
Absorption at 230V (A): 15.2
Delivery mouth: 2"
Pump body: AISI 304 stainless steel
Impeller: Noryl
Number of impellers: 13
Pump shaft: AISI 304 stainless steel
Check valve: Yes
Degree of protection: IP 68
Minimum flow rate (l./min.): 50
Max. flow rate (l./min.): 250
Min. head (m.): 15.5
Max. head (m.): 82
Cable length (m.): 2
Jobs: water supply, pressurization systems, irrigation
Max. liquid temperature (°C): +35°C
Height (cm): 132.9
External diameter (cm): 9.8
Weight (Kg): 22.5
Warranty (years): 2

Attachments

4SR N Technical Data Sheet

Performance, construction characteristics and operating curves of Pedrollo 4SR N series pumps with PD rewindable and PS encapsulated motors.

Download (2.91MB)

Models and performances 4SR10-N

TYPE

three phase

4SRm 10/5-N

4SRm 10/7-N

4SRm 10/9-N

4SRm 10/13-N

POWER
KW	HP
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS

number

PERFORMANCES
Q liters/min	H meters
50 ÷ 150	31.5 ÷ 6
50 ÷ 150	44 ÷ 8.5
50 ÷ 150	56.5 ÷ 10.5
50 ÷ 150	82 ÷ 15.5

MOUTH
DN
2"

Q	m³/hour	0	3.0	6.0	7.5	9.0	10.5	12.0	13.5	15.0
Q	l/min	0	50	100	125	150	175	200	225	250
H	meters	31.5	29.5	26.2	24	21.4	18.3	14.7	10.6	6
		44	41.5	36.5	33.5	30	25.6	20.6	14.8	8.5
		56.5	53	47	43	38.5	33	26.5	19.1	10.5
		82	77	68	62.5	55.5	47.5	38	27.5	15.5

Construction data of the 4SR-N series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
