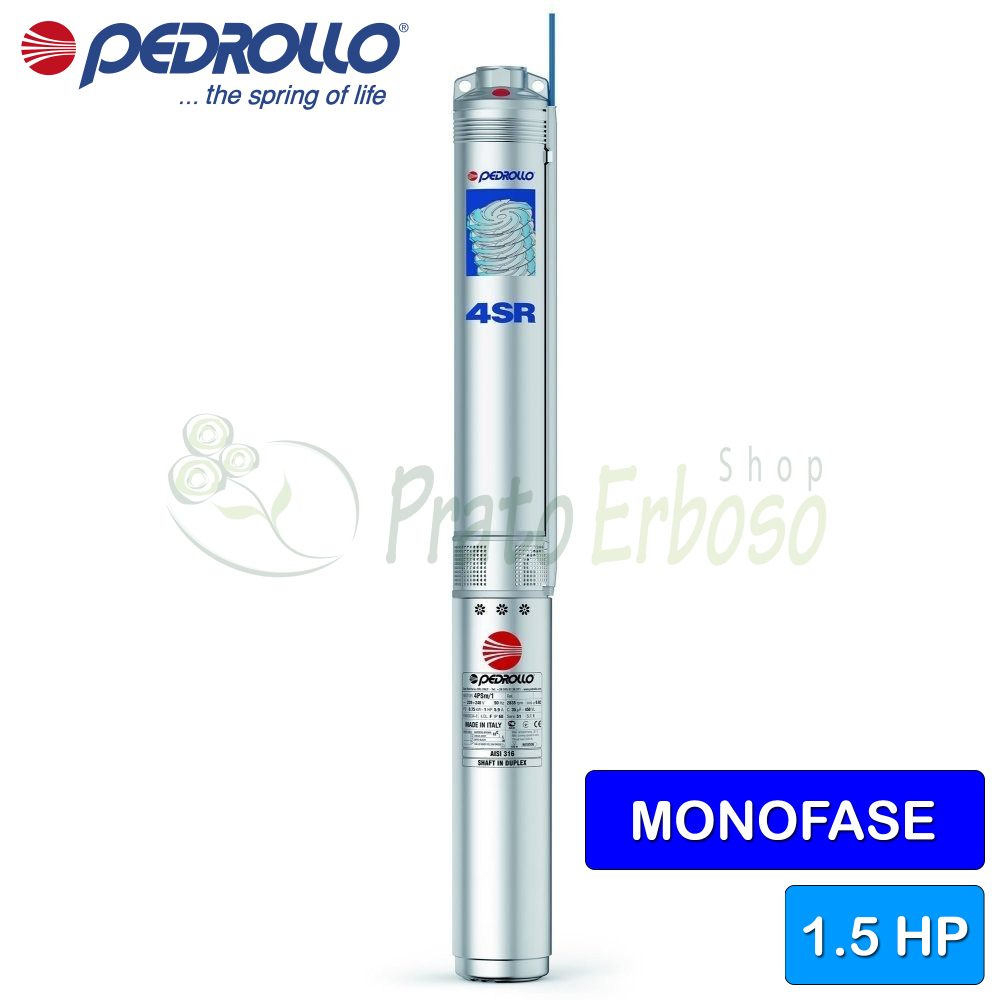

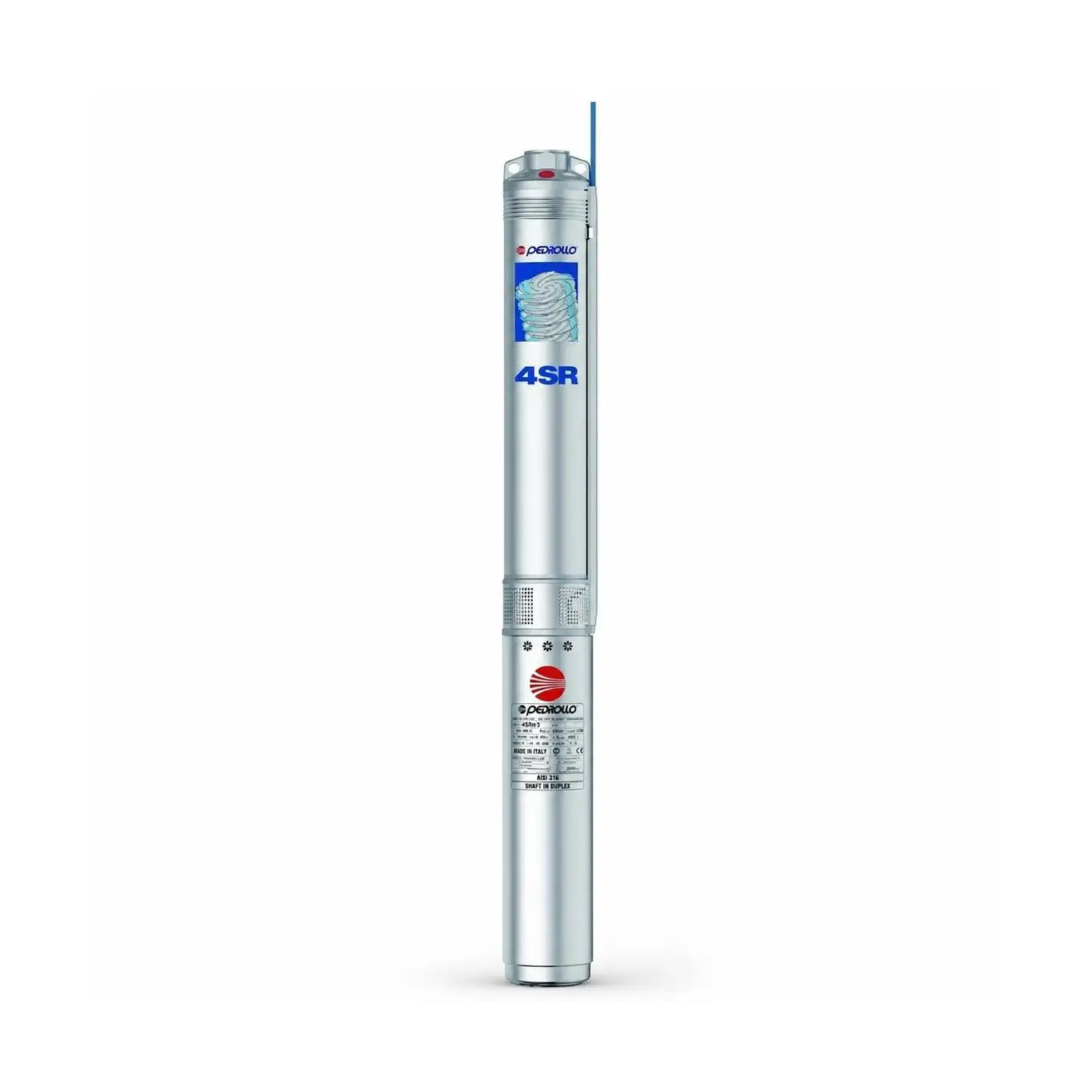

4SRm 6/9 S-PS - 1.5 HP single-phase submersible electric pump

Name: 4SRm 6/9 S-PS - 1.5 HP single-phase submersible electric pump
Brand: Pedrollo
SKU: 4SRm 6/9 S-PS
Price: 475.74 EUR
Availability: InStock

Flow rate up to 150 l/min (9 m³/h). Head up to 59.5 meters. 1.1 kW (1.5 HP) motor.

Variants:

Make a purchase proposal

Telephone support for information before purchasing.

Reinforced packaging to reduce transport damage.

After-sales assistance for product installation.

We supply all spare parts on this product.

Description

The 4SRm 6/9 S-PS submersible electric pump from the 4SR series by Pedrollo can pump clean water and liquids that are chemically non-aggressive for the components.

The hydraulic design ensures exceptional performance and efficiency combined with greater resistance than that found in other series.

It allows for considerable energy savings which also translates into water savings.

The 4SRm 6/9 S-PS can be installed both horizontally and vertically up to 300 metres below water level.

Pedrollo has created a solid and robust product, thanks to the use of stainless steel, built to last over time.

Data sheet

Motor connection: SINGLE-PHASE
Power (Kw): 1.1
Power (HP): 1.5
Delivery mouth: 2"
Degree of protection: IP 68
Minimum flow rate (l./min.): 25
Max. flow rate (l./min.): 150
Min. head (m.): 21.5
Max. head (m.): 59.5
Cable length (m.): 2
Weight (Kg): 15
Warranty (years): 2

Attachments

4SR S Technical Data Sheet

Construction and operating characteristics. Operating curves, operating limits, and dimensions of Pedrollo 4SR-S series pumps.

Download (2.91MB)

Models and performances 4SRm 6-S

GUY

three-phase

4SRm 6/4-S

4SRm 6/6-S

4SRm 6/9-S

4SRm 6/13-S

4SRm 6/17-S

POWER
KW	HP
0.55	0.75
0.75	1
1.1	1.5
1.5	2
2.2	3

IMPELLERS

number

PERFORMANCE
Q litres/min	H meters
25 ÷ 150	26.5 ÷ 9.5
25 ÷ 150	39.5 ÷ 14.5
25 ÷ 150	59.5 ÷ 21.5
25 ÷ 150	86 ÷ 31.5
25 ÷ 150	112 ÷ 41

MOUTH
DN
2"

Q	m³/hour	0	1.5	3.0	4.5	6.0	7.5	9.0
Q	l/min	0	25	50	75	100	125	150
H	meters	26.5	25.5	24.3	22.5	19.8	15.7	9.5
		39.5	38	36.5	34	29.5	23.5	14.5
		59.5	57	54.5	50.5	44.5	35.5	21.5
		86	83	79	73	64.5	51	31.5
		112	108	103	96	84	66.5	41

Construction data of the 4SR-S series

Bearings

Pump bearing - fixed part	Anti-friction polymer
Pump bearing - rotating part	Sintered AISI 316 steel with ceramic coating

Tree holding

Materials

1.3 - Delivery body	Stainless steel EN 1.4301 (AISI 304)
3.0 - Impeller	Reinforced technopolymer
4.0 - Pump shaft	Stainless steel EN 1.4301 (AISI 304)
4.2 - Towing joint	Stainless steel EN 1.4404 (AISI 316L)
5.0 - Stadium box	Stainless steel EN 1.4301 (AISI 304)
5.1 - Diffuser	Reinforced technopolymer
7.0 - Lantern	Stainless steel EN 1.4301 (AISI 304)
7.1 - Check Valve	Stainless steel EN 1.4301 (AISI 304)
7.2 - Pump shirt	Stainless steel EN 1.4301 (AISI 304)
7.3 - Cable cover	Stainless steel EN 1.4301 (AISI 304)
8.0 - Suction Grid/Filter	Stainless steel EN 1.4301 (AISI 304)
