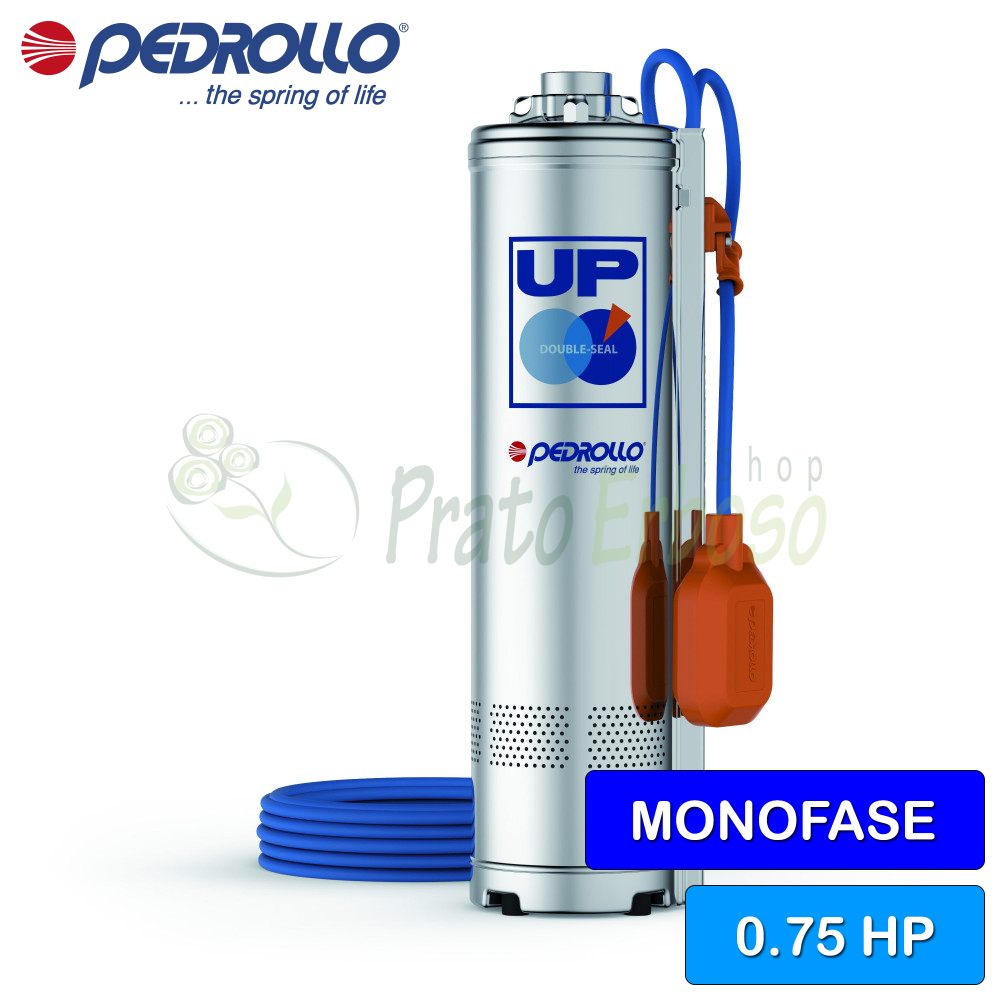

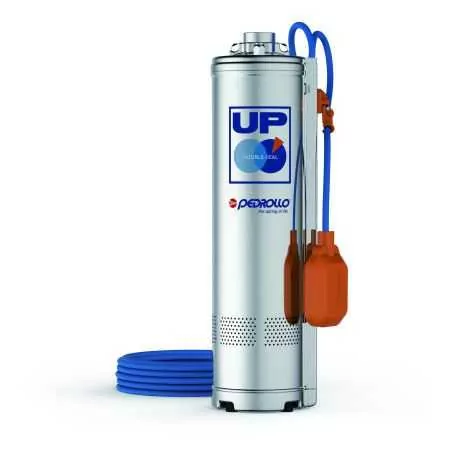

UPm 2/3-GE (10m) - 0.75 HP single-phase submersible electric pump with float switch
Flow rate up to 80 l/min (4.8 m³/h). Head up to 48 m. 0.55 kW (0.75 HP) motor. 10-meter cable.
Telephone support for information before purchasing.
Reinforced packaging to reduce transport damage.
After-sales assistance for product installation.
We supply all spare parts on this product.
Description
The UPm 2/3-GE submersible electric pump from the UP series by Pedrollo is recommended for installations in the domestic, civil and agricultural sectors.
It stands out for its reliability, thanks to the technical solutions employed the electric pump does not lock out even after long sessions of inactivity.
It sustains high performance without any failure even after long working sessions.

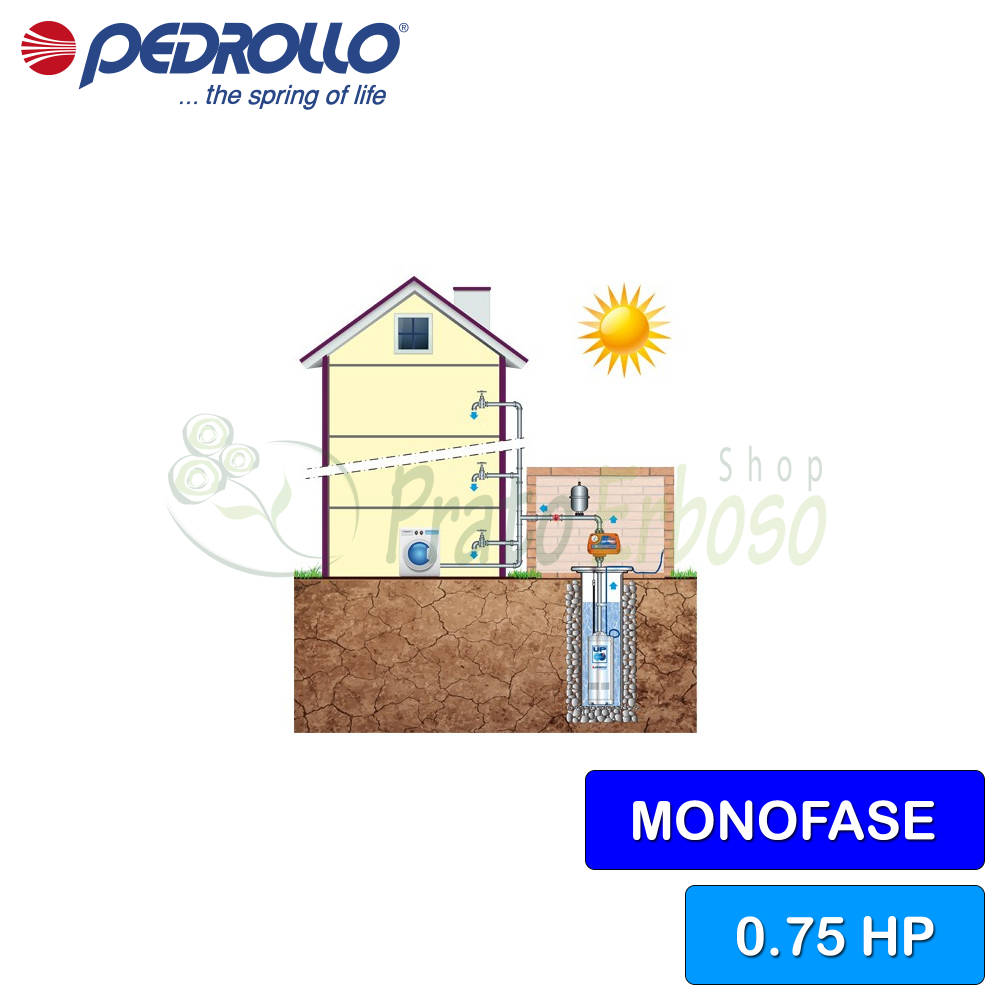

The UPm 2/3-GE can be used in particular for water distribution in conjunction with pressure tanks, for irrigation of vegetable gardens and gardens and for pressure boosting.
It has a power of 0.75 HP. The flow rate varies from 10 to 80 liters per minute while the head varies from 24 to 48.5 meters.
Data sheet
- Motor connection
- SINGLE-PHASE
- Power (Kw)
- 0.55
- Power (HP)
- 0.75
- Absorption at 230V (A)
- 5.4
- Capacitor
- 16 µF 450 VL
- Delivery mouth
- 1" 1/4
- Pump body
- AISI 304 stainless steel
- Impeller
- Noryl
- Number of impellers
- 3
- Crankshaft
- AISI 431 stainless steel
- Check valve
- No
- Degree of protection
- IP 68
- Minimum flow rate (l./min.)
- 10
- Max. flow rate (l./min.)
- 80
- Min. head (m.)
- 24
- Max. head (m.)
- 48.5
- Cable length (m.)
- 10
- Jobs
- water supply, pressurization systems, irrigation
- Max. liquid temperature (°C)
- +40°C
- Height (cm)
- 42.5
- External diameter (cm)
- 15
- Weight (Kg)
- 13.1
- Warranty (years)
- 2
GE UPm models and performance
|
|
|
|
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction data UP2
Bearings
| Pump side motor bearing | 6303 2RS - C3 |
| Opposite side engine bearing | 6203 ZZ - C3E |
Tree holding
| Type of seal | Double mechanical seal in oil chamber |
| Engine side model | STA-17 |
| LM diameter | 17 |
| LM fixed ring | Ceramic |
| LM rotating ring | Graphite |
| LM elastomer | NBR |
| Shrinkage DN1=450 DN2=350 | ST1-16 |
| LP diameter | 16 |
| LP fixed ring | Silicon carbide |
| LP rotating ring | Graphite |
| LP elastomer | NBR |
Materials
| 2.1 - Seal holder cover | Stainless steel EN 1.4301 (AISI 304) |
| 3.0 - Impeller | Reinforced technopolymer |
| 4.0 - Pump shaft | Stainless steel EN 1.4057 (AISI 431) |
| 5.1 - Diffuser | Reinforced technopolymer |
| 5.3 - Diaphragm/Diffuser Cover | Stainless steel EN 1.4301 (AISI 304) |
| 6.2 - Engine sleeve | Stainless steel EN 1.4301 (AISI 304) |
| 7.2 - Pump shirt | Stainless steel EN 1.4301 (AISI 304) |
| 7.3 - Cable cover | Stainless steel EN 1.4301 (AISI 304) |
Customers who bought this product also bought...
From the same brand and category
Reviews (1) - Review moderation
Très bon produit, conforme à la mes souhaits
By Eric J. the 01/01/2026 This review was helpful 0 - 0
Report an abuse
Already reported
Compare with Similar Products
 UPm 2/3-GE (10m) - 0.75 HP single-phase submersible electric pump with float switchThis product Flow rate up to 80 l/min (4.8 m³/h). Head up to 48 m. 0.55 kW (0.75 HP) motor. 10-meter cable. |  UPm 2/2-GE (10m) - Single-phase submersible electric pump with float switch, 0.50 HPFlow rate up to 80 l/min (4.8 m³/h). Head up to 33 m. 0.37 kW (0.50 HP) motor. 10 m cable. |  UPm 2/4-GE (10m) - 1 HP single-phase submersible electric pump with float switchFlow rate up to 80 l/min (4.8 m³/h). Head up to 64.5 m. 0.75 kW (1 HP) motor. 10 m cable. |  UPm 2/5-GE (10m) - 1.5 HP single-phase submersible electric pump with float switchFlow rate up to 80 l/min (4.8 m³/h). Head up to 80 m. 1.1 kW (1.5 HP) motor. 10 m cable. | |
|---|---|---|---|---|
| Price | Price €611.22 -42% €354.51 | Price €595.36 -42% €345.31 | Price €640.50 -42% €371.49 | Price €678.32 -42% €393.43 |
| Motor connection | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE | Motor connection SINGLE-PHASE |
| Power (Kw) | Power (Kw) 0.55 | Power (Kw) 0.37 | Power (Kw) 0.75 | Power (Kw) 1.1 |
| Power (HP) | Power (HP) 0.75 | Power (HP) 0.50 | Power (HP) 1 | Power (HP) 1.5 |
| Absorption at 230V (A) | Absorption at 230V (A) 5.4 | Absorption at 230V (A) 4.4 | Absorption at 230V (A) 6.2 | Absorption at 230V (A) 7.6 |
| Capacitor | Capacitor 16 µF 450 VL | Capacitor 16 µF 450 VL | Capacitor 20 µF 450 VL | Capacitor 25 µF 450 VL |
| Delivery mouth | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 | Delivery mouth 1" 1/4 |
| Pump body | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel | Pump body AISI 304 stainless steel |
| Impeller | Impeller Noryl | Impeller Noryl | Impeller Noryl | Impeller Noryl |
| Number of impellers | Number of impellers 3 | Number of impellers 2 | Number of impellers 4 | Number of impellers 5 |
| Crankshaft | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel | Crankshaft AISI 431 stainless steel |
| Check valve | Check valve No | Check valve No | Check valve -- | Check valve No |
| Degree of protection | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 | Degree of protection IP 68 |
| Minimum flow rate (l./min.) | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 | Minimum flow rate (l./min.) 10 |
| Max. flow rate (l./min.) | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 | Max. flow rate (l./min.) 80 |
| Min. head (m.) | Min. head (m.) 24 | Min. head (m.) 16.4 | Min. head (m.) 32 | Min. head (m.) 40 |
| Max. head (m.) | Max. head (m.) 48.5 | Max. head (m.) 33 | Max. head (m.) 64.5 | Max. head (m.) 80 |
| Cable length (m.) | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 | Cable length (m.) 10 |
| Jobs | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs water supply, pressurization systems, irrigation | Jobs -- |
| Max. liquid temperature (°C) | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C | Max. liquid temperature (°C) +40°C |
| Height (cm) | Height (cm) 42.5 | Height (cm) 39.8 | Height (cm) 48.2 | Height (cm) 50.9 |
| External diameter (cm) | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 | External diameter (cm) 15 |
| Weight (Kg) | Weight (Kg) 13.1 | Weight (Kg) 12.8 | Weight (Kg) 14.8 | Weight (Kg) 16.4 |
| Warranty (years) | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 | Warranty (years) 2 |
