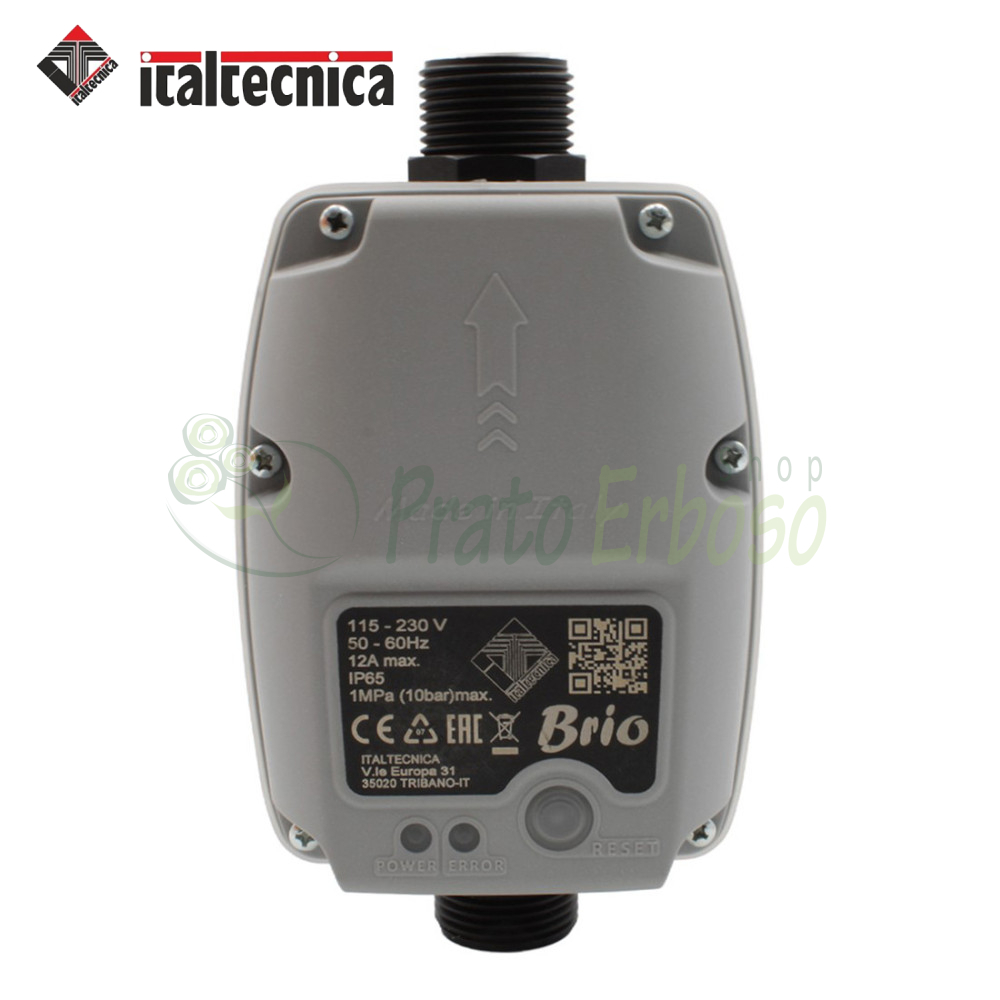

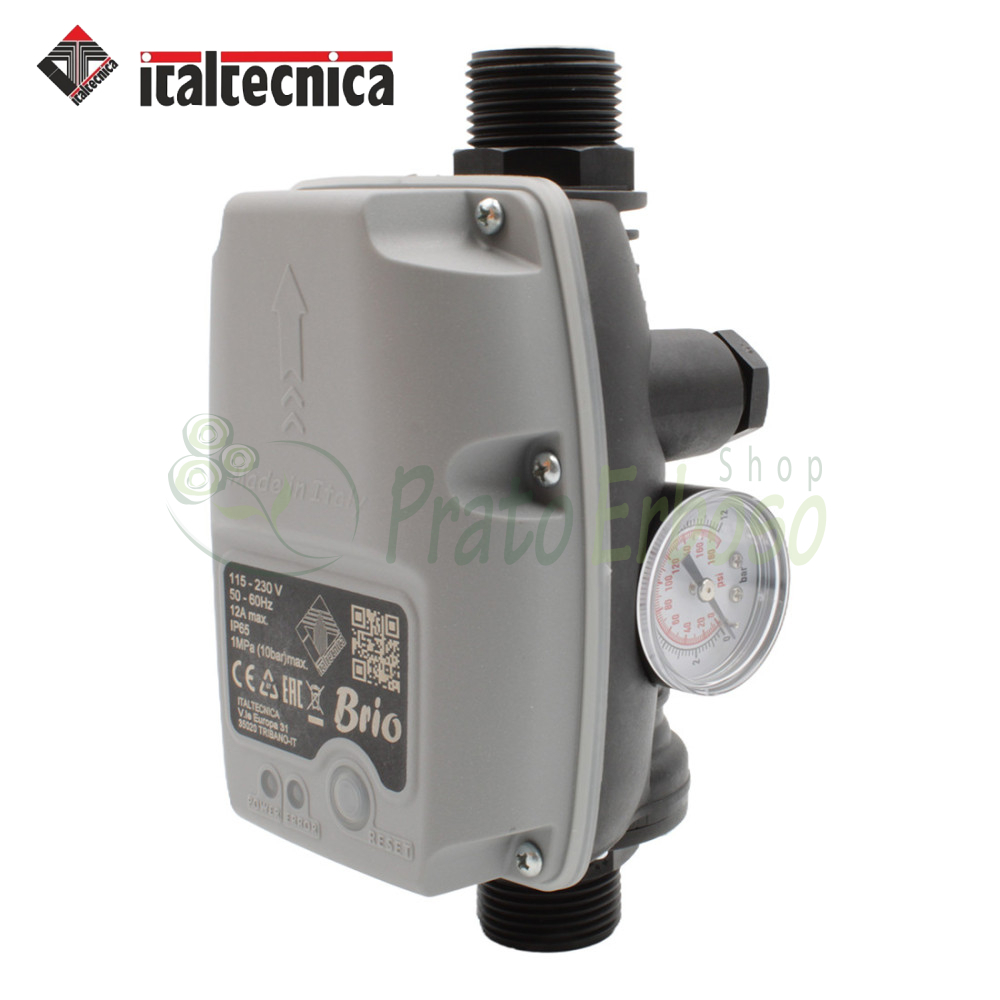

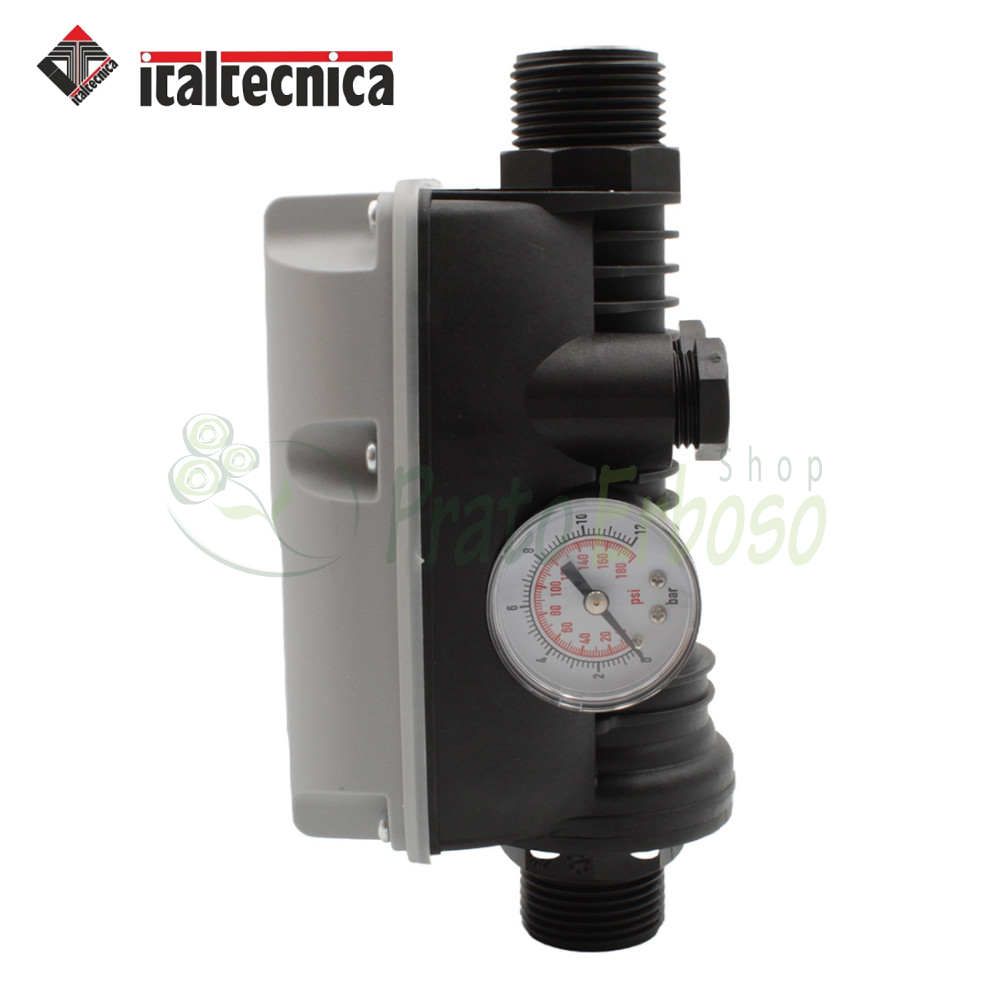

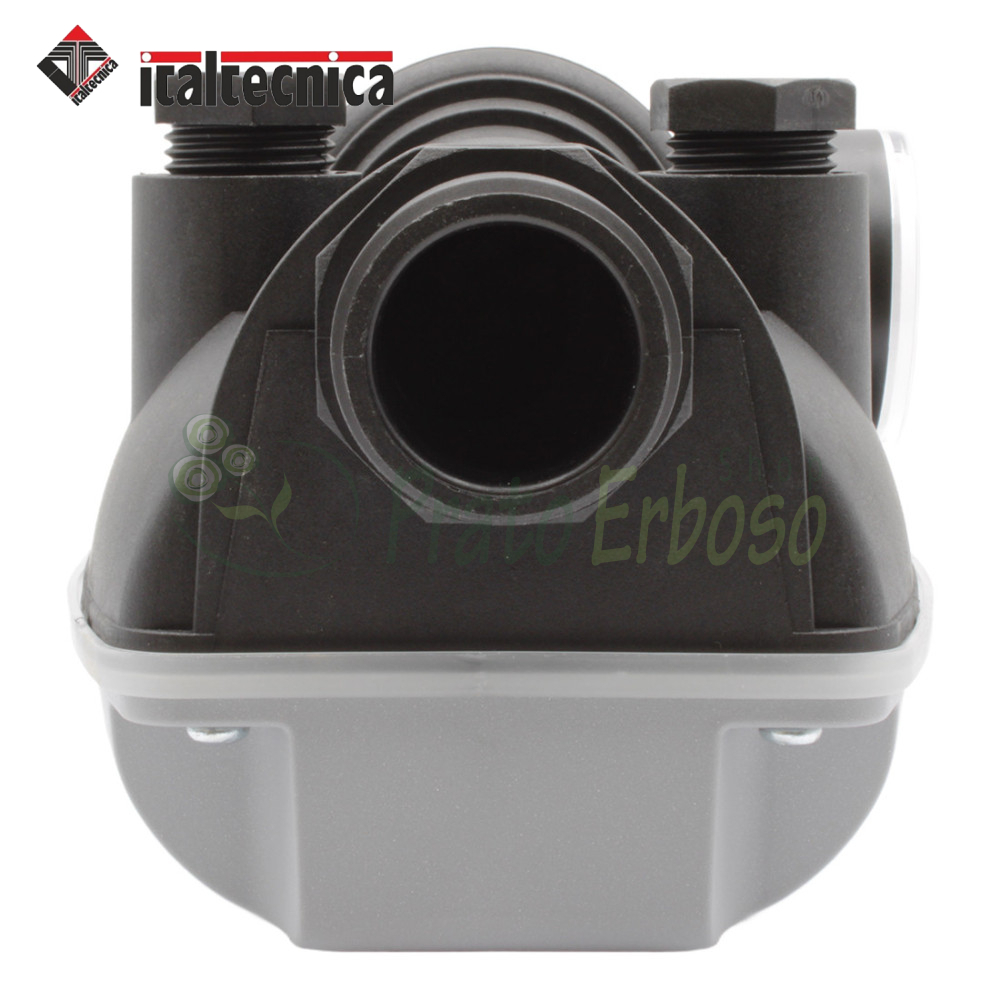

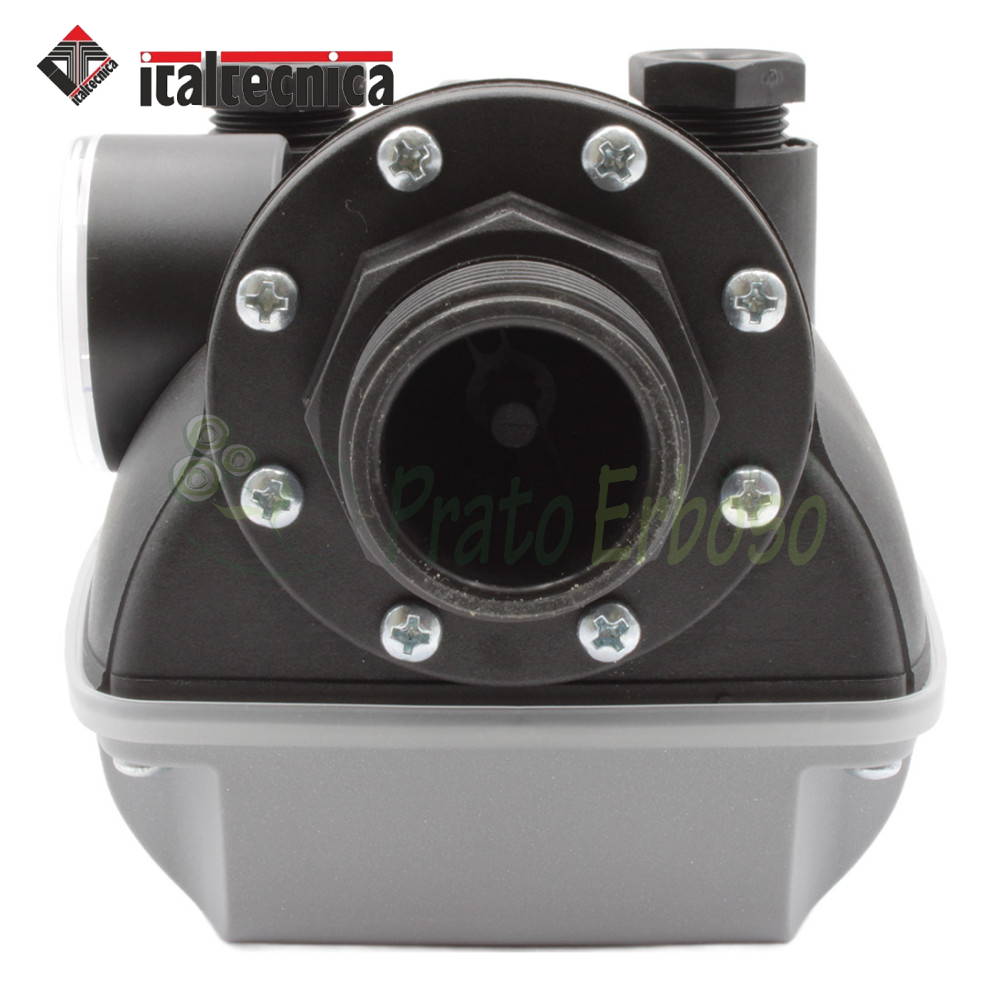

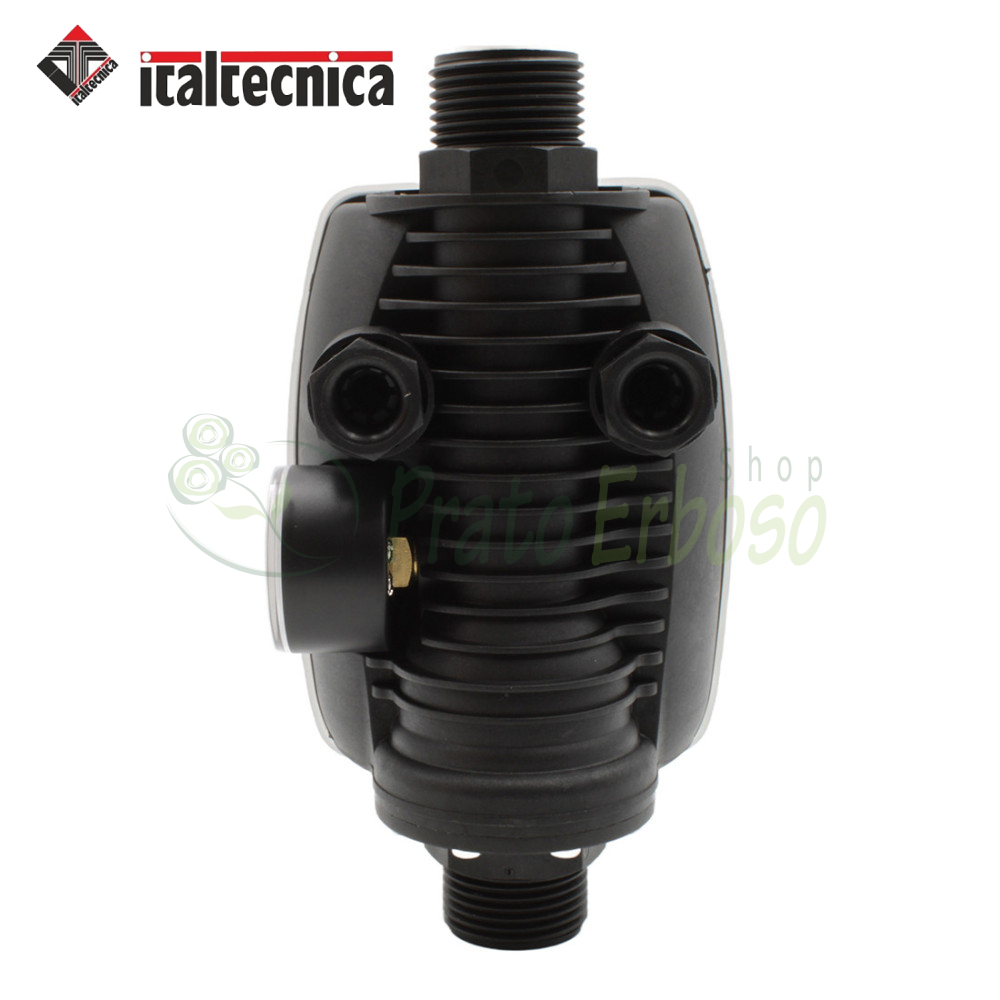

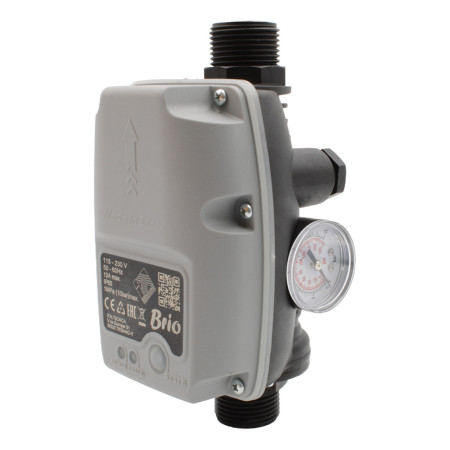

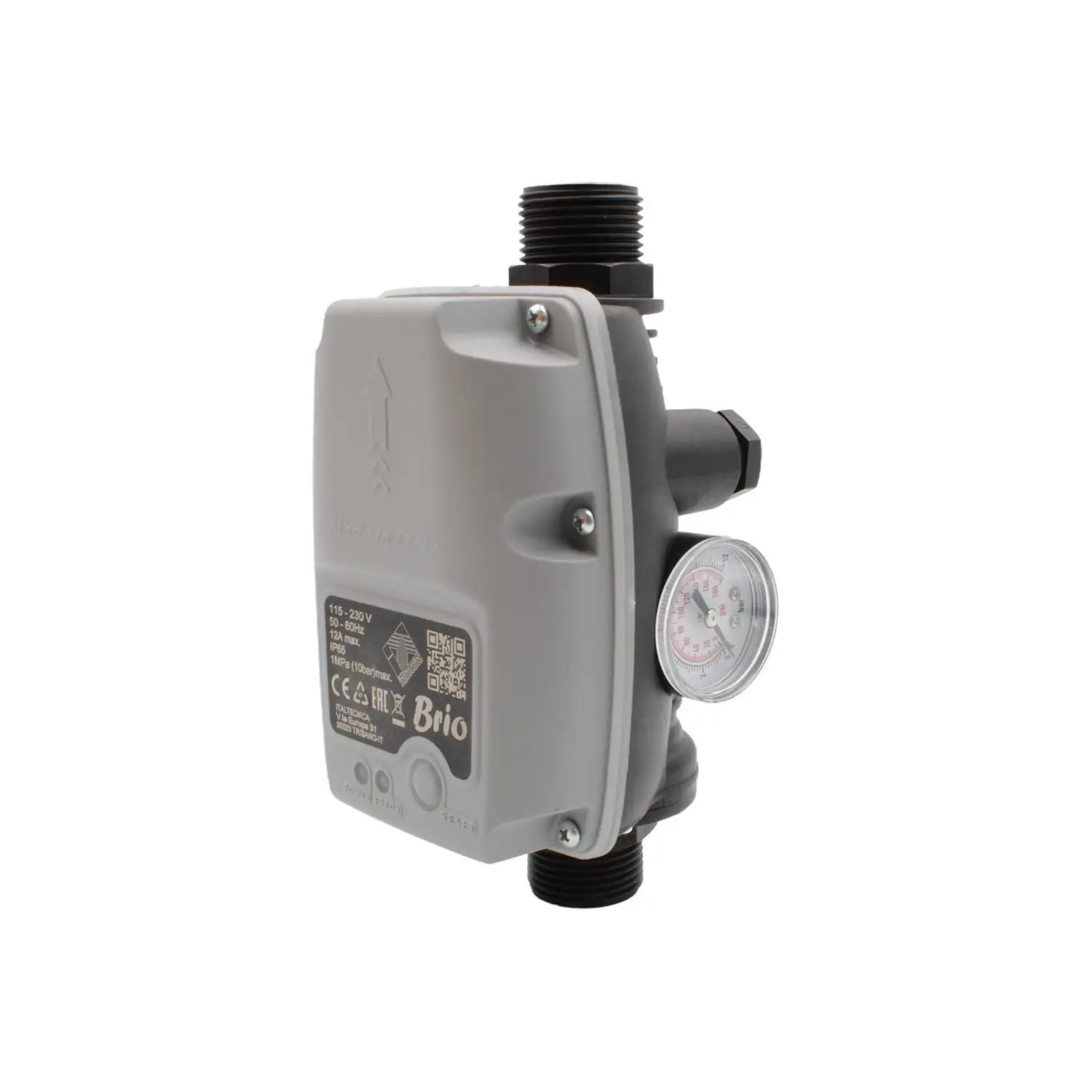

Brio - Electronic pressure regulator
For pumps up to 2 HP. With pressure gauge. With auto-reset.

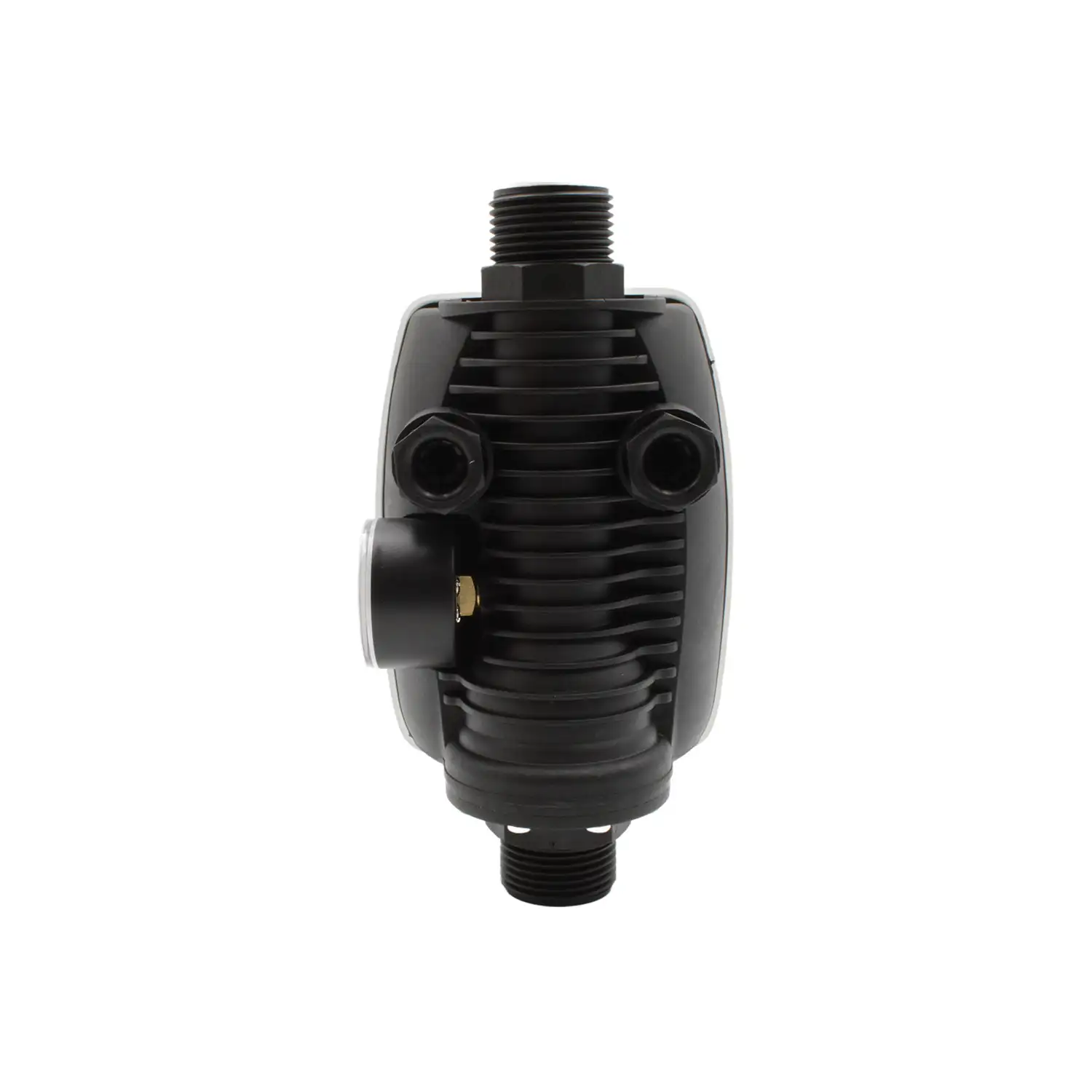

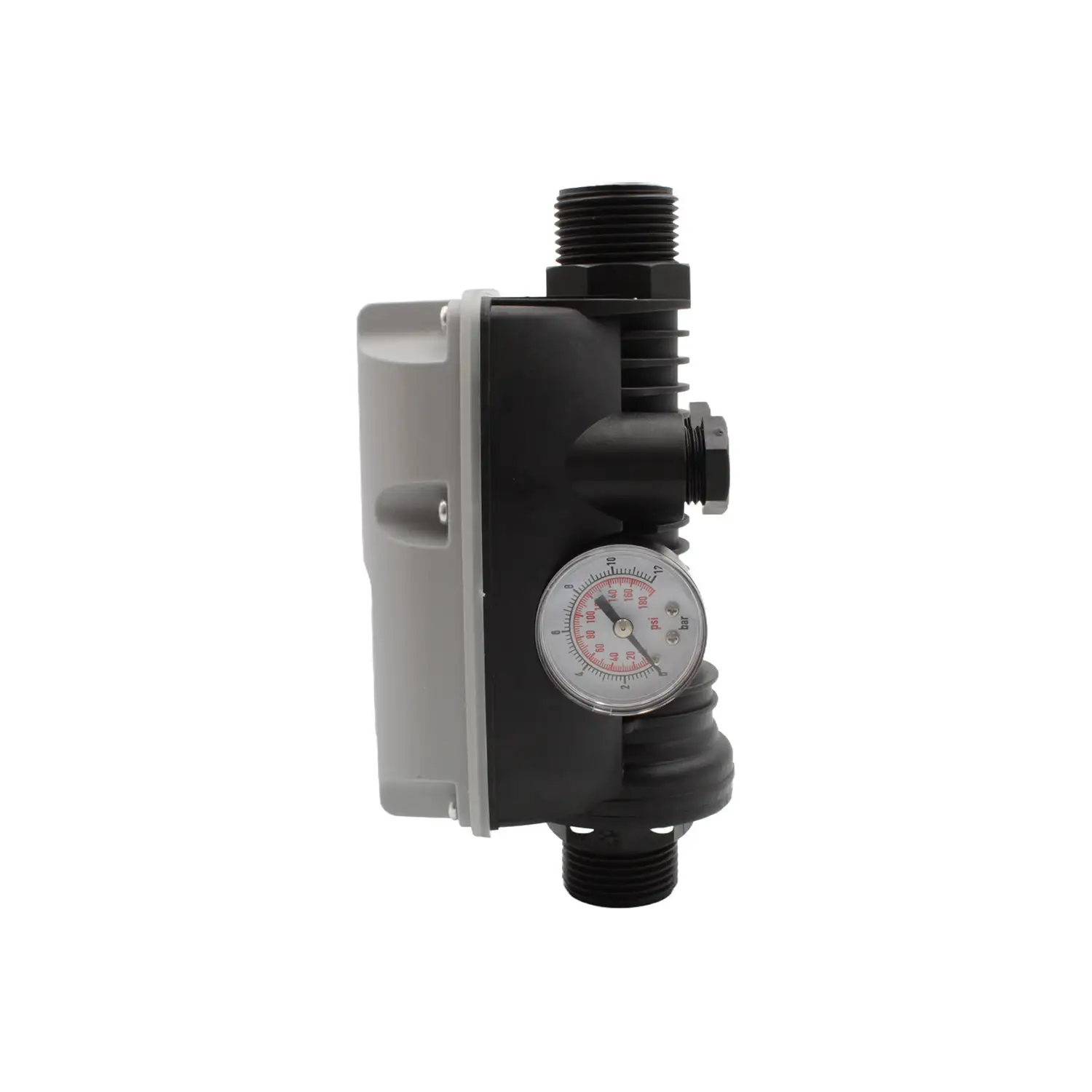

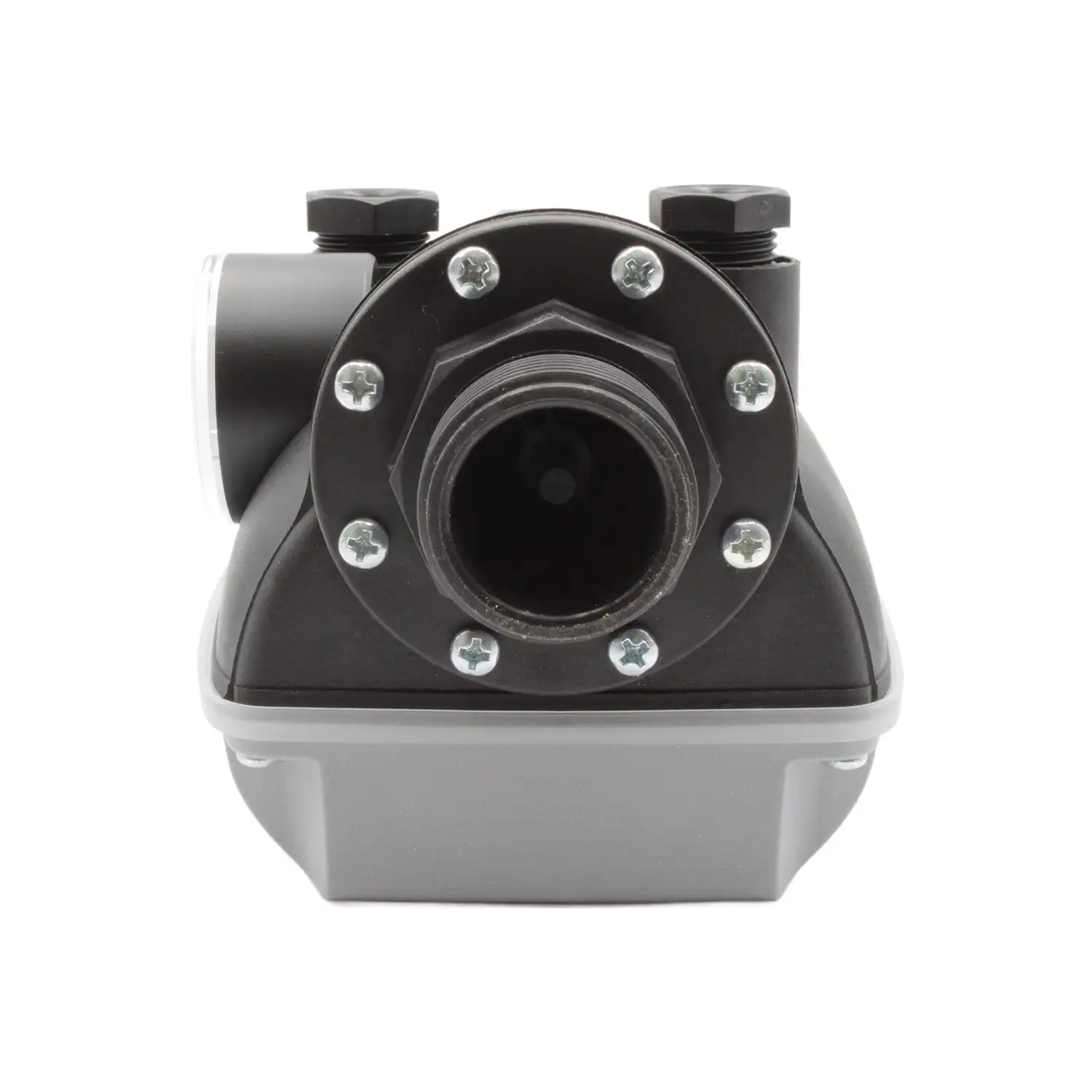

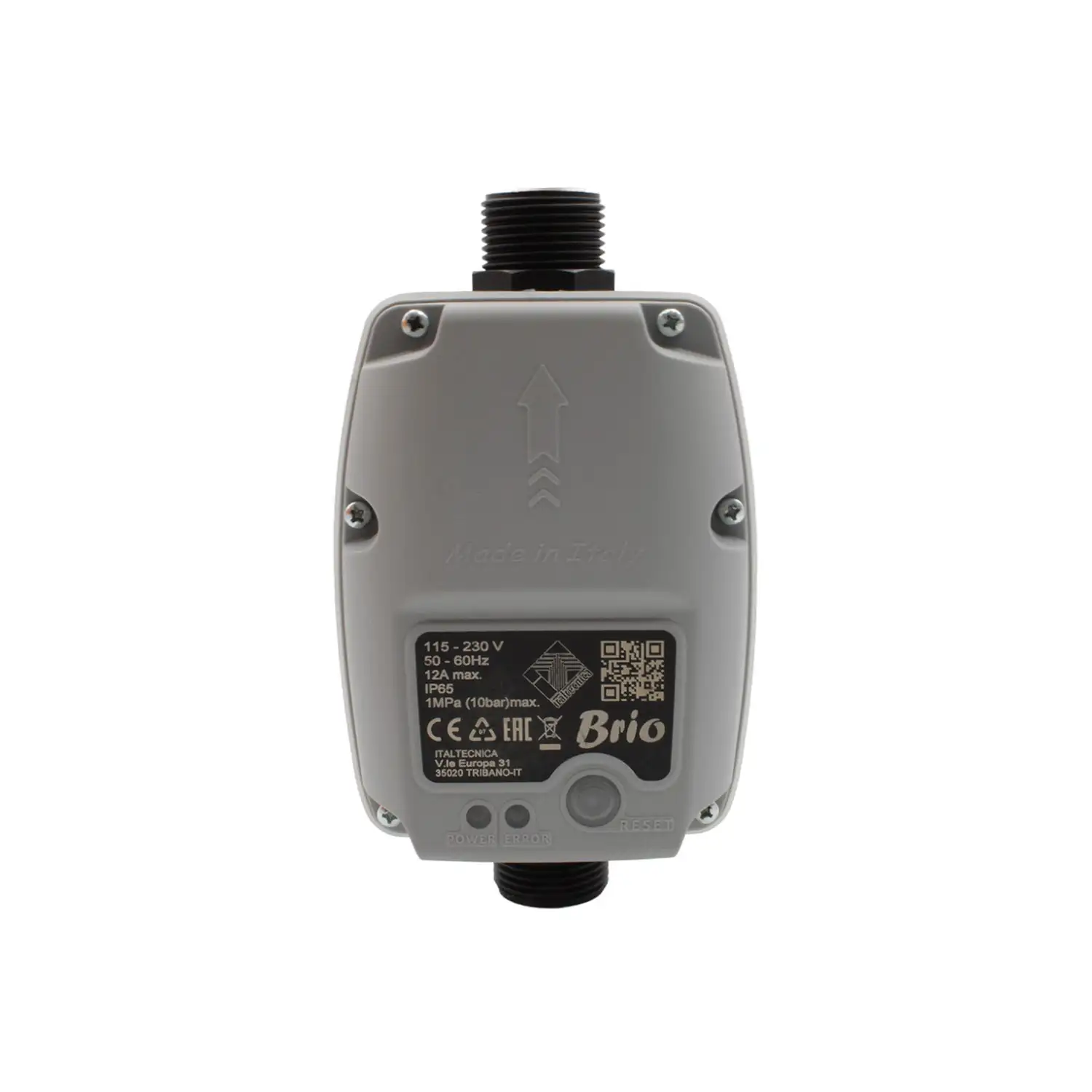

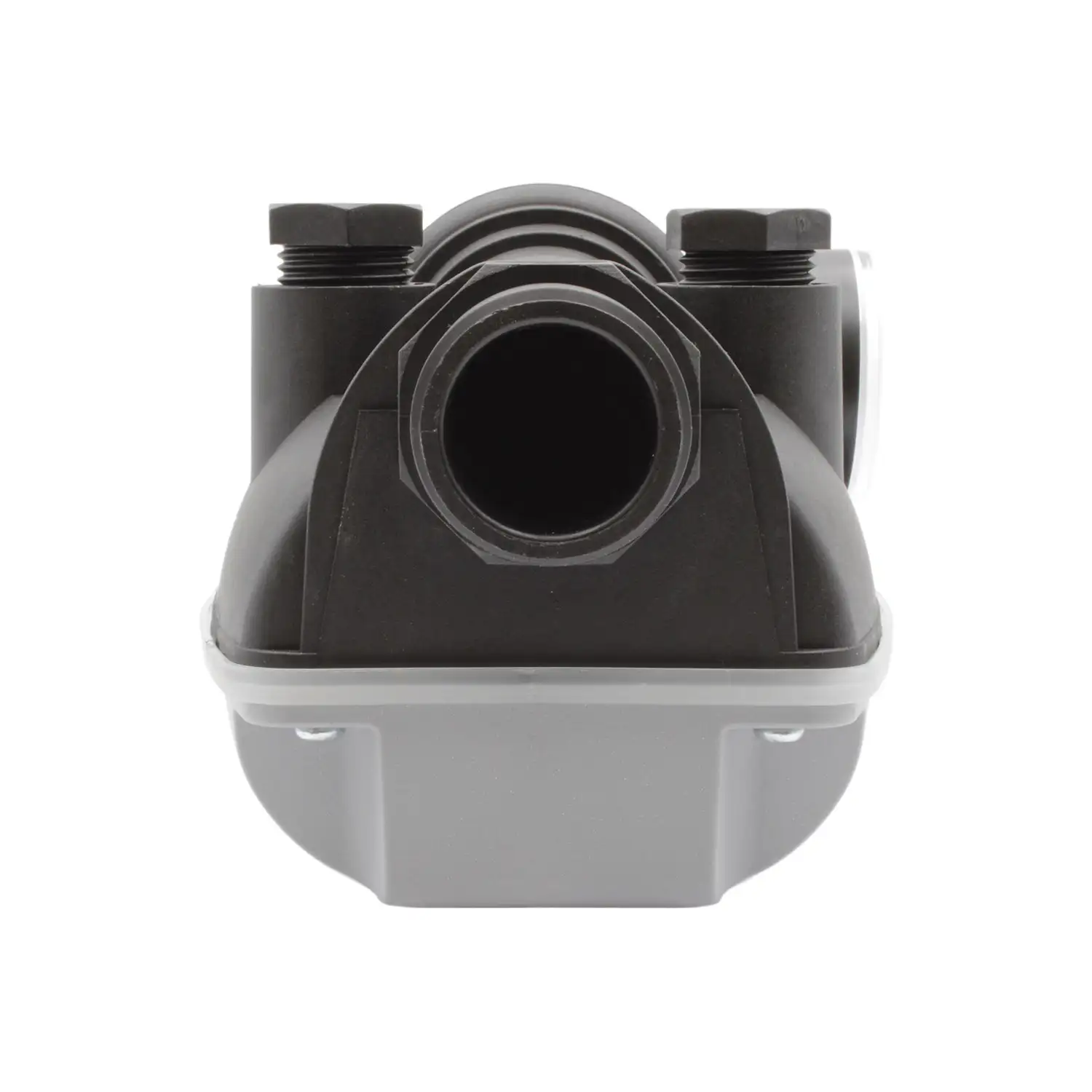

The Italtecnica Brio electronic pressure regulator is an electronic device that automatically controls the start and stop of single-phase electric pumps up to 2 HP.
Its function replaces the traditional system consisting of a pressure switch and expansion tank. It starts the pump following a drop in pressure and stops it when the liquid flow drops below 2.5 liters per minute.
The Brio protects the system from dry running. It features a built-in, serviceable check valve.
It has a built-in Smart Auto Reset. After a water shortage, it attempts to restart at longer intervals, for a total of 10 attempts.
Anti-seize protection is standard. After every 24 hours of non-use, it runs the pump for 10 seconds to prevent the rotor from seizing.
It can be installed in any position both vertical and horizontal.
- Power (HP)
- 2
- Degree of protection
- IP 65
- Max. flow rate (l./min.)
- Max. working pressure (bar)
- Restart pressure (bar)
- 3.5
- Jobs
- irrigation, pressurization systems, water supply
- Max. liquid temperature (°C)
- Line power supply
- single-phase
- Supply voltage (Volts)
- 230
- Line Current (Ampere)
- 12 A
- Engine power supply
- single phase
- Motor voltage
- 230 V
- Dry running protection
- Yes
- Height (cm)
- Attack size
- 1 "
- Weight (Kg)
- Warranty (years)
- 2
- Type of attack
- male
